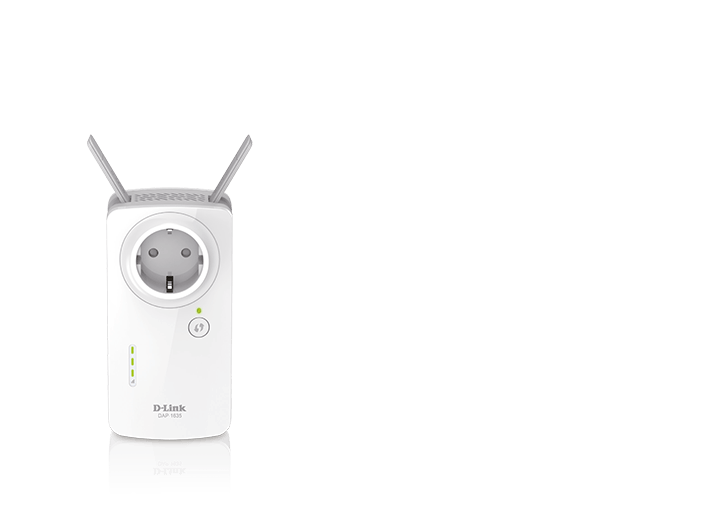

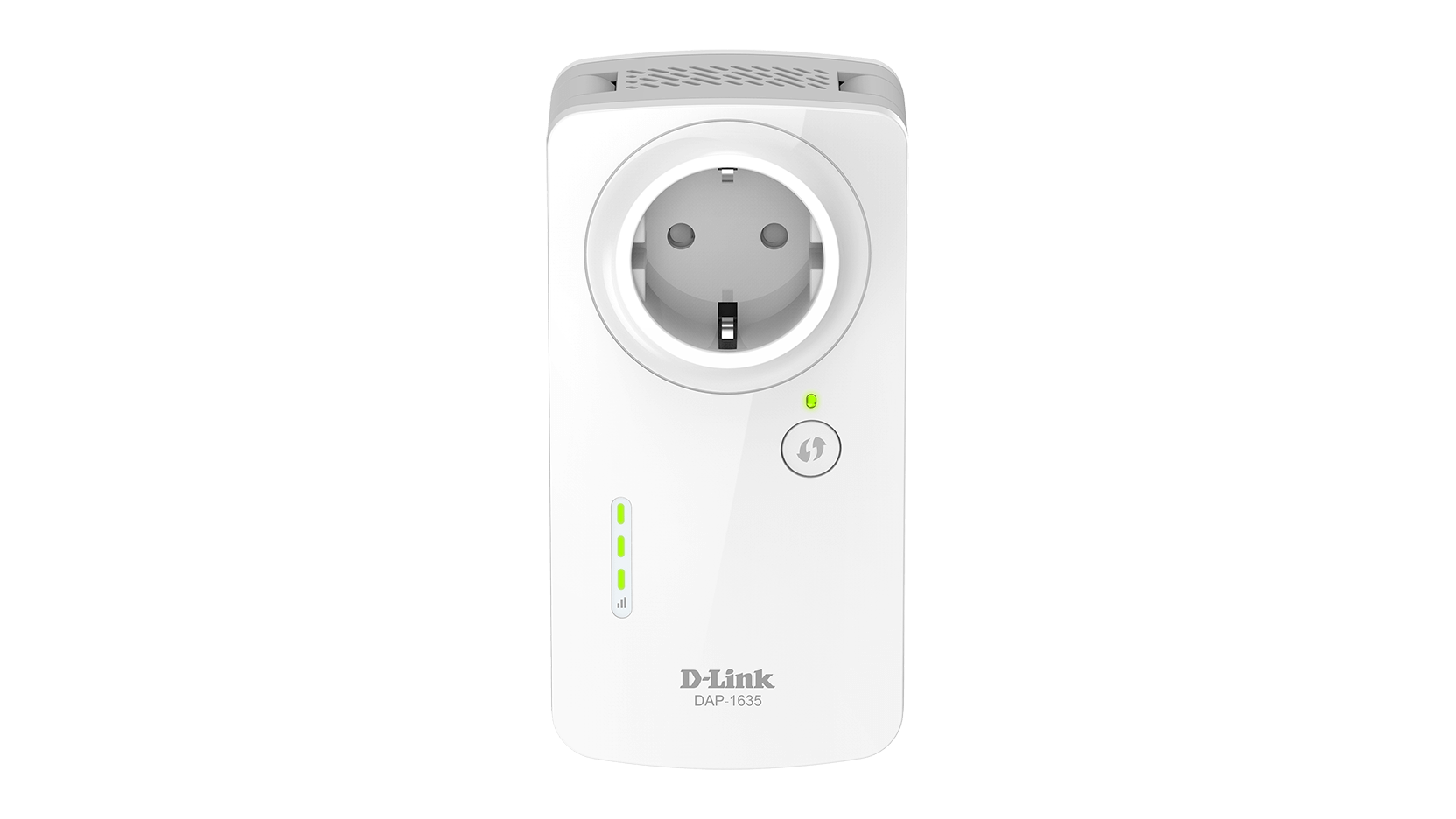

AC1200 WiFi Range Extender with Power Passthrough

DAP-1635

Share

Extend
Your
Wi-Fi.


The DAP-1635 AC1200 Wi-Fi Range Extender with Power Passthrough allows you to quickly and easily extend an existing Wi-Fi network without taking up an electrical outlet.

Key features

Expand your
Wi-Fi coverage

Easy expansion of your Wi-Fi coverage

SmartSignal
LEDs

Helps you find the best location for optimal coverage

Passthrough
socket

Allows you to continue to use the power socket, to power another device

Dual Band 11AC Wireless

Two simultaneous wireless networks for optimal speed

Extend your wireless network

Increase the coverage of your home Wi-Fi network with high-speed AC1200 technology offering combined wireless speeds of up to 1200 Mbps*.

Dual-band technology helps to reduce interference from neighbouring Wi-Fi networks, allowing you to enjoy fast, reliable wireless connection.

The DAP-1635 is also backwards compatible with older wireless devices in your network.

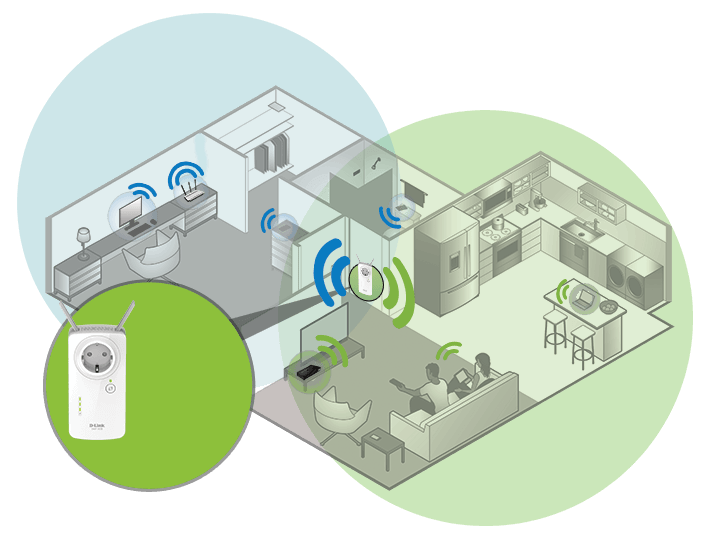

EXISTING WI-FI COVERAGE

WI-FI COVERAGE WITH RANGE EXTENDER

AC1200 Wi-Fi Range Extender with Power Passthrough (DAP-1635)

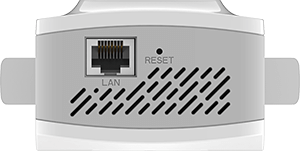

You can also use the built-in Gigabit Ethernet port and your home’s existing wired Ethernet cabling to extend wireless coverage without worrying about signal strength.

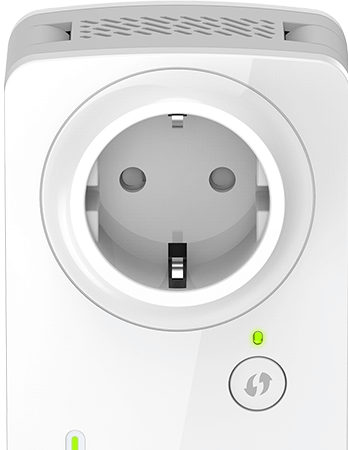

Passthrough
Socket

The power passthrough design ensures that your electrical outlet remains available to power another electrical appliance.




Easy to set up
and easy to use

Setting up the AC1200 Wi-Fi Range Extender is simple. You can use one-touch configuration by pushing the WPS push-button on the DAP-1635 and on your router or access point, and the DAP-1635 will automatically configure itself.

Alternatively, you can use the supported QRS Mobile app on your iOS or Android smartphone or tablet to set up the DAP-1635 easily without needing a computer. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.

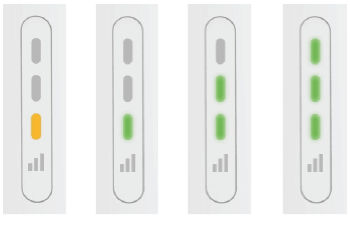

Visual signal indicator

Visual signal indicator

Plug it in and use the LED signal indicator to find the best location to extend your network.
Optimal Wi-Fi coverage with zero guessing.

  • Poor
  • Ok
  • Good
  • Best

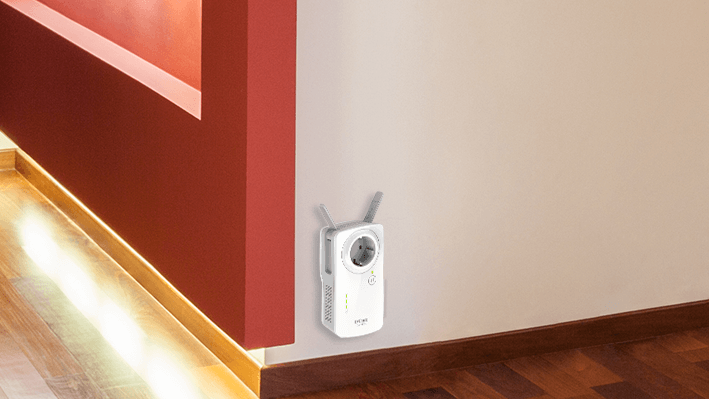

Compact and convenient design

The DAP-1635 is ideal for use at home or a small office and is ready to use by simply plugging it in. The visual Wi-Fi Signal Indicator LED makes finding a suitable location simple.

Its wall-plug design saves you the hassle of dealing with a power cord and its sleek, unobtrusive appearance blends easily into your decor.

* Maximum wireless signal rate derived from IEEE Standard 802.11ac, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Functions & Features

Features

Connectivity

  • Wireless AC gives you high-speed wireless connectivity for your devices
  • Wireless 802.11n/g/b/a backward compatibility
  • Combined wireless speeds of up to 1200 Mbps1
  • Dual-band connectivity for greater flexibility and reduced interference
  • 10/100/1000 Gigabit Ethernet Port
  • Passthrough power socket

Security

  • WPA2/WPA wireless encryption to keep your wireless connection secure
  • Wi-Fi Protected Setup (WPS) for secure setup with the simple press of a button

Easy to Use

  • One-piece wall plug design is compact, portable, and does not require additional power cables
  • Built-in setup wizard and QRS Mobile app for mobile devices guide you through installation

Technical Specifications

General

Device Interfaces

  • 802.11ac/n/g/b/a Wireless LAN
  • 10/100/1000 Gigabit Ethernet Port
  • Reset Button
  • WPS Button

LEDs

  • Status/WPS
  • Wi-Fi Signal Strength Indicator

Standards

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
  • IEEE 802.3ab

Antennas

  • Two external antennas

Functionality



Wireless Security

  • Wi-Fi Protected Access (WPA/WPA2)
  • WPS (PBC)

Advanced Features

  • D-Link One-Touch Extender Setup

Device Management

  • Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices
  • Web UI

Physical

Dimensions

  • 142.6 x 73 x 48 mm (5.76 x 2.87 x 1.89 inches)

Weight

  • 243 grams (8.6 ounces)

Power

  • Input: 110 to 240 V AC, 50/60 Hz

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE
  • RoHS
  • Wi-Fi Certified
  • WPS Setup
1. Maximum wireless signal rate derived from IEEE Standard 802.11ac, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
