Wi-Fi AC750 Dual Band Range Extender

DAP-1520

  • Product Status: Live

The DAP-1520 Wireless AC750 Dual-Band Range Extender is a portable plug-in wireless repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 750 Mbps, yet fits in the palm of your hand.


Download the datasheet.

Partner üzleteink
The DAP-1520 Wireless AC750 Dual-Band Range Extender is a portable plug-in wireless repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 750 Mbps, yet fits in the palm of your hand.

Easy to Set Up, Easy to Use

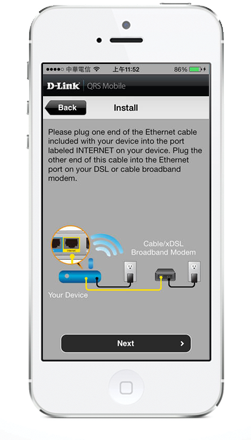

Setting up the Wireless AC750 Dual-Band Range Extender is simple. You can use the supported QRS Mobile app on your iOS or Android mobile device to set up the DAP-1520 easily without needing a computer.
Alternatively, you can use one-touch configuration by pushing the WPS push-button on the DAP-1520 and on the router or AP you want to extend, and the DAP-1520 will automatically configure itself for you. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.

Extend Your Wireless Network


Increase the coverage of your home Wireless network with the sleek and easy-to-use DAP-1520 Wireless AC750 Dual-Band Range Extender. Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a blazing-fast, reliable wireless connection.

Compact, Convenient Design

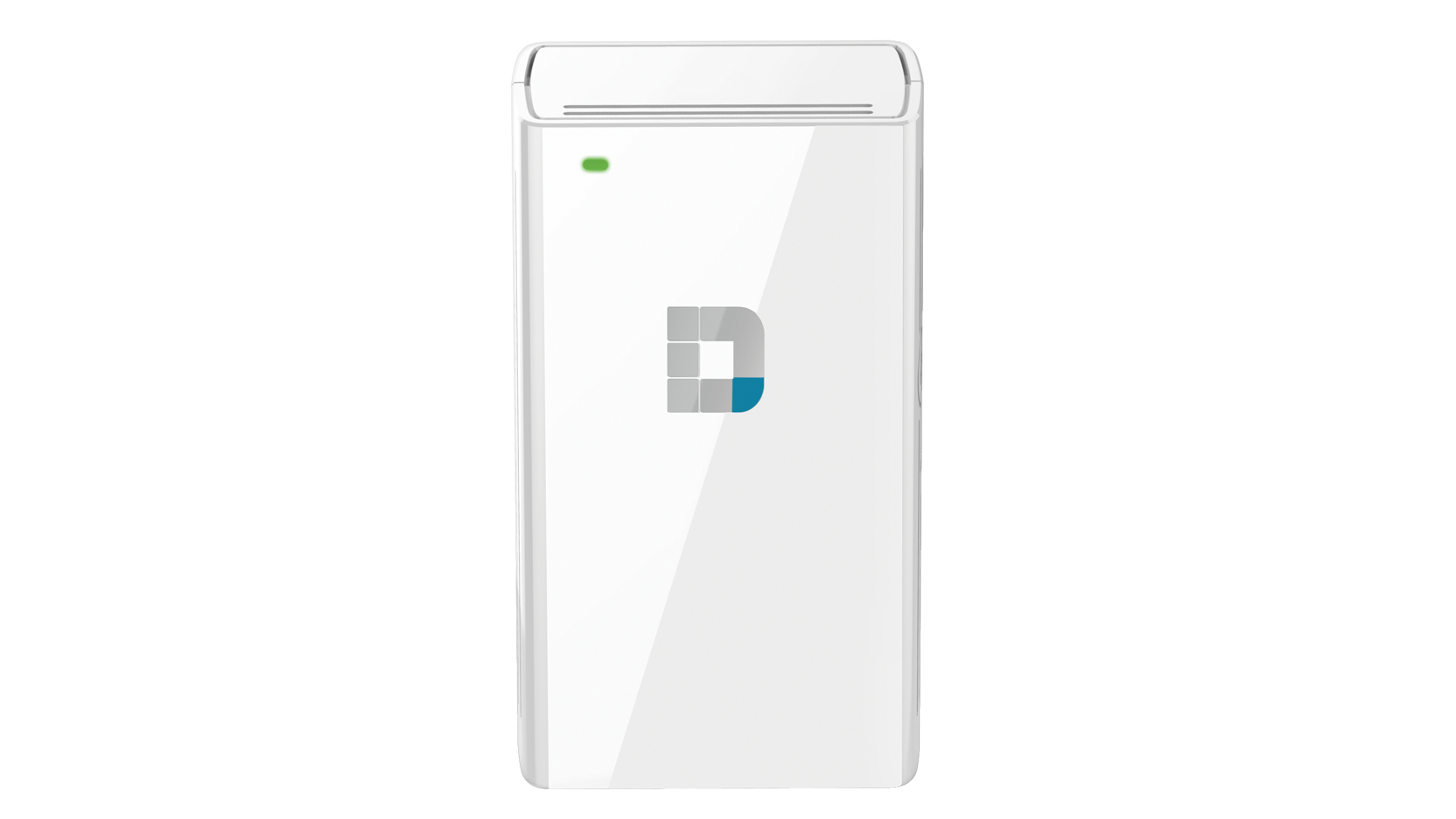

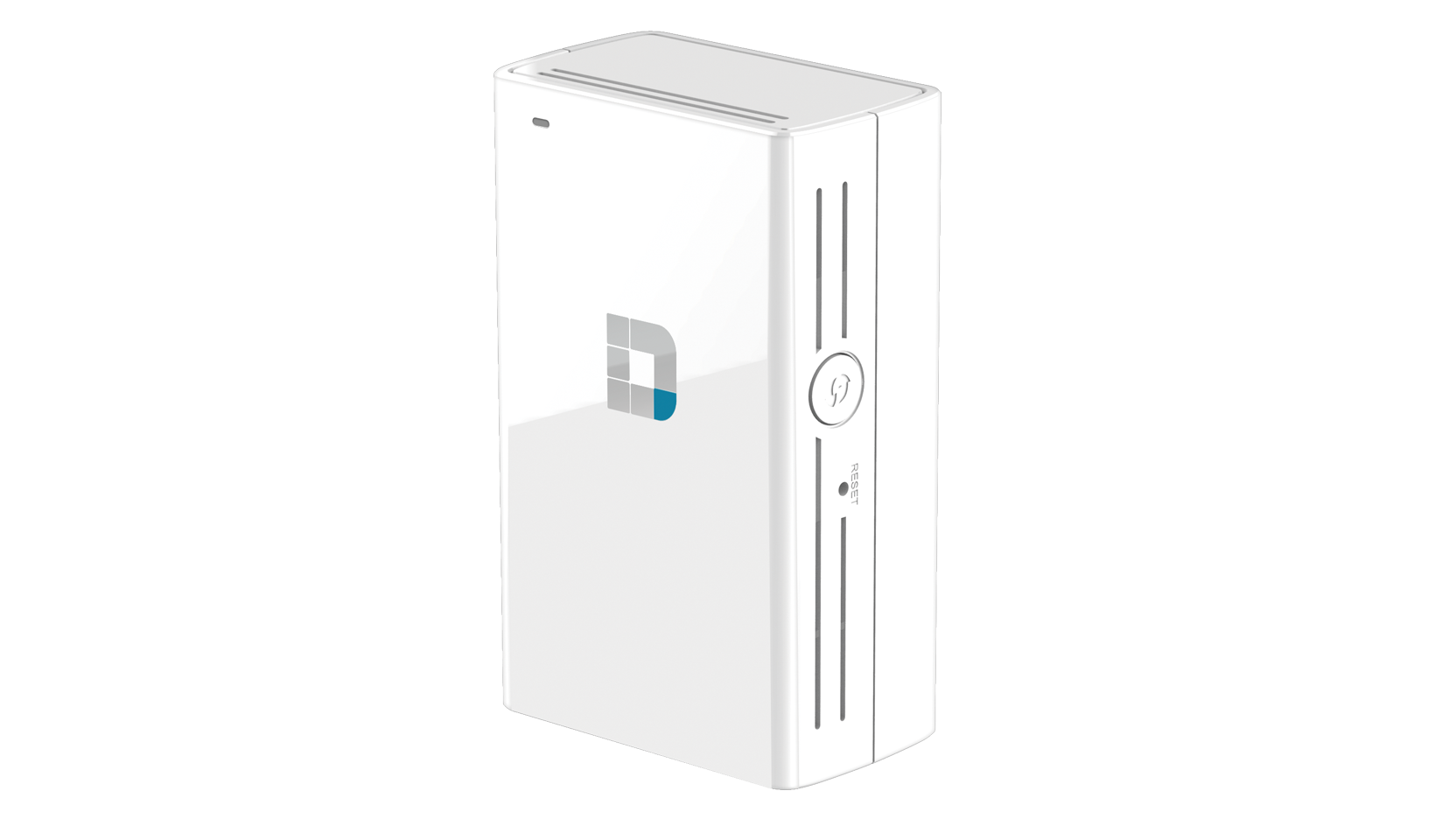

The DAP-1520 is a compact device that is ideal for use at home or in a small office, as it does not take up much space and is ready to use by simply plugging it in. Its diminutive wall-plug design easily plugs into a power outlet without blocking other outlets and saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.

Product Awards

DAP-1520 Review Dagbladet.no
D-Link DAP-1520 AC Range Extender
Easy to set up, works great, fairly easy, less performance loss than other devices.

Related Products

Wireless N300 Range Extender
DAP-1320
Tudj meg többet!
PowerLine AV 500 Wireless N Mini Starter Kit
DHP-W311AV
Tudj meg többet!
Wireless AC750 Dual-Band Cloud Router
DIR-810L
Tudj meg többet!
Wireless AC1750 Dual-Band Gigabit Cloud Router
DIR-868L
Tudj meg többet!

Technical Specifications

General

Device Interfaces

  • 802.11ac/n/g/b/a wireless LAN
  • WPS button
  • Reset button

LEDs

  • Status/WPS

Standards

  • IEEE 802.11ac (draft)
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a

Antennas

  • Two internal antennas

Plug Type

  • Region dependent

Functionality

Wireless Security

  • Wi-Fi Protected Access (WPA/WPA2)
  • WEP 64/128-bit encryption
  • WPS (PBC)

Advanced Features

  • D-Link One-Touch Extender Setup

Device Management

  • Supports QRS Mobile app for iPhone, iPad, iPod Touch, and Android mobile devices
  • Web UI

Physical

Dimensions

  • 92 x 58 x 34.2 mm (3.62 x 2.28 x 1.35 inches)

Weight

  • 104 grams (3.67 ounces)

Power

  • Input: 110 to 240 V AC, 50/60 Hz

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • FCC
  • IC
  • CE
  • C-Tick
  • EMI/EMC
  • UL
  • Wi-Fi Certified

1. Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors can adversely affect wireless signal range. Combined wireless speeds of up to 750 Mbps achieved when extending 802.11ac wireless networks.
