N300 Wi-Fi Range Extender

DAP-1325

  • Product Status: Live
The DAP-1325 N300 Wi-Fi Range Extender is a portable plug-in adapter that lets you extend an existing wireless network. Simply place it anywhere in your home to extend the range of your wireless network.

Download the datasheet.

Partner üzleteink

Extend
Your
Wi-Fi.


The DAP-1325 N300 Wi-Fi Range Extender is a portable plug-in adapter that lets you extend an existing wireless network.

Simply place it anywhere in your home to extend the range of your wireless network.

Key features

Expand your
Wi-Fi coverage

Easy expansion of your Wi-Fi coverage

Smart Signal LEDs

Helps you find the best location for optimal coverage

One-Touch Security

Connect securely with the push of a button

Ethernet Port

Connect a wired device or create a wireless hot-spot

Extend your wireless network

Eliminate poor Wi-Fi performance and increase your wireless network coverage with speeds of up to 300 Mbps1. Use the built-in Ethernet port to create a personal Wi-Fi hotspot or connect a wired device.

EXISTING WI-FI COVERAGE

WI-FI COVERAGE WITH RANGE EXTENDER

N300 WI-FI RANGE EXTENDER (DAP-1325)







Easy to set up
and easy to use

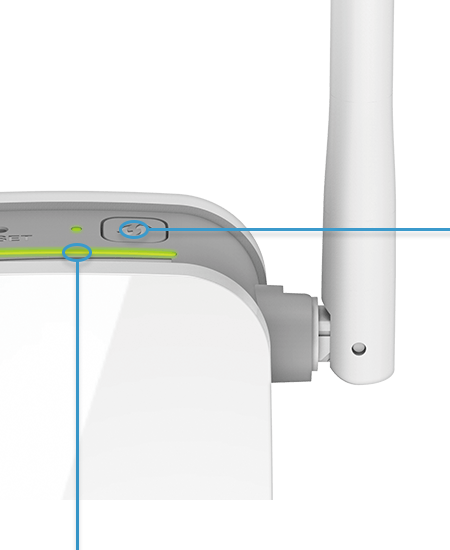

Push the WPS one-touch configuration button, push the WPS button on your existing WiFi device: You are done. The DAP‑1325 will automatically configure itself.

Alternatively, you can use our QRS Mobile App on your iOS or Android mobile device to easily set up the DAP‑1325 without a computer.

The N300 Wi‑Fi Range Extender even includes a built‑in setup wizard should you want finer control of wired and wireless settings.

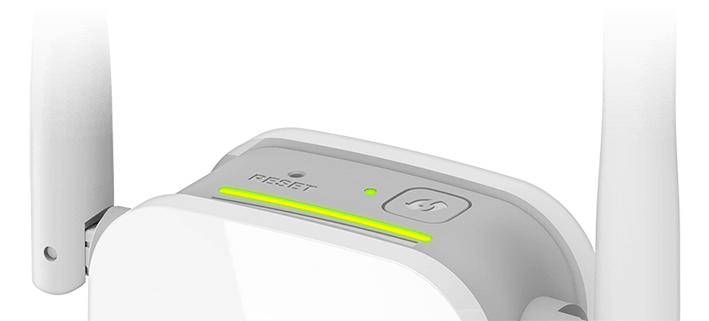

Visual signal indicator

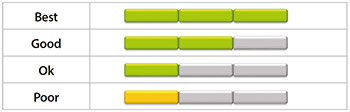

Plug it in and use the LED signal indicator to find the best location to extend your network.
Optimal Wi-Fi coverage with zero guessing.

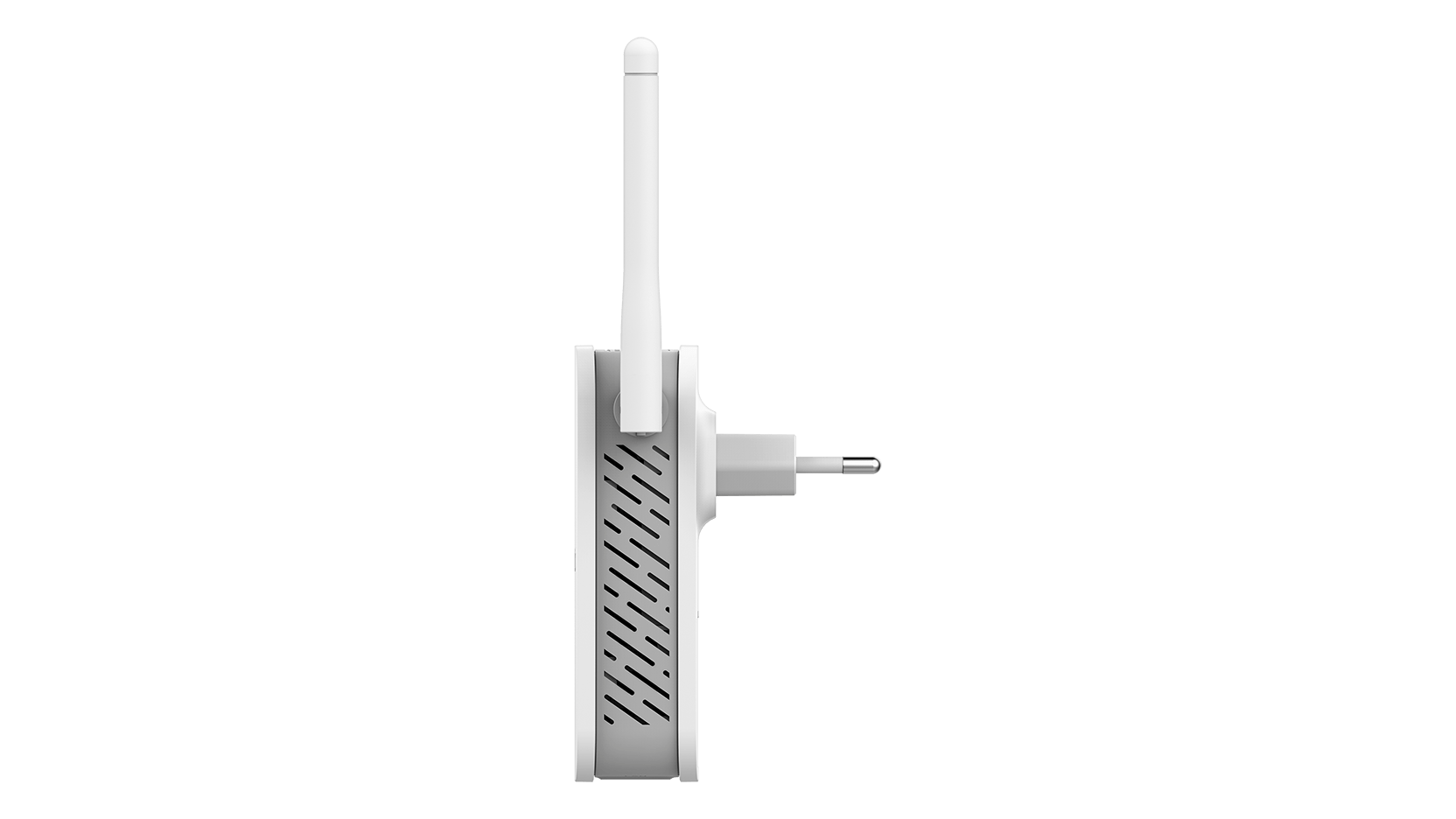

Compact and convenient design

The DAP-1325’s compact design and intuitive setup makes it perfect for use at home or in a small office. Its diminutive wall-plug design saves you the hassle of dealing with a power cord and its sleek, unobtrusive appearance blends easily into any decor.

1. Maximum wireless signal rate derived from the IEEE Standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

Related Products

AC1200 Wi-Fi Range Extender
DAP-1620
Tudj meg többet!
Wi-Fi AC750 Dual Band Range Extender
DAP-1520
Tudj meg többet!
N300 Wi-Fi Range Extender with Power Passthrough
DAP-1365
Tudj meg többet!
N300 Wi Fi Range Extender
DAP-1330
Tudj meg többet!
Wireless N300 Range Extender
DAP-1320
Tudj meg többet!

Technical Specifications

Functions & Features

Features

Connectivity

  • Wireless N gives you high-speed wireless connectivity for your devices
  • Wireless 802.11g/b backward compatibility
  • Wi-Fi speeds of up to 300 Mbps1
  • 10/100 Fast Ethernet Port

Security

  • WPA2/WPA wireless encryption to keep your wireless connection secure
  • Wi-Fi Protected Setup (WPS) for secure setup with the simple press of a button

Easy to Use

  • One-piece wall plug design is compact, discreet and does not require additional power adapter and cable
  • Built-in setup wizard and QRS Mobile app for mobile devices guide you through installation

Technical Specifications

General

Device Interfaces

  • 802.11n/g/b Wireless LAN
  • 10/100 Fast Ethernet port
  • Reset button
  • WPS button

LEDs

  • Status/WPS
  • 3 Segment Wi-Fi signal strength indicator

Standards

  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.3ab

Antennas

  • Two external antennas

Plug Type

  • Region dependent

Functionality

Wireless Security

  • Wi-Fi Protected Access (WPA/WPA2)
  • WPS (PBC)

Advanced Features

  • D-Link One-Touch Extender Setup

Device Management

  • Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices
  • Web UI

Physical

Dimensions

  • 97.9 x 50.7 x 48.7 mm (3.95 x 2.00 x 1.91 inches)2

Weight

  •  97 grams (3.42 onces)

Power

  • Input: 110 to 240 V AC, 50/60 Hz

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • FCC
  • IC
  • CE
  • RCM
  • IDA
  • CB
  • LVD
  • UL
  • WPS
  • Wi-Fi Certified
  • RoHS
1. Maximum wireless signal rate derived from the IEEE Standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
2. Dimensions do not include the regional plug type.
