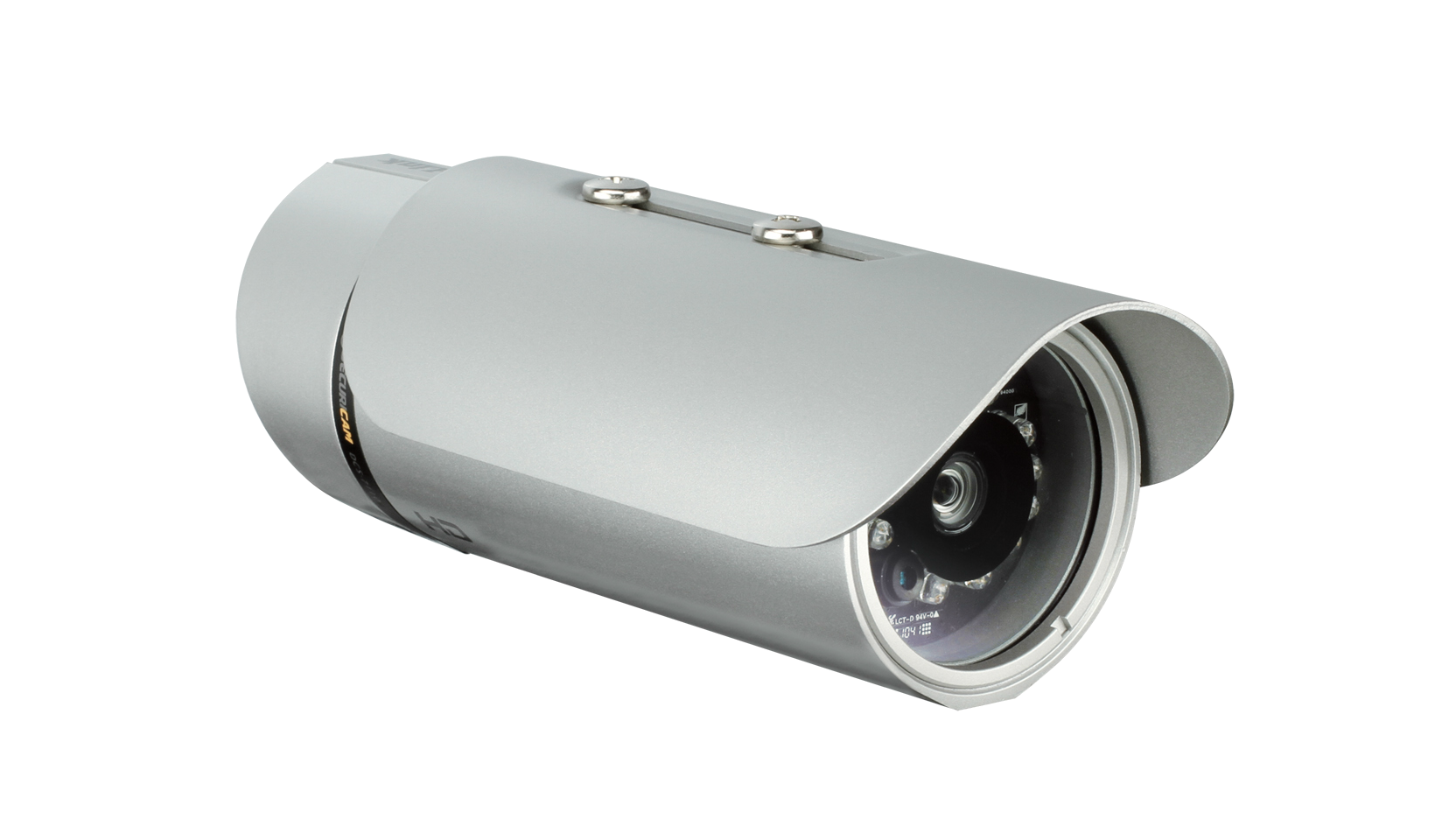

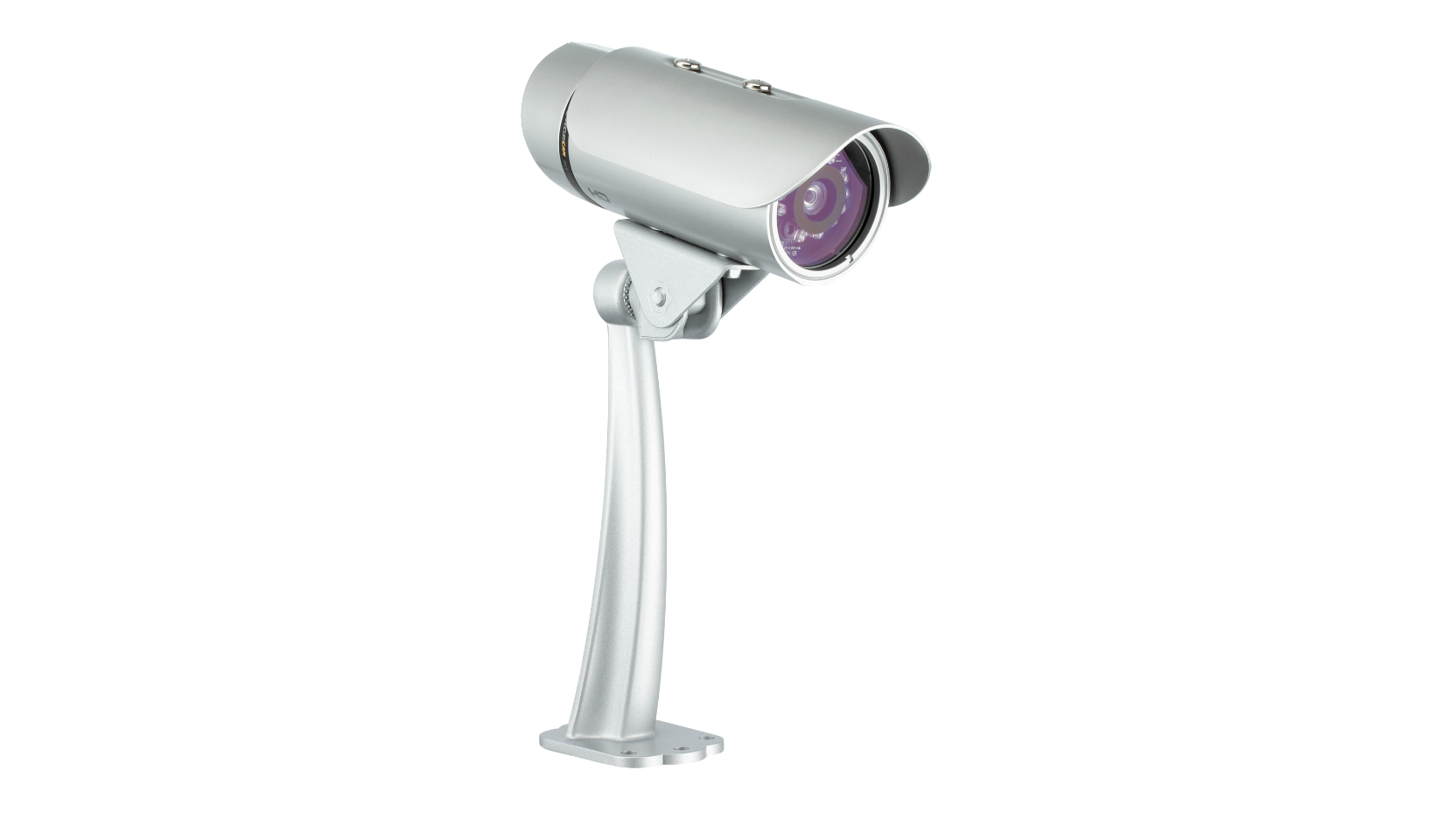

Outdoor Full HD PoE Day/Night Fixed Bullet Network Camera

DCS-7110

  • Product Status: Phased Out

The D-Link DCS-7110 is an all-in-one, outdoor network camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression. The DCS-7110 connects to a network to provide high-quality live video over the Internet, capable of capturing video in both day and night environments thanks to its built-in IR LEDs and IR-cut removable (ICR) filter. This feature allows the camera to capture crisp colour images during the daytime and detailed grayscale images at night or in or low-light conditions.


Download the datasheet.

List Retailers

The D-Link DCS-7110 is an all-in-one, outdoor network camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression. The DCS-7110 connects to a network to provide high-quality live video over the Internet, capable of capturing video in both day and night environments thanks to its built-in IR LEDs and IR-cut removable (ICR) filter. This feature allows the camera to capture crisp colour images during the daytime and detailed grayscale images at night or in or low-light conditions.

Multiple Video Streams

The DCS-7110 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording in high detail or for use in low-bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require better image quality. Additionally, the DCS- 7110 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Flexible Connectivity

The DCS-7110 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-7110 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Weatherproof and Tamper Proof

Designed to be mounted outdoors, the DCS-7110 includes an IP66 certified enclosure which protects against the elements. Anti-tamper features make this camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper detection system can sense when the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

D-ViewCam for Management

The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

Dualband HD Media Router
Find out more
Wireless N Home Router με τεχνολογία SmartBeam™
Find out more
ShareCenter Pro 4-Bay 1U Rackmount Unified Storage
Find out more
Wireless N Unified Services Router
Find out more
UTM Firewall
Find out more

Technical Specifications

Features

Superior Performance

  • 1/2.7” 2 megapixel CMOS sensor
  • Real-time H.264/ MPEG-4/ MJPEG
  • Max. resolution of 1920x1080 at 15 fps

Crystal Clear Feed

  • Four (4) simultaneous streams
  • Built-in 4 mm, F1.5 fixed lens
  • 15M IR illumination distance
  • IR-Cut Removable filter for day/night vision

Robust Security

  • Tamper detection
  • Motion detection
  • Privacy mask
  • IPv6, 802.1x, QoS, CoS
  • HTTPS secured streaming

Full Compatibility

  • Samba client
  • IP66 weatherproof
  • ONVIF compliant
  • 12V DC, 24V AC and PoE
  • DI/DO socket

Technical Specifications

General

Hardware Profile

  • 1/2.7” 2 Megapixel progressive CMOS sensor
  • 15 metre IR illumination distance
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • 4 mm fixed lens , F1.5
  • Shutter speed: 1/5 - 1/32,000 seconds
  • Angle of view:
    • 77.4° (H)
    • 45.1° (V)
    • 88° (D)
  • Minimum object distance: 0.4 M

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • 3 configurable motion detection windows
  • Min Illumination:
    • 0.12 Lux (day mode)
    • 0 Lux (night mode) with IR LED
  • 5 configurable privacy masks
  • Flip & mirror
  • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Functionality

Video Compression

  • H.264/MPEG4/MJPEG format compression simultaneously
  • JPEG for still image
  • H.264/MPEG-4 multicast streaming

Video Resolution

  • 1920 x 1080 @ 15 fps
  • 640x480 @ 30 fps
  • 320x240 @ 30 fps
  • 1280x800 @ 30 fps
  • 1280x720 @ 30 fps

Network Protocols

  • IPv4
  • IPv6
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP / HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP/RTSP/RTCP
  • IP filtering
  • LLTD
  • CoS/QoS
  • SNMP
  • IGMP
  • 802.1x
  • ONVIF Compliant

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
  • HTTPS streaming

System Requirements

  • Microsoft Windows 2000, XP, Vista, 7
  • Internet Explorer 7 or higher

D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows ® 7/Vista/XP
  • Web Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP

Event Management

  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple event notification
  • Multiple recording methods for easy backup

Surveillance Software Functions

  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered and manual recording options

External Device Interface

  • DI and DO for external sensor and alarm

Physical

Dimensions

  • Ø66 x 172 mm

Weight

  • 808 grams (1.78 lbs)

Power

  • Input: 12 V DC 1.25 A, 24 V AC, 50/60 Hz, 802.3af PoE

Max. Power Consumption

  • 6.3W

Temperature

  • Operating temperature-20 to 50 ˚C (-4 to 122 ˚F)
  • Storage:-20 to 70 ˚C (-4 to 158 ˚F)

Humidity

  • Operating: 0% to 90% non-condensing

Certifications

  • CE (Class A)
  • CE LVD (EN60965-1)
  • FCC (Class A)
  • ICES-003
  • C-Tick

FAQ

  • How do I change the storage location in D ViewCam v3 x Read Answer
  • How do I setup the D ViewCam Mobile app with a PC running D ViewCam Read Answer

Downloads can vary across product revisions. Please select the correct hardware revision.


This product was phased out on: 15/6/2017
