Securicam H.264 PTZ Network Camera

DCS-5605

  • Product Status: End of Life
  • 1/4 inch colour CCD sensor, de-interlace scan mode
  • 10x optical zoom (16x digital zoom) with auto-focus
  • Strong mechanical design
  • Simultaneous H.264, Motion JPEG and MPEG-4 streams
  • 3G mobile video, for live video streams on a 3G mobile phone or PDA
  • Digital I/O ports for connection to external devices
  • Built-in IR-Cut Removable (ICR) filter, for enhanced colour rendering in the day and good results in low light conditions
  • Direct recording to NAS device (no software required)
  • Micro SD card slot for front-end storage
  • Audio jacks for connection to speakers and microphone
  • Monitoring software included (support for up to 32 cameras)

The DCS-5605 is a professional IP surveillance solution which connects to your network to provide high-quality live video over the Internet. The camera apparatus supports precise high-speed pan/tilt/zoom functionality for extensive monitoring and object tracking.

High-performance surveillance solution

The DCS-5605 features motorised pan, tilt, and optical/digital zoom for ultimate versatility. The 10x optical zoom lens delivers the level of detail necessary to identify faces, license plate numbers, and other important details that are difficult to clearly distinguish using digital zoom alone.

In addition, the camera includes a built-in Infrared Cut Removable (ICR) filter that enables the camera to capture crisp colour images during the daytime, and grayscale images in low-light.

Sturdy design for versatile solution

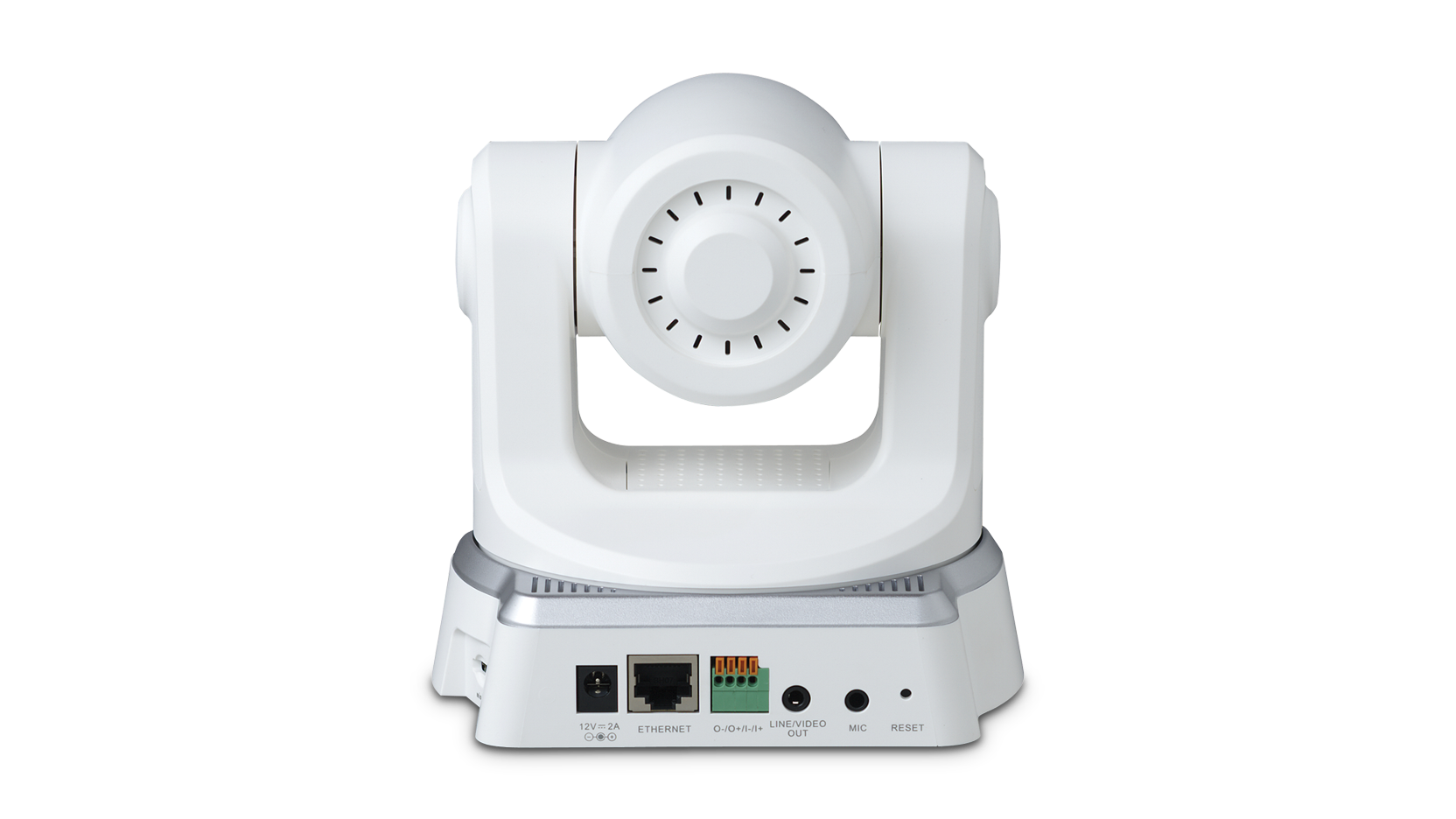

The DCS-5605 features a strong mechanical design that ensures a long product life span. It includes connectors to connect external microphone and speakers, for two-way audio. It is also equipped with 2 Digital Input/Output ports for connection to external devices such as a light or an alarm.

Advanced video encoding

The DCS-5605 allows up to 4 distinct profiles simultaneously to address different requirements, for example 3G mobile viewing or recording. It offers real-time video compression in MJPEG, MPEG-4 and H.264 formats.The H.264 codec can reduce the size of a video stream by up to 80% compared to Motion JPEG. Thus, less network bandwidth and storage space is required.

With the built-in Samba client, software is not required to record the action directly on a network storage device. An Micro SD card slot is also included for local storage.

Remote monitoring

With the D-ViewCam software included, up to 32 cameras may be monitored on a single computer screen at one central location. The DCS-5605 also features 3G mobile video support, enabling you to view a live video feed from the camera on a compatible 3G mobile phone or mobile device capable of RTSP (Real Time Streaming Protocol) streaming. This enables you to monitor your office space in real time even when you are off site.

Easy to install

The DCS-5605 integates easily within your Ethernet data network. In addition, this network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista to automatically recognize the camera and add it to the network. By signing up with one of the free Dynamic DNS services available on the web and assigning a name to the camera (for example, mycamera.dlinkddns.com), you may remotely access the camera without having to remember your network’s IP address.

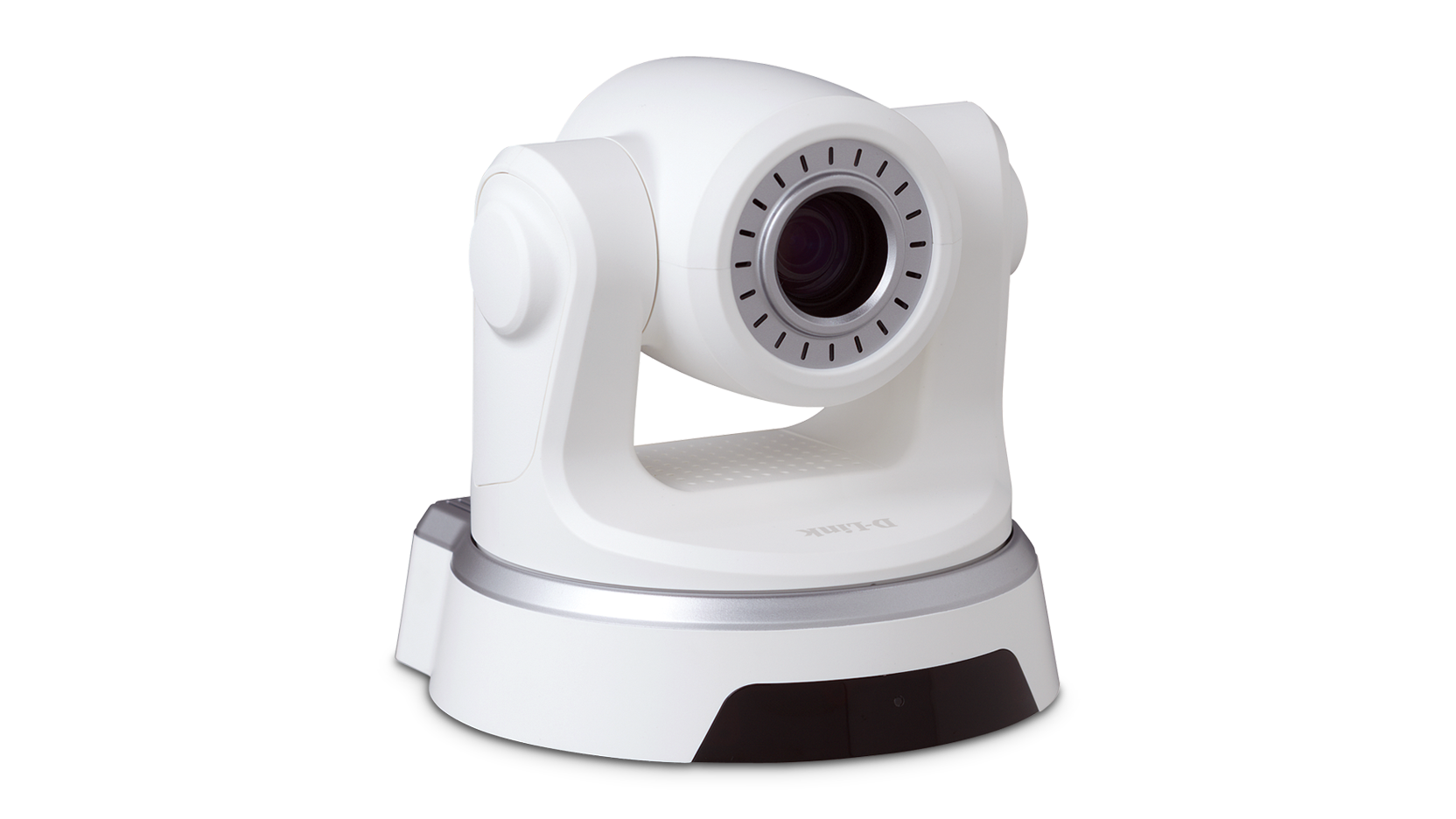

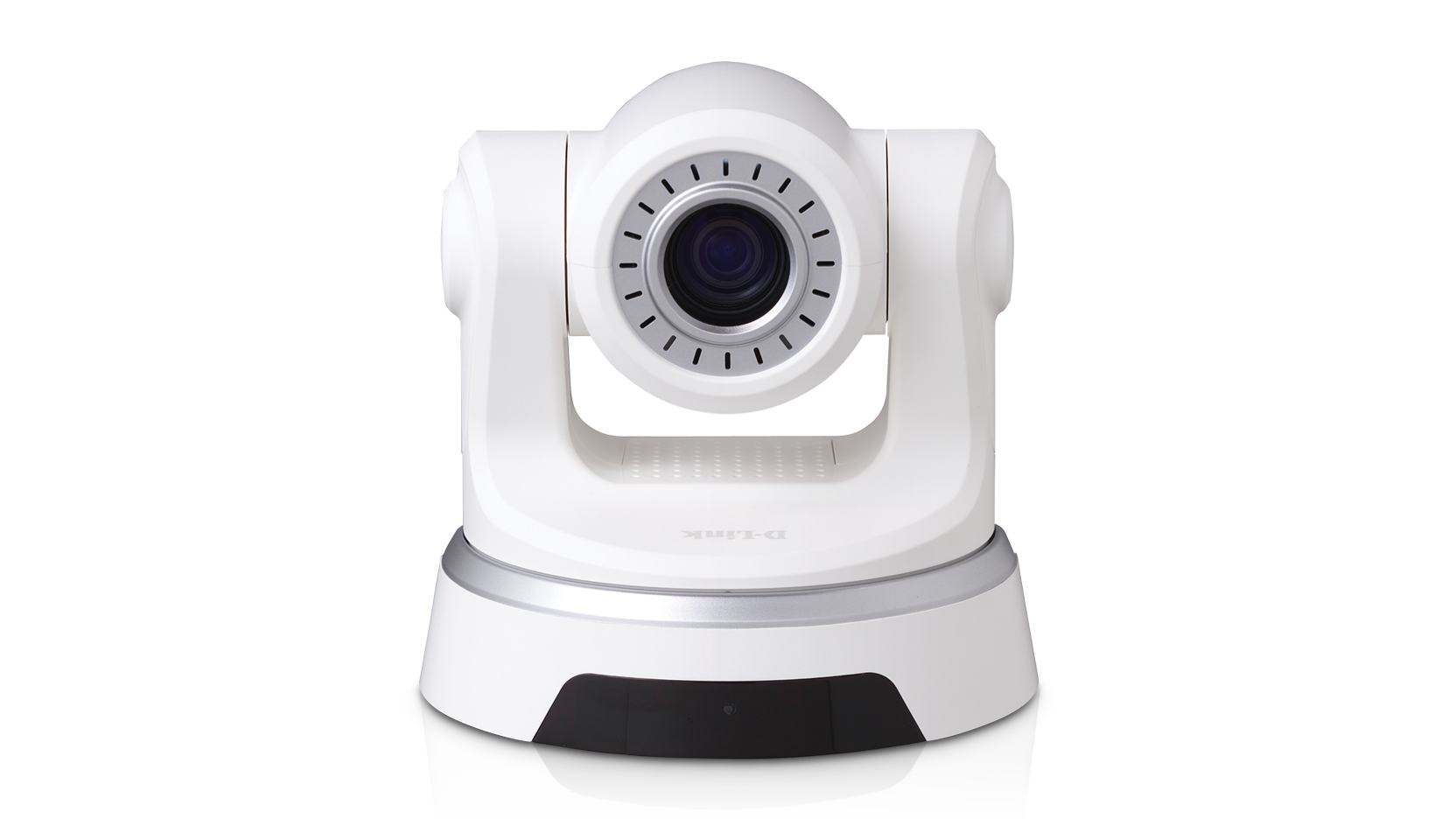

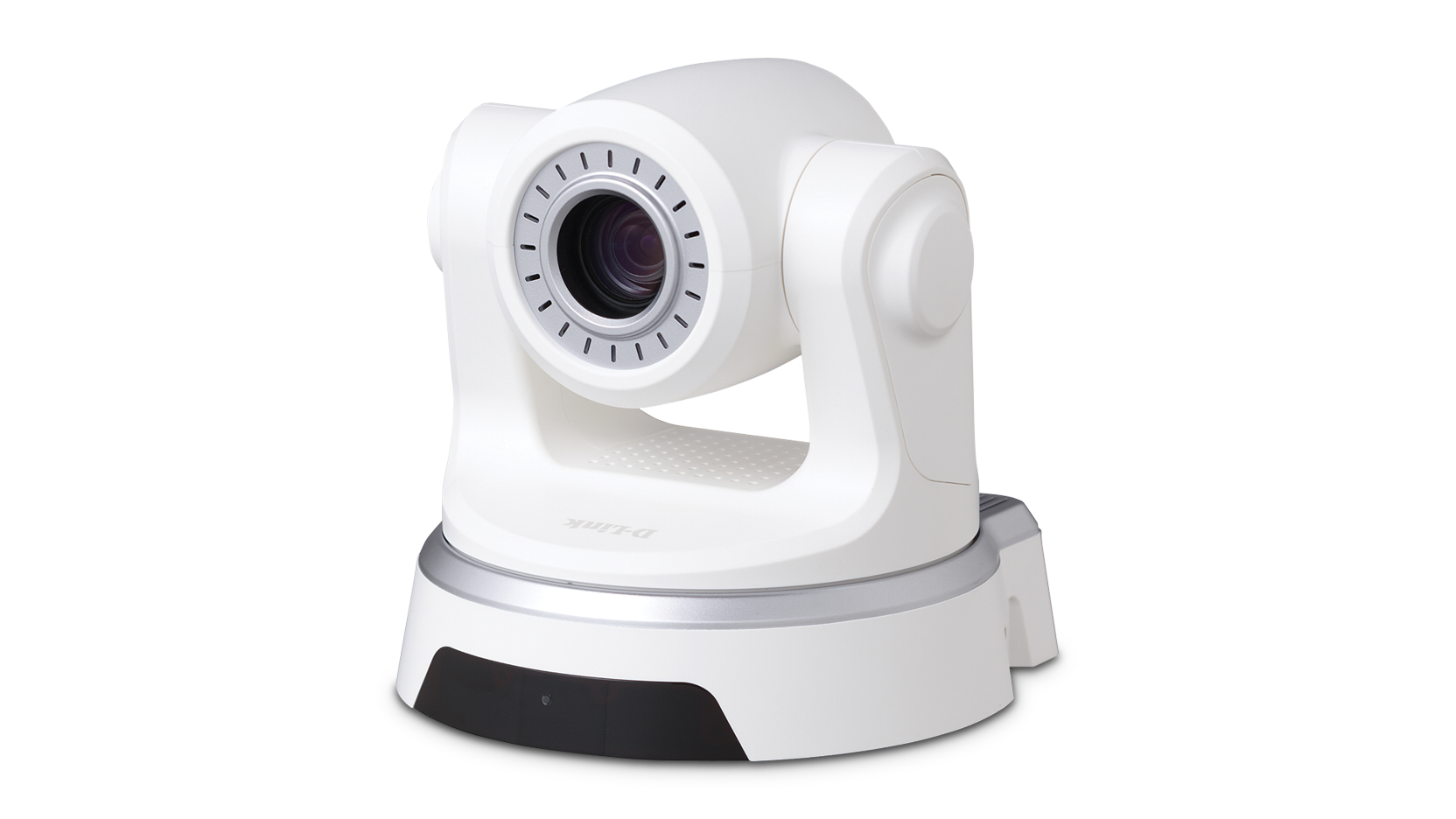

Actual product appearance may differ from the image displayed on this page
Camera
  • 1/4" colour CCD Sensor, De-Interlace Scan mode
  • Pan angle: +/- 165°
  • Tilt angle: -87 to +34°
  • Minimum illumination: colour, 0.7 Lux (F1.8); B&W, 0.02 Lux (F1.8)
  • Lens: focal length: 3.8 to 38 mm, F number: F1.8
  • 10x optical zoom, 16x digital zoom

Network
  • 10/100Base-TX Ethernet port
  • 802.11n Wireless LAN connectivity
  • Dynamic DNS support
  • UPnP™support
  • Web-based configuration
  • Wi-Fi Protected Setup (WPS)

Video
  • Simultaneous streaming with H.264, MPEG-4 and MJPEG
  • JPEG for still image
  • Adjustable image size and quality

Audio
  • External microphone input, external speaker output

Monitoring and recording
  • Remote management/control of up to 32 cameras
  • Direct recording to a NAS device, no software required
  • Built-in Micro SD card slot for local recording*
  • 3GPP mobile surveillance with 3GPP player

*card not included
This product was phased out on: 23/01/2013
This product's last date of support is on: 23/01/2015
Version Date Type File Size
Datasheet (English) - PDF 0.57mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 12.06mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 1.41mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
Firmware 1.01.7812

Firmware

3/6/2013 - Download
Firmware 1.01.4126 Firmware 14/1/2011 - Download
Version Description Date
Setup Wizard 1.05 Setup Wizard 6/4/2012 Download
Version Description Date
DEU_CE_Declaration_RevA2 CE Declaration 29/8/2012 Download
DEU_CE_Declaration_RevA1 CE Declaration 24/3/2010 Download
