How to setup Motion Detection?

Please make sure that if your D-Link Cloud Camera is already registered with mydlink Cloud Service.
*If you haven’t registered mydlink cloud service account for your camera, please follow Method 2.

Method 1:
Step 1: Launch web browser and enter https://www.mydlink.com/:
DCS_2670L_FAQ

Step 2:

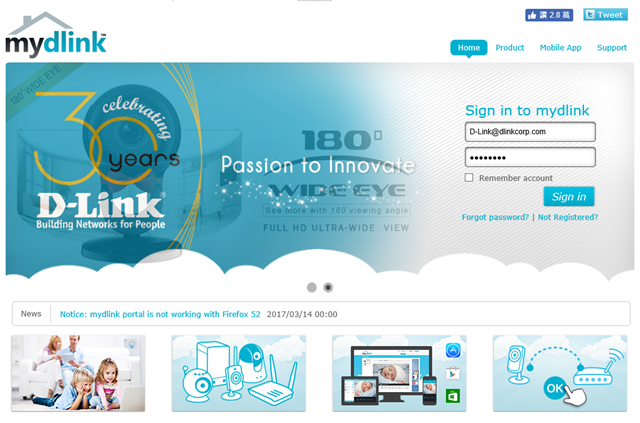

Enter your ID (email) and password at the login screen and click Sign in:
DCS_2670L_FAQ

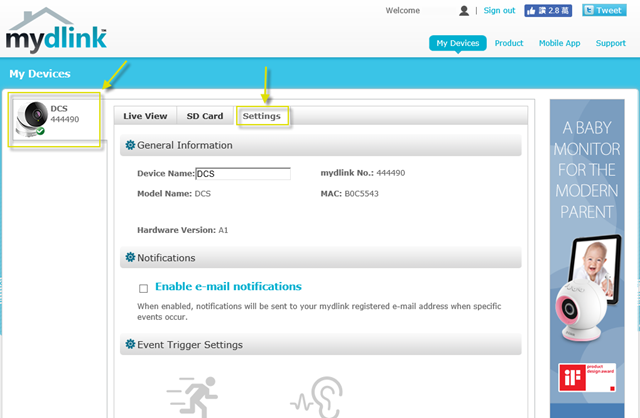

Step 3: Select the camera and click Settings:
DCS_2670L_FAQ

Step 4:

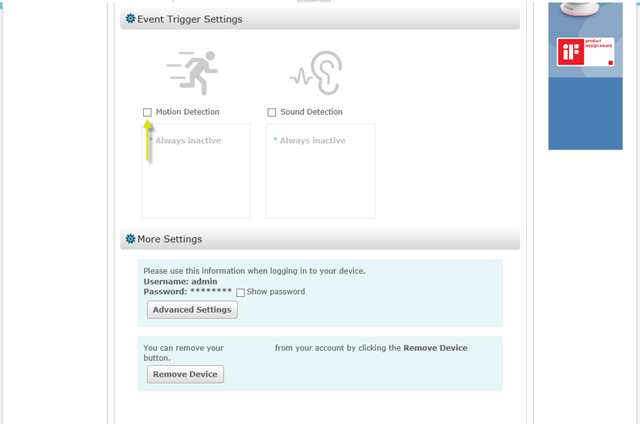

Place a Check next to Motion Detection.
DCS_2670L_FAQ

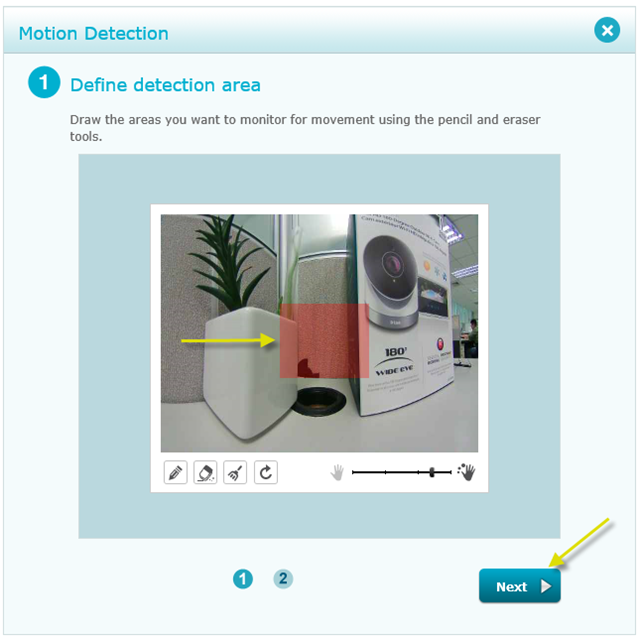

Step 5: Draw the areas you want the camera to detect motion by using the pencil and eraser tools. Select the sensitivity level by moving the slider left or right. Then, click Next to continue.
Note: The sensitivity setting decides how sensitive the camera will be to motion. Lower sensitivity setting can be useful when monitoring an area that has flickering lights, or through a window to the outside. Higher sensitivity setting may be useful when monitoring an area that rarely changes, such as a storeroom or warehouse with less activity.
DCS_2670L_FAQ

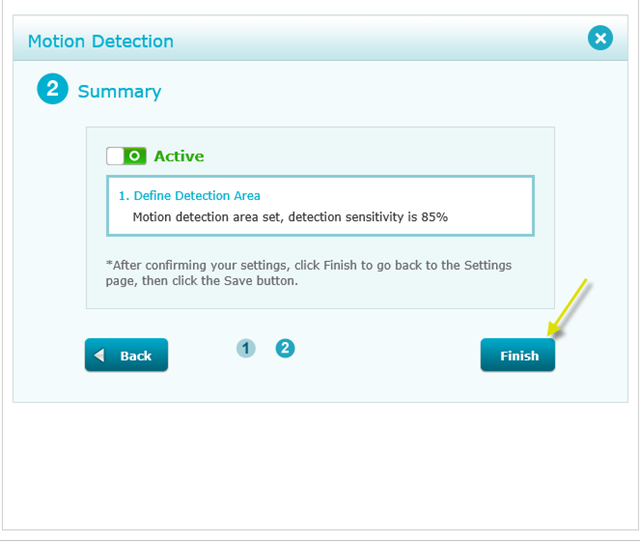

Step 6:
Click Finish to save the current motion detection configuration:
DCS_2670L_FAQ

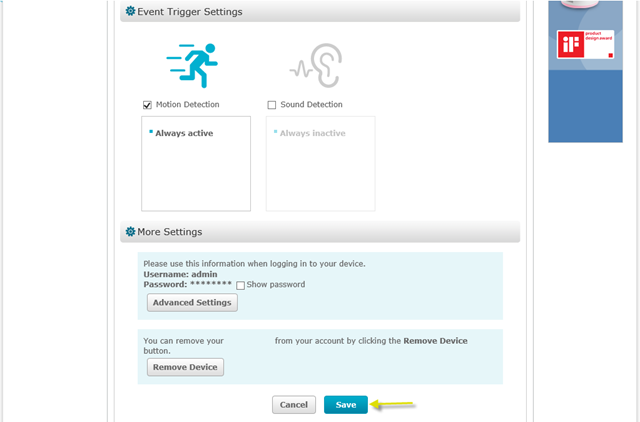

Step 7: Click Save:
DCS_2670L_FAQ

Step 8:

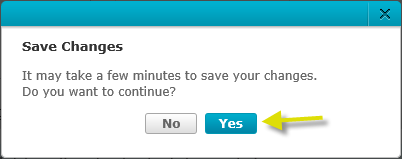

Select Yes to confirm saving changes.
DCS_2670L_FAQ

Method 2:
Step 1: Launch web browser and enter the IP address of your camera in the address bar:
DCS_2670L_FAQ

Step 2:
The username for the administrator account is admin. Enter your administrator password in the password field, then click OK.
DCS_2670L_FAQ

Step 3: Click on the Setup Tab from the menu at the top of the page.
DCS_2670L_FAQ

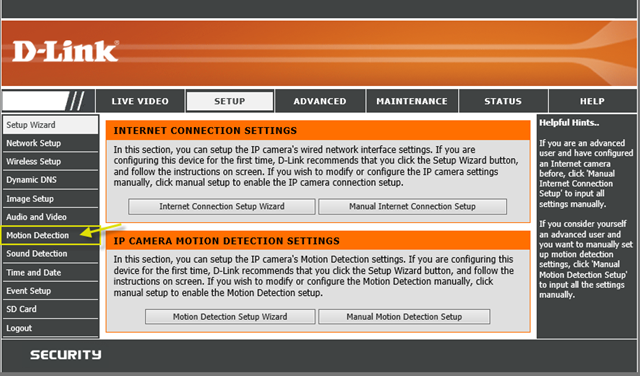

Step 4: Click Motion Detection from the menu on the left-hand side.
DCS_2670L_FAQ

Step 5: Place a Check next to Enable Video Motion to enable software-based motion detection. Click and drag your mouse over the video to select an area for motion detection. Specify the sensitivity to calibrate the area you are monitoring.
DCS_2670L_FAQ

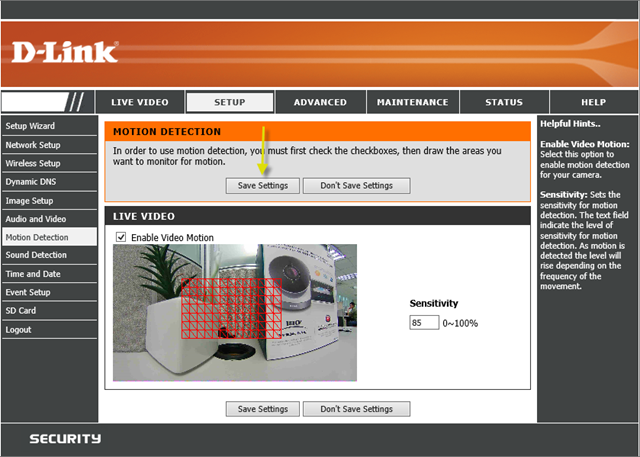

Step 6: Click on Save Settings button:
DCS_2670L_FAQ

Note: There are two different types of motion detection.

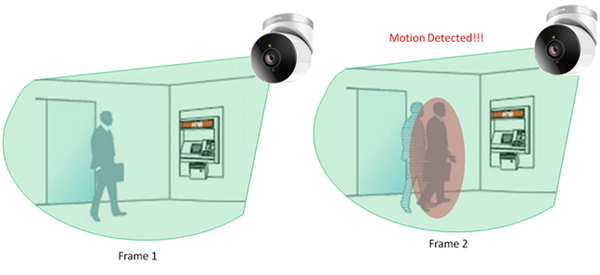

1. Software or Pixel Change Motion Detection: The camera compares the change in pixels from one frame to another. This is what the DCS-2670L applies.
For example:
DCS_2670L_FAQ

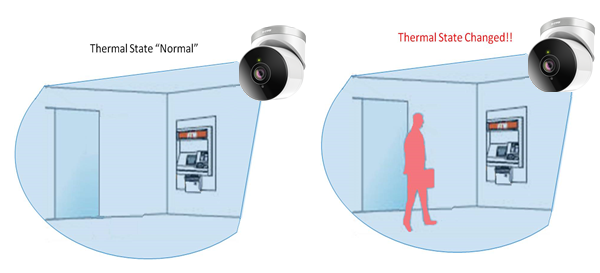

2. Hardware or PIR (Passive Infrared Sensor): Motion is detected when an object enters the image and gives off a different heat signature. The DCS-2670L does not have this capability.
For example:
DCS_2670L_FAQ
