Adaptateur USB HSUPA 3.5G

DWM-156

  • Statut produit: En fin de vie
  • Drivers intégrés pour les systèmes d'exploitation Windows 2000, XP et Vista ou Mac OS X 10.4.0+
  • Plug and Play, installation logiciel/driver automatique
  • Réseau GSM/GPRS/EDGE Bande 900/1800MHz Power Class 4/1
  • Réseau UMTS/HSUPA Bande 2100 MHz Power Class 3
  • Débit descendant 7.2 Mbps (HSDPA)
  • Débit montant 5.76 Mbps (HSUPA)
  • Slot USIM, interface carte SIM standard 6-Pin
  • Lecteur de carte MicroSD, support des cartes MicroSD standard jusqu'à 8GB
  • SMS, Circuit-switched (GSM) Packet-switched (GPRS)
  • SMS Manager – Créer, éditer, transmettre et envoyer des messages. Dossiers Réception, Envoyés, Brouillon.
  • Dimensions (L x l x h) 90 x 57 x 12mm

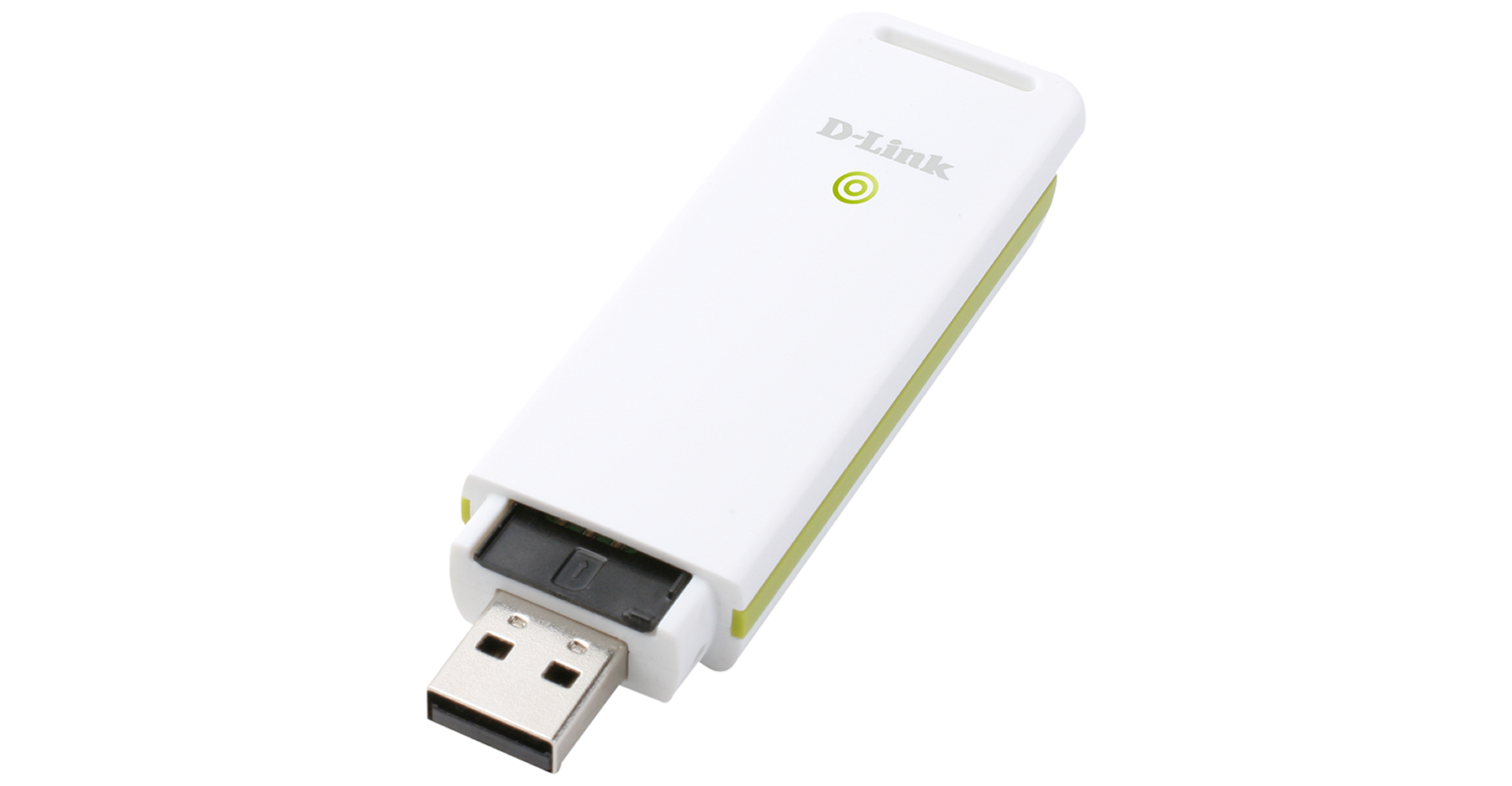

The DWM-156 3.75G HSUPA USB Adapter allows you to connect your notebook to your mobile broadband service wherever you are in the world. While connected, you can transfer data, stream media, and send SMS messages. The DWM-156 is completely unlocked and works with data SIM cards from any operator.

Optimal performance with 3.5G HSUPA technology
The DWM-156 supports the latest 3.75G High Speed Uplink Packet Access (HSUPA) technology, which offers data rates up to 7.2 Mbps (5.76 Mbps upload) and helps to reduce latency. 3.75G is also backwards compatible with 3.5G, 3G and 2.5G technologies.

Total compatibility
This adapter is compatible with Windows and MAC Operating Systems: all the necessary drivers and software are built in, making the installation truly plug-and-play.

You can also use the DWM-156 to act as a modem on compatible D-Link routers and share the 3G connection between several computers or Wi-Fi enabled devices.

Photo non contractuelle
Portable 3G Router
Find out more

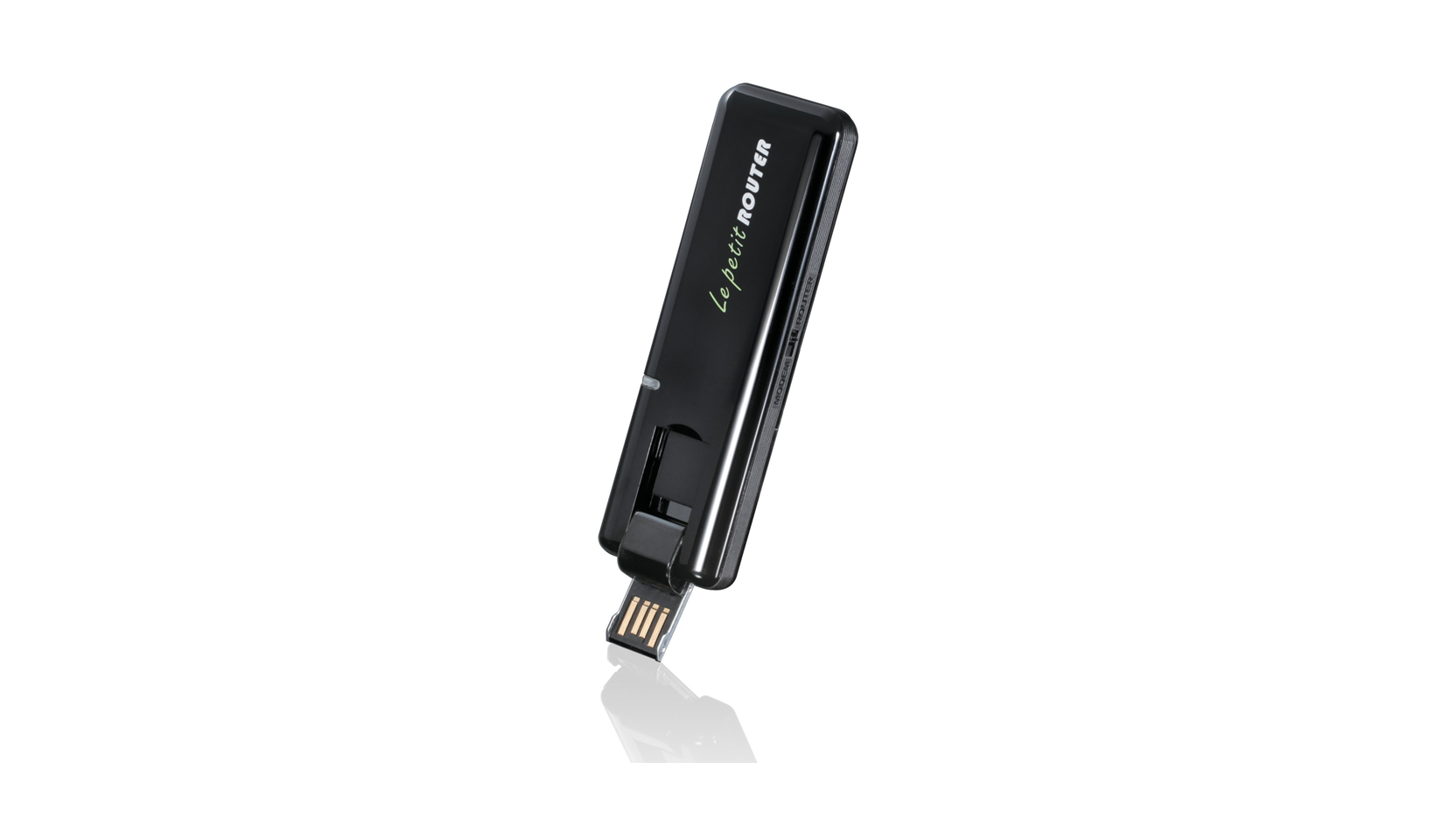

Mini-routeur USB 3G à 7,2 Mbps
Find out more
Routeur mobile Wireless N150 3G jusqu'à 7,2Mbps
Find out more

Technical Specifications

Hardware
  • Up to 7.2 Mbps download speeds with High Speed Uplink Packet Access (HSUPA)
  • Fast USB 2.0 connection to notebook/desktop computer

Operating Systems
  • Windows 2000 (SP4)/XP/VISTA
  • MAC OS X 10.4 or higher

Configuration/Management
  • Quick setup wizard, no experience required
Ce produits est en fin de vie depuis le : 01/01/2014
Version Date Type Taille de fichier
Datasheet (English) - PDF 0.52mb Télécharger
Version Description Date Type Taille de fichier
Manuel Manuel - PDF 3.16mb Télécharger
Manual (English) Manual (English) - PDF 0.95mb Télécharger
Version Description Date Type Taille de fichier
1.00 Quick installation guide (multiple languages) 31/07/2009 PDF 0.47mb Télécharger
Version Description Date
7.0.3 Firmware for revision A7 28/10/2015 Télécharger
Firmware for revision A7 7.0.2 Firmware for revision A7 28/08/2015 Télécharger
Firmware 1.05b01 Firmware 21/02/2013 Télécharger
Version Description Date
DEU_CE_A3_EN_FR_ES_PT_RevA3 Certificate of Declaration A3 (English, French, Spanish, Portuguese) 14/09/2012 Télécharger
DEU_CE_A1_EN_FR_RevA1 Certificate of Declaration A1 (English and
French)
09/06/2009 Télécharger
