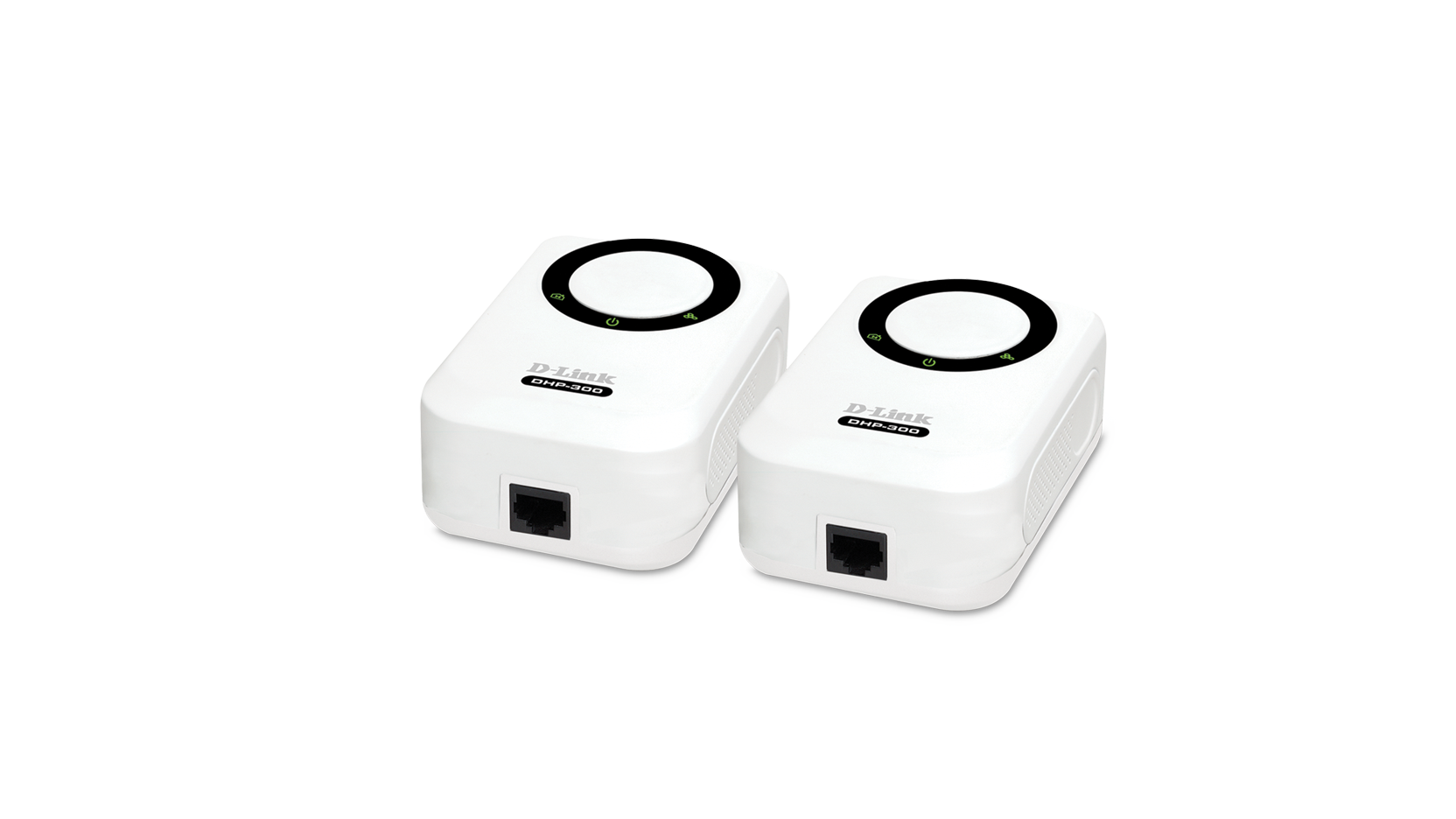

Routeur Gigabit Wireless N CPL

DHP-301

  • Statut produit: En fin de vie


Technical Specifications

STANDARD
  • IEEE 802.3 Ethernet/ 802.3u Fast Ethernet

POWER LINE INTERFACE
  • Power prongs
  • Connector: country-dependent 3

ETHERNET INTERFACE
  • Port: 10/100BASE-TX with auto MDI

MDIX
  • Connector: RJ-45

POWER LINE MODULATION SCHEME
  • OFDM Symbol Modulation

POWER LINE FREQUENCY BAND
  • 2MHz to 32MHz

DATA RATE
  • Power Line: 200Mbps (PHY rate) 2
  • Ethernet: 10/100Mbps (auto-negotiation)

QoS
  • 802.1P Priority Queues standard

SECURITY
  • 3DES data encryption
  • User-configurable Net ID (data encryption key)
  • 802.1Q VLAN Tagging (fixed value, not user-configurable)

MINIMUM SYSTEM REQUIREMENTS
  • (To run Utility Program)
  • PC with 233MHz processor
  • 64MB memory
  • Windows XP SP2 or 2000 SP4
  • Ethernet adapter (100Mbps)

DIAGNOSTIC LED
  • Power Line Link
  • Power Line Activity
  • Ethernet Link/ Activity

AC INPUT
  • 100 to 240VAC, 50/60Hz, 160mA

DIMENSIONS (Per adapter)
  • 101 x 71 x 37 mm
  • (3.98 x 2.79 x 1.46 inches)

WEIGHT (Per adapter)
  • 172 grams (0.379 lb)

OPERATION TEMPERATURE

  • 0˚ to 40˚C (32˚ to 104˚F)

STORAGE TEMPERATURE
  • -20˚ to 70˚C (-4˚ to 158˚F)

OPERATION HUMIDITY
  • 10% to 95% RH non-condensing

STORAGE HUMIDITY
  • 10 to 90% RH non-condensing

EMC
  • FCC Part 15 Class B
  • CE

SAFETY
  • UL

MTBF

  • 100,000 hours or higher
