Unified Wireless Dual-Band PoE Access Point

DWL-8500AP

  • Product Status: Phased Out
The DWL-8500AP Unified Wireless Dual-Band PoE Access Point is a thin 802.11a/g wireless Access Point designed for use in conjunction with DWS-3024/DWS-3024L/DWS-4026 Wireless Switch in business-class enterprise environments.
Designed for indoor installation, this access point provides secure options for network administrators to deploy a highly manageable and extremely robust wireless network. This access point supports Power over Ethernet (PoE) and provides two high-gain antennae for optimal wireless coverage.

Download the datasheet.

List Retailers

Managed Wireless Switch Access Point with PoE

The DWL-8500AP Unified Wireless Dual-Band PoE Access Point is a thin 802.11a/g wireless Access Point designed for use in conjunction with DWS-3024/DWS-3024L/DWS-4026 Wireless Switch in business-class enterprise environments.
Designed for indoor installation, this access point provides secure options for network administrators to deploy a highly manageable and extremely robust wireless network. This access point supports Power over Ethernet (PoE) and provides two high-gain antennae for optimal wireless coverage.

Centralised Wireless Intelligence

The Access Point is entirely controlled from the wireless switch, ie configuration data is not kept at AP level, adding a layer of protection in case of theft or vandalism. Connection to the switch can be direct or indirect.Profiles including SSID, IP address, VLAN, security are only configured once and then applied to the managed APs.

If an AP needs swapping, the replacement AP automatically inherits the same configuration, making the process seamless.

PoE support for Easy Deployment

For installations in areas where power outlets are not readily available, the access point integrates 802.3af Power over Ethernet (PoE). The wireless switch will provide power as far as 100m away via standard Ethernet cabling.

Up to 108Mbps Wireless Speed

The DWL-8500AP delivers extremely reliable wireless performance with wireless throughput rates of up to 54Mbps in either frequency band. It has the added capability of reaching maximum wireless signal rates of up to 108Mbps (Turbo mode) powered by D-Link 108G technology*.

*802.11g only. Maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

Advanced Wireless Security & Quality of Service (QoS)

The DWL-8500AP supports 64/128/152-bit WEP data encryption, WPA/WPA2 security and multiple SSIDs. MAC address filtering, SSID Broadcast Disable can be configured from the switch to set up security and limit outsiders' access to the internal network. The DWL-8500AP supports 802.1Q VLAN Tagging and WMM (Wi-Fi Multimedia) for important wireless transmissions such as VoIP and streaming media applications, delivering critical user-based services, such as prioritized delivery of voice traffic.

Rogue AP detection

The DWL-8500AP can be configured to periodically leave its operational channel and scan other channels within both frequency ranges, allowing the wireless switch to monitor the environment and detect rogue APs.

If a rogue is detected, the closest DWL-8500AP can launch RF counter measures by spoofing 802.11 control messages. This prevents clients from communicating, associating and authenticating with a rogue AP.

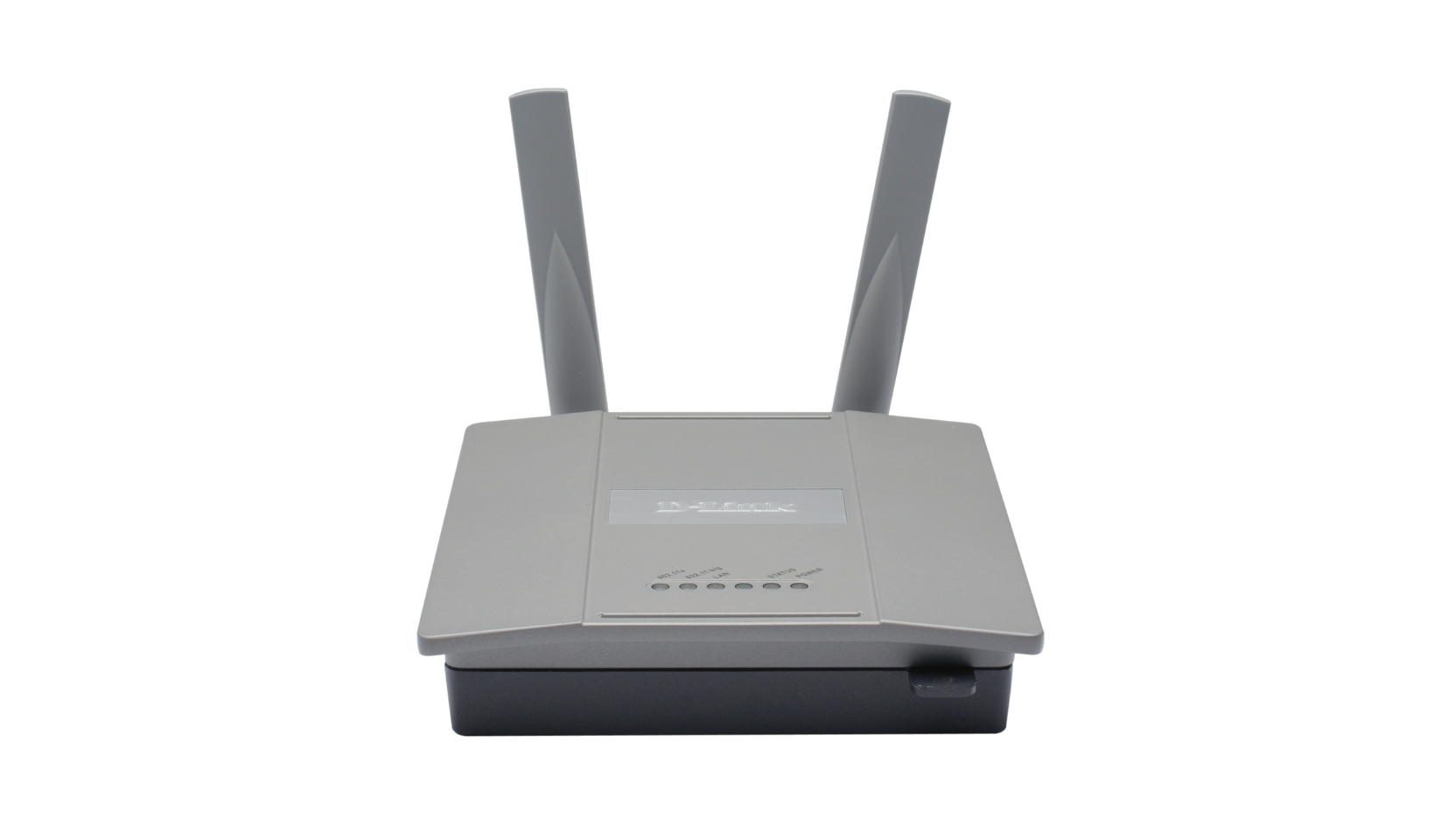

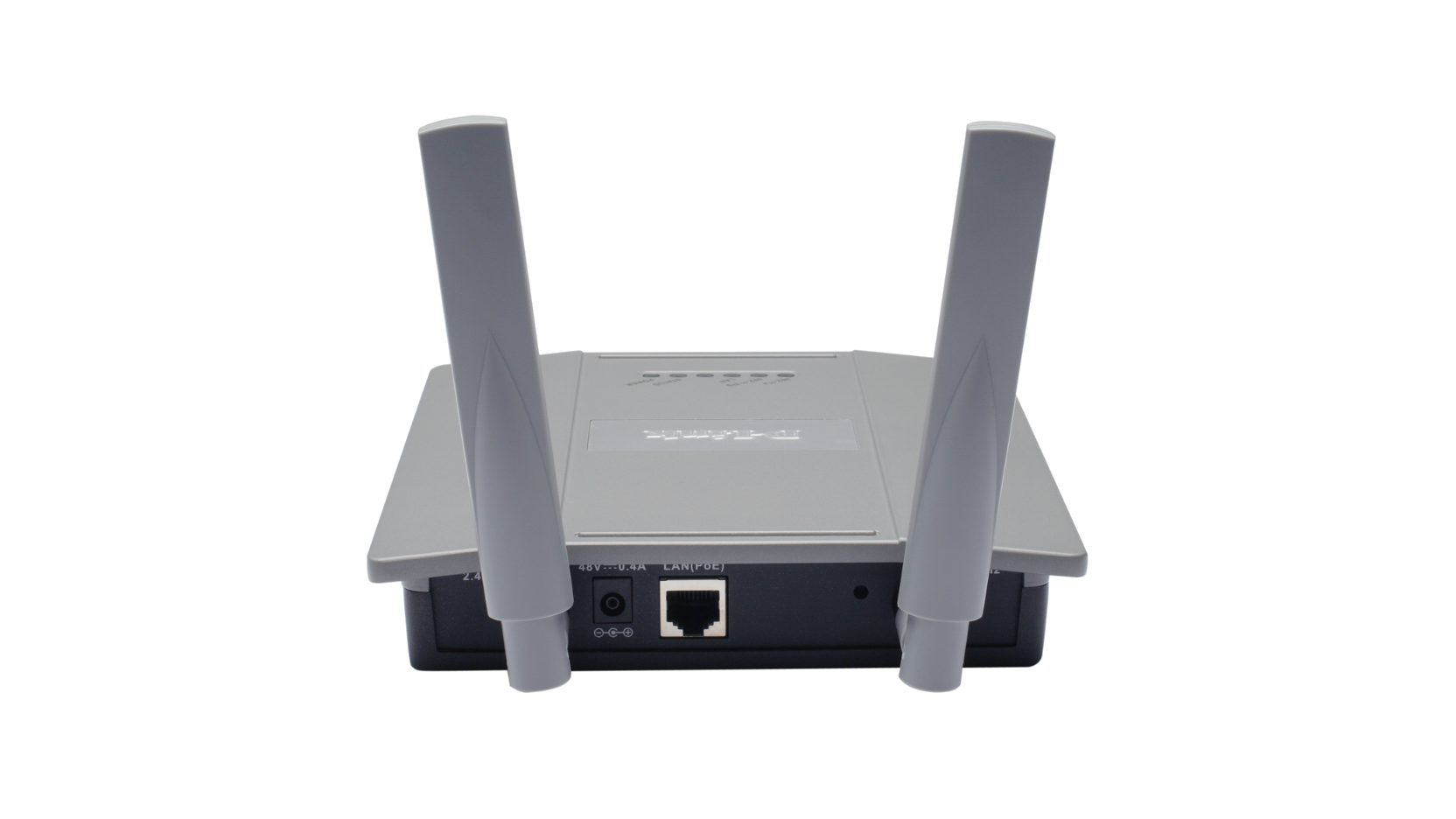

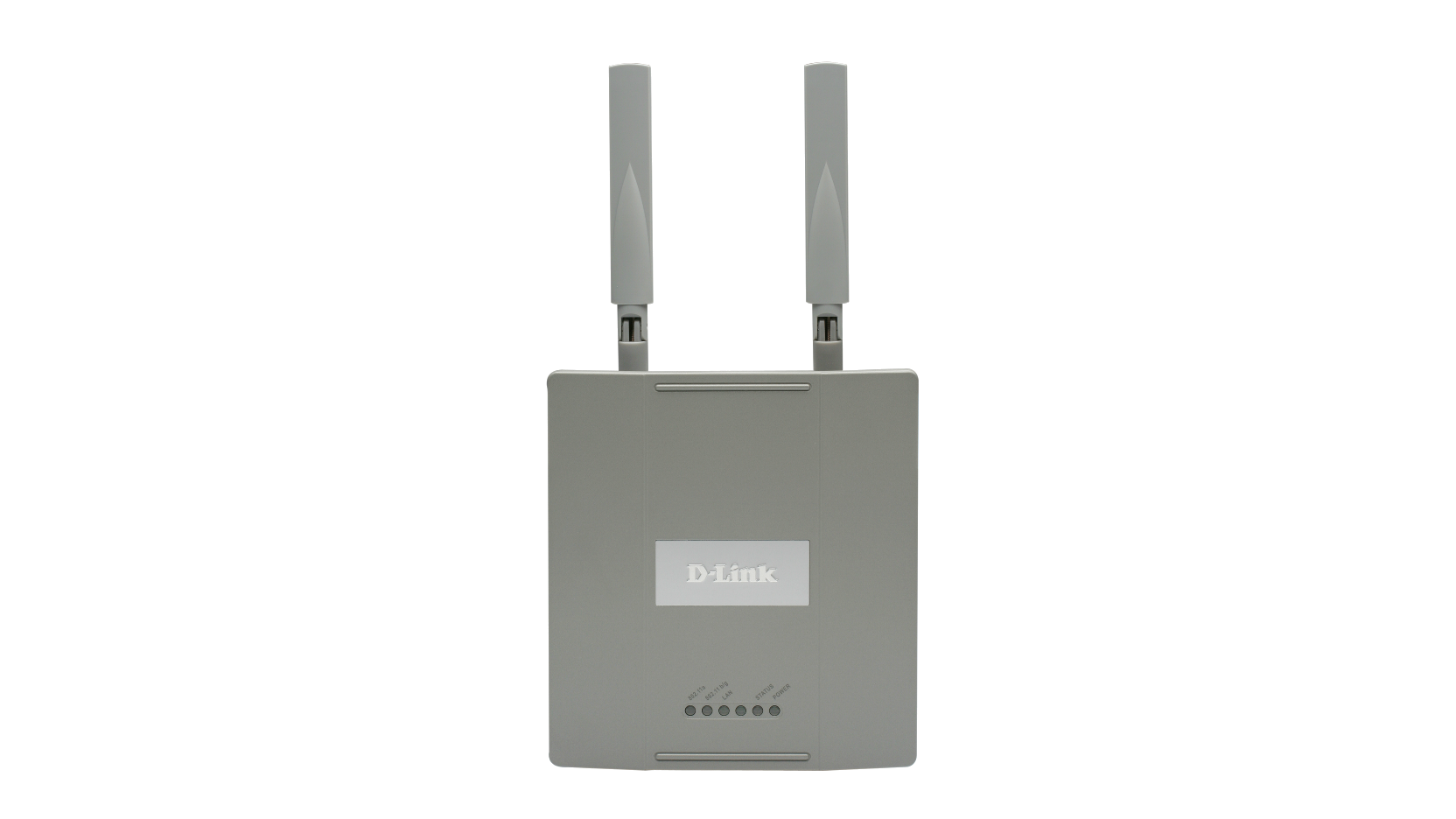

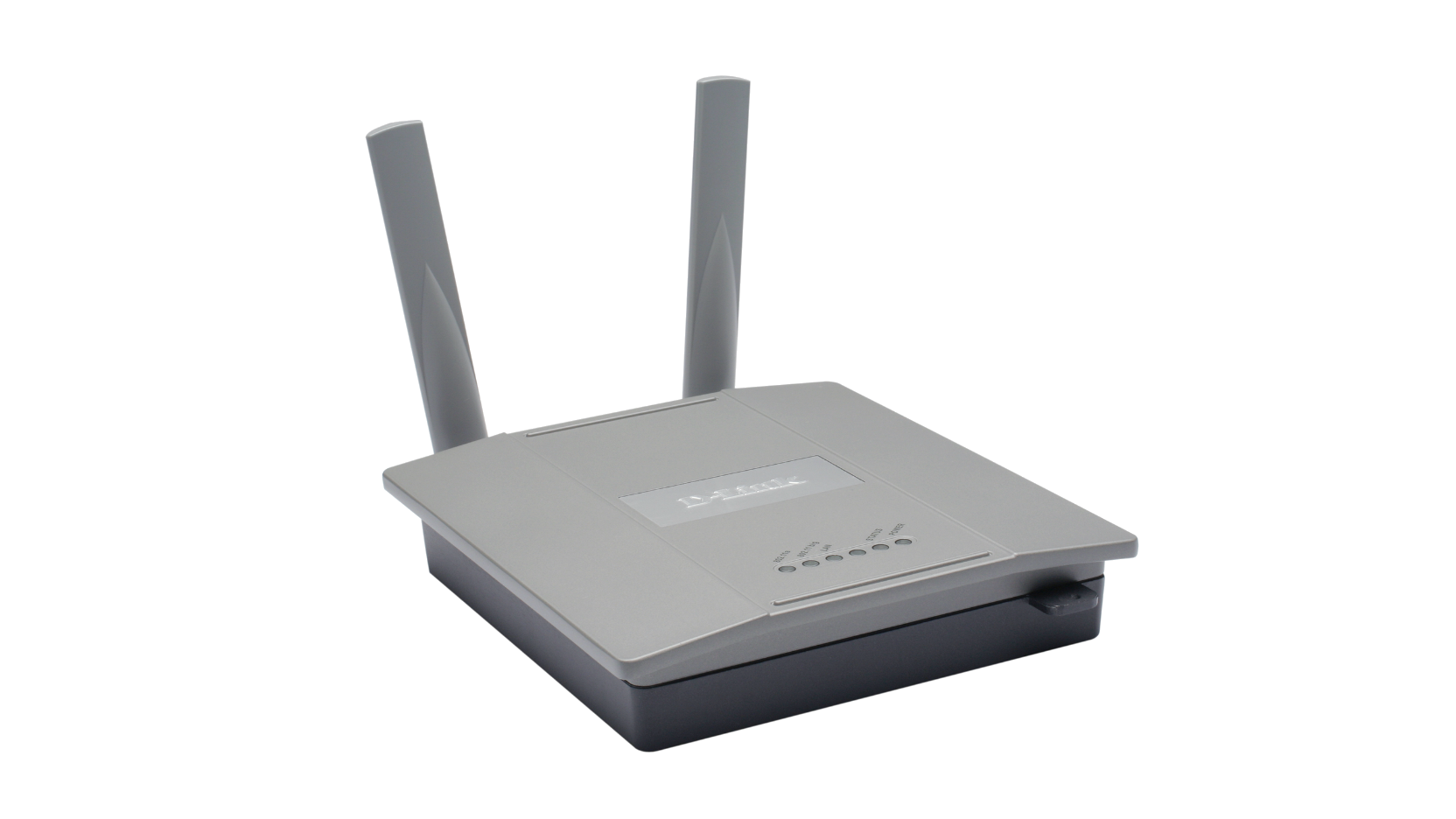

Actual product appearance may differ from the image displayed on this page

Technical Specifications

Hardware

  • Solid die cast metal housing design for indoor deployment
  • Built-in 802.3af Power over Ethernet (PoE)
  • Detachable dualband 5Ghz/2.4Ghz antennae
  • Locking brackets included

High Performance Connectivity

  • 802.11g WLAN standard
  • 802.11a WLAN Standard
  • Up to 108Mbps wireless data transfer rates* (Turbo mode)
  • RF Channels and output power auto-adjustment
  • Wi-Fi Multimedia (WMM) certified

*802.11g only. Maximum wireless signal rate based on IEEE standard 802.11g specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

Security

  • 64/128/152-bit WEP data encryption
  • WPA Personal/WPA Enterprise
  • WPA2 Personal/WPA2 Enterprise
  • 802.1X User Authentication
  • Rogue AP detection
  • 802.1Q VLAN tagging
  • Multiple SSIDs
  • MAC address filtering

Management

  • Exclusively through DWS-3024 Wireless Switch

FAQ

  • Can I configure this access point from a PC? Read Answer
  • Which switches support this wireless access point? Read Answer
  • What is the difference between the DWL-3500AP and the DWL-8500AP? Read Answer
  • How do I upgrade the firmware on this access point? Read Answer
Version Date Type File Size
Datasheet (English) - PDF 0.41mb Download
Version Description Date Type File Size
Unified Access Point (AP) Administrator’s Unified Access Point (AP) Administrator’s Guide (English) 1.2.2008 PDF 3.44mb Download
Version Description Date Type File Size
1.03 Quick Installation Guide (English) 4.1.2011 PDF 1.29mb Download
