PLC PowerLine AV1000 Extensor WiFi AC 1200 Internet red electrica

DHP-W611AV

Compartir



WiFi sin barreras, Internet por la red eléctrica

Este Kit PLC Powerline con Extensor WiFi es la solución perfecta si tienes problemas con el WiFi, ya que la conexión a Internet va desde al router a un punto de acceso emisor WiFi utilizando la red eléctrica de tu casa gracias a la tecnología PLC Powerline, evitando así obstáculos como techos o paredes.



Fácil de instalar

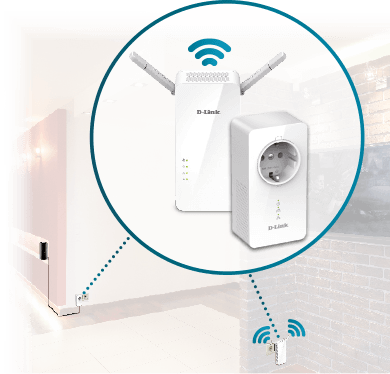

Este Kit PLC Powerline con Extensor WiFi  viene con las dos unidades necesarias, simplemente conecta una en un enchufe y conéctala con tu router mediante el cable de red LAN suministrado y enchufa la otra unidad (el extensor WiFi) en la zona donde quieras tener una nueva área WiFi, como los pisos superiores o el garaje. Es así de simple.







No pierdas ni un mega de tu conexión

Gracias a la velocidad PLC a 1000 Mbps* y al extensor WiFi AC 1200 Mbps*** podrás disfrutar de Streaming 4K y de un uso intensivo de la red y la conexión a Internet.

La tecnología WiFi de doble banda (2.4/5GHz) y el soporte de Quality of Service (QoS) permite la mejor optimización del ancho de banda y la priorización avanzada.







Internet sin límites

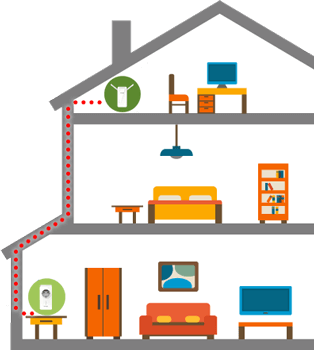

El uso de la red eléctrica para transmitir la conexión a la red e Internet convierten a este producto en la mejor solución en casas con varios pisos o con habitaciones muy alejadas del router.

La toma eléctrica integrada en la unidad a conectar al router aumenta la flexibilidad de la instalación al no perder una toma de enchufe, ya que se recomienda su instalación en tomas de pared, sin ladrones o conexiones de múltiples tomas.






* Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional units may be required to cover your entire home. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.
** Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV2 standard.
*** Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.

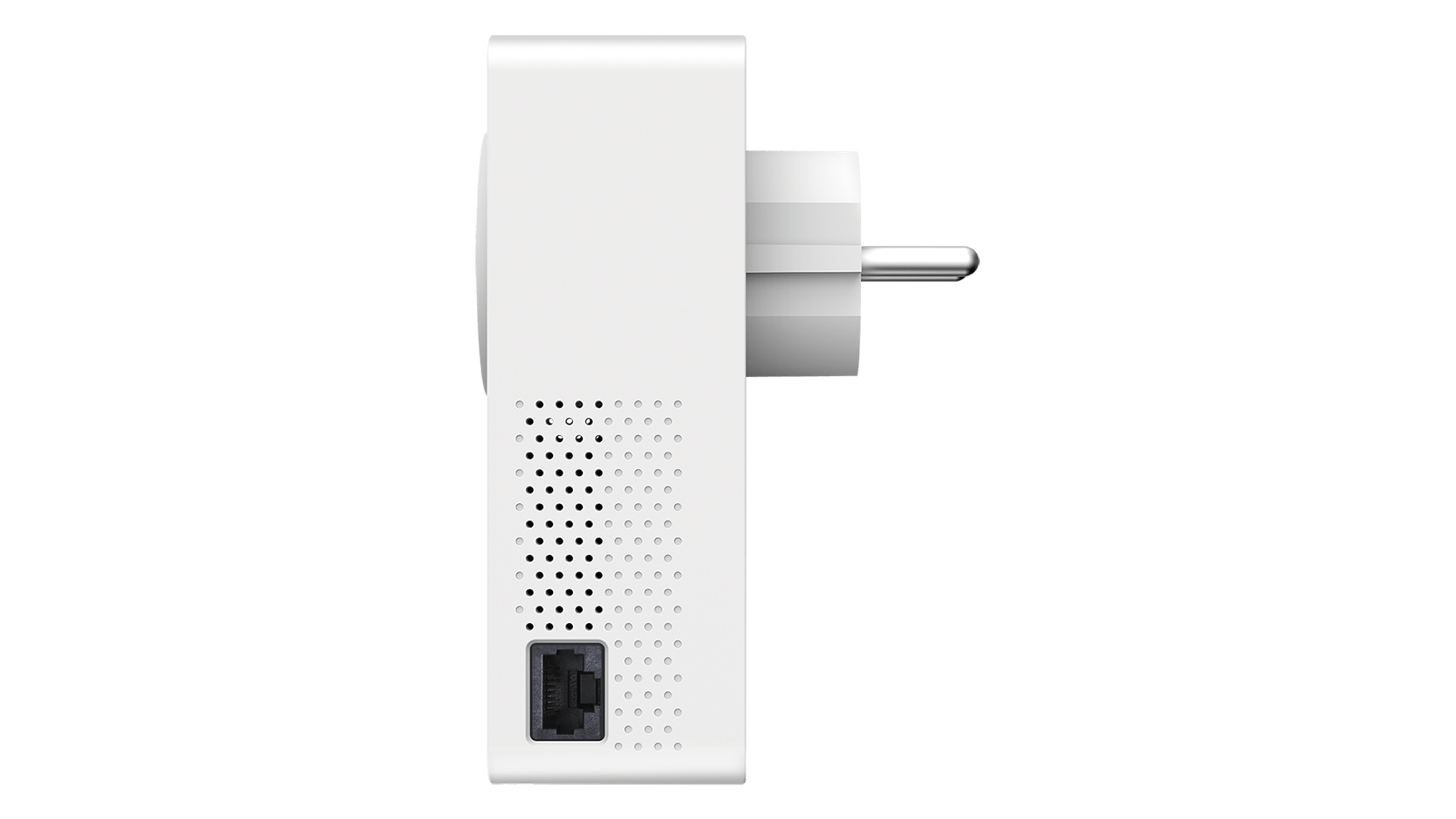

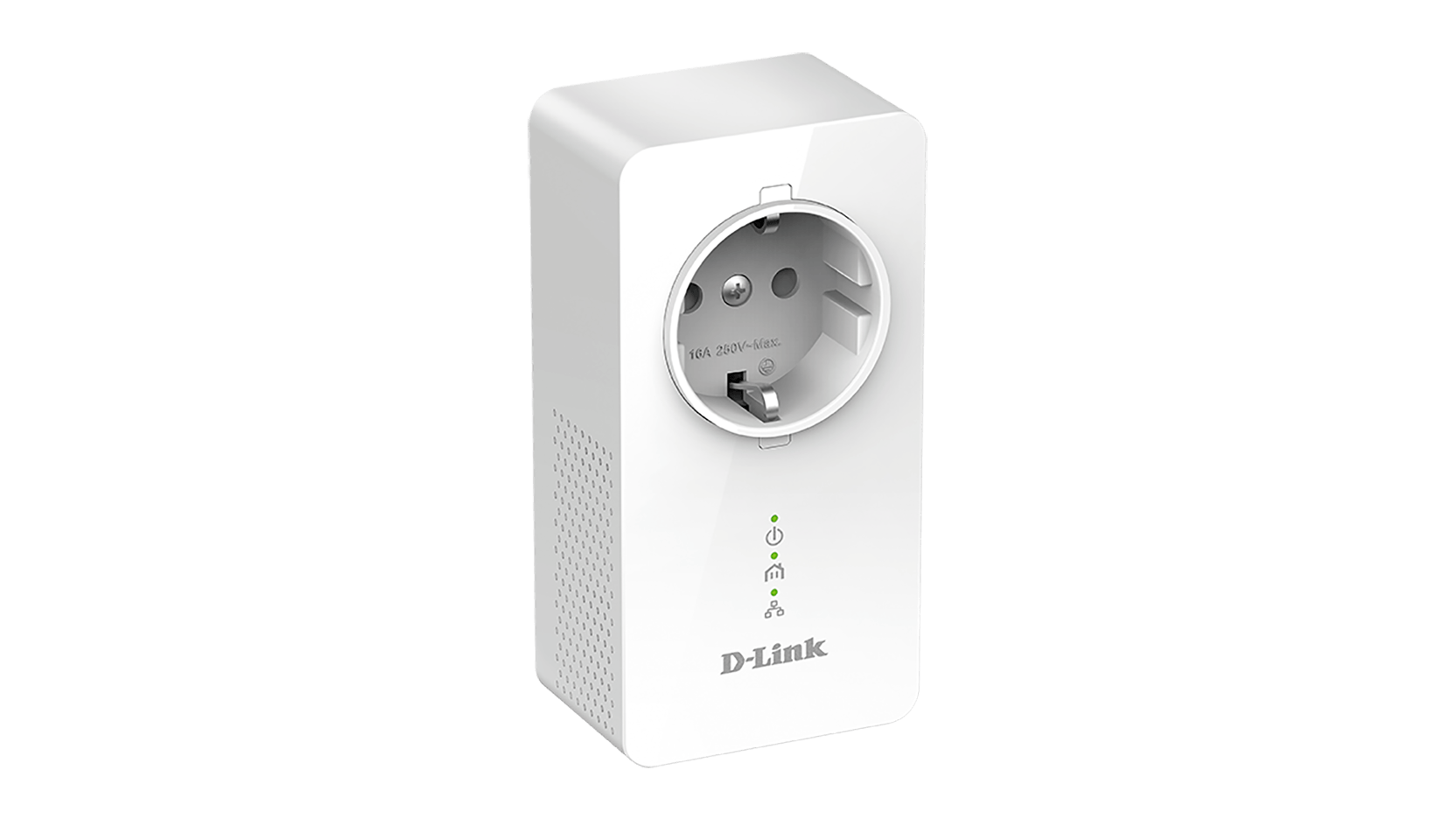

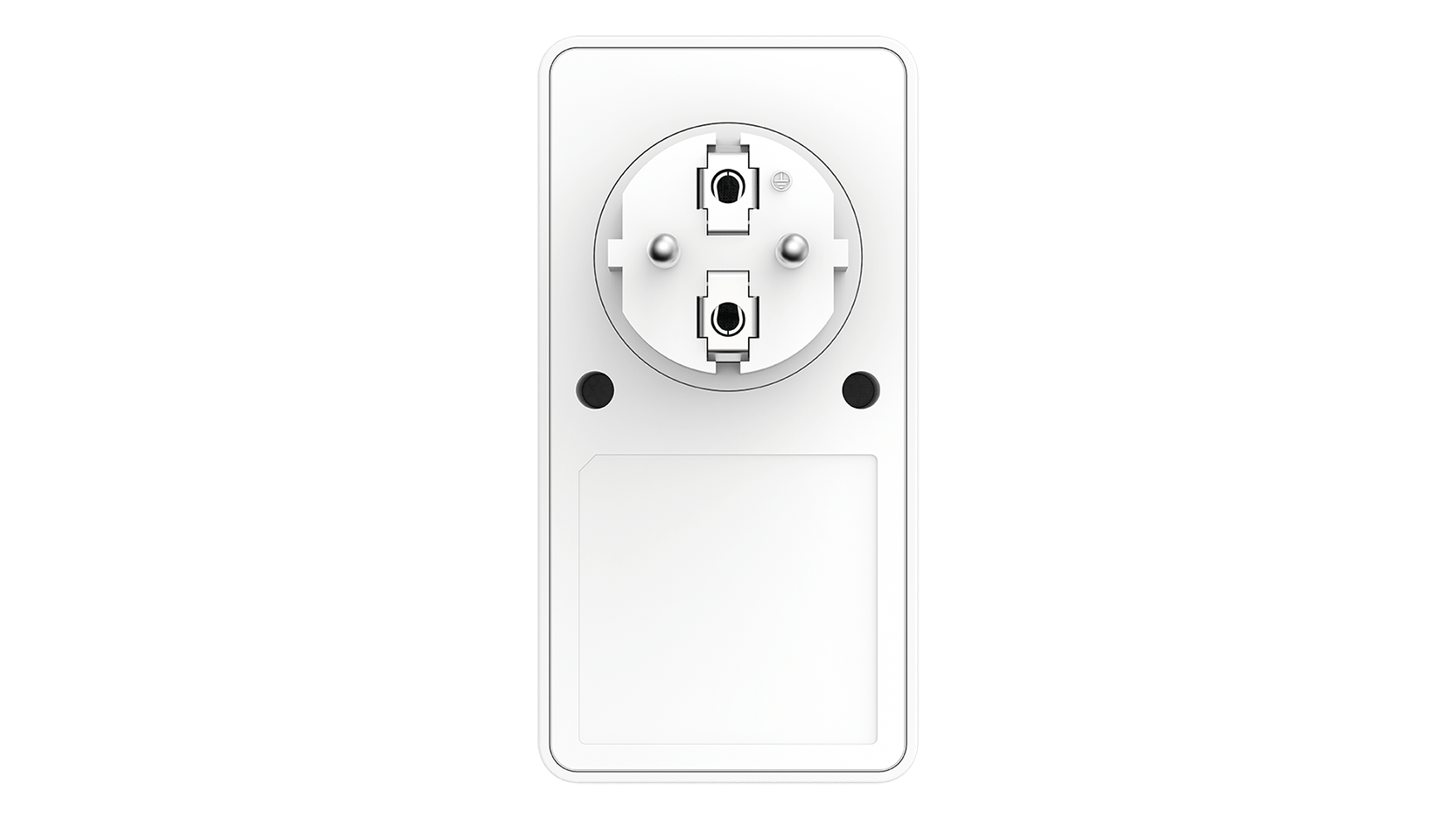

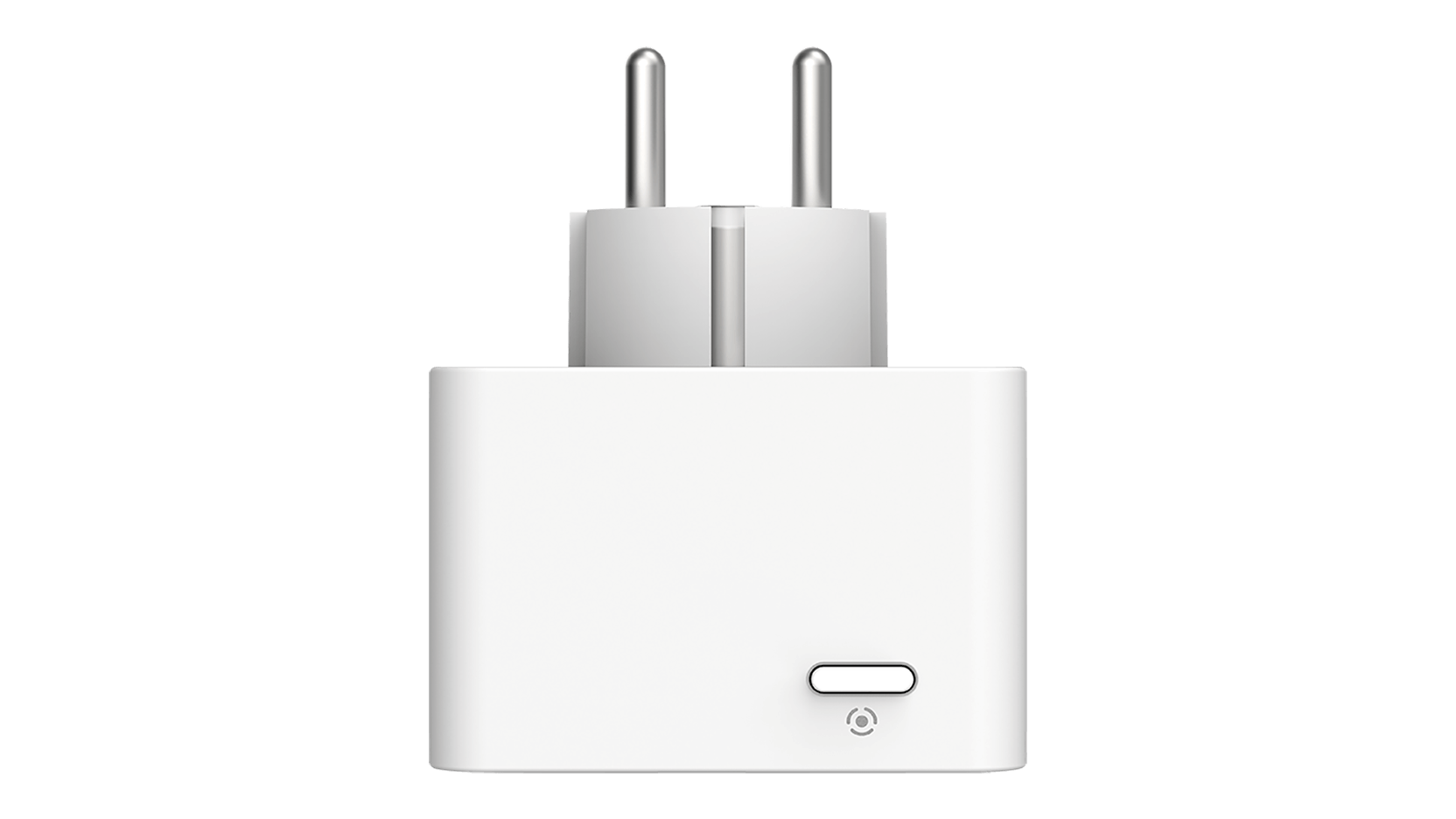

Technical Specifications (DHP-P610AV PowerLine AV1000 Gigabit Passthrough Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps

Network Interface

  • 10/100/1000 Ethernet port with auto MDI/MDIX

Other Interface

  • Simple Connect Button
  • Reset Button

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901

Security

  • 128-bit AES encryption

LEDs

  • Power
  • Ethernet
  • Powerline

Advanced Features

  • Power-saving mode
  • Compliant with European Energy Using Product Directive

Powerline Modulation Scheme

  • OFDM Symbol Modulation

Powerline Frequency Band

  • 2 to 86 MHz

Data Rate

  • Powerline: Up to 1000 Mbps (PHY rate)2
  • Ethernet: 10/100/1000 Mbps (auto negotiation)

Physical

Dimensions

  • 114 x 59 x 38 mm (4.49 x 2.32 x 1.50 inches)

Weight

  • EU Type: 188 g (6.63 ounces)

Passthrough Power Socket

  • EU Type: 250 V/16 A Maximum

Power Input

  • EU Type: 100 to 250 V AC, 50/60 Hz, 16 A

Power

  • Input: 100 to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 2.62 W
  • Network Standby: 2.23 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL

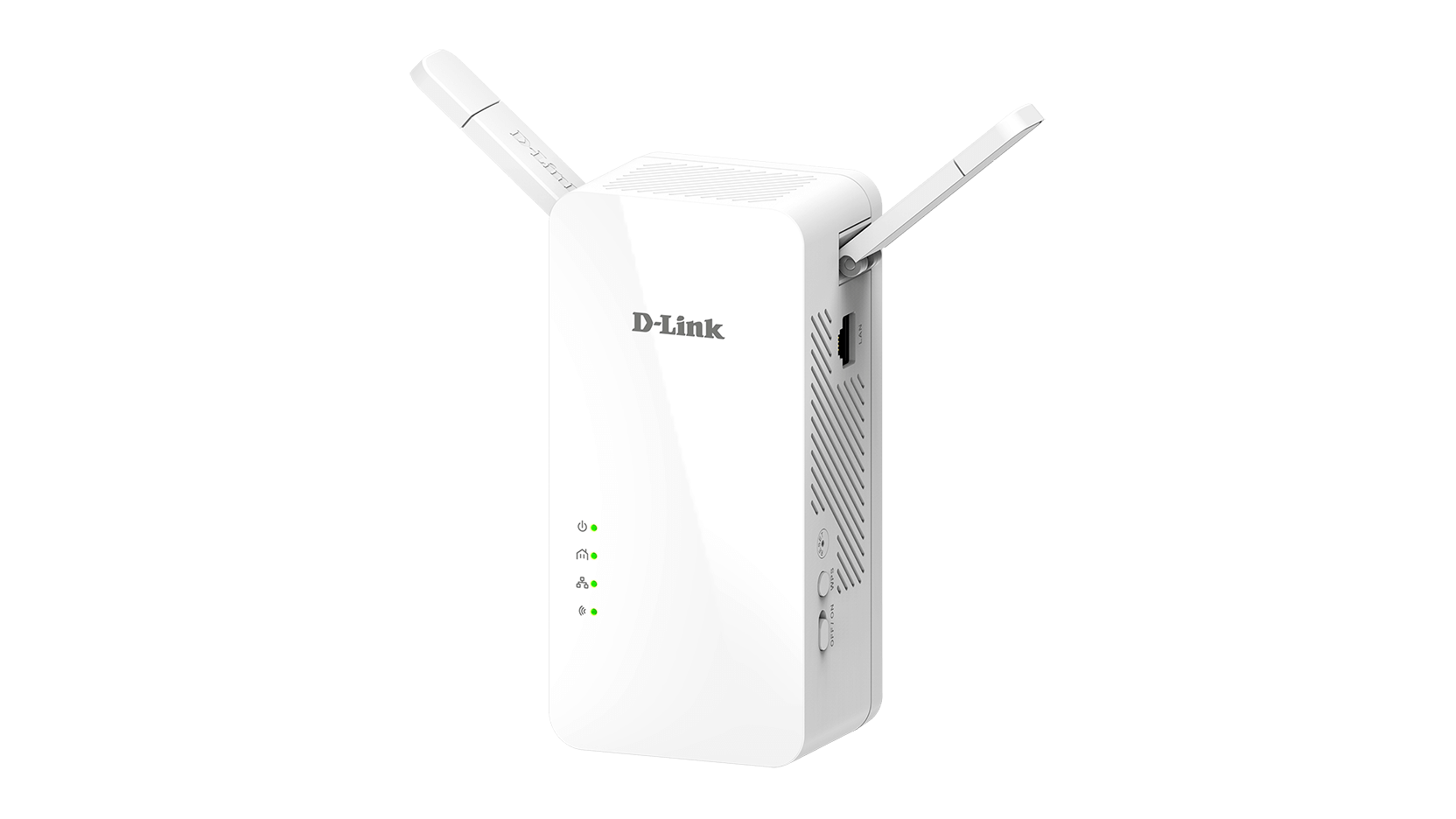

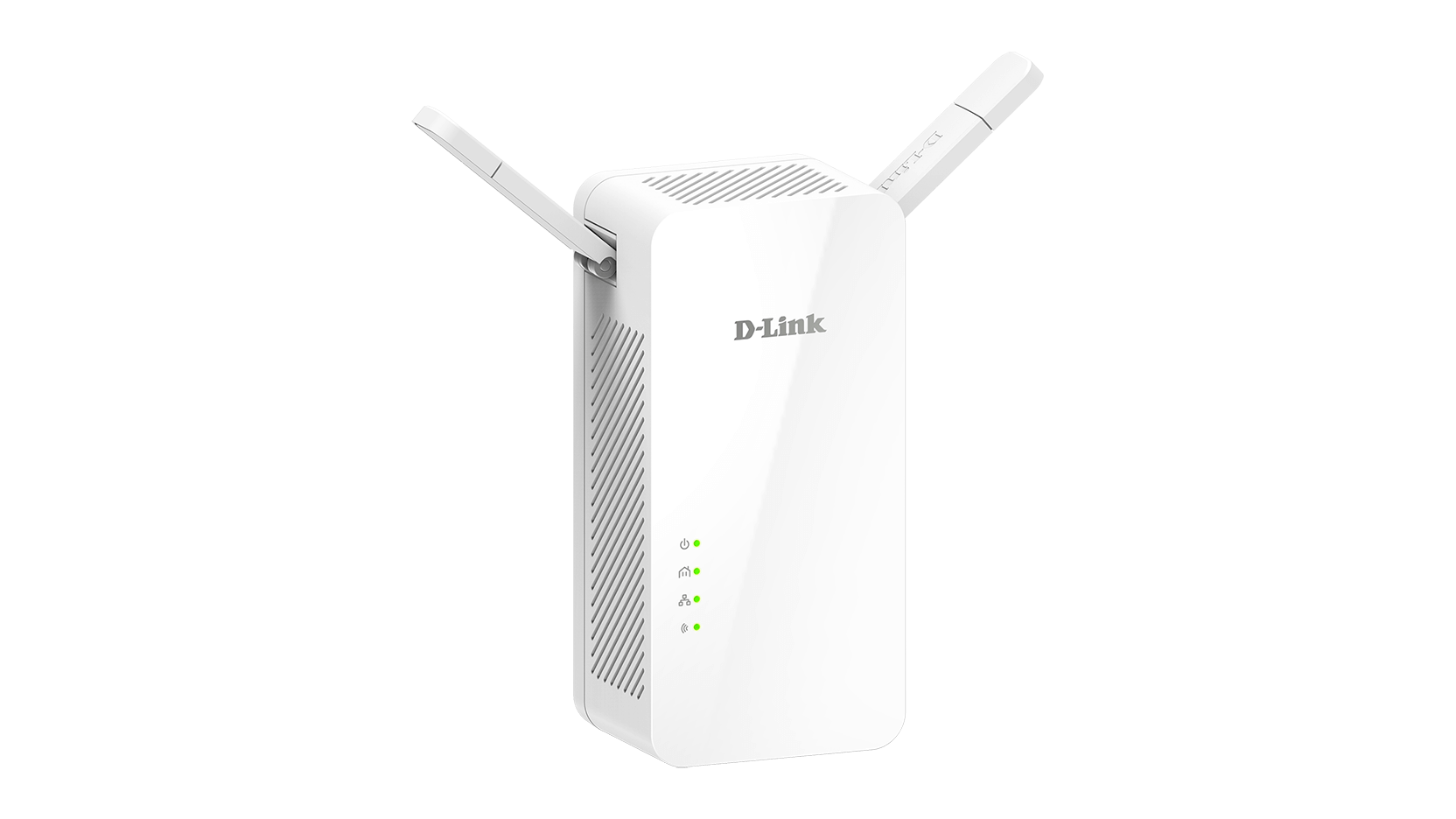

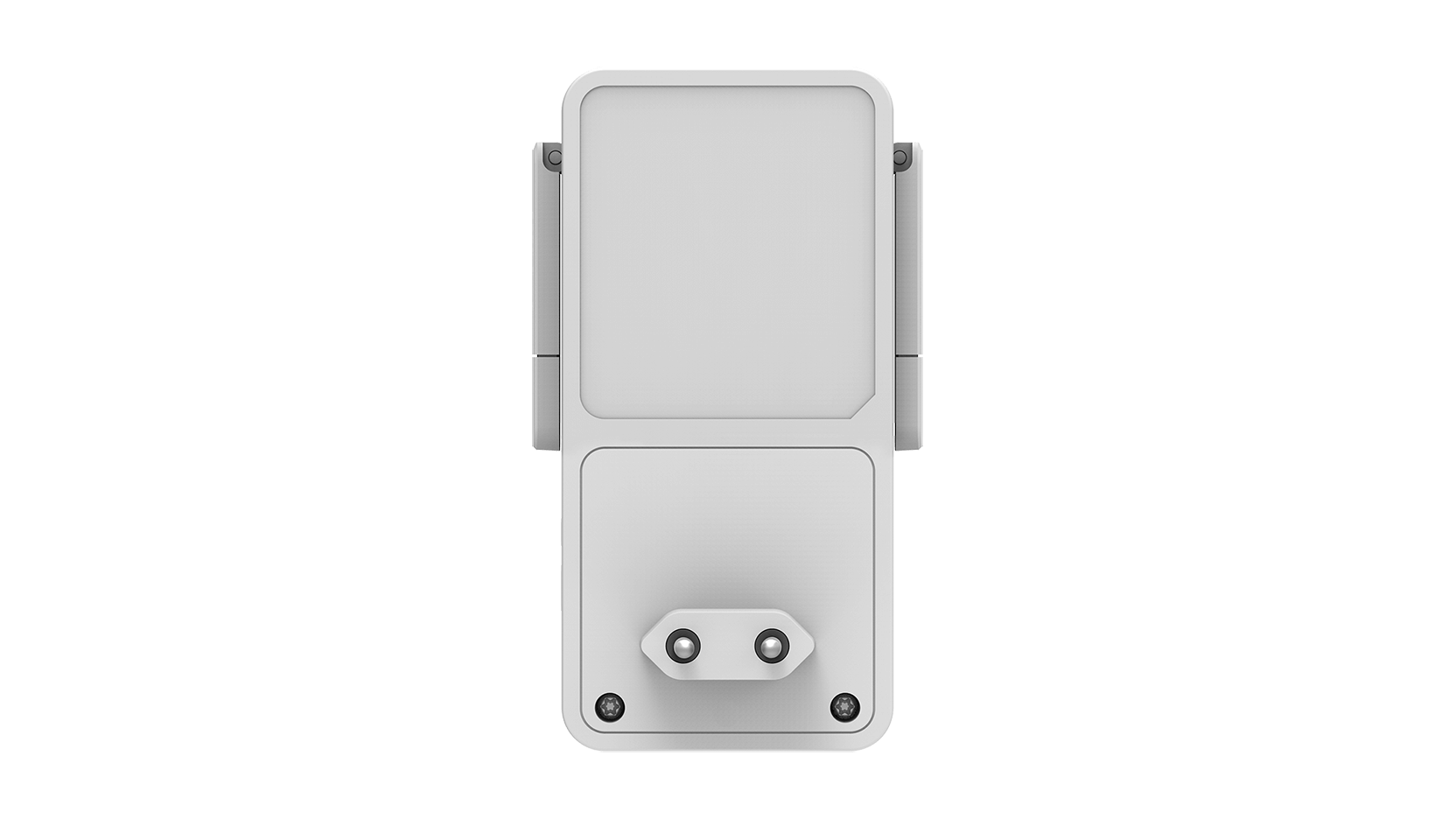

Technical Specifications (DHP-W610AV PowerLine AV1000 Wi-Fi AC Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps2

Network Interfaces

  • 10/100/1000 Ethernet LAN port with auto MDI/MDIX
  • 802.11ac WLAN

Other Interface

  • Simple Connect button
  • WPS
  • Reset button

Wireless LAN

  • 802.11ac/n/g/a standards
  • Wireless speed3:
    • 5 GHz - up to 867 Mbps
    • 2.4 GHz - up to 300 Mbps
  • WPA/WPA2 (Wi-Fi Protected Access)

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901
  • IEEE 802.11ac/n/g/a

Security

  • Powerline: 128-bit AES Encryption
  • Wireless: Wi-Fi Protected Access (WPA/WPA2)

LEDs

  • Power
  • Ethernet
  • Powerline
  • Wi-Fi

Advanced Features

  • IPv6 support
  • Power-saving mode
  • PLC Quality of Service (QoS)

Physical

Dimensions

  • 140 x 68 x 50 mm (5.51 x 2.68 x 1.97 inches)

Weight

  • EU Type: 315.2 g

Power

  • Input: 100 V to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 9.22 W
  • Network Standby: 6.15 W
  • Off: 0.1 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL
  • RoHS
1. Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional D-Link Powerline AV series products are required to add new devices to the network. A minimum of two D-Link Powerline AV series products are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.
2. Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV2 standard.
3. Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.

Documento de garantía
Fichas técnicas
Descripción Tipo Tamaño de archivo
Descargar
Datasheet ES
Show moreShow less
PDF 0.40mb
Manuales
Descripción Tipo Tamaño de archivo
Descargar PDF 2.71mb
Guías de instalación rápida
Versión Descripción Fecha Tipo Tamaño de archivo
Descargar 1.00
Quick Installation Guide
Show moreShow less
27/02/2017 0:00:00 PDF 0.96mb

Comprar producto PLC PowerLine AV1000 Extensor WiFi AC 1200 Internet red electrica

¿Dónde Comprar?

Lista de puntos de venta

Este Kit PLC Powerline 1000 Mbps con Extensor WiFi AC 1200 es la solución perfecta si tienes problemas con el WiFi, ya que la conexión a Internet va desde al router a un punto de acceso emisor WiFi por la red eléctrica gracias a la tecnología PLC Powerline, evitando así obstáculos como techos o paredes.

Y todo ello con la última tecnología en Powerline PLC, el nuevo estándar HomePlug AV2, Además, el emisor WiFi dispone de la tecnología WiFI AC para multiplicar hasta x10 la velocidad WiFi estándar. Y con puerto de red LAN Gigabit para el máximo rendimiento.
