Wireless N PowerLine Gigabit Router

DHP-1565

  • Estado del producto: Descatalogado

The D-Link Wireless N PowerLine Gigabit Router (DHP-1565) provides you an all-in-one solution for the freedom of a Wi-Fi network, the power of blazing fast wired network, and the flexibility of PowerLine connectivity. Achieve whole home coverage with this hybrid router that combines Wireless N300, PowerLine 500AV and Gigabit Ethernet for great coverage and performance.

Lista de puntos de venta
Wireless N PowerLine Gigabit Router

The D-Link Wireless N PowerLine Gigabit Router (DHP-1565) provides you an all-in-one solution for the freedom of a Wi-Fi network, the power of blazing fast wired network, and the flexibility of PowerLine connectivity.

Whole-Home Coverage, No Unsightly Cables

This router works seamlessly with D-Link’s PowerLine AV adapters (sold separately) to extend your network to anywhere in your home using the electrical wiring already installed in your walls. Simply connect and power up the Wireless N PowerLine Gigabit Router to instantly transform every power outlet in your home into a possible network connection, without the mess of cables. With speeds up to 500Mbps, this PowerLine router offers a connection fast enough to stream HD videos without so much as a stutter, and is the perfect solution for accessing your network - and all the devices on it - from any room in your home.

The Convenience of Wi-Fi and PowerLine, All in One Router

The DHP-1565 is a Wireless N 300 router that provides a significantly faster and farther-reaching wireless signal than outdated Wireless G routers. D-Link’s Intelligent Antenna Technology makes use of your home’s environment by bouncing multiple wireless signals off of walls and ceilings to work around obstructions and help eliminate dead spots. At the same time, you can use PowerLine in areas where a wired connection would be beneficial, like streaming media to your entertainment center.

Features:
  • Achieve whole home coverage with this hybrid router that combines Wireless N300, PowerLine 500AV and Gigabit Ethernet for great coverage and performance
  • Fast wired connection with 4 Gigabit Ethernet LAN ports and 1 Gigabit Internet Port
  • Easy PowerLine and Wireless Setup with one-button Connect
  • Enhanced Internet Experience with built-in QoS Engine
  • Share a USB printer or storage device with SharePort Technology across your network

Otros usuarios también vieron

Adaptador PowerLine (PLC) HD Ethernet AV
DHP-306AV
Más información
Kit PowerLine (PLC) HD Ethernet AV
DHP-307AV
Más información
PowerLine AV Mini Adapter
DHP-310AV
Más información
PowerLine AV Mini Starter Kit
DHP-311AV
Más información
PowerLine Inalámbrico Wireless N
DHP-W306AV
Más información

Technical Specifications

Minimum system requirement (for D-Link Click'n'Connect)
  • Windows®, Macintosh, or Linux-based operating system
  • CD-ROM drive
  • Ethernet adapter
  • Internet Explorer 6 or later, Firefox 3.0 or later, Safari 3.0 or later, or Google Chrome 2.0 or later

Device management
  • Web UI
  • SharePortTM Plus
  • UPnPTM AV Media Server
  • Web File Access

Standards
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.3u
  • IEEE 1901
  • HomePlug AV

Advanced firewall features
  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)
  • VPN Pass-Through/Multi-Sessions
  • PPTP/L2TP/IPSec

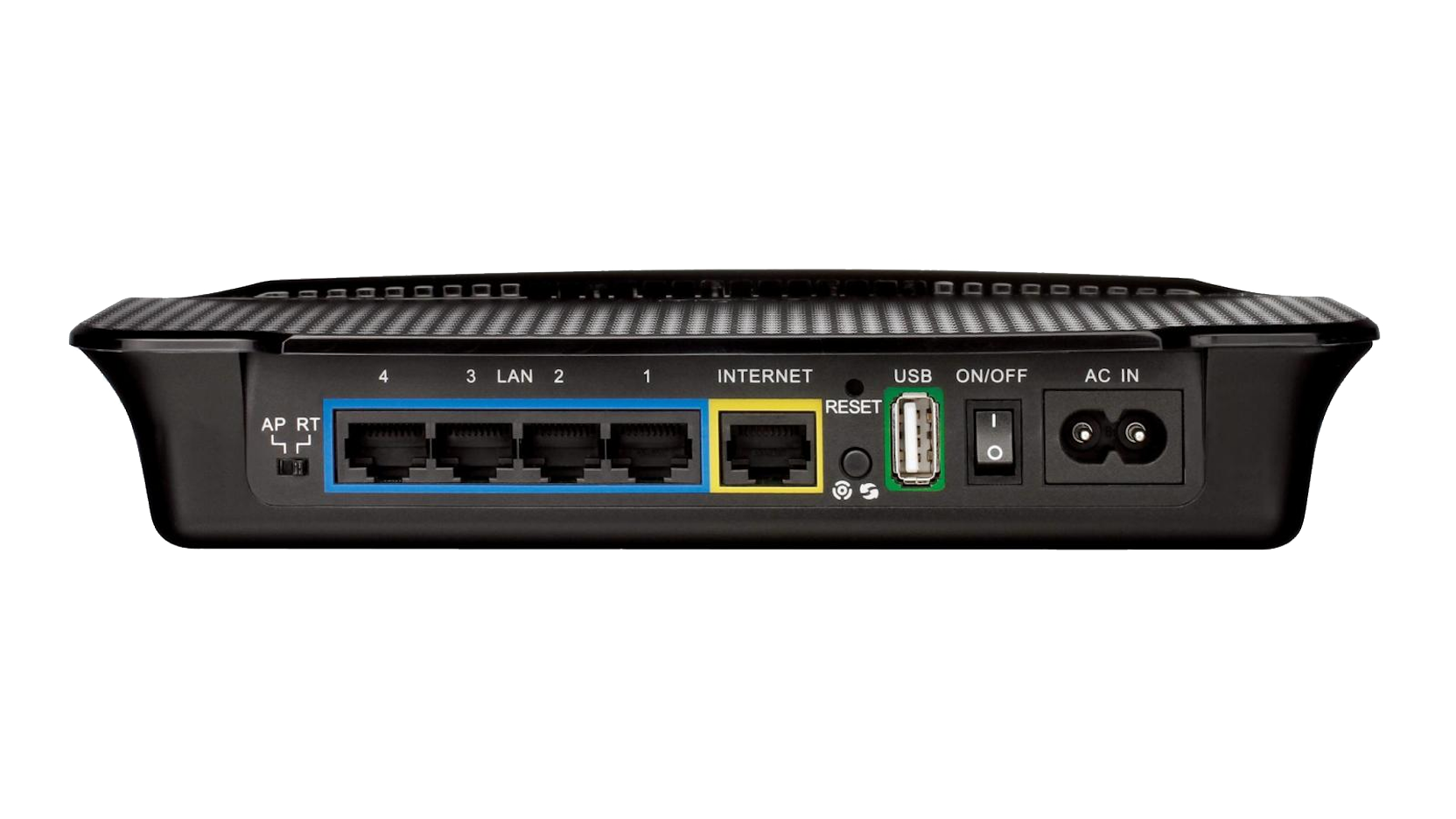

Device interfaces
  • Gigabit WAN (RJ-45)
  • Four Gigabit LAN (RJ-45)
  • USB 2.0

Wirelesss frequency range
  • 2.4 GHz to 2.4835 GHz

Data Rates
  • Powerline: up to 500 Mbps1
  • 802.11n: up to 300 Mbps2

Antennas
  • Two internal 2 dBi antennas

Security
  • 64/128-bit WEP
  • WPA & WPA2 (Wi-Fi Protected Access)

SharePort™ function support
  • External hard drive
  • multifunction USB printer

LED Status Indicators
  • Power
  • Internet
  • Powerline

Power
  • 100 V to 240 V

Power Consumption
  • Max. 12 W

Operating Temperature
  • 0 to 40 °C (32 to 104 °F)

Storage Temperature
  • -20 to 65 °C

Operating Humidity
  • 10% to 90%

Storage Humidity
  • 5% to 95%

Certifications
  • FCC
  • UL
  • CE
  • Wi-Fi
  • IPv6

FAQ

  • Why is my powerline ethernet adapter slower than advertised? Ver respuesta
  • Why won't my two DHP powerline devices connect together? Ver respuesta
How to download and use the QRS Mobile App for your iPhone/iPad
Versión Fecha Tipo Tamaño de archivo
Datasheet - PDF 1.67mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
Manual Manual - PDF 11.41mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
1.10 Quick Installation Guide - PDF 1.12mb Descargar
Este producto de D-Link utiliza programación de software realizada por terceros, incluyendo código software sujeto a la GNU General Public License ("GPL") o GNU Lesser General Public License ("LGPL"). Los términos de uso de GPL y LGPL, así como información de acceso al código GPL y LGPL usados en este producto, están disponibles en:

http://tsd.dlink.com.tw/GPL.asp

Los códigos GPL y LGPL usados en este producto se distribuyen SIN GARANTIA y están sujetos a los derechos de uno o más autores. Para más detalles, vea los códigos GPL y LGPL para este producto y los términos de uso de GPL y LGPL.
Versión Descripción Fecha
Firmware 1.00b35 Firmware 24/02/2012 Descargar
Versión Descripción Fecha
SharePort Plus for Windows 4.30 SharePort Plus for Windows 10/11/2014 Descargar
SharePort Plus for Mac 4.40 SharePort Plus for Mac 10/11/2014 Descargar
Versión Descripción Fecha
CE declaration

CE declaration

17/10/2014 Descargar
