mydlink Home Siren with optional battery back-up


  • Estado del producto: Descatalogado

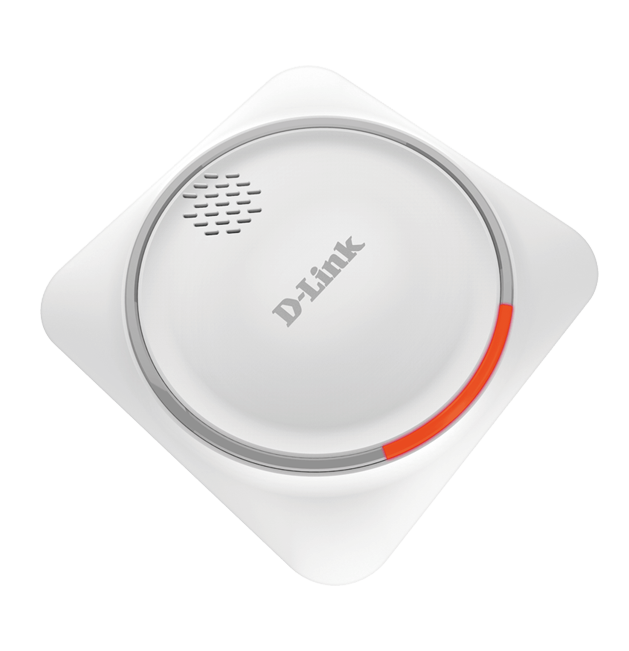

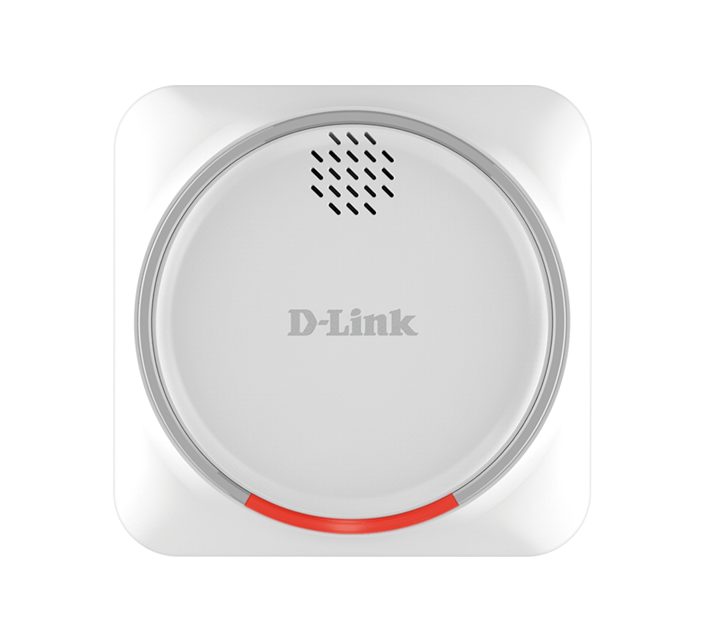

mydlink™ Home Siren es un dispositivo inteligente de advertencia acústica con 6 sonidos diferentes incorporados. Es fácil de configurar y gestionar con la aplicación mydlink Home, y se conecta al router a través de Connected Home Hub1.

Descargar el datasheet.

Lista de puntos de venta

Easy Setup

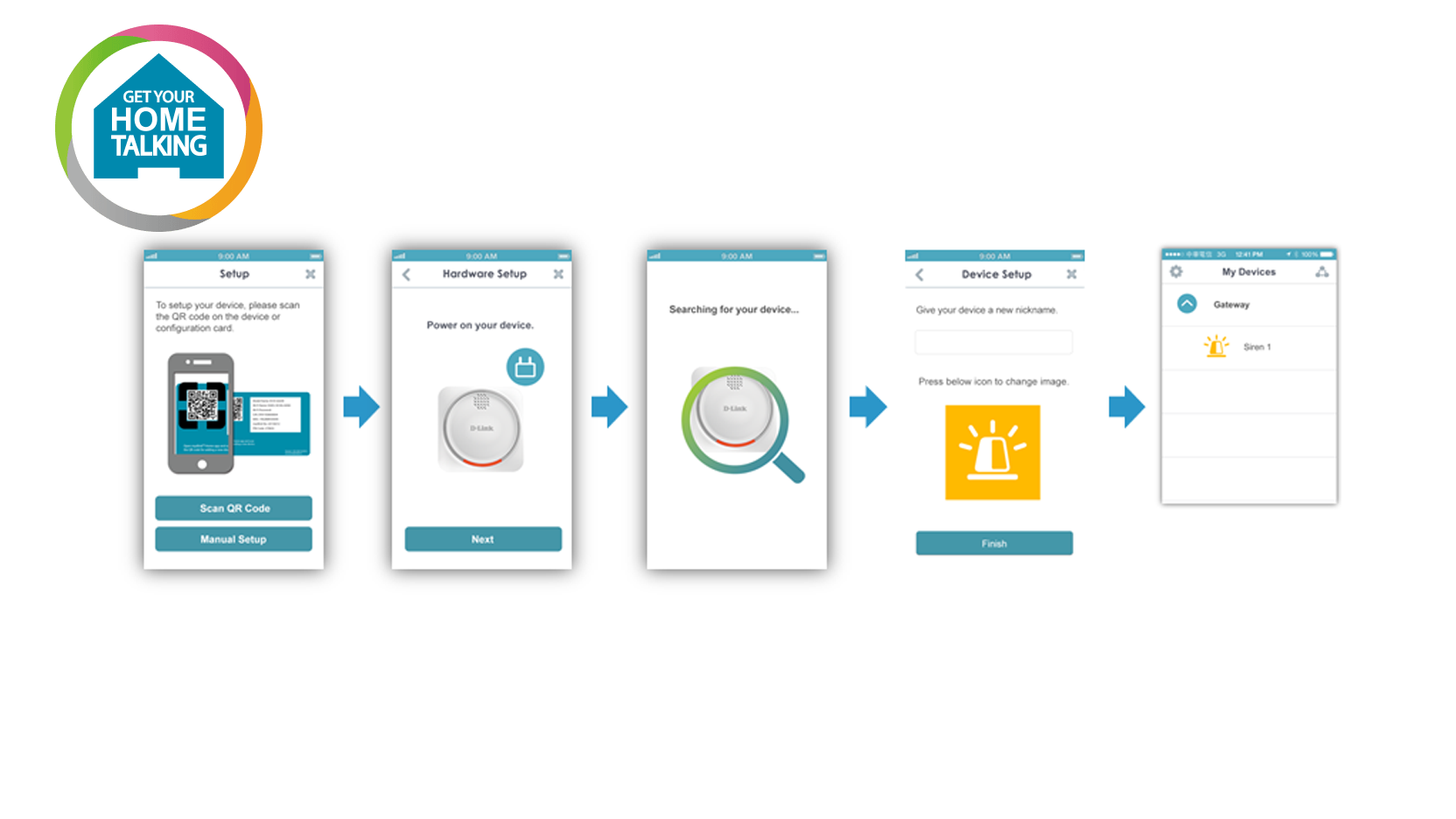

Download the free mydlink Home app4, follow the simple setup instructions


Push the pairing button to connect to your Connected Home Hub


Mount the Siren with the included mounting bracket in the desired location

Six different sounds

Equipped with six different sounds: door chime, arm/disarm, intruder alarm, fire alert, ambulance and police car sounds, you can customise your smart home by selecting the appropriate sound effect or alarm whenever a different event occurs.

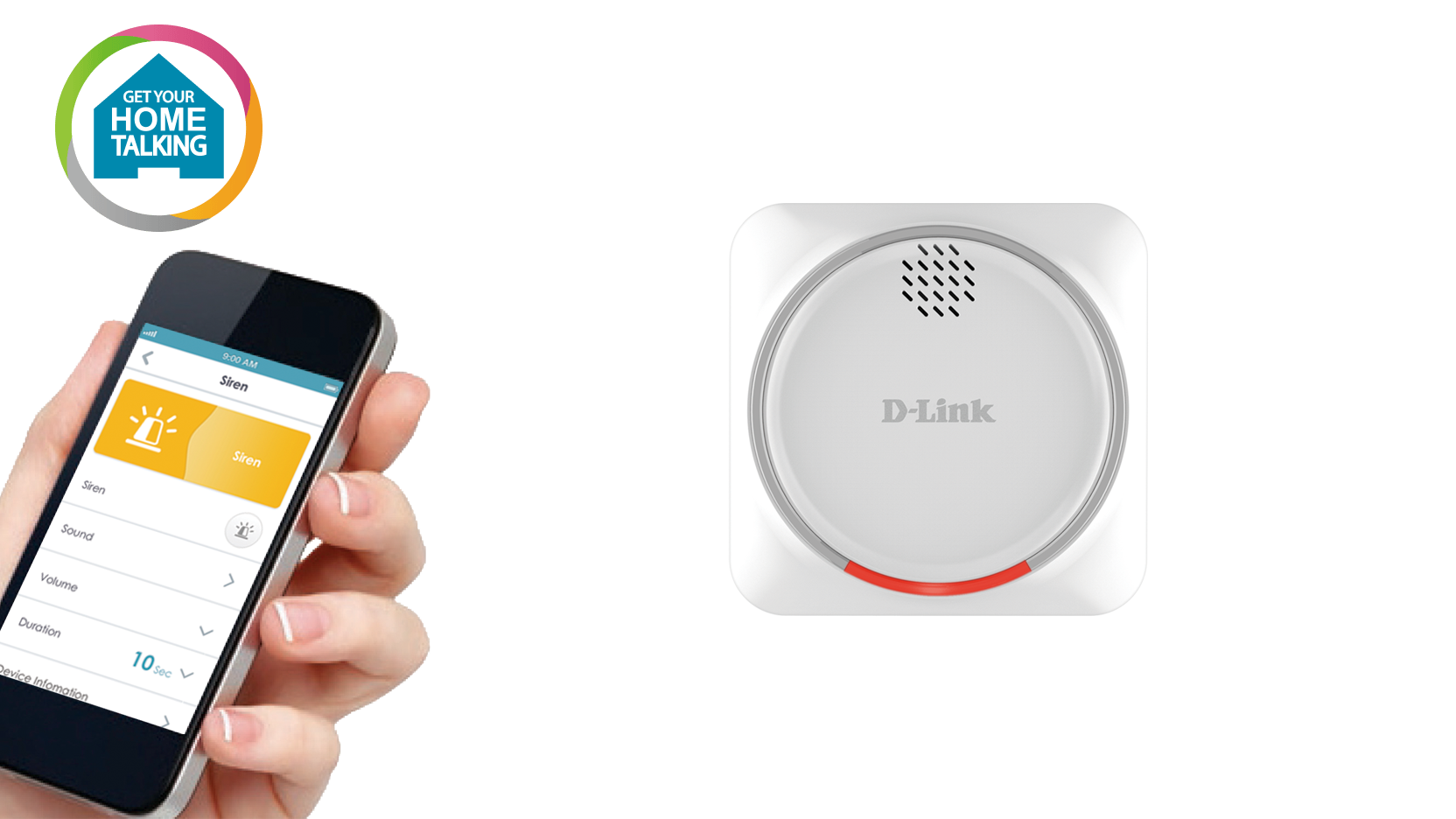

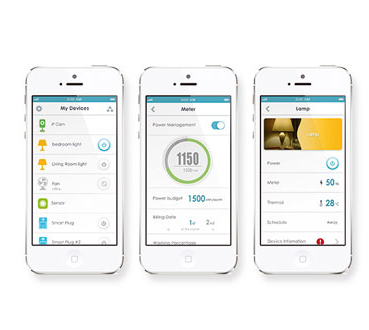

Set up, control, monitor and protect your home.

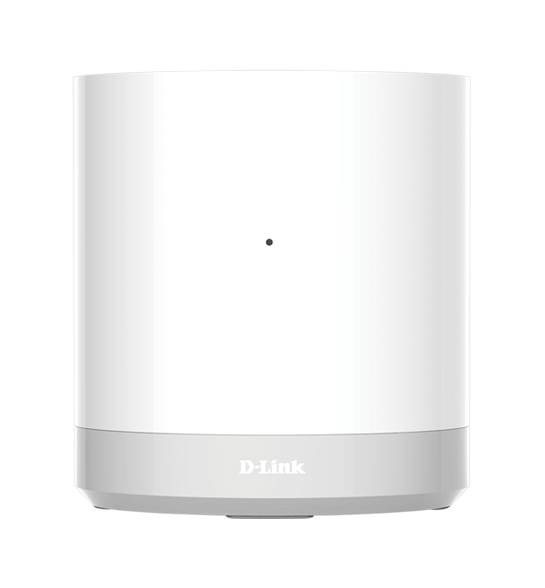

The mydlink Home - Connected Home Hub acts as the link between your existing Wi-Fi network and all mydlink home devices.

No Hidden Fees

Do-It-Yourself Simple

No Installation Fees

No Monthly Charges

1 Battery not included. Supports BL-5C 1150 mAh lithium battery.
2 Please refer to the information on the mydlink Home app page on the App Store or Google play to check whether your device is compatible.
3 Requires mydlink™ Home - Connected Home Hub (DCH-G020) which is not included with this product.
4 A maximum of 10 x Z-Wave (DCH-Z***) devices can be connected to the Connected Home Hub. This does not apply to any of the mydlink Home Wi-Fi devices which connect directly to your home Wi-Fi.
5 Requires mydlink Home Sensor which is not included with this product.

Otros usuarios también vieron

mydlink™ Home Connected Home Hub
Más información
mydlink™ Home Door/Window Sensor
Más información
mydlink Home Battery Motion Sensor
Más información
Smart Home HD Starter Kit
Más información
mydlink™ Home Wi-Fi Motion Sensor
Más información

Technical Specifications

Technical Specifications



• 110 dB

• 6 available sounds


Networking Protocol Support

• Z-Wave v6.02 or above


Z-Wave Wireless

• 868.40 MHz



• Tamper switch & pairing / unpairing / reset button



• Status





• 110 x 110 x 19 mm (4.33 x 4.33 x 0.75 inches)



• 125 grams (4.41 ounces)



• Operating Voltage: 5 V / 1.2 A

• Optional 1150 mAh lithium battery support (BL-5C)



• Operating: -10 to 40 °C (14 to 104 °F)

• Storage: -20 to 70 °C (-4 to 158 °F)



• Operating: 20% to 90% non-condensing

• Storage: 5% to 95% non-condensing




• CE

• Z-Wave Plus


  • How do I add my DCH-Z510 to my mydlink account? Ver respuesta
  • ¿Cuál es la referencia adecuada de la batería para mi DCH-Z510? Ver respuesta
DCH-Z510 Installation guide
This product was phased out on: 13/01/2018
Versión Fecha Tipo Tamaño de archivo
Datasheet - PDF 3.03mb Descargar
