Wireless N Dualband Outdoor PoE Access Point

DAP-3690

  • Estado del producto: Descatalogado

The DAP-3690 is a robust, high power outdoor access point designed for harsh conditions, it is the ideal solution for creating hot spots or extending wireless networks outdoors.


Descargar el datasheet.

Lista de puntos de venta
Demo Herramienta D-Link WiFi Planner Pro para diseño y planificación de entornos WiFi


  • Outdoor Access Point with IP67-compliant protection, able to withstand a wide range of temperatures and weather conditions
  • Concurrent dualband technology for increased network capacity
  • Wireless N for the fastest wireless speeds
  • QoS to prioritise time-sensitive applications
  • Advanced authentication options to protect your network from unwanted access
  • Four operation modes for extra flexibility
  • Supports high-power 802.3at PoE (Power over Ethernet)
  • Easy to configure with a Web-based GUI
  • Wall and pole mounting options included
  • Enhanced security with RADIUS support
  • High power radio design

The D-Link DAP-3690 Wireless N Dualband Outdoor PoE Access Point is an ideal solution for creating hot spot networks that provide outdoor users with wireless Internet access. Its versatile functions, high power design and weather resistant features make it a great solution for manufacturing plants, industrial locations, camping sites, school campuses, golf courses, marinas, and other outdoor venues.

Versatile Access Point

The DAP-3690 allows network administrators to deploy a highly manageable and extremely robust concurrent dual band wireless network. All four antennas are detachable and can provide optimal wireless coverage in both 2.4GHz (802.11g and 802.11n) and 5GHz (802.11a and 802.11n) bands. Ideal for outdoor deployments, this device is built with a series of weather resistant features, such as a built-in heater, to withstand all elements. For advanced installation, this new high-speed Access Point has integrated 802.3at Power over Ethernet (PoE) support, allowing installation in areas where power outlets are not readily available.

Multiple Operation Modes

The DAP-3690 can be configured to optimise network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), WDS with Access Point (WDS+AP), and Wireless Client. Also included are advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-3690 offers Spanning Tree Protocol support for greater efficiency and to avoid broadcast storms when used in WDS mode.

Enhanced Performance


The DAP-3690 delivers reliable wireless performance with maximum wireless signal rate of up to 300 Mbps in both the 2.4 GHz and 5 GHz wireless band. Additionally, support for Wi-Fi Multimedia (WMM) Quality of Service (QoS) features, make this device an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-3690 to automatically prioritise traffic according to the level of interactive streaming, such as Voice over IP (VoIP). The QoS feature also provides a drop-down menu option to customise priority settings. The Load Balancing feature in this device also ensures maximum performance by setting a limit for the total number of users per Access Point.

Security

To help maintain a secure wireless network, the DAP-3690 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for a RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN Segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included. The DAP-3690 supports up to 16 VLANs (8 per radio) which implement multiple SSIDs to help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication.

Network Management


Network administrators have multiple options for securely managing the DAP-3690 including Web (HTTP), Secure Sockets Layer (SSL), Secure Shell (SSH), and Telnet (bi-directional, eight bit oriented communications facility) and an RJ-45 console port. For advanced network management, administrators can use the D-Link AP Manager II, AP Array, or D-View SNMPv3 management module to configure and manage multiple Access Points from a single location. In addition to a streamlined management process, both AP Manager II and D-View provide network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send out personnel to physically verify proper operation. With simultaneous dual band functionality, PoE support, extensive manageability, versatile operation modes, and solid security enhancements, the D Link Wireless N Dualband Outdoor PoE Access Point (DAP-3690) provides SMB and enterprises with a business-class solution for deploying a wireless network in outdoor environments.

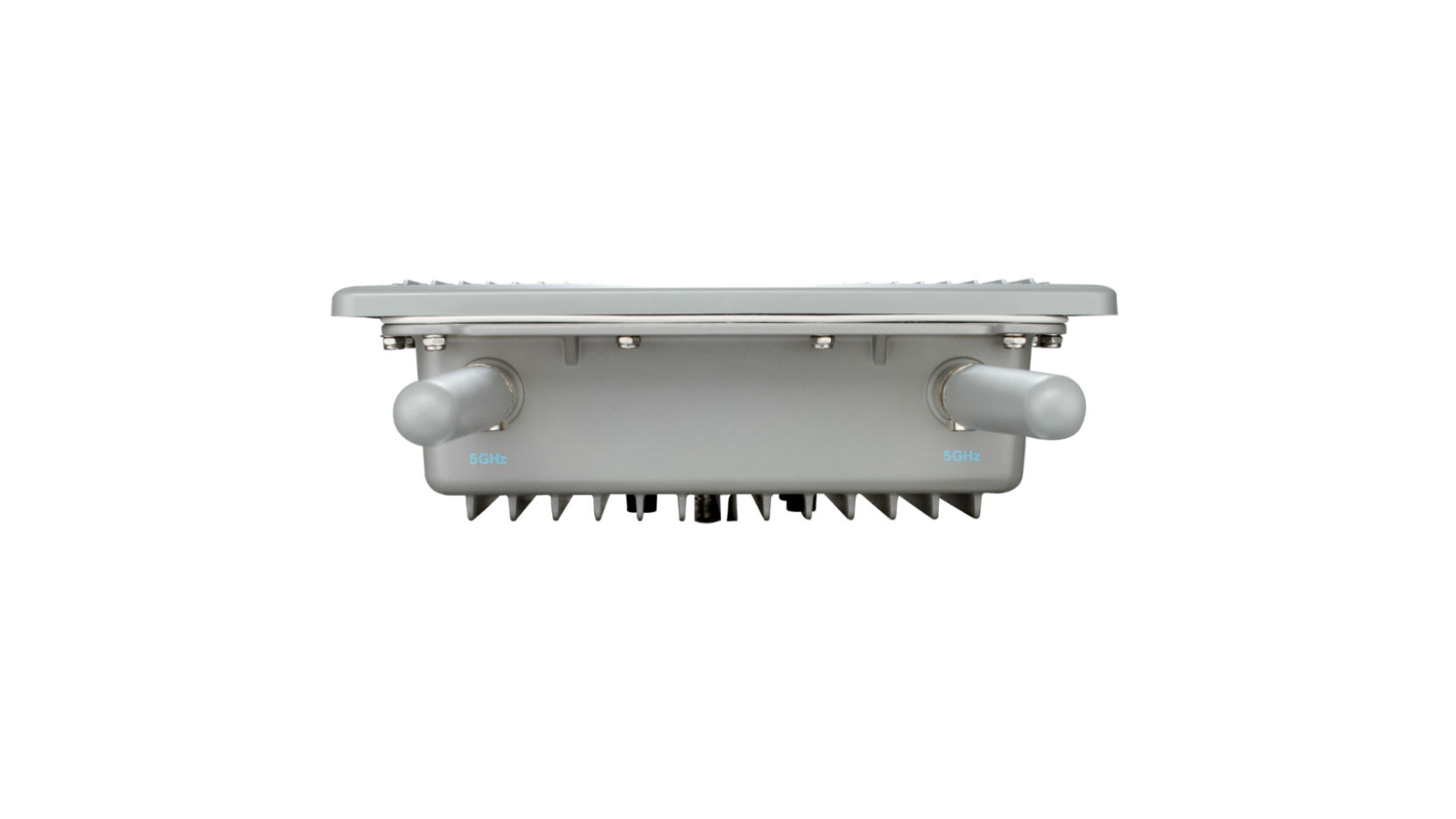

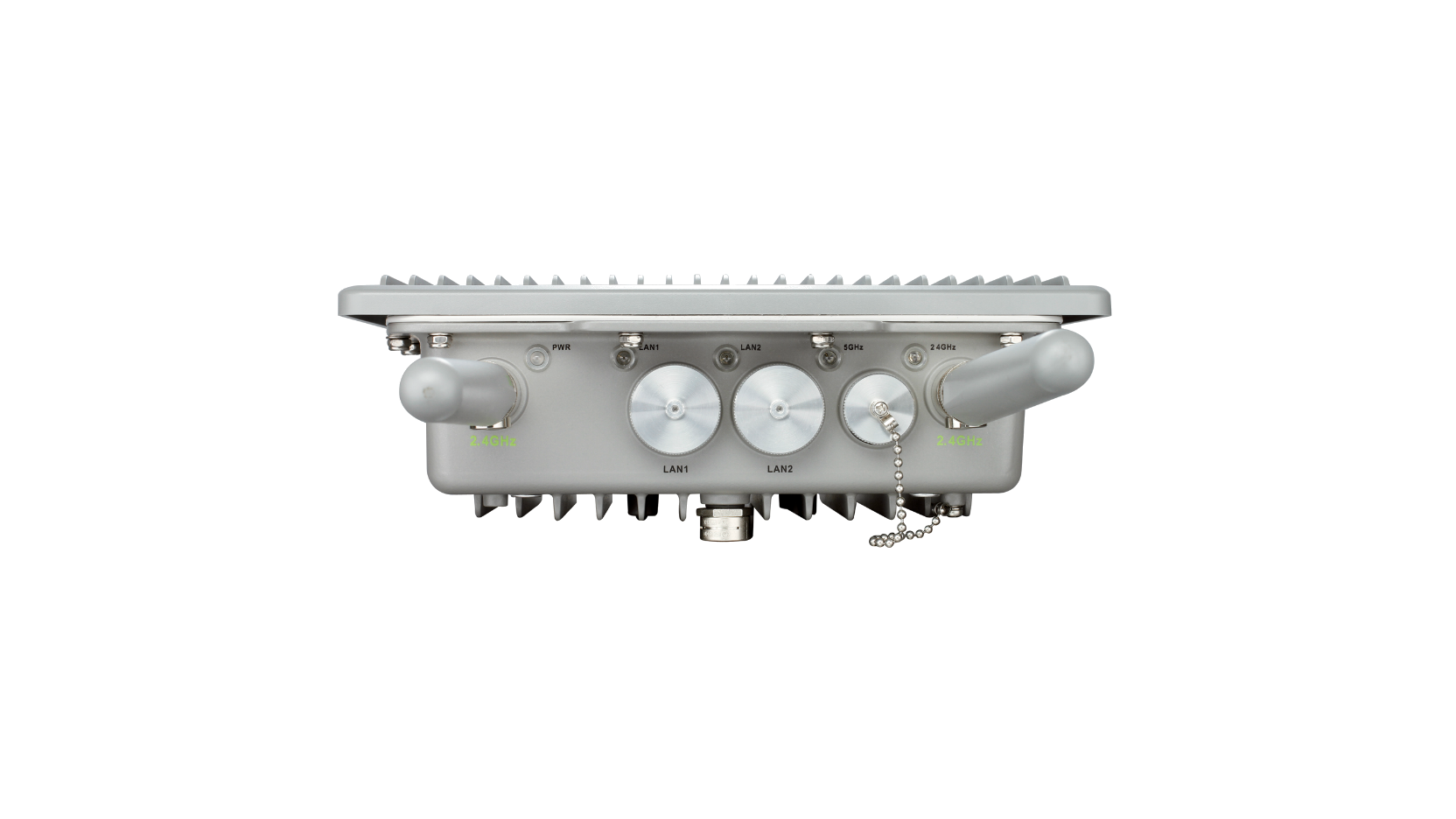

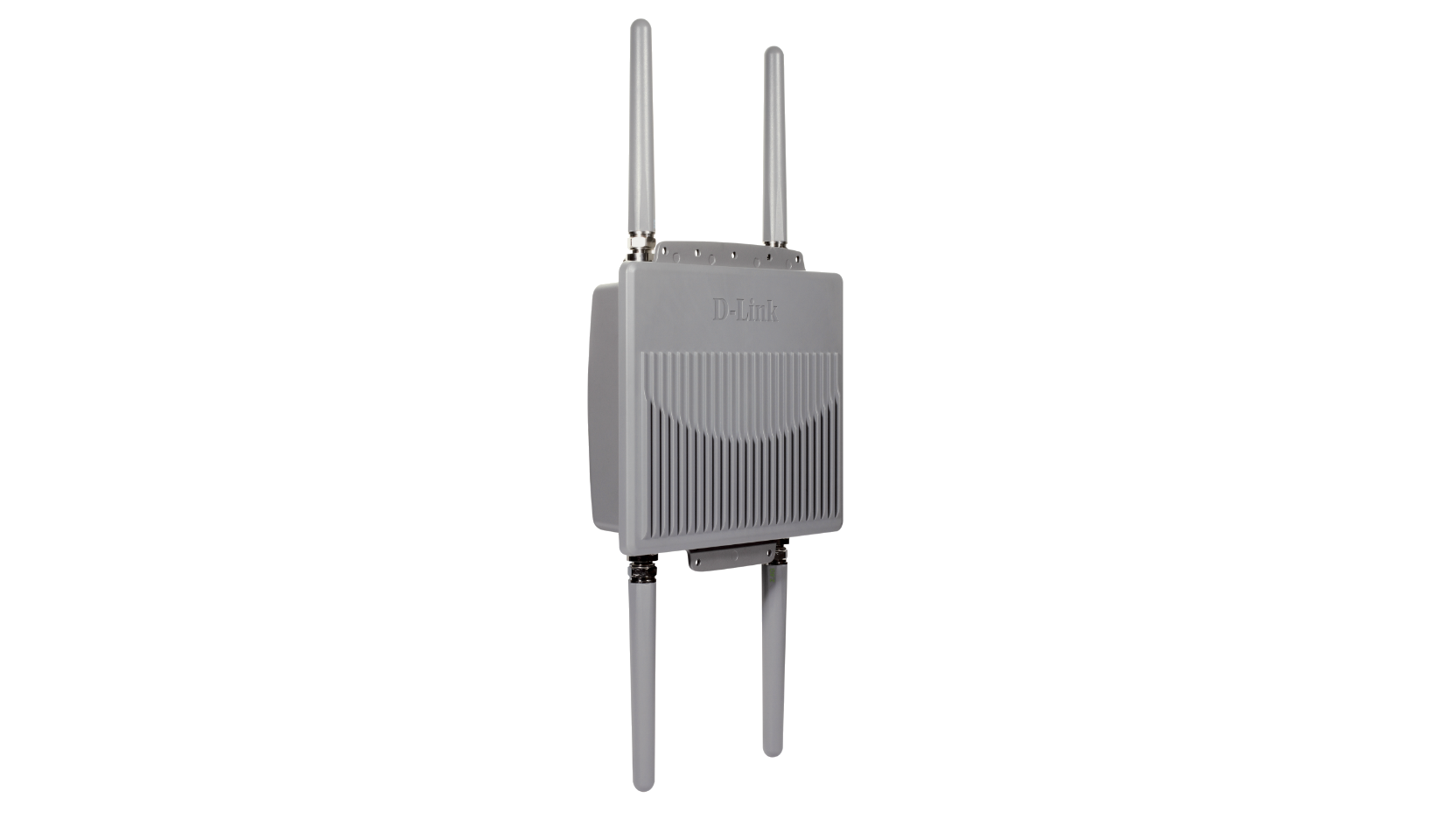

La apariencia real del producto podría diferir de la imagen mostrada en esta página.

Technical Specifications

Standards
  • IEEE 802.11a
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3

Network management

  • Telnet, Secure Telnet (SSH)
  • Web Browser Interface
  • HTTP, Secure HTTP (HTTPS)
  • SNMP Support
  • D-View Module - Private MIB
  • AP Manager II
  • AP Array

Security

  • WPA/WPA2-Personal/Enterprise
  • 64/128-bit WEP
  • SSID Broadcast Disable
  • MAC Address Access Control
  • Rogue AP Detection
  • 802.1x Authentication
  • Wireless LAN Partition

VLAN/SSID support
  • Multiple SSID supports up to 16 (8 per radio)

Quality of Service (QoS)

  • 4 Priority Queues
  • WMM Wireless Priority

Wireless Frequency Range
  • 2.4 GHz (2.4 GHz to 2.4835 GHz)
  • 5 GHz (5.15 GHz to 5.35 GHz, 5.47 GHz to 5.85 GHz)

Operating modes
  • Access Point (AP)
  • WDS with AP
  • WDS
  • Wireless Client

Dipole antenna gain
  • 5 dBi @ 2.4 GHz
  • 7 dBi @ 5 GHz

Maximum Output Power
  • 20 dBm @ 2.4 GHz (dual chain)
  • 23 dBm @ 5 GHz (dual chain)

LEDs
  • Power
  • LAN
  • 5 GHz
  • 2.4 GHz

Maximum Power Consumption
  • 18 watts max. with PoE (with heater OFF)
  • 24 watts max. with PoE (with heater ON)

Power Voltage
  • 48V DC +/- 10% for PoE

Temperature
  • Operating: -40 to 60 °C
  • Storage: -40 to 65 °C

Humidity
  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Weight
  • 2.53 kg (without antennas)

Dimensions (W x H x D)

  • 250 x 220 x 70 mm

Accessories Provided
  • Four embedded surge arrestors
  • PoE base unit (PoE injector)
  • Grounding wire
  • Wall mounting kit
  • Pole mounting kit

Certifications
  • FCC
  • CE
  • IC
  • C-Tick
  • NCC
  • UL
  • Wi-Fi
  • IP67
