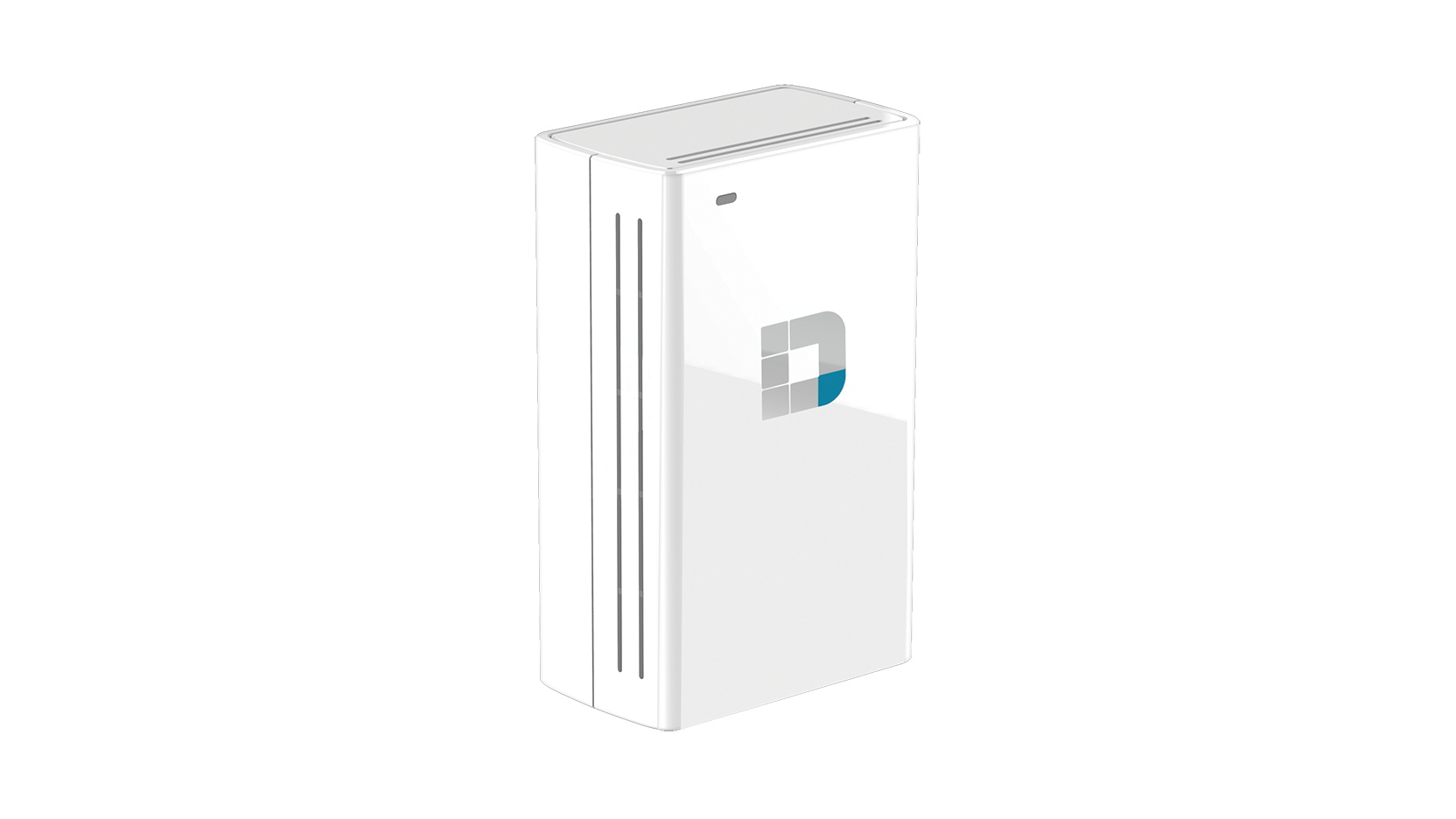

Wi-Fi AC750 Dual Band Range Extender

DAP-1520

  • Estado del producto: Activo
The DAP-1520 Wireless AC750 Dual-Band Range Extender is a portable plug-in wireless repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 750 Mbps, yet fits in the palm of your hand.

Descargar el datasheet.

Lista de puntos de venta
The DAP-1520 Wireless AC750 Dual-Band Range Extender is a portable plug-in wireless repeater that lets you extend an existing wireless network. You can place it anywhere in your home to increase the range of your wireless network. Tiny yet powerful, it supports Wireless AC speeds of up to 750 Mbps, yet fits in the palm of your hand.

Easy to Set Up, Easy to Use


Setting up the Wireless AC750 Dual-Band Range Extender is simple. You can use the supported QRS Mobile app on your iOS or Android mobile device to set up the DAP-1520 easily without needing a computer.
Alternatively, you can use one-touch configuration by pushing the WPS push-button on the DAP-1520 and on the router or AP you want to extend, and the DAP-1520 will automatically configure itself for you. It even includes a built-in setup wizard that lets you configure it wirelessly with a PC or mobile device.

Extend Your Wireless Network


Increase the coverage of your home Wireless network with the sleek and easy-to-use DAP-1520 Wireless AC750 Dual-Band Range Extender. Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network, allowing you to enjoy a blazing-fast, reliable wireless connection.

Compact, Convenient Design


The DAP-1520 is a compact device that is ideal for use at home or in a small office, as it does not take up much space and is ready to use by simply plugging it in. Its diminutive wall-plug design easily plugs into a power outlet without blocking other outlets and saves you the hassle of dealing with a power cord. Its sleek, unobtrusive appearance blends easily into the decor of your home or office.

Product Awards

Recomendado DAP-1520
DAP-1520 Review Dagbladet.no
D-Link DAP-1520 AC Range Extender
Easy to set up, works great, fairly easy, less performance loss than other devices.

Otros usuarios también vieron

Wireless N300 Range Extender
DAP-1320
Más información
PowerLine AV 500 Wireless N Mini Starter Kit
DHP-W311AV
Más información
Wireless AC750 Dual-Band Cloud Router
DIR-810L
Más información
Wireless AC1750 Dual-Band Gigabit Cloud Router
DIR-868L
Más información

Technical Specifications

General

Device Interfaces

  • 802.11ac/n/g/b/a wireless LAN
  • WPS button
  • Reset button

LEDs

  • Status/WPS

Standards

  • IEEE 802.11ac (draft)
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a

Antennas

  • Two internal antennas

Plug Type

  • Region dependent

Functionality

Wireless Security

  • Wi-Fi Protected Access (WPA/WPA2)
  • WEP 64/128-bit encryption
  • WPS (PBC)

Advanced Features

  • D-Link One-Touch Extender Setup

Device Management

  • Supports QRS Mobile app for iPhone, iPad, iPod Touch, and Android mobile devices
  • Web UI

Physical

Dimensions

  • 92 x 58 x 34.2 mm (3.62 x 2.28 x 1.35 inches)

Weight

  • 104 grams (3.67 ounces)

Power

  • Input: 110 to 240 V AC, 50/60 Hz

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • FCC
  • IC
  • CE
  • C-Tick
  • EMI/EMC
  • UL
  • Wi-Fi Certified

1. Maximum wireless signal rate derived from IEEE Standard 802.11ac (draft), and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors can adversely affect wireless signal range. Combined wireless speeds of up to 750 Mbps achieved when extending 802.11ac wireless networks.

FAQ

  • How do I change the Administrator password on Wi-Fi Extender? Ver respuesta
  • How do I set up and install my Wireless Extender? Ver respuesta
How to connect to wireless in Windows 8
How to connect to wireless in Windows 7
How to connect to wireless using an iPhone
Versión Fecha Tipo Tamaño de archivo
Datasheet - PDF 0.29mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
Product manual

Product manual

15/04/2014 PDF 5.39mb Descargar
Versión Descripción Fecha Tipo Tamaño de archivo
1.00

Quick installation guide

21/05/2014 PDF 0.59mb Descargar
Este producto de D-Link utiliza programación de software realizada por terceros, incluyendo código software sujeto a la GNU General Public License ("GPL") o GNU Lesser General Public License ("LGPL"). Los términos de uso de GPL y LGPL, así como información de acceso al código GPL y LGPL usados en este producto, están disponibles en:

http://tsd.dlink.com.tw/GPL.asp

Los códigos GPL y LGPL usados en este producto se distribuyen SIN GARANTIA y están sujetos a los derechos de uno o más autores. Para más detalles, vea los códigos GPL y LGPL para este producto y los términos de uso de GPL y LGPL.
Versión Descripción Fecha
Firmware 1.08 Firmware 20/06/2016 Descargar
1.07b03

Release notes included

13/04/2016 Descargar
Firmware Release notes included 1.06b04

Firmware
Release notes included

03/07/2015 Descargar
Firmware 1.05b02

Firmware

15/10/2014 Descargar
Versión Descripción Fecha
DEU_CE_Doc_RevA

CE declaration

21/05/2014 Descargar
