Power over Ethernet Adapter Kit

DWL-P200

  • Product Status: Phased Out

Technical Specifications

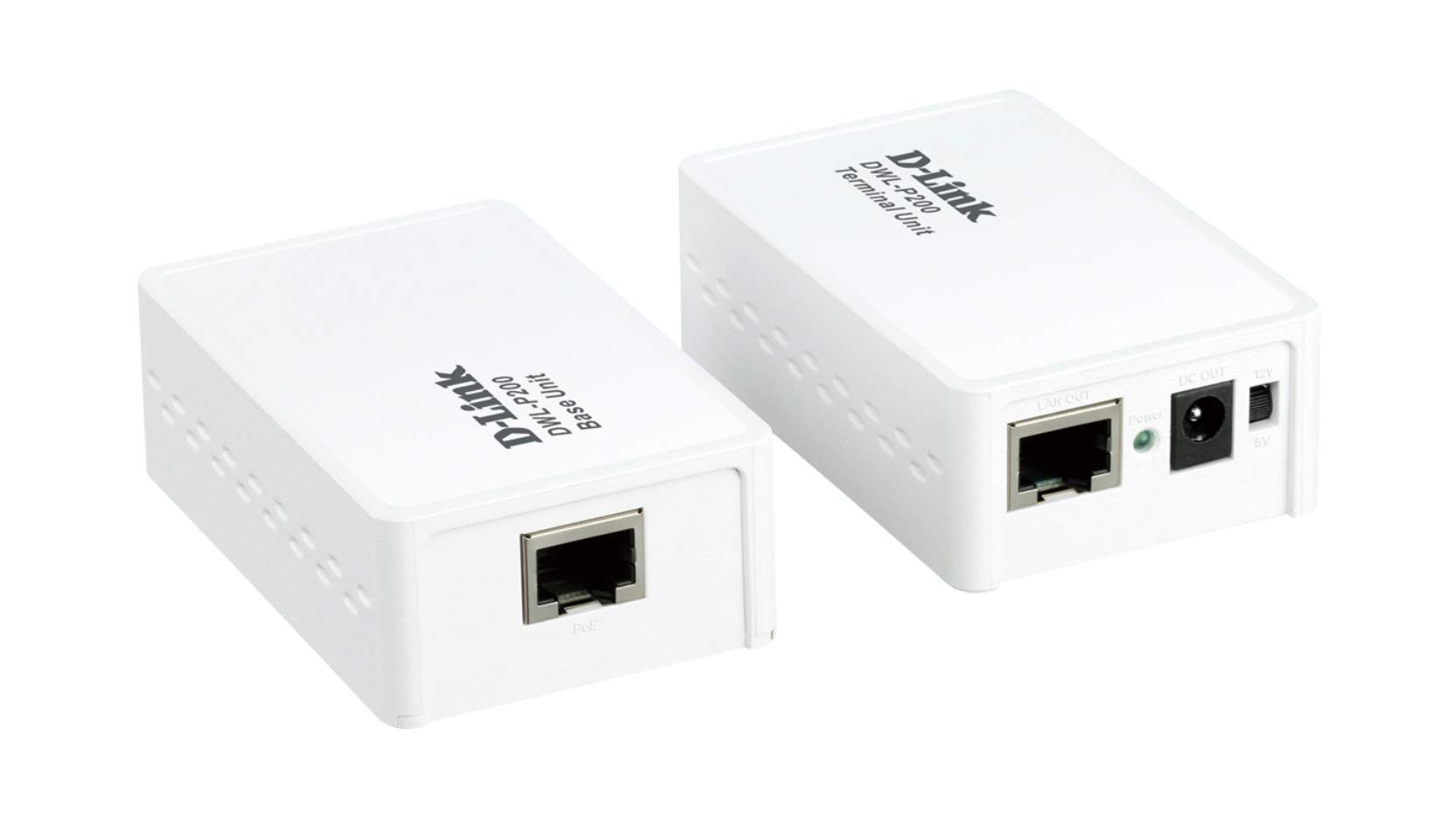

Power Over Ethernet Includes

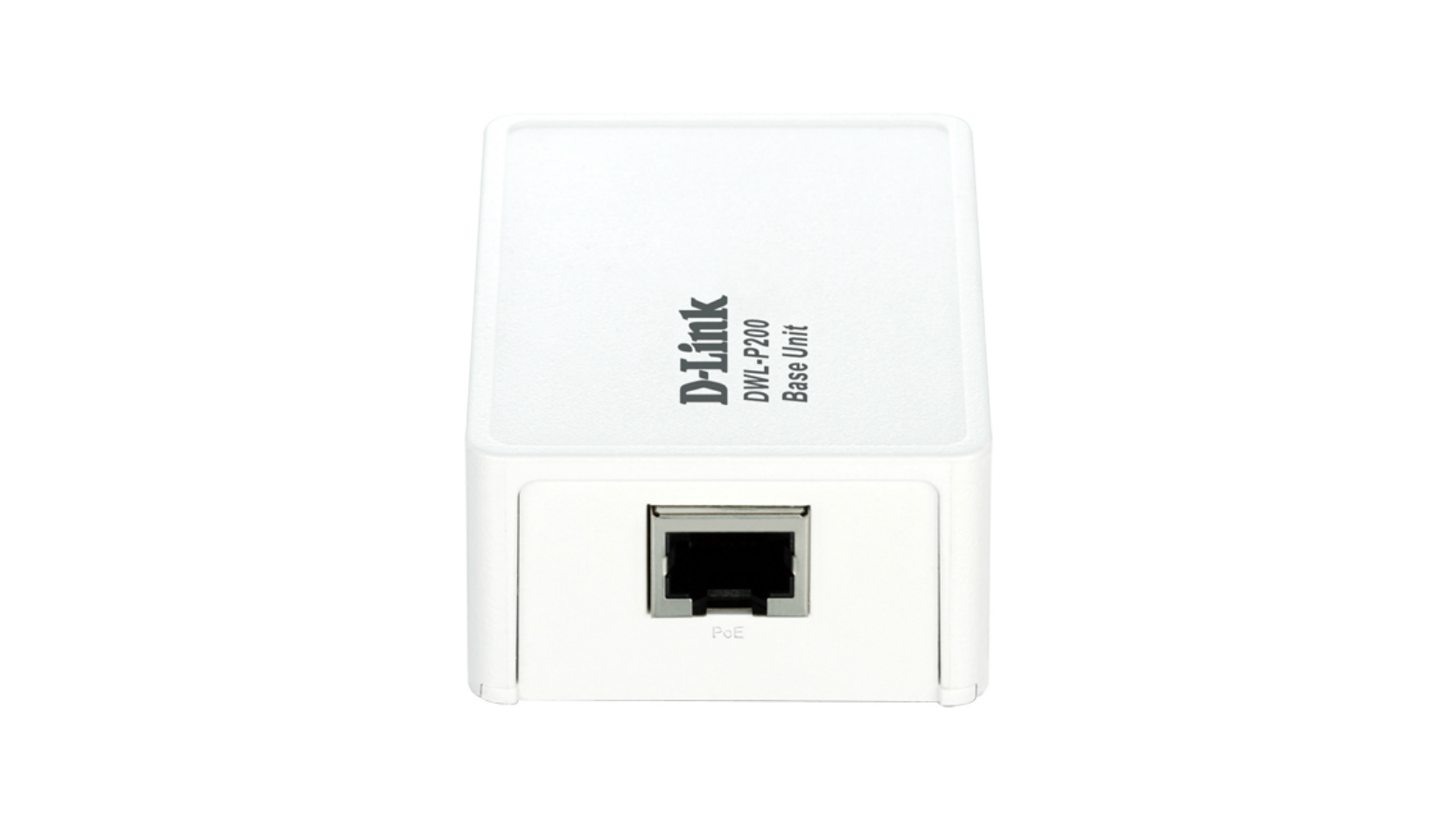

  • 1 base unit

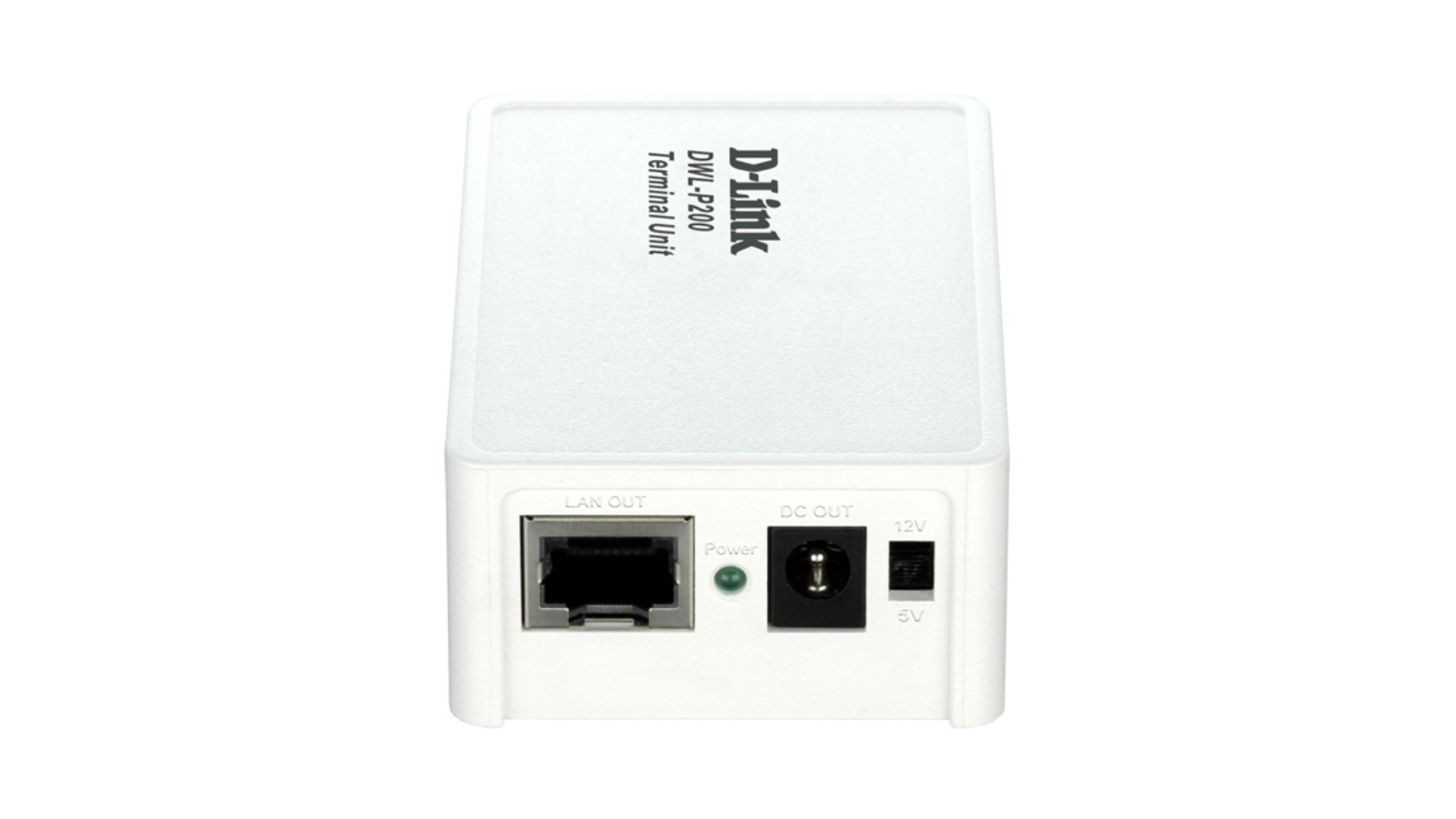

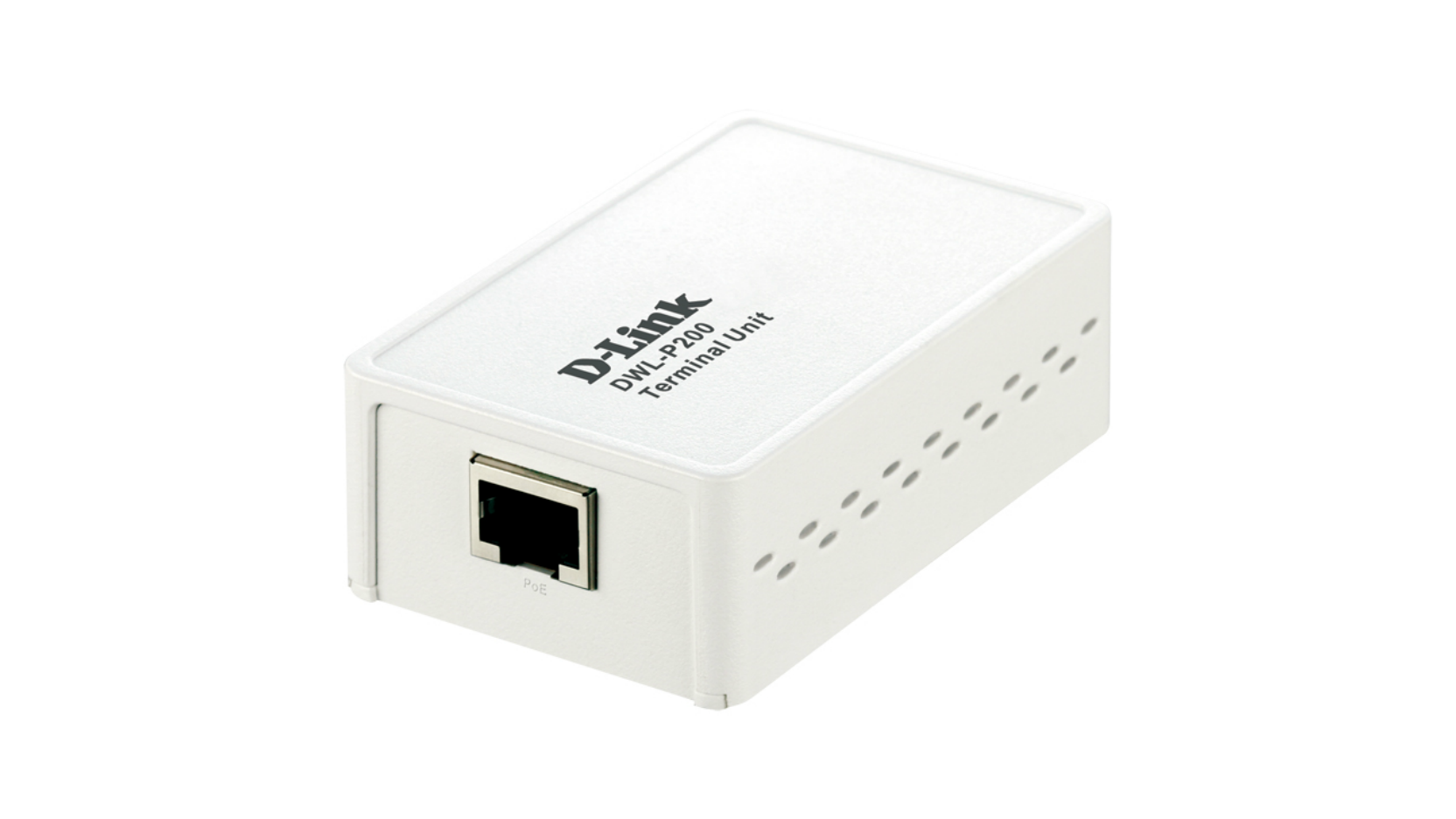

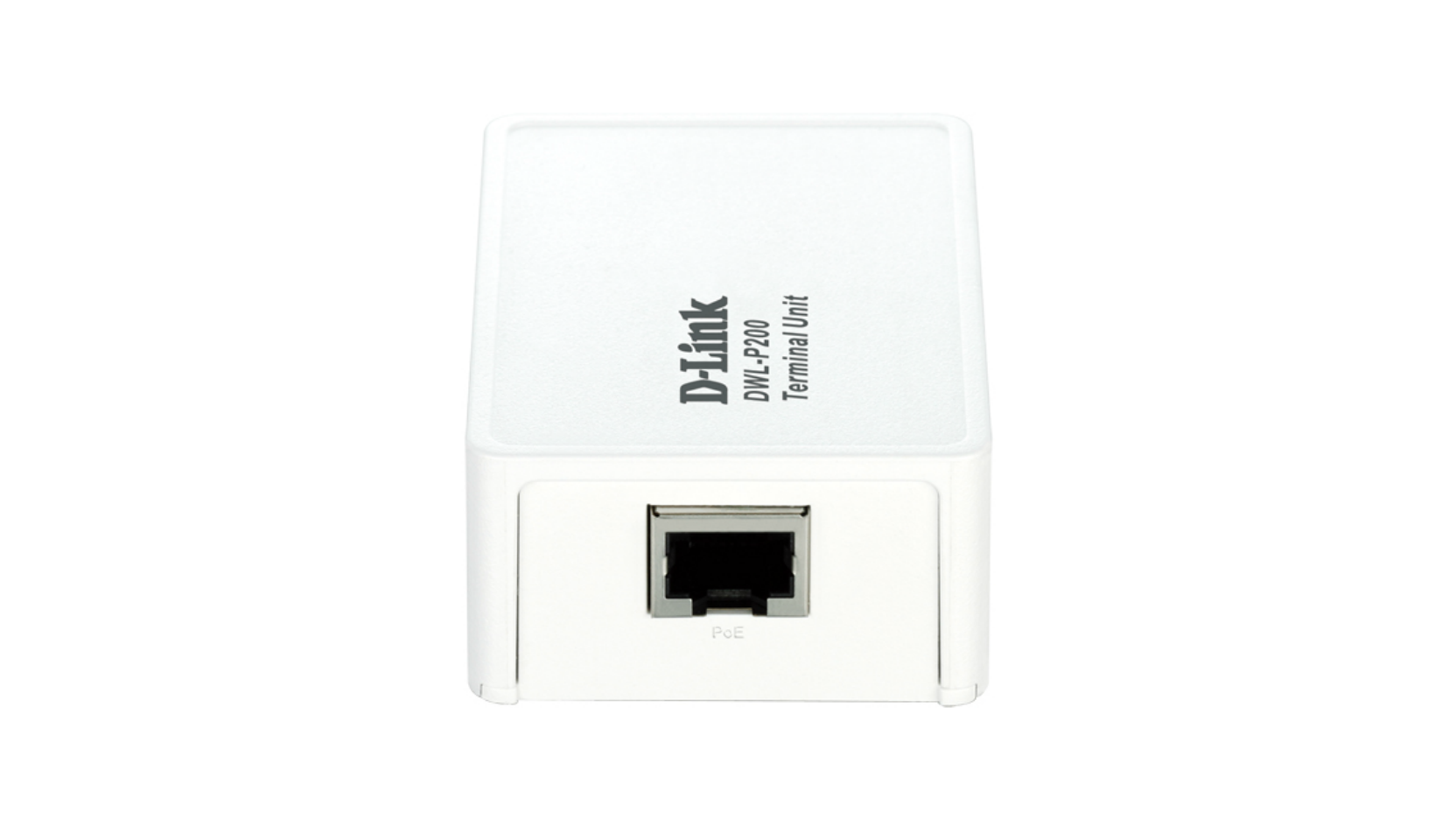

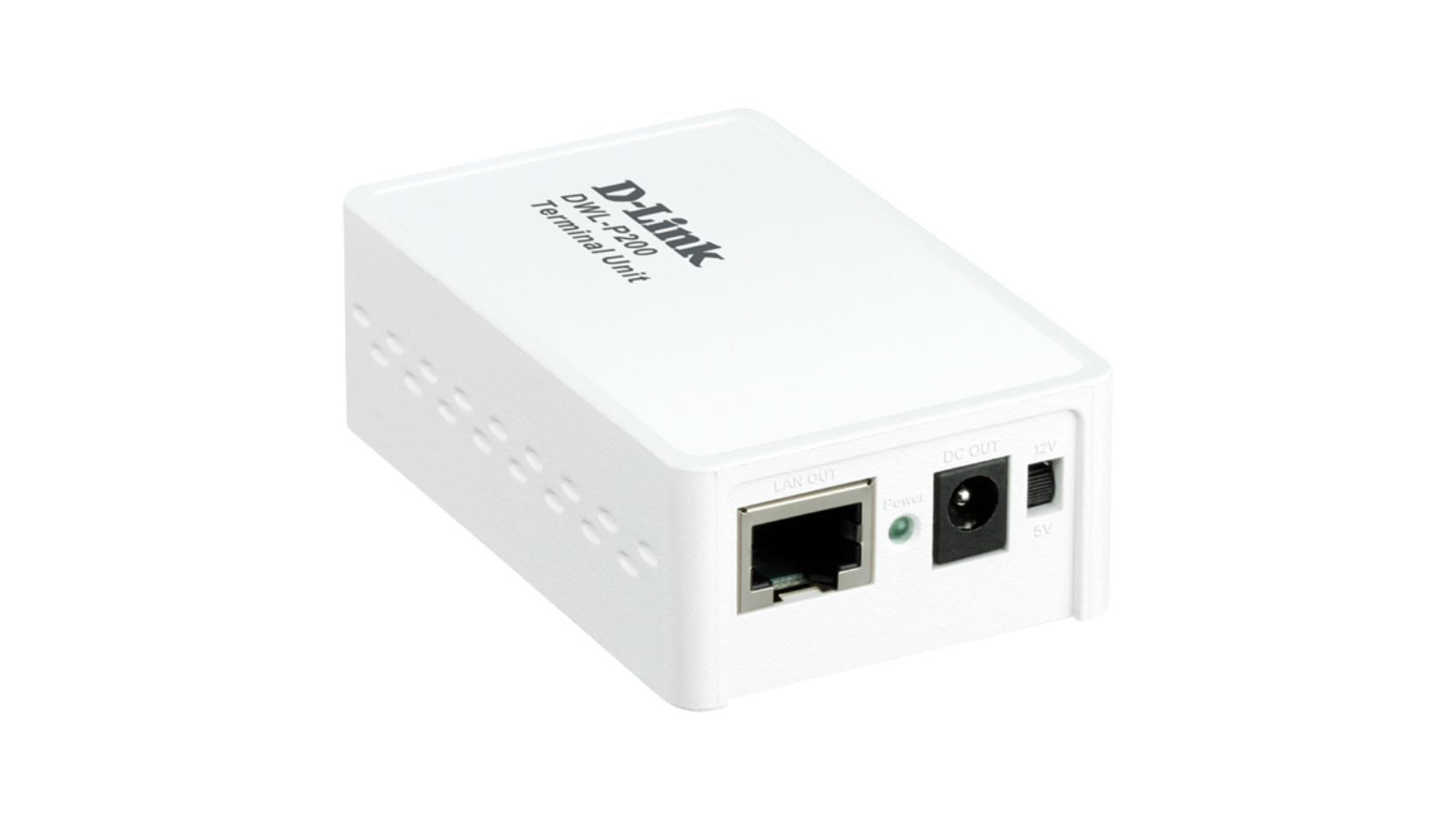

  • 1 terminal unit

Category 5 Pin Power Usage
  • Data: pins 1, 2, 3, 6
  • Power: pins 4, 5, 7, 8

Output Voltage
  • Input: 48VDC, 400mA
  • Output: 5VDC or 12VDC (DIP switch selectable)

Ethernet Cable
  • Data rate: 10/100Mbps
  • TIA/EIA 568 Cat. 5
  • Connector: RJ-45

Dimensions
  • Base unit: 81 x 52 x 28 mm
  • Terminal unit: 81 x 52 x 28 mm

Operating Temperature
  • 0 to 40  C

Storage Temperature
  • -40 to 70  C

Operating Humidity
  • 10% to 80% RH

Storage Humidity
  • 5% to 90% RH

EMI Certification
  • FCC Part 15 Class B
  • CE Class B

Power Adapter Safety Certifications
  • CSA International
