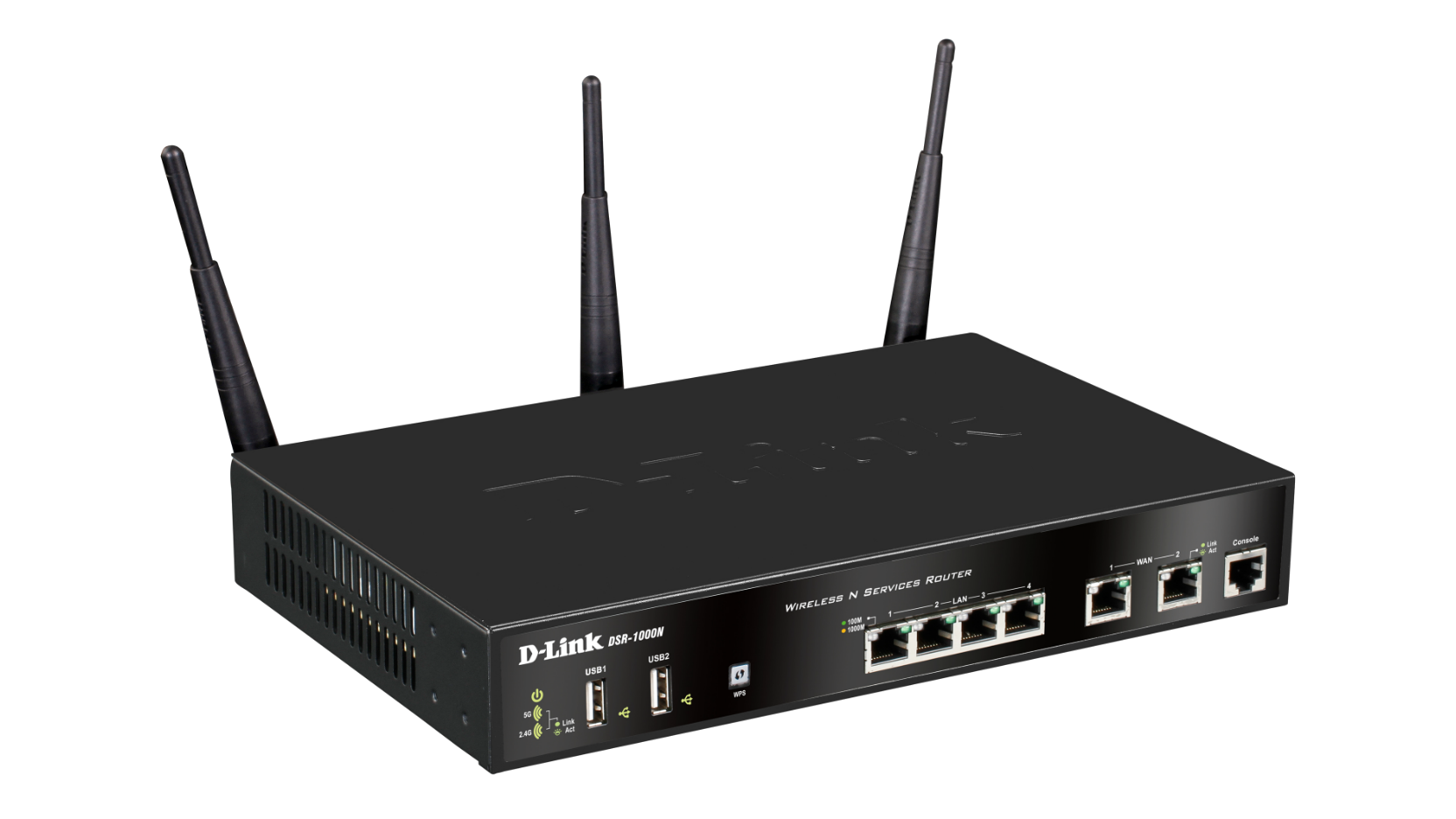

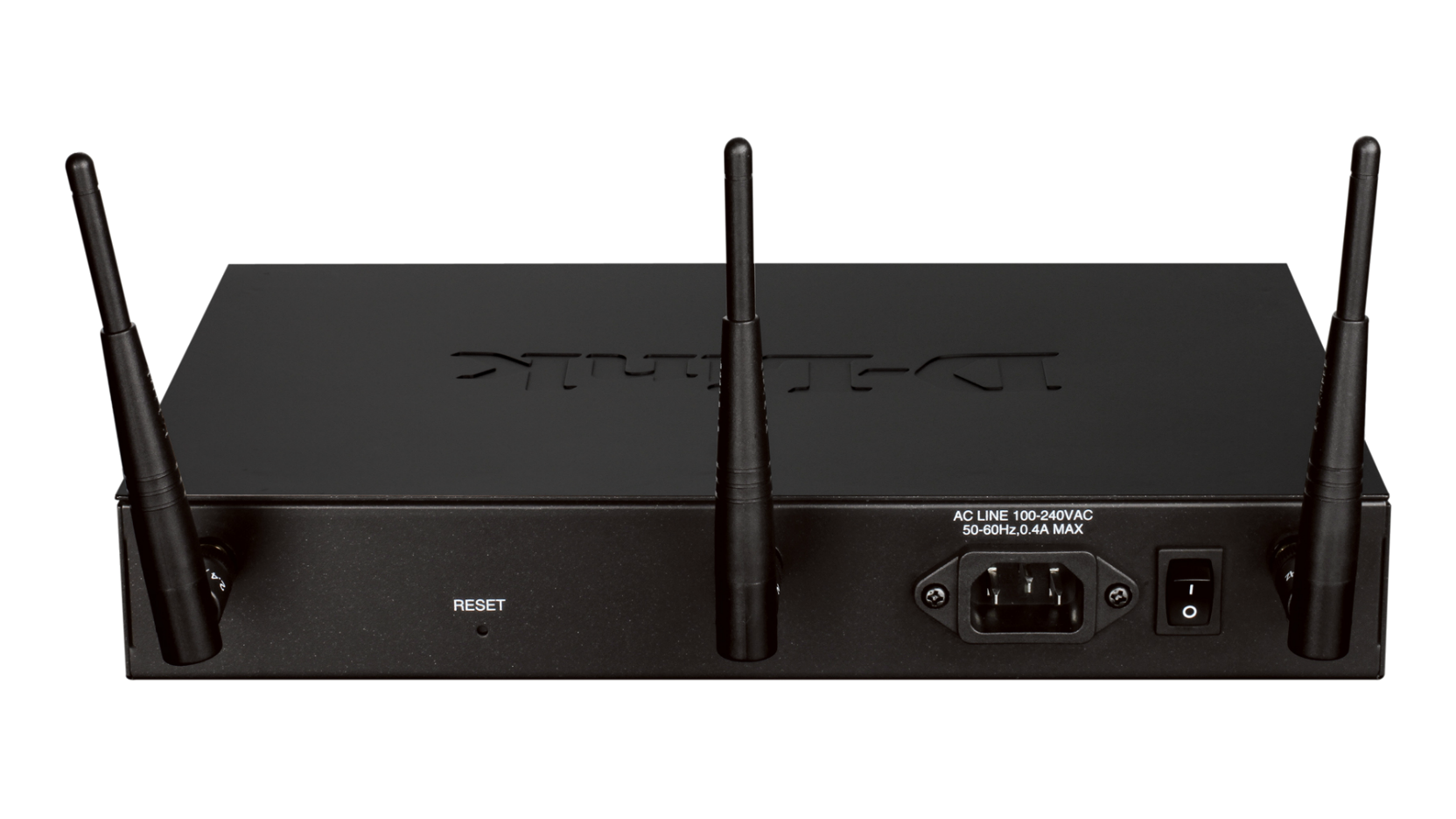

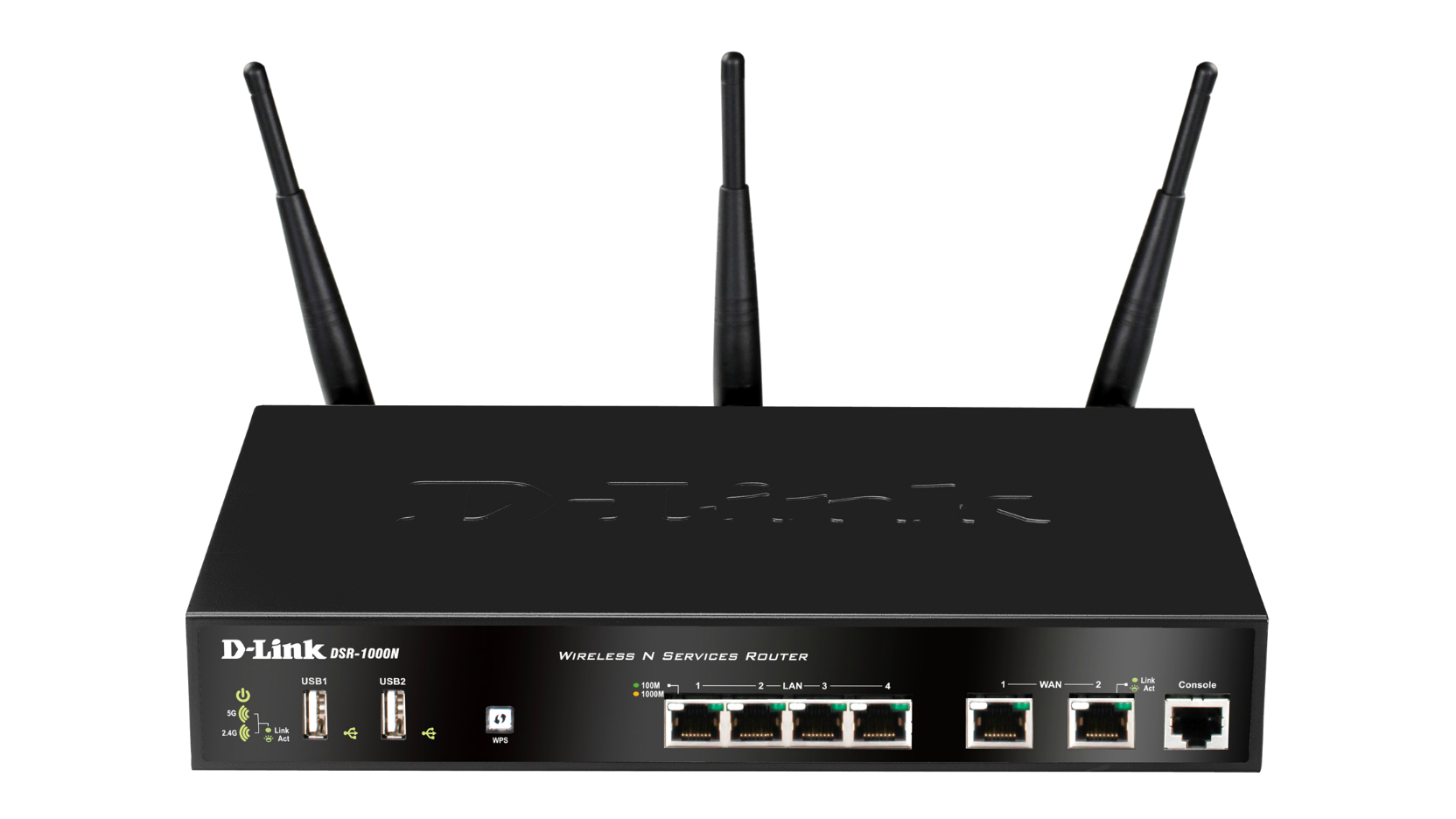

Wireless N Dual Band Unified Service Router

DSR-1000N

  • Product Status: Phased Out

D-Link’s DSR-1000N Wireless N Dual-Band Unified Service Router is a secure, high performance networking solution to address the growing needs of small and medium businesses. Integrating dual-band Wireless N and mobile 3G support, the DSR-1000N offers comparable performance to traditional wired networks but with fewer limitations.


Download the datasheet.

List Retailers

The D-Link DSR-1000N Unified Services Router, high-performance networking solutions to address the growing needs of small and medium businesses. The integrated high-speed IEEE 802.11n wireless technology in the D-Link DSR-100N Unified Services Router offers comparable performance to traditional wired networks, but with fewer limitations. Each router provides optimal network security via features such as Virtual Private Network (VPN) tunnels, IP Security (IPSec), Point-to-Point Tunnelling Protocol (PPTP), Layer 2 Tunnelling Protocol (L2TP), Generic Routing Encapsulation (GRE)2, and Secure Sockets Layer (SSL). This router also allow you to empower your road warriors with clientless remote access anywhere and anytime using SSL VPN tunnels.

Comprehensive Management Capabilities

The DSR-1000N include dual-WAN Gigabit Ethernet that provides policy-based service management to ensure maximum productivity for your business operations. The failover feature maintains data traffic without disconnecting when a landline connection is lost. The Outbound Load Balancing feature adjusts outgoing traffic across two WAN interfaces and optimises system performance, resulting in high availability. The second WAN port can be configured as a DMZ port, allowing you to isolate servers from your LAN.

Superior Wireless Performance

The D-Link DSR-1000N Unified Services Router include 802.11a/b/g/n, allowing for operation on either the 2.4 GHz or 5 GHz wireless LAN radio bands. Multiple In Multiple Out (MIMO) technology allows the DSR-1000N to provide high data rates and a wide wireless coverage area with minimised “dead spots.”

Flexible Deployment Options

The DSR-1000N supports Third Generation (3G) networks via an extendable USB 3G dongle1. This 3G network capability offers an additional data connection for critical or backup services. A 3G USB dongle can be configured as a third WAN port, performing Traffic Load Balancing and executing automatic failover whenever the primary WAN link gets lost.

Robust VPN Features

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The D-Link DSR-1000N is capable of simultaneously managing 20 Secure Sockets Layer (SSL) VPN tunnels, as well as  20 Generic Routing Encapsulation (GRE) tunnels2, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunnelling Protocol (PPTP), or Layer 2 Tunnelling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. The DSR-1000N simultaneously support up to 70 IPSec VPN tunnels, and 25 additional PPTP/L2TP tunnels.

Efficient Green Technology

D-Link Green Wi-Fi and D-Link Green Ethernet features save power and help cut energy usage costs. The D-Link Green WLAN Scheduler shuts down your wireless network automatically according to a schedule you define, allowing you to turn off your wireless network during off-peak hours, saving energy and keeping your network secure. The D-Link Green Ethernet feature can detect if a link is down on a port, and automatically puts that port into a sleep mode that drastically reduces the amount of power used. In addition, compliance with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives make D-Link Green-certified devices an environmentally responsible choice.

1 The following 3G dongles are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5*/A6*, DWM-157*, Huawei E1550, E173, and EC306.* The dongles marked with * will be supported through firmware upgrades.
2 Available through future firmware upgrade.

Related Products

Wireless VPN Security Router
DSR-150N
Find out more
Wireless N Unified Service Router
DSR-250N
Find out more
Wireless N Unified Services Router
DSR-500N
Find out more

Technical Specifications

Features

High-Performance VPN

  • Protocols
    • IPSec
    • PPTP/L2TP
    • GRE
    • SSL
  • VPN Tunnels
    • Up to 135 tunnels
  • DES, 3DES, AES

Enhanced Network Services

  • IPv6
  • IEEE 802.1q VLAN
  • Multiple SSIDs
  • Port Monitoring/Bandwidth Control
  • srTCM, trTCM, & policing

Wireless Access and Security

  • IEEE 802.11 a/b/g/n (2.4 GHz, 5 GHz)
  • IEEE 802.1x RADIUS Authentication with EAP-TLS, EAP-TLLS, EAP-PEAP
  • WPS, WEP, WPA-PSK, WPA-EAP, WPA2-PSK, WPA2-EAP

Fault Tolerance

  • WAN Traffic Failover & Outbound Load Balancing

Technical Specifications

General

Ethernet Interface

  • 2 x 10/100/1000 Mbps WAN Ports
  • 4 x 10/100/1000 Mbps LAN Ports

Wireless Interface

  • 802.11a/b/g/n (Selectable Dual Band)
  • 3 Detachable 2 dBi Omni-Directional Antennas

USB 2.0 Ports

  • 2

Console Port

  • RJ-45

Performance1

Firewall Throughput2

  • 950 Mbps

VPN Throughput (3DES)3

  • 100 Mpps

Concurrent Sessions

  • 60,000

New Sessions (per second)

  • 600

Firewall Policies

  • 600

Internet Connection Type

  • Static/ Dynamic IP
  • PPPoE/ L2TP/ PPTP
  • Multiple PPPoE

Firewall System

  • Static Route
  • Dynamic Route
    • RIPv1
    • RIP v2
    • OSPF4
  • Dynamic DNS
  • Inter-VLAN Route
  • NAT, PAT
  • Web Content Filtering
    • Static URL
    • Keywords
  • Intrusion Prevention System (IPS)
    • Signature Package Included in Firmware

Networking

  • DHCP Server/ Client
  • DHCP Relay
  • IEEE802.1q VLAN
  • VLAN (Port-Based)
  • IP Multicast
    • IGMP Proxy
  • IPv6
  • Route Failover
  • Outbound Load Balancing
  • 3G Redundancy

Wireless

  • Multiple Service Set Identifier (SSID)
  • Service Set Identifier (SSID) to VLAN Mapping
  • Standards
    • 802.11a/b/g/n
  • Wireless Security
    • Wired Equivalent Privacy (WEP)
    • Wi-Fi Protect Setup (WPS)
    • Wi-Fi Protected Access – Personal (WPA-PSK)
    • Wi-Fi Protected Access – Enterprise (WPA-EAP)
    • Wi-Fi Protected Access version 2 – Personal (WPA-PSK)
    • Wi-Fi Protected Access version 2 – Enterprise (WPA-EAP)

Virtual Private Network (VPN)

  • VPN Tunnels
    • 135
  • IPSec Tunnels
    • 70
  • SSL VPN Tunnels
    • 20
  • PPTP/L2TP Clients
    • 25
  • GRE4
    • 20
  • Encryption Methods
    • DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
  • SSL Encryption Methods
    • RC4-128, 3DES, AES
  • IPSec/PPTP/L2TP Server
  • IPSec NAT Traversal
  • Dead Peer Detection
  • IP Encapsulating Security Payload (ESP)
  • IP Authentication Header (AH)
  • VPN Tunnel Keep Alive
  • Hub and Spoke

Bandwidth Management

  • Maximum Bandwidth Control
  • Priority Bandwidth Control
    • Port-based QoS
    • 3 Classes

System Management

  • Web-based User Interface
    • HTTP, HTTPS
  • Command Line
  • SNMP v1, v2c, v3

Physical & Environment

Power Supply

  • Internal Power Supply Unit
  • DC 12 V/2.5 A

Max. Power Consumption

  • 19.3 W

Dimensions (L x W x H)

  • 180 x 280 x 44 mm (7.09 x 11.02 x 1.73 inches)

Operation Temperature

  • 0 to 40 °C (32 to 104 °F)

Storage Temperature

  • -20 to 70 °C (-4 to 158 °F)

Operation Humidity

  • 5% to 95% non-condensing

EMI/EMC

  • FCC Class B, CE Class B, C-Tick, IC, VCCI

Safety

  • cUL, LVD (EN60950-1)

3rd Party Certification

  • IPv6 Ready, Wi-Fi, ICSA-Certified Firewall, VPNC AES Interop, VPNC Basic Interop

MTBF

  • 260,000 hours

1 Firewall throughput is measured using UDP traffic with a 1,518 bytes packet size, adhering to RFC2544.
2 Actual performance may vary depending on network conditions and activated services.
3 VPN throughput is measured using UDP traffic with the packet size 1420 bytes and encryption method 3DES plus SHA-1, adhering to PFC2544.
4 Available through future firmware upgrade.
