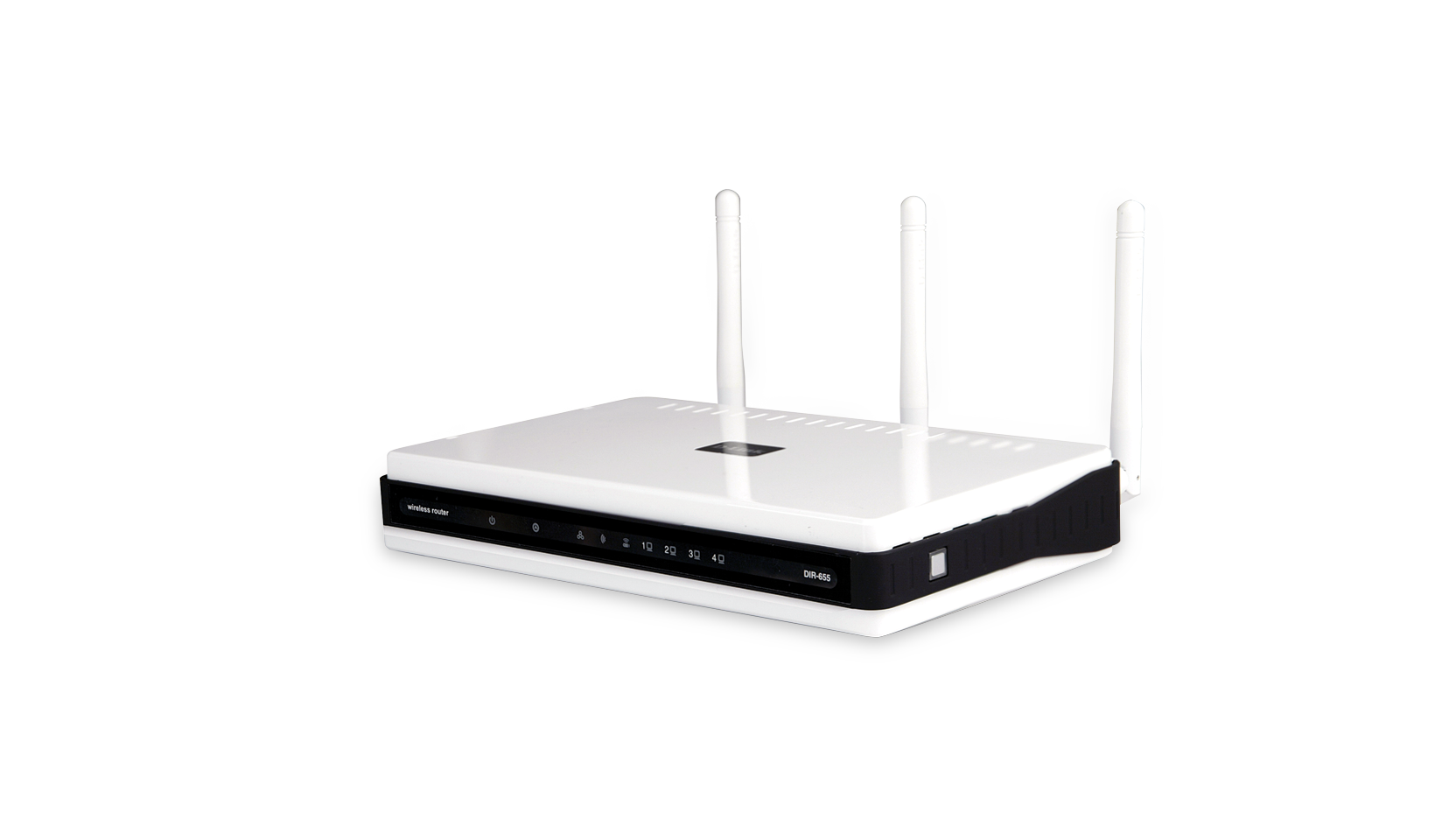

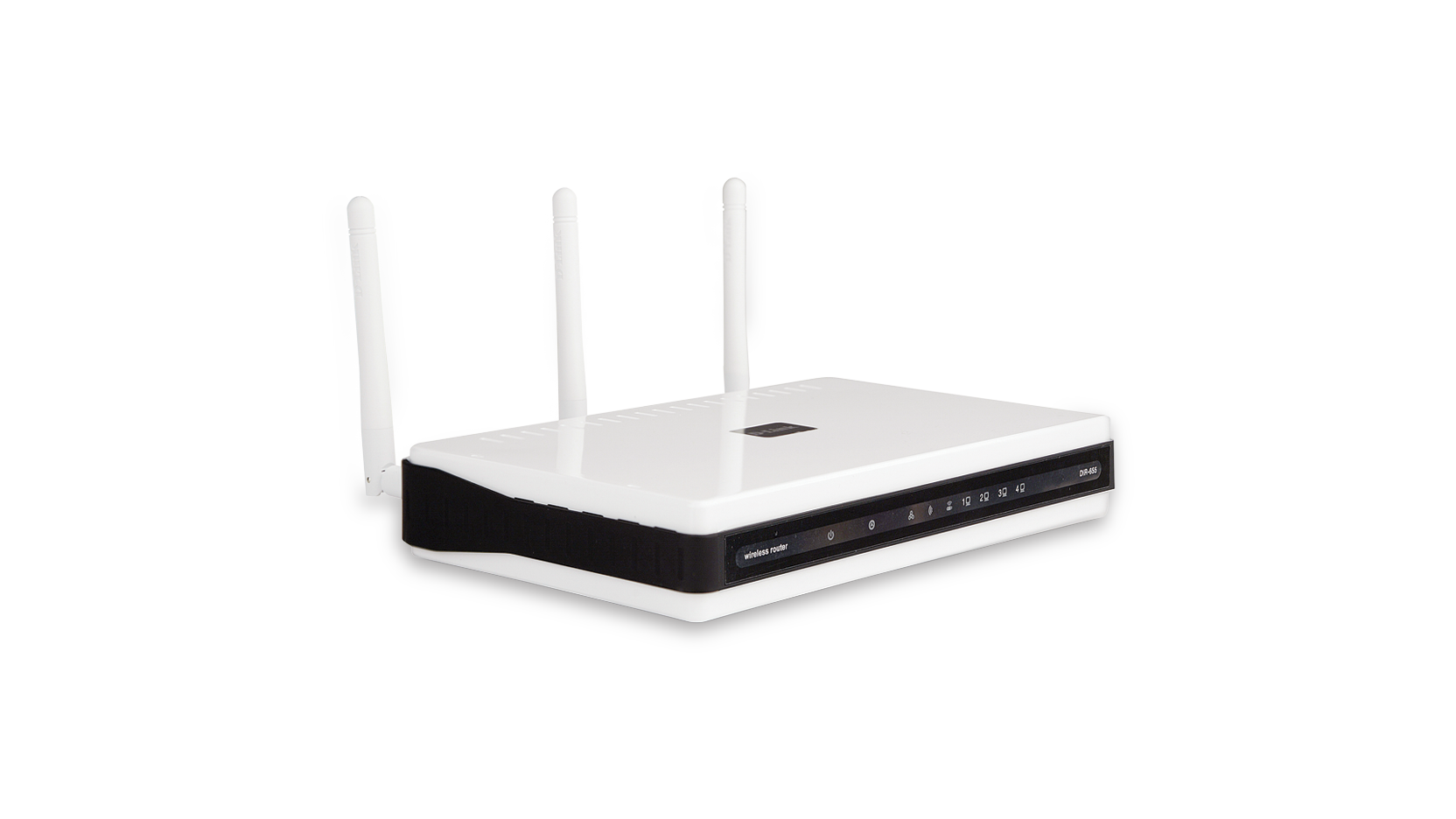

Wireless N Gigabit Router

DIR-655

  • Product Status: Phased Out

The D-Link Wireless N Gigabit Router (DIR-655) comes highlighted with 4 Gigabit ports, Wireless N 300 technology, multiple antennas, and a built in QoS engine to provide maximized speed and coverage for a smooth networking, video streaming, gaming, and VoIP calling experience. The built-in USB port with SharePort lets users share a USB printer or storage device.


Download the datasheet.

List Retailers

Wireless N Gigabit Router

The D-Link DIR-655 Wireless N Gigabit Router is an 802.11n compliant device designed for use by users who demand higher performance networking. Featuring a 3x3 antenna design, the DIR-655 router provides superior whole home coverage whilst eliminating dead spots. It is also faster than 100Mbps wired Ethernet1. By connecting the DIR-655 router to a cable or DSL modem, users will be able to share their high-speed Internet access with everyone on the network. By adding a Wireless N notebook or desktop adapter, they will also stay connected from virtually anywhere in their home.

High Performance

The DIR-655 features the fastest processor in the D-Link Wireless N range, achieving ever higher throughput results between WAN and LAN networks. It includes four Gigabit Ethernet switch ports for highest transfer speeds to other Gigabit capable devices such as a network attached storage. For the first time, Gigabit connectivity is introduced on the WAN side as well, a unique feature ahead of its time in many countries.

In addition, the router integrates the acclaimed QoS StreamEngine, which provides a better Internet experience by keeping Internet phone calls and online gaming smooth and responsive.

Wireless LAN Intelligent Stream Handling (WISH) technology

The DIR-655 router includes Quality of Service (QoS), wirelessly as well as to and from the Internet (StreamEngine). It features WISH, which enhances the consumer's experience for gaming, HDTV and other media applications over a wireless connection by minimising the disruptive effects of competing traffic on the wireless network. It automatically detects if audio, video or gaming content is being used on the wireless network and gives these applications priority over less time-sensitive traffic such as email or file transfers. It then adjusts priorities to ensure media content is transmitted without jitter or lag.

The router even enforces a “good neighbour” policy, ensuring that it will not create interference for neighbouring networks. This is achieved by reducing the amount of radio spectrum used when detecting legacy 802.11g/b networks in the vicinity.

Simplified Wireless Security

The router supports the Wi-Fi Alliance’s standard for wireless security at the touch of a button. With Wi-Fi Protected Setup™ (WPS), the wireless network name (SSID) and encryption keys are automatically generated and broadcast to the client devices. Users do not have to memorise complicated passwords and key them in several times. This considerably simplifies the process of setting up security on the wireless network.

1 Maximum wireless signal rate derived from IEEE standard 802.11g and draft 802.11n specifications. 802.11n speeds obtainable when operating with Wireless N products. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction may lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless N products are based on draft IEEE 802.11n specifications and are not guaranteed to be forward compatible with future versions of the IEEE 802.11n specifications. Compatibility with draft 802.11n devices from other manufacturers is not guaranteed. All references to speed are for comparison purposes only.

Product Awards

Related Products

Xtreme N PCI Express Desktop Adapter
DWA-556
Find out more
ShareCenter 2-Bay Network Storage Enclosure
DNS-323
Find out more

Technical Specifications

Standards
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.3
  • IEEE 802.3u

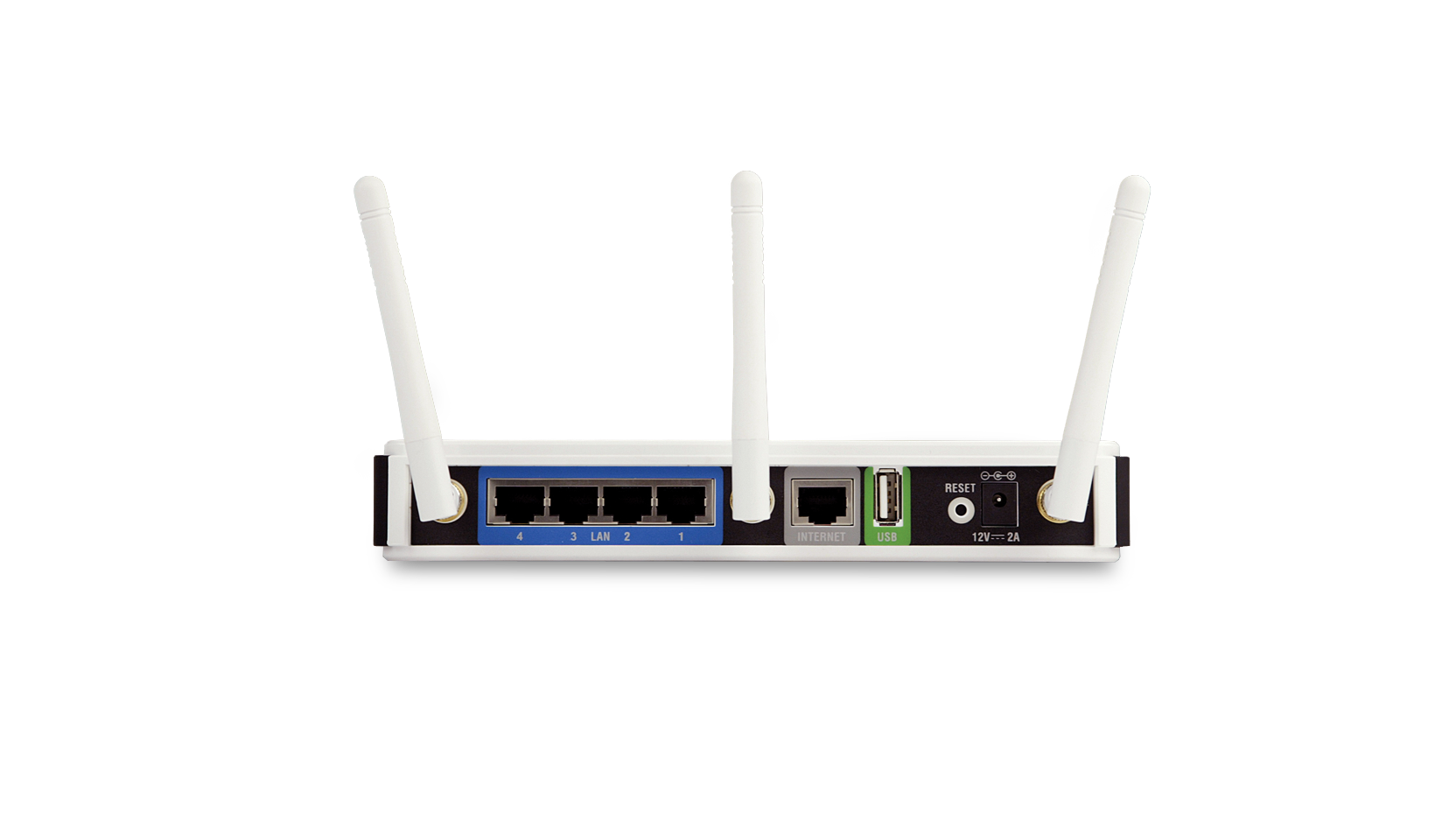

Device Interface
  • 4 Gigabit LAN Ports
  • 1 Gigabit WAN Port
  • Push Button (for Wi-Fi Protected Setup)
  • USB Port (for SharePort™ & Windows® Connect Now)

Antenna Type
  • 3 External Antennas

Security
  • Wi-Fi Protected Access™ (WPA™, WPA2™)

Advanced Firewall Features
  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)
  • VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec

Device Management
  • Internet Explorer® v6 or Later; Mozilla Firefox® v1.5 or Later; or other Java-enabled Browsers

LEDs
  • Power
  • Status
  • WAN
  • WLAN (Wireless Connection)
  • USB
  • LAN

Certifications
  • FCC Class B
  • CE
  • Wi-Fi®/WPS

Dimensions
  • Item (WxDxH): 4.6” x 7.6” x 1.2”
  • Packaging (WxDxH): 8.1” x 10.9” x 2.6”

Weight
  • Item: 0.7 lbs
  • Packaging: 2.0 lbs
Warranty
  • 1-Year Limited3

FAQ

  • How do I configure MAC filtering on my DIR/WBR series router? Read Answer
  • The status light on my router is flashing what is it indicating? Read Answer
How to connect to wireless in Windows 8
How to connect to wireless in Windows 7
How to Change/Recover your lost wireless password
How to download and use the QRS Mobile App for your iPhone/iPad
How to connect to wireless using an iPhone
How to upgrade the firmware on your router
How to configure the Wireless Settings on your router
How to remove the Graphical Authentication login on your router
How to change router password
How to configure Parental Controls on your router
How to configure IP reservation on your router
How to reset a router
How to open a range of ports on your router
How to change your routers IP address
How to open a single port on your router
How to disable UPnP on your router
DIR-655 Hardware setup

Downloads can vary across product revisions. Please select the correct hardware revision.


This product was phased out on: 01-08-2017
