Gigabit Smart Managed Switches

DGS-1500 Series

  • Product Status: Phased Out

D-Link’s DGS-1500 Series Gigabit Smart Managed Switch are designed for businesses which require functions such as L3 Static Routing and Single IP Management (Virtual Stacking) without upgrading to a managed switch. This series integrates advanced management and security functions that are similar to those of a managed switch, but less complex.


Download the datasheet.

List Retailers

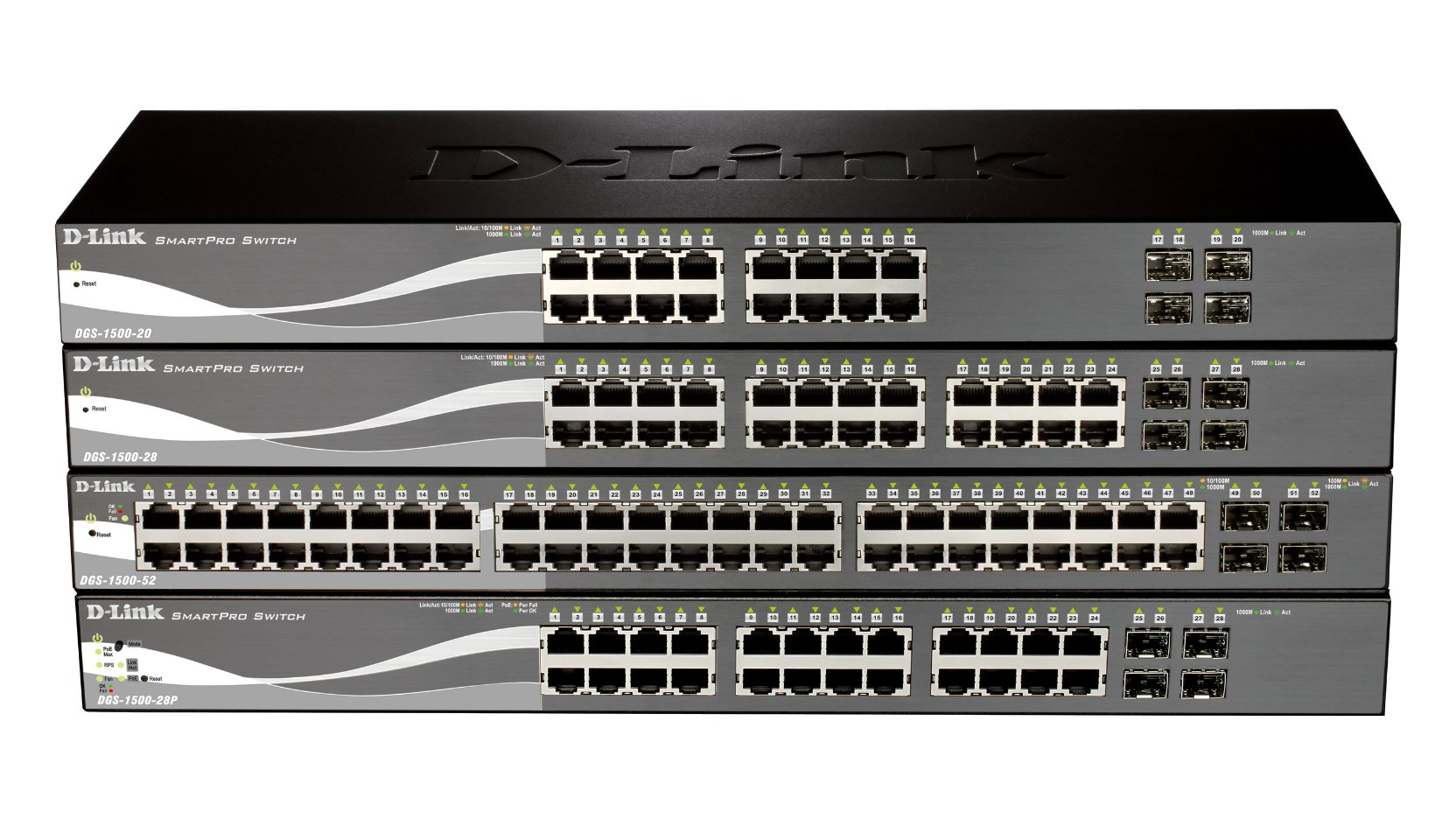

The DGS-1500 Series Gigabit Smart Managed Switches consists of:

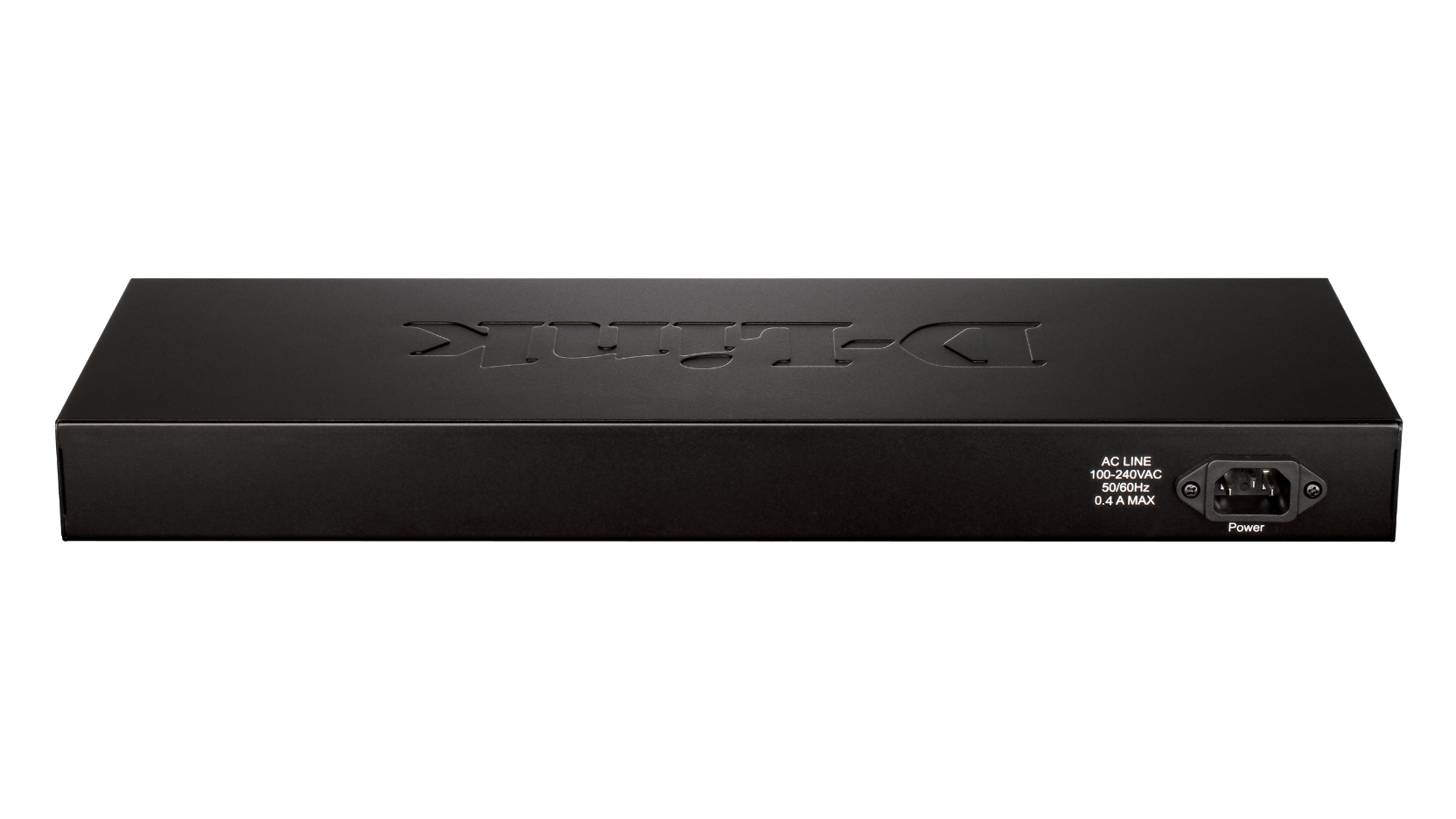

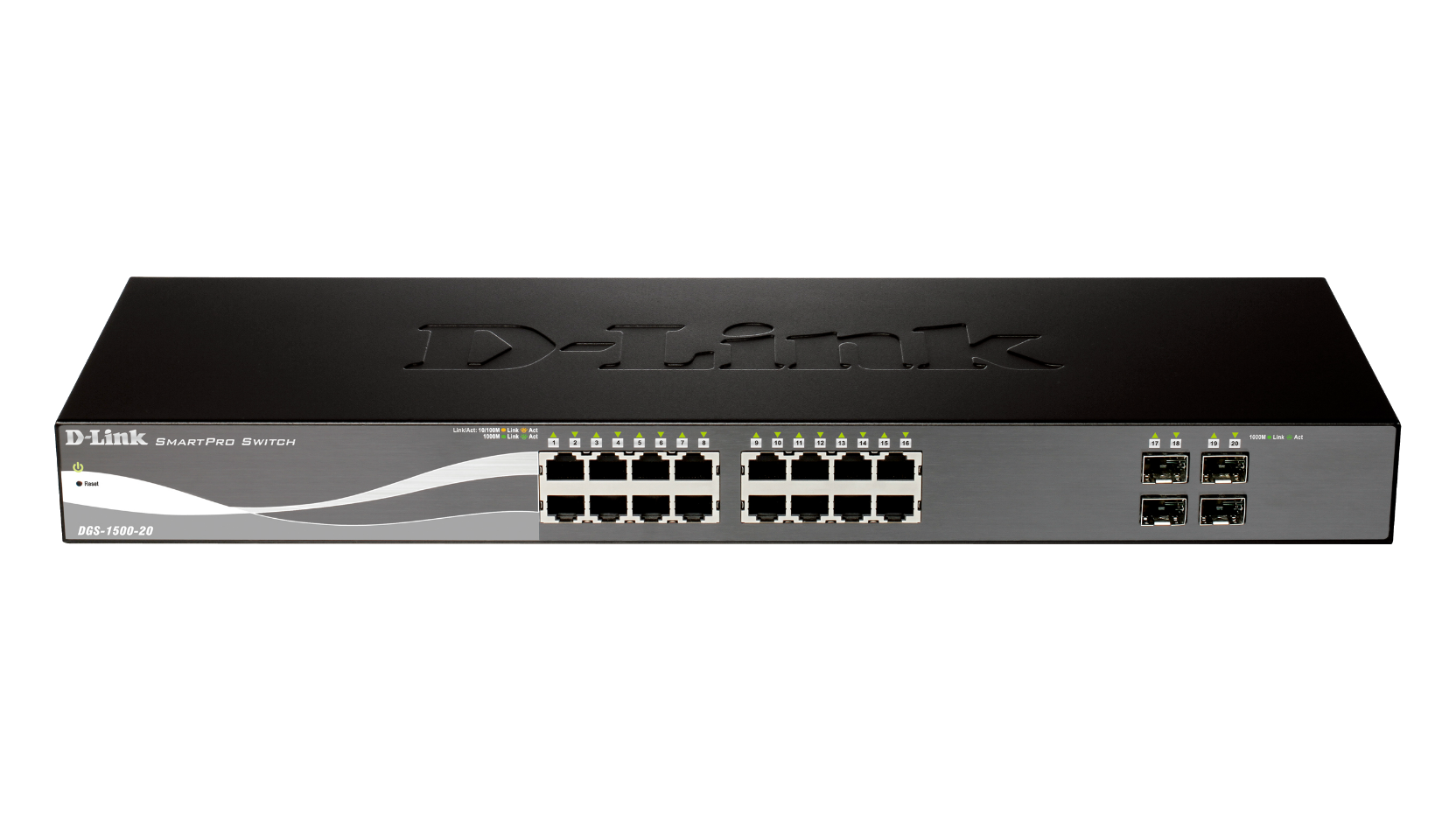

  • DGS-1500-20: 20-Port Gigabit Smart Managed Switch including 4 SFP ports (fanless)

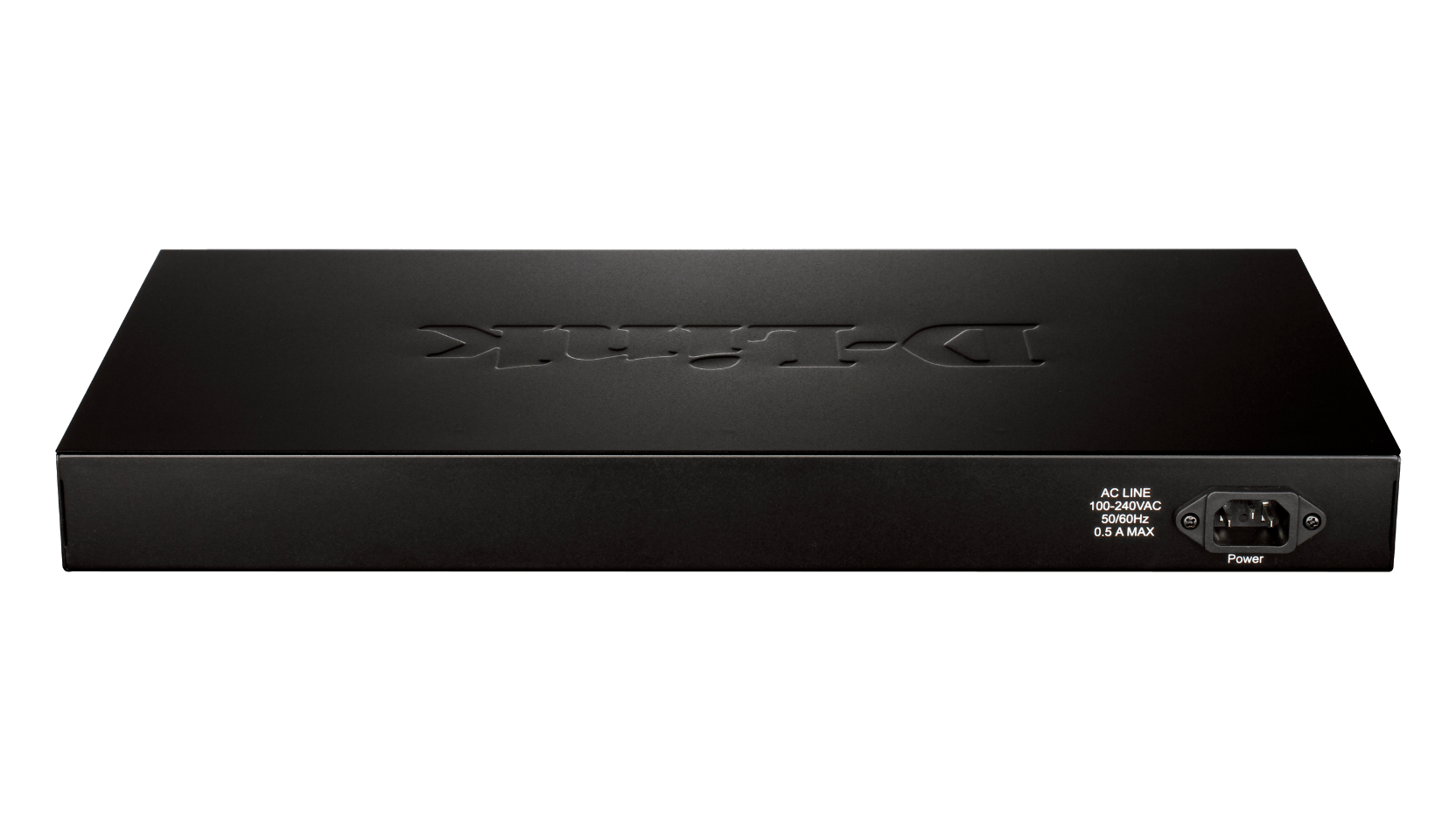

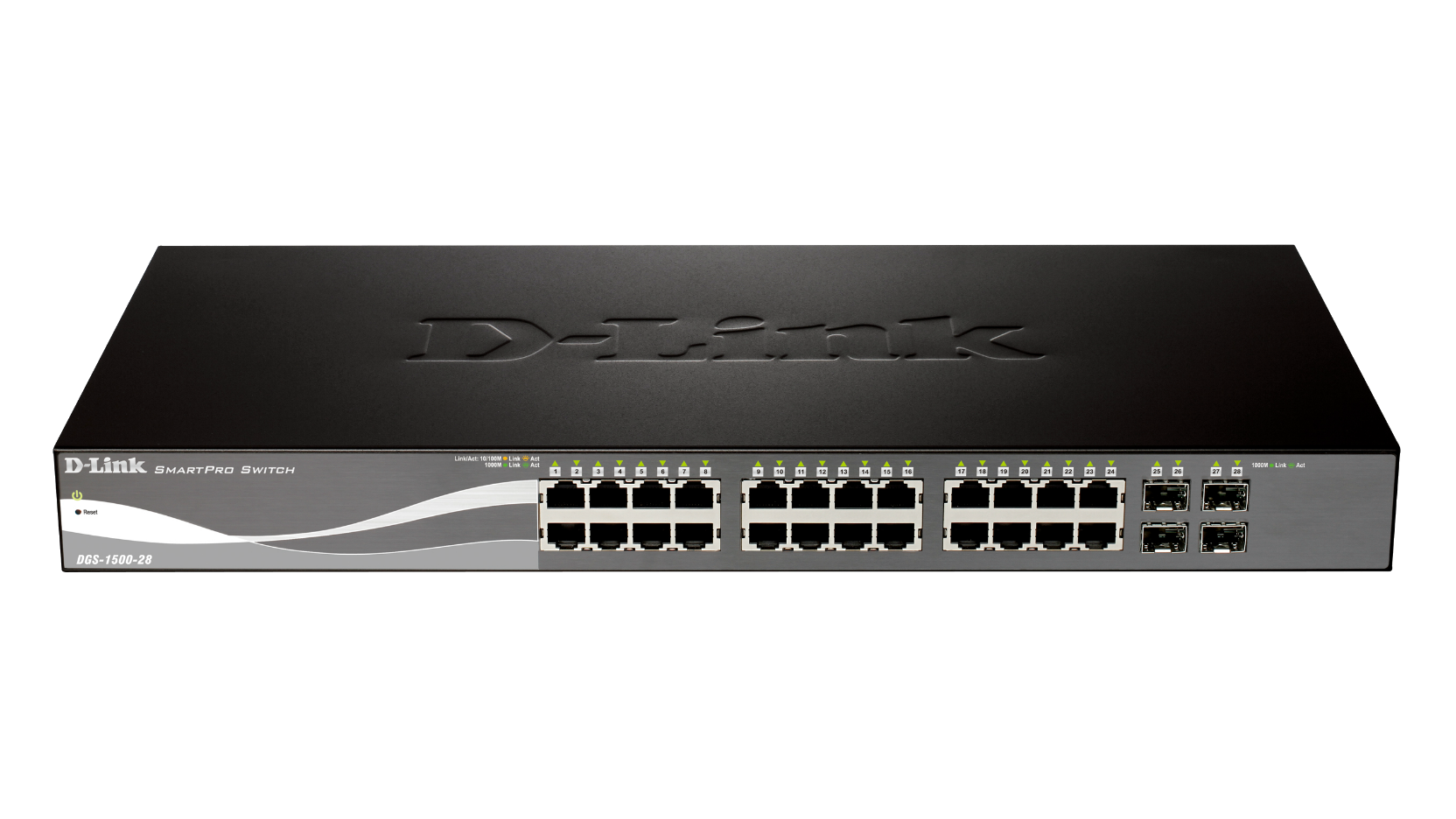

  • DGS-1500-28: 28-Port Gigabit Smart Managed Switch including 4 SFP ports (fanless)

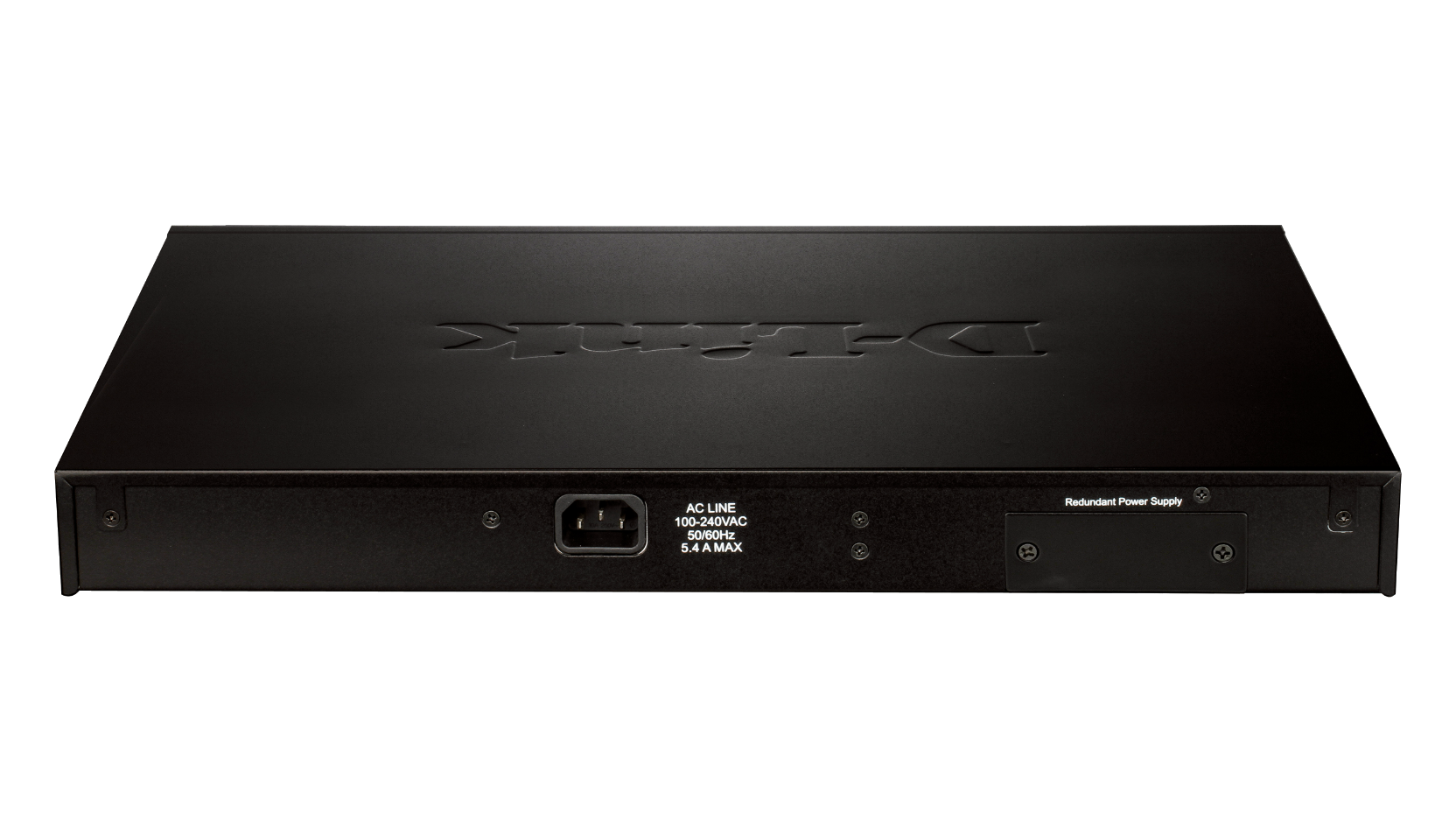

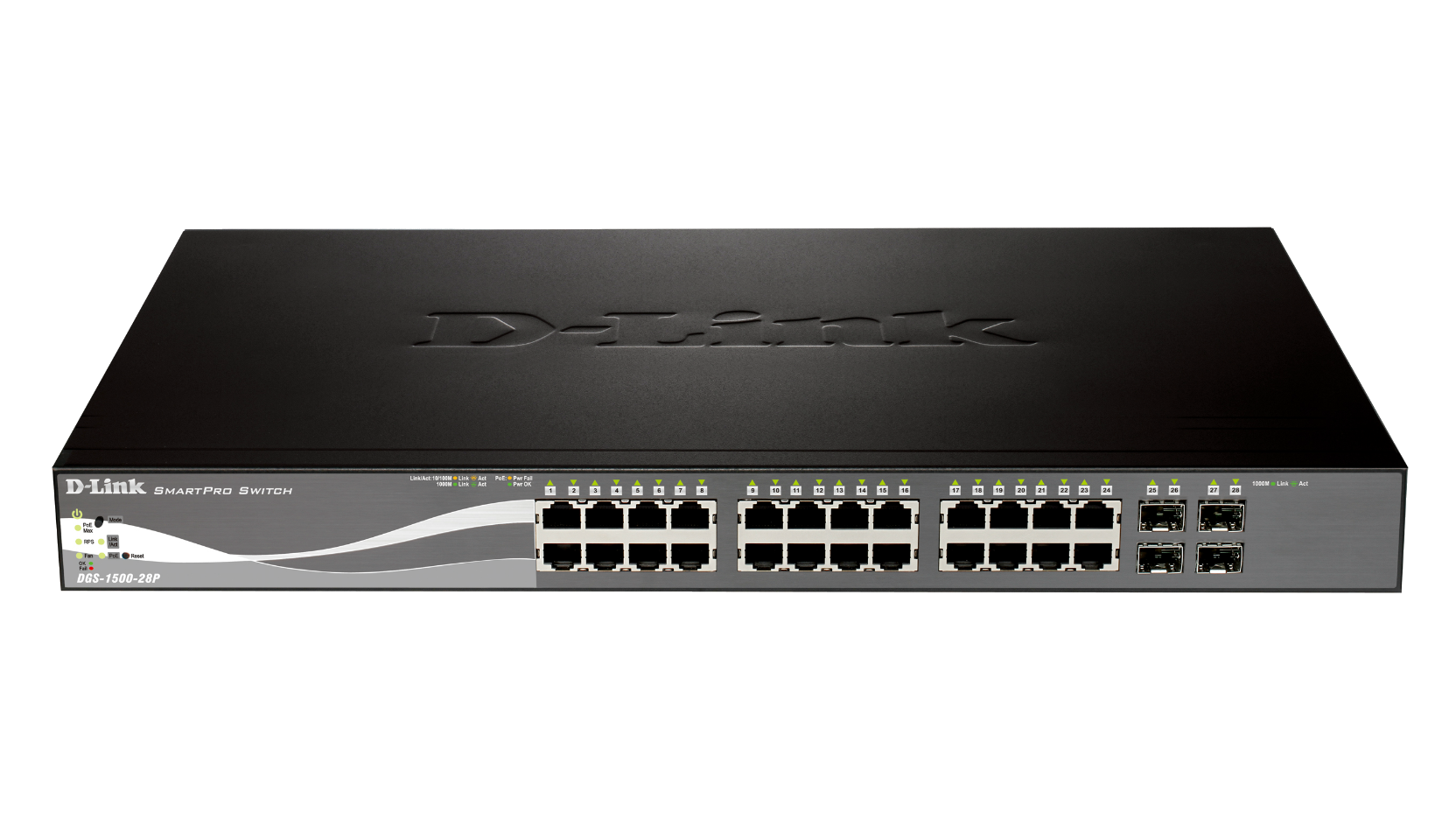

  • DGS-1500-28P: 28-Port Gigabit PoE Smart Managed Switch including 4 SFP ports (24 x PoE ports, smart fans)

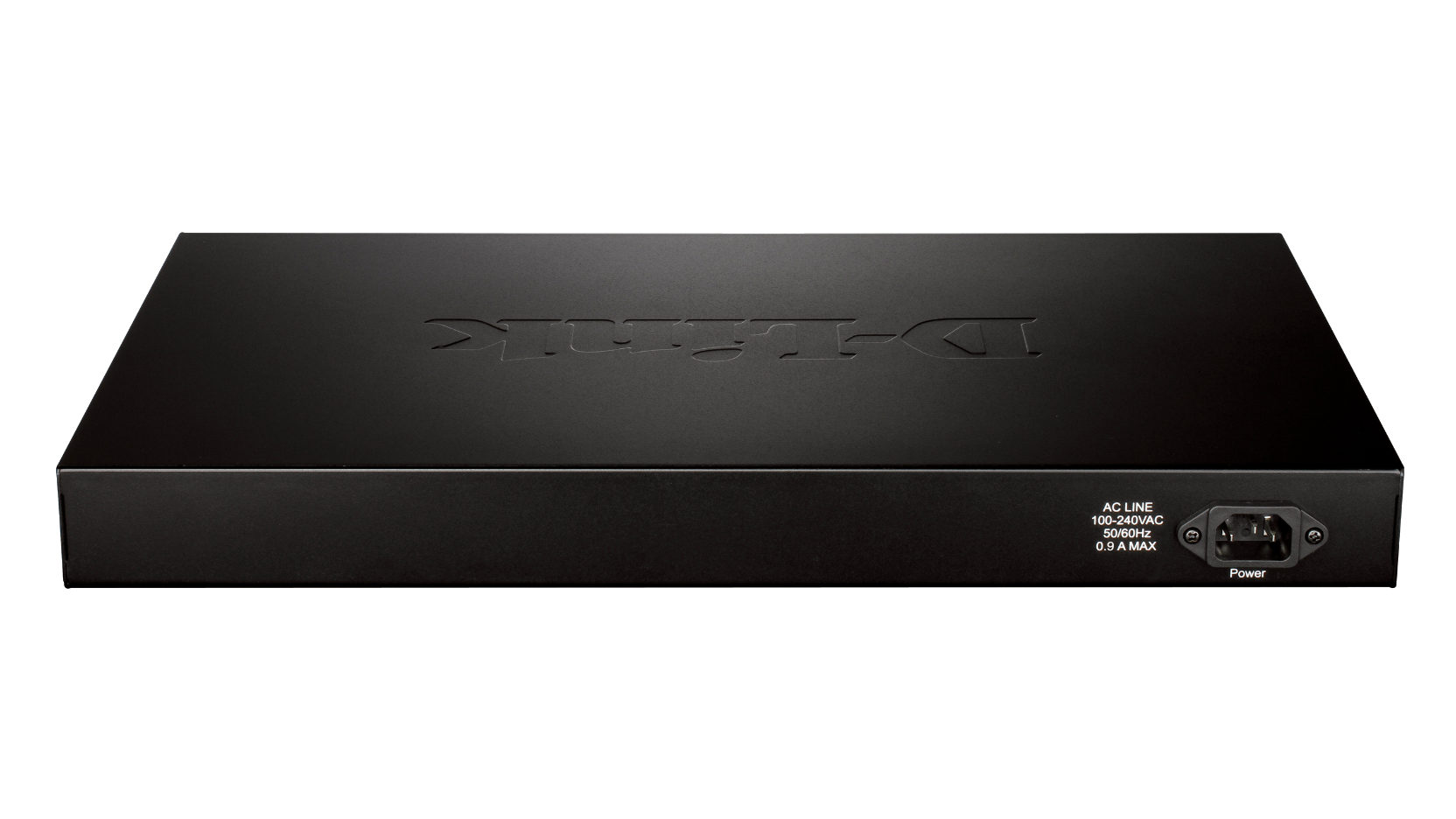

  • DGS-1500-52: 52-Port Gigabit Smart Managed Switch including 4 SFP ports (smart fans)

D-Link’s DGS-1500 Series Gigabit Smart Managed Switch are designed for businesses which require functions such as L3 Static Routing and Single IP Management (Virtual Stacking) without upgrading to a managed switch. This series integrates advanced management and security functions that are similar to those of a managed switch, but less complex. The switches feature D-Link Green™ 3.0 technology which enables significant power savings. Additionally, the DGS-1500-28P’s 10/100/1000 Mbps ports are PoE-enabled, offering ease-of-use and green features like Time-based PoE, which enables the power to the port to be shut off at a predetermined time. Compliant with 802.3af and 802.3at, these switches are capable of feeding power to devices of up to 30 Watts. Management options include SNMP, Web Management, SmartConsole Utility, and Compact CLI. The series also supports ACL filtering and D-Link’s Safeguard Engine to protect the network. The DGS-1500-20 and DGS-1500-28 both feature a fanless design. The fanless design allows them to emit less heat and noise than a standard switch, making them suitable for office environments. The DGS-1500-28P and DGS-1500-52 both feature smart fans. Using a thermal sensor that can detect temperature change, the smart fans can react accordingly by utilising different fan speeds for different temperatures.

Advanced Features

The DGS-1500 Series integrates advanced features such as Virtual Stacking and Layer 3 features like Static Routing. Virtual Stacking reduces the number of IP addresses needed on a network by configuring up to 32 devices to appear as a single unit with one IP address. This simplifies network management for small workgroups and allows for switches to be added without special cabling.

Extensive Layer 2 Features

These switches are equipped with a complete line-up of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shut down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables and determine the cable quality.

QoS, Bandwidth Control

The DGS-1500 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart Switches. This technology consolidates data and surveillance video transmission through a single Smart switch, thus sparing businesses the expense of maintaining dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might require high priority.

Secure your Network

D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by screening traffic based on MAC or IP addresses. The DGS-1500 Series includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. To prevent ARP Spoofing attacks, the switch uses Packet Control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised IP assignment.

Versatile Management

The DGS-1500 Series provides a SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup of the Smart Switches. Switches within the same L2 network segment that are connected to the user’s PC are displayed on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices including password changes and firmware upgrades. The DGS-1500 Series also supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security. CLI management of the switches is possible via Telnet. This makes it possible to adjust basic settings, passwords, configuration files, and firmware with ease.

D-Link Green Technology

D-Link is striving to take the lead in developing innovative and power-saving technology that does not sacrifice operational performance or functionality. The DGS-1500 Series implements D-Link Green Technology, which includes a power saving mode, smart fan, reduced heat dissipation, and cable length detection. The power-saving features include being able to schedule when to turn off LEDs and ports when not in use, and when to make the switch enter hibernation mode. The switches can also detect the length of connected cables to automatically adjust power usage by saving energy on shorter cable connections of up to 20 metres. The switches can also support power-saving by link status, which drastically reduces power consumption by automatically toggling ports without a link to sleep mode. The DGS-1500-28P1 and DGS-1500-52 both feature built-in smart fans. Using a thermal sensor that can detect temperature change, the fans can react accordingly by utilising different fan speeds for different temperatures. The Smart Fan feature enables the built-in fans to automatically turn on at a certain temperature, providing continuous, reliable and eco-friendly operation of the switch.

Related Products

1-Port Mini GBIC Module for 1000BaseLX (LC Duplex)
DEM-310GT
Find out more
SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
Find out more
1000BASE-SX multi-mode SFP transceiver
DEM-312GT2
Find out more
SFP 1000Base-LX Single-mode Fibre Transceiver (50km)
DEM-314GT
Find out more
SFP 1000Base-LX Single-mode Fibre Transceiver (80km)
DEM-315GT
Find out more

Technical Specifications

Interface

Number of 10/100/1000BASE-TX ports

  • DGS-1500-20 - 16 ports
  • DGS-1500-28 - 24 ports
  • DGS-1500-28P - 24 ports
  • DGS-1500-52 - 48 ports

Number of SFP ports

  • DGS-1500-20 - 4 ports
  • DGS-1500-28 - 4 ports
  • DGS-1500-28P - 4 ports
  • DGS-1500-52 - 4 ports

PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)

  • DGS-1500-28P (802.3af/802.3at/24 ports/370W(740W with external RPS))

Performance

Switch Capacity

  • DGS-1500-20 - 40 Gbps
  • DGS-1500-28 - 56 Gbps
  • DGS-1500-28P - 56 Gbps
  • DGS-1500-52 - 104 Gbps

64-Byte Packet Forwarding Rate

  • DGS-1500-20 - 29.8 Mpps
  • DGS-1500-28 - 41.7 Mpps
  • DGS-1500-28P - 41.7 Mpps
  • DGS-1500-52 - 77.4 Mpps

MAC Address Table Size

  • 16K

Packet Buffer

  • 1 MB per device

Jumbo Frame

  • Up to 10,000 Bytes

Diagnostic LED Indicators

DGS-1500-20, DGS-1500-28, DGS-1500-52

  • Power (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port)
  • Link/Activity/Speed (per SFP port)

DGS-1500-28P

  • Power (per device)
  • Link/Activity/Speed (per 10/100/1000 Mbps port)
  • Link/Activity/Speed (per SFP port)
  • Button to switch LED display mode between PoE and Link/Activity
  • PoE (per 10/100/1000 Mbps port)
  • PoE Max
  • RPS
  • LED select indicator button

Physical & Environmental

Power Consumption (Standby/Maximum)

  • DGS-1500-20 - 7.2W / 14.06W
  • DGS-1500-28 - 6.42W / 16.81W
  • DGS-1500-28P - 19.8W / 447 W (PoE on)
  • DGS-1500-52 - 22.05W / 43.5W

Power Input

  • 10 to 240 VAC, 50/60HZ internal universal power supply

Dimensions (W x D x H)

  • DGS-1500-20 - 440 x 140 x 44 mm
  • DGS-1500-28 - 440 x 210 x 44 mm
  • DGS-1500-28P - 440 x 310 x 44 mm
  • DGS-1500-52 - 440 x 250 x 44 mm

Size

  • 19-inch standard rackmounting width
  • 1U Height

Ventilation

  • DGS-1500-20 - fanless
  • DGS-1500-28 - fanless
  • DGS-1500-28P - 2 smart fans
  • DGS-1500-52 - 2 smart fans

Heat Dissipation

  • DGS-1500-20 - 47.97 BTU/hour
  • DGS-1500-28 - 57.36 BTU/hour
  • DGS-1500-28P - 1525.16 BTU/hour
  • DGS-1500-52 - 148.42 BTU/hour

Temperature

  • Operating: 5° to 50°C (41° to 122°F)
  • Storage: -20° to 70°C (-4° to 158°F )

Humidity

  • Operating: 0% ~ 95% non-condensing
  • Storage: 0% ~ 95% non-condensing

Certification

  • FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI

Safety

  • cUL, LVD

Software Feature

D-Link Single IP Management

  • Virtual Stacking/Clustering of up to 32 units over IPv6

L2 Features

  • MAC Address Table
    • 16K entries
  • IGMP Snooping
    • IGMP v1/v2 Snooping
    • Supports 256 IGMP groups
    • Supports at least 64 static multicast addresses
    • IGMP per VLAN
    • Supports IGMP Snooping Querier
  • Loopback Detection
  • 802.3ad Link Aggregation
    • DGS-1500-20: Max. 10 groups per device, 8 portsper group
    • DGS-1500-28/DGS-1500-28P: Max. 14 groups perdevice, 8 ports per group
    • DGS-1500-52: Max. 26 groups per device, 8 portsper group
  • LLDP
  • LLDP-MED
  • Spanning Tree Protocol
    • 802.1D STP
    • 802.1w RSTP
    • 802.1s MSTP
  • Flow Control
    • 802.3x Flow Control
    • HOL Blocking Prevention
  • Port Mirroring
    • One-to-One
    • Many-to-One
    • Supports Mirroring for Tx/Rx/Both
  • Cable Diagnostics
  • Configurable MDI/MDIX
  • Multicast Filtering
    • Forwards all unregistered groups
    • Filters all unregistered groups
  • Jumbo Frame
    • Up to 10,000 bytes

VLAN

  • 802.1Q
  • VLAN Group
    • Max. 4K static VLAN groups
    • Max. 4094 VIDs
  • Asymmetric VLAN
  • Auto Voice VLAN
    • Max. 10 user defined OUI
    • Max. 8 default OUI
  • Auto Surveillance VLAN
  • GVRP
    • Up to 256 dynamic VLANs

Quality of Service (QoS)

  • 802.1p Quality of Service
  • 4 queues per port
  • Queue Handling
    • Strict
    • Weighted Round Robin (WRR)
  • Bandwidth Control
    • Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbs)
  • QoS based on:
    • 802.1p Priority Queues
    • DSCP
    • ToS
    • IPv6 Traffic Class
    • IPv6 Flow Label
    • TCP/UDP port

L3 Features

  • IPv6 Neighbor Discovery (ND)
  • IP Interface
    • Supports 4 interfaces
  • ARP
    • 64 Static ARP
    • Supports Gratuitous ARP

L3 Routing

  • Default Routing
  • Static Routing
    • Max. 32 IPv4 Static Route entries
    • Max. 128 IPv4 Host Routes
    • Max. 16 IPv6 Static Route entries
    • Max. 64 IPv6 Host Routes

Access Control List (ACL)

  • DGS-1500-20/28/28P:
    • Max. 50 profiles
    • Max. 200 rules shared by profiles
    • Each rule can be associated with a single port or multiple ports
  • DGS-1500-52:
    • Max. 50 profiles
    • Max. 450 rules shared by profiles
    • Each rule can only be associated with a single port
  • ACL based on
    • MAC Address
    • IPv6 Address (ICMP/IGMP/TCP/UDP )
    • 802.1p
    • DSCP Ethernet type

Security

  • Broadcast/Multicast/Unicast Storm Control
  • D-Link Safeguard Engine
  • DHCP Server Screening
  • IP-MAC-Port Binding (Smart Binding)
    • Supports 512 address binding entries
    • ARP mode
    • ACL mode
    • Supports DHCP Snooping
  • ARP Spoofing Prevention
    • Max. 64 entries
  • Traffic Segmentation
  • SSH v2
  • SSL
    • Supports v1/v2/v3
  • 802.1X Port-based Access Control
  • Port Security
    • Supports up to 64 MAC addresses per port

AAA

  • 802.1X Authentication
    • Supports local/RADIUS database
    • Supports Port-based access control
    • Supports EAP, OTP, TLS, TTLS, PEAP
  • IPv6 RADIUS Server

MIB

  • 1213 MIB II
  • 1493 Bridge MIB
  • 1907 SNMP v2 MIB
  • 1215 Trap Convention MIB
  • 2233 Interface Group MIB
  • D-Link Private MIB
  • LLDP MIB
  • Power-Ethernet MIB4
  • Zone Defense MIB

RFC Standard Compliance

  • RFC 783 TFTP
  • RFC 854 Telnet Server
  • RFC 951 BootP/DHCP Client
  • RFC 1157 SNMP v1, v2, v3
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1350 TFTP
  • RFC 1493 Bridge MIB
  • RFC 1769 SNTP
  • RFC 1542 BootP/DHCP Client
  • RFC 1901 SNMP v1, v2, v3
  • RFC 1907 SNMP v2 MIB
  • RFC 1908 SNMP v1, v2, v3
  • RFC 2068 FCS
  • RFC 2131 BootP/DHCP Client
  • RFC 2138 RADIUS Authentication
  • RFC 2139 RADIUS Authentication
  • RFC 2233 Interface Group MIB
  • RFC-2246 SSL
  • RFC 2475
  • RFC 2570 SNMP v1, v2, v3
  • RFC 2575 SNMP v1, v2, v3
  • RFC 2598 CoS
  • RFC 2616 FCS
  • RFC 2618 RADIUS Authentication
  • RFC 2819 RMON v1
  • RFC 2865 RADIUS Authentication
  • RFC 3164 System Log
  • RFC 3195 System Log
  • RFC 3411-17 SNMP
  • RFC 3621 Power Ethernet MIB

OAM

  • Cable Diagnostics

Management

  • Web-based GUI
  • Single IP Management
  • Compact CLI
  • Telnet Server
  • TFTP Client
  • Configurable MDI/MDIX
  • SNMP
    • Supports v1/v2c/v3
  • SNMP Trap
  • Trap for SmartConsole Utility
  • Backup/Upgrade firmware
  • Smart Wizard
  • Upload/Download Configuration file
  • System Log
    • Max. 500 log entries
  • BootP/DHCP Client
  • SNTP
  • ICMP v6
  • IPv4/v6 Dual Stack
  • DHCP Auto Configuration
  • Debug Command
  • Time Setting
    • SNTP
  • RMONv1
  • Trusted Host
  • Time-based PoE (DHP-1500-28P only)
  • User Account (Max. 4 concurrent sessions)



Green™ V3.0 Technology

  • Power Saving by:
    • Link Status
    • Cable Length
    • LED Shutoff
    • Port Standby
    • System Hibernation
    • Port Shutoff
