2U/12 Bay Expansion enclosure: Dual I/O controllers

DSN-6020

  • Produkt Status: Abgekündigt (EOL)

The capacity of the DSN-6000 Series storage arrays can be easily expanded with the addition of the DSN-6020 Expansion Enclosure, which supports up to 12 SAS and SATA hard drives. Up to 4 DSN-6020 enclosures can be mounted in a storage array to expand the overall capacity to 240TB, and even higher capacity as larger hard drives are introduced.


Datenblatt downloaden.

Bezugsquellen
  • 2U/12-Slot 19" Festplatten Shelf für die Erweiterung über 2x 6Bit SAS Anschlüsse an DSN-6xx0 Storage RAID System
  • inkl. 2x SAS Kabel, Rackmount Kit, Handbuch

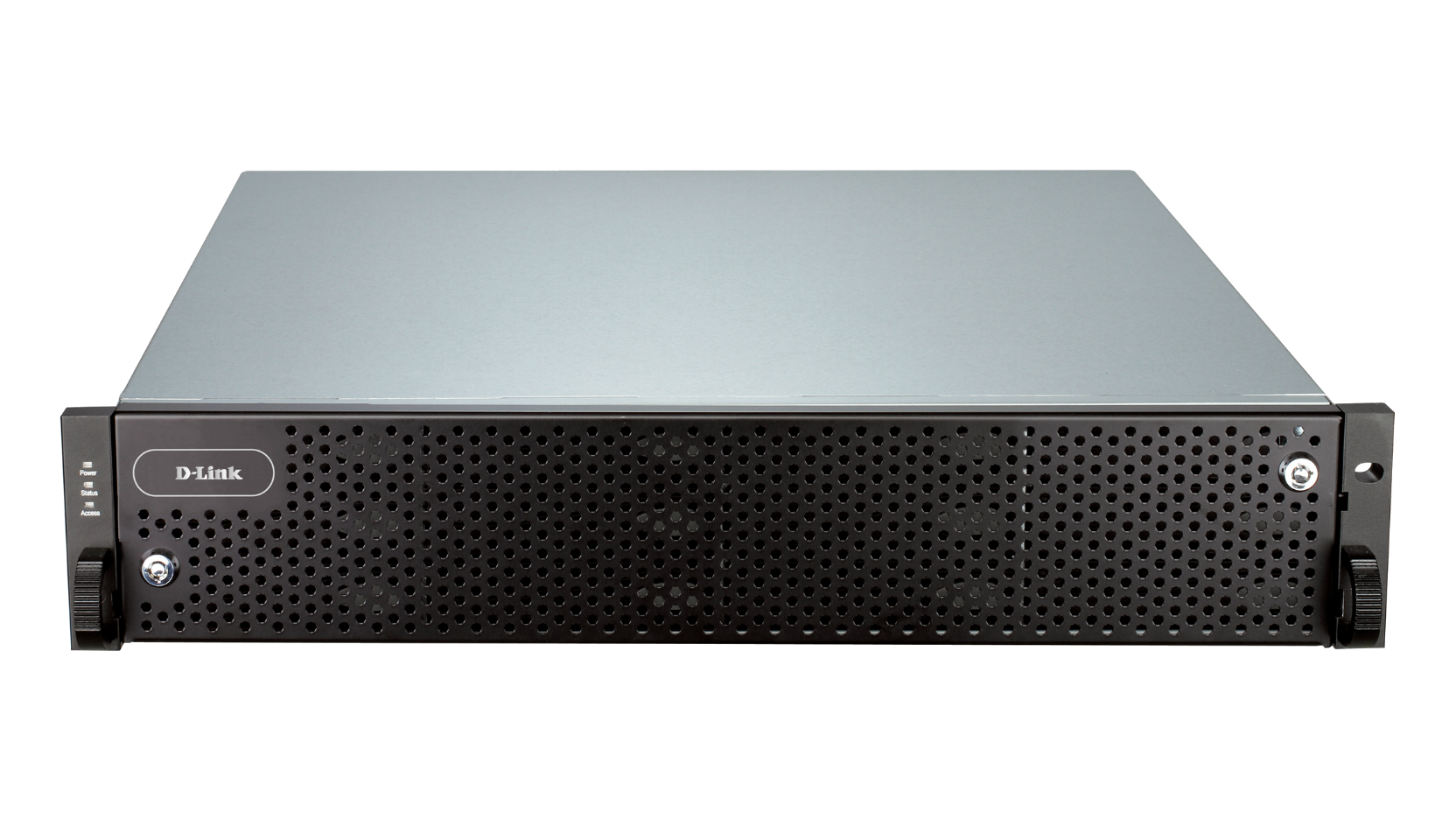

Die Abbildung kann vom tatsächlichen Produkt abweichen.

Passende Produkte

2U/12 Bay IP-SAN Storage enclosure: Single controller, (10GbE x 2)
DSN-6410
Mehr erfahren

Technical Specifications

Single Controller Arrays
  •   DSN-6110 (4x Gigabit iSCSI ports)
  •   DSN-6410 (2x 10GbE iSCSI ports)

Dual Redundant Controller Arrays
  •   DSN-6120 (8x Gigabit iSCSI ports)
  •   DSN-6420 (4x 10GbE iSCSI ports)

Expansion Enclosure
  •   DSN-6020

Redundant controllers
  •   DSN-610 (4x Gigabit iSCSI ports)
  •   DSN-640 (2x 10GbE iSCSI ports)

Cache Memory Per Controller
  •   4 GB

No. of Hard Drives (SAS and SATA II)
  •   12

Max. No. of Hard Drives (SAS and SATA II)
  •   60 (by using 4x DSN-6020)

Power Supply
  •   2 x 500 W

Green
  •   Auto disk spin-down
  •   Advanced cooling mechanism
  •   80 PLUS energy-efficient power supplies

iSCSI
  •   Hardware iSCSI off-load engine
  •   iSCSI jumbo frame
  •   Header/Data digest
  •   CHAP authentication
  •   Supports up to 32 multiple nodes
  •   Up to 128 sessions per controller

RAID and Volume
  •   RAID level 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, N-way mirror
  •   Up to 1024 logical volumes
  •   Up to 32 hard drives per volume group
  •   One logic volume can be shared by as many as 16 hosts
  •   Global and dedicated hot spare
  •   Write-through or write-back cache policy
  •   Online volume expansion
  •   Instant RAID volume availability
  •   Auto volume rebuilding
  •   On-line volume migration without system down time

High Availability
  •   Dual-active RAID controller
  •   Cache mirroring through high bandwidth channels
  •   Flexible RAID group ownership management
  •   Management port seamless take-over
  •   Online firmware upgrade, no system downtime
  •   Multi-path and load-balancing support (Microsoft MPIO, MC/S, Trunking, LACP)
  •   Storage-based Replication

Advanced Data Protection
  •   Writable snapshot
  •   Microsoft Windows Volume Shadow Copy Services (VSS)
  •   Configurable N-way mirror
  •   Online disk roaming
  •   Instant volume configuration restoration
  •   Hot-pluggable battery backup module (BBM)

 Management
  •   Serial console
  •   SSH telnet
  •   HTTP Web UI
  •   Secured Web (HTTPS)
  •   iSNS
  •   S.E.S.

Data Security
  •   Volume replication tool with multipath support
  •   VLAN 802.1Q, 802.1p support

Notification
  •   E-mail
  •   SNMP trap
  •   Browser pop-up windows
  •   Syslog
  •   Windows Messenger

OS Support
  •   Windows
  •   Linux
  •   Solaris
  •   Mac

Virtualization
  •   VMWare
  •   Hyper-V
  •   Citrix

AC Input
  •   100-240 V ~ 7 A - 4 A 500 W with PFC (Auto Switching)

DC Output
  •   3.3 V - 25 A
  •   5 V - 32 A
  •   12 V - 40 A

Dimensions
  •   2U 19” Rackmount
  •   442.8 mm x 500.6 mm x 88.0 mm (W x D x H)

Operating Temperature
  •   0 to 40 °C

Relative Humidity
  •   5 % to 95 % non-condensing
