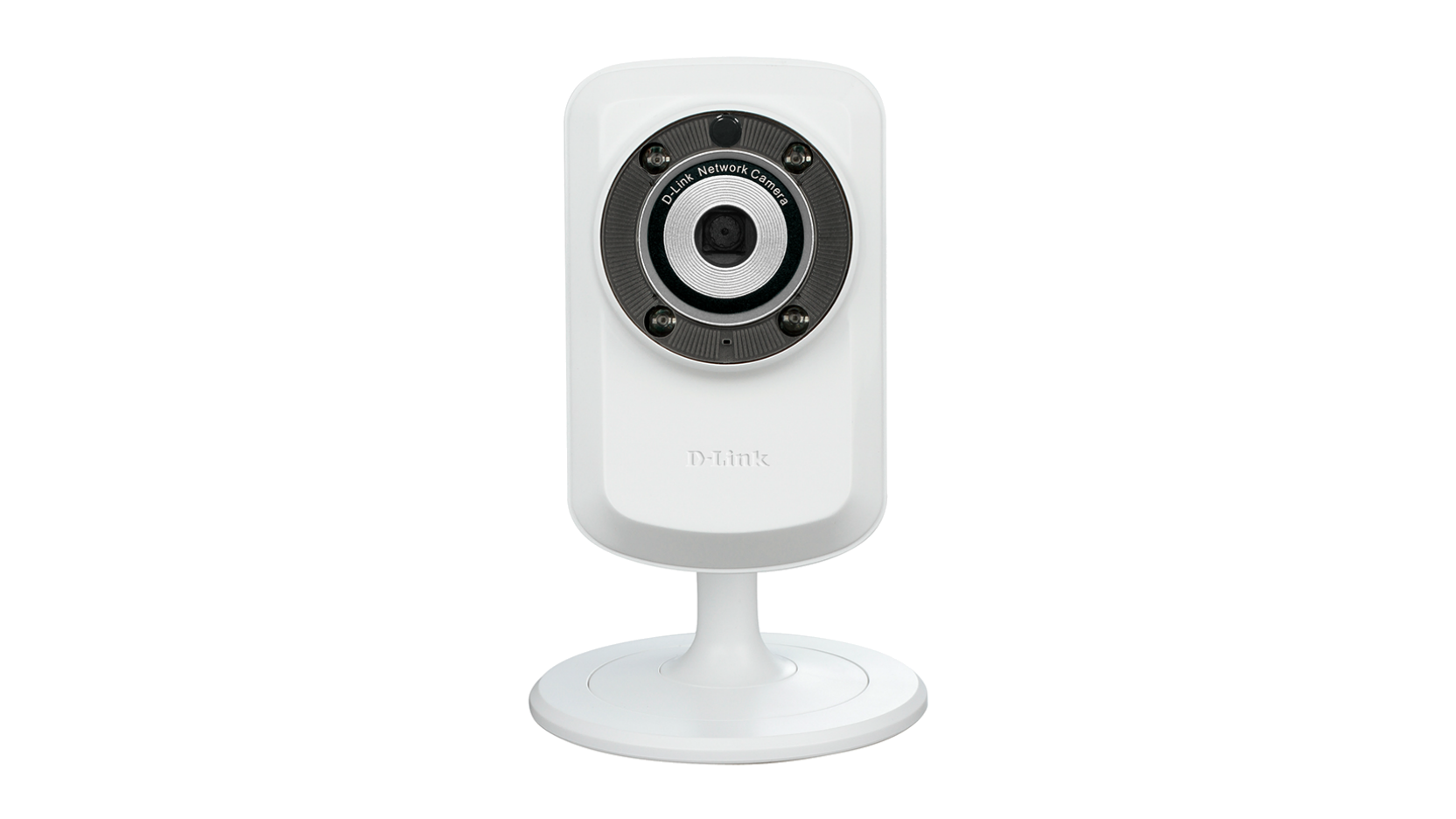

Wireless N Day & Night Home Network Camera

DCS-932

  • Produkt Status: End of Life

There's a new version of this product:

mydlink Wireless N Internet/Security Camera

DCS-932L

See Newer Product

There's a new version of this product:

DCS-932L

mydlink Wireless N Internet/Security Camera

Überblick

Fernüberwachung Tag und Nacht

• Aufzeichnung bei schwachem Licht und bei völliger Dunkelheit von bis zu 5m (IR-LEDs)

• Aufnahmen in hoher Qualität

• Integrierter Bewegungssensor und Mikrofon

• Wireless-N Technologie zur flexiblen Positionierung der Kamera

• kostenfreie mydlink App für iOS und Android

See Newer Product

Überblick

Fernüberwachung Tag und Nacht

• Aufzeichnung bei schwachem Licht und bei völliger Dunkelheit von bis zu 5m (IR-LEDs)

• Aufnahmen in hoher Qualität

• Integrierter Bewegungssensor und Mikrofon

• Wireless-N Technologie zur flexiblen Positionierung der Kamera

• kostenfreie mydlink App für iOS und Android

See Newer Product
  • Compact size
  • Wireless N technology for a flawless connection anywhere in your home
  • Built-in IR LEDs for night vision (up to 5 m.)
  • Motion-triggered alerts by email
  • Built-in microphone
  • Wireless security at the touch of a button with Wi-Fi Protected Setup (WPS)
  • Dynamic DNS support to easily access your camera from anywhere in the Internet
  • Includes D-ViewCam software


The DCS-932 is a unique and versatile surveillance solution for your home or small office. Unlike a traditional webcam, this camera is a complete system with a built-in CPU and web server that transmits high quality video images and audio for security, surveillance, and remote monitoring. Simple installation and an intuitive web based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-932 also comes with remote monitoring, motion detection, and night vision for a complete and cost-effective home security solution.


Wireless N connectivity
This network camera includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites over the Internet. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. It also includes a standard Ethernet port for connections to traditional wired networks.


Night vision
This Wireless N camera comes with built-in infrared LEDs that allow for continuous monitoring even in complete darkness. The 5-metre illumination distance makes it suitable for small offices, baby rooms, sheds and garages.


Easy to configure and use
This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognise the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember the IP address. You may also view up to 32 cameras from a central location using the included free D-ViewCam software (DCS-100). D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform users of suspicious or unusual activities.


Actual product appearance may differ from the image displayed on this page

Networking Protocol
  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (Dyndns and D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • UPnP Port Forwarding
  • LLTD


Network Interface
  • 10/100BASE-TX Fast Ethernet
  • 802.11b/g/n WLAN


Wireless connectivity
  • 802.11b/g/n Wireless
  • WEP/WPA/WPA2 security


Wireless transmit output power
  • 16 dBm for 11b
  • 12 dBm for 11g
  • 12 dBm for 11n (typical)


Memory
  • SDRAM: 32 MB
  • Flash: 4 MB


Reset button
  • Reset to factory default


Video codecs
  • MJPEG
  • JPEG for still images


Video features
  • Adjustable image size and quality
  • Time stamp and text overlay
  • Flip and Mirror


Resolution
  • 640 x 480 at up to 20 fps
  • 320 x 240 at up to 30 fps
  • 160 x 120 at up to 30 fps


Lens
  • Focal length: 5.01 mm, F2.8


Sensor
  • VGA 1/5 inch CMOS Sensor


Minimum Illumination
  • 1 lux @ F2.8


View Angle
  • Horizontal: 45.3°
  • Vertical: 34.5°
  • Diagonal: 54.9°


Digital zoom
  • Up to 4x


LEDs
  • 4x IR LED
  • Illumination distance: 5 m. (16 feet)


3A control
  • AGC (Auto Gain Control)
  • AWB (Auto White Balance)
  • AES (Auto Electronic Shutter)


Power
  • Input: 100-240 V AC, 50/60 Hz
  • Output: 5 V DC, 1.2 A
  • External AC-to-DC switching power adapter


Dimensions (W x D x H)
  • Camera only: 27.2 x 60 x 96 mm
  • Including the bracket and stand: 65.8 x 65 x 126 mm


Weight
  • 76.9 g (without bracket and stand)


Max power consumption
  • 2 W


Temperature
  • Operation: 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
  • Storage: -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)


Humidity
  • 20-80% RH non-condensing


Emission (EMI), Safety & Other Certifications
  • FCC Class B
  • IC
  • C-Tick
  • CE
This product was phased out on: 21/01/2012
This product's last date of support is on: 20/01/2014
