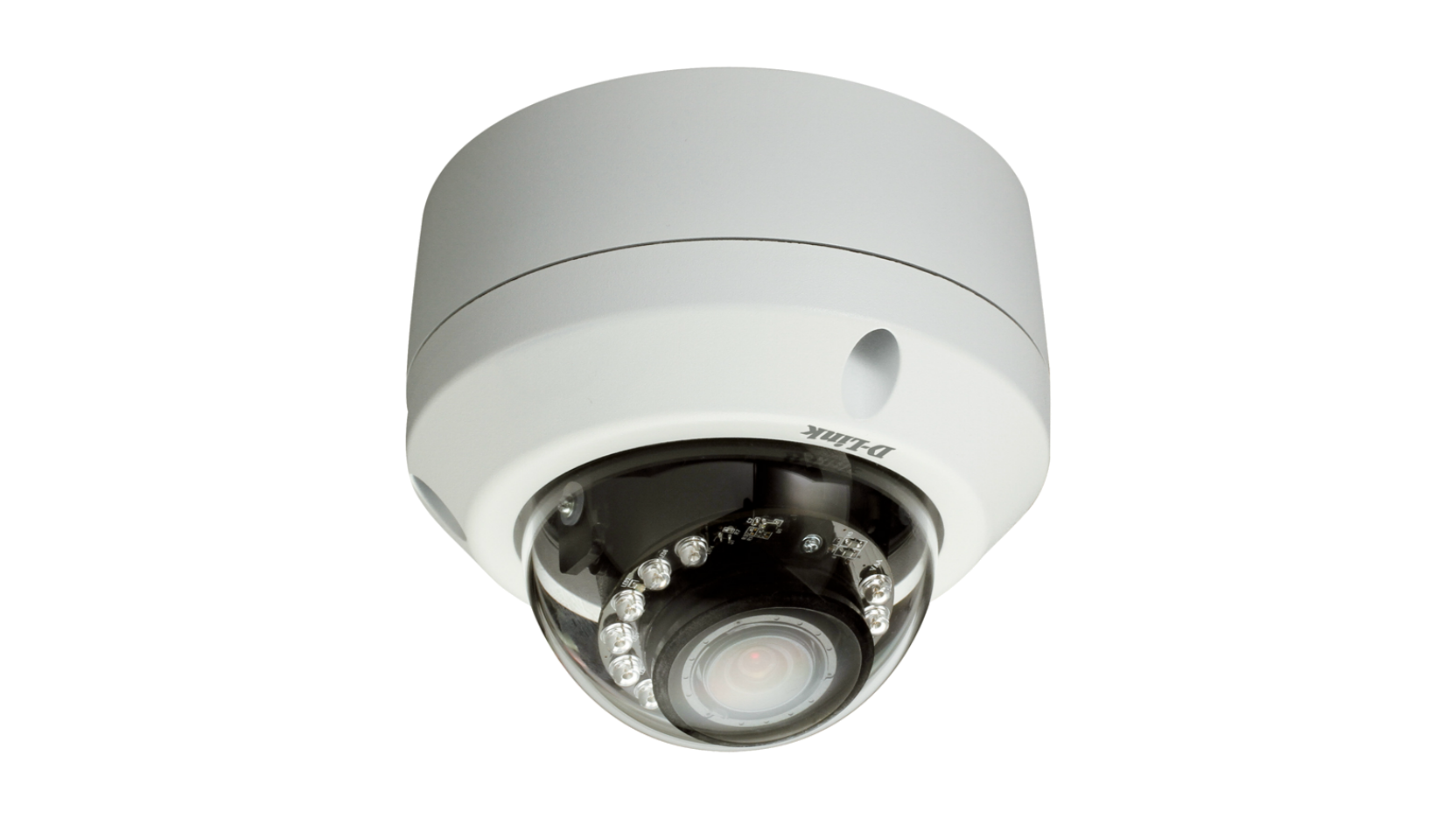

Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera

DCS-6314

  • Produkt Status: Abgekündigt (EOL)
The D-Link DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions.

Datenblatt downloaden.

Bezugsquellen

The D-Link DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

High-Quality Video

To maximise bandwidth efficiency and improve image quality, the DCS-6314 provides real-time video compression using the H.264, MPEG‑4, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to a network attached storage (NAS) device or internal Micro SD card.

Continuous Monitoring



The DCS-6314’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify objects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. In addition, the DCS-6314 also has built-in IR LED illuminators with a 15 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

The DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.



Flexible Connectivity

The DCS-6314 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

Product Awards

82% in Benchmark Review

Passende Produkte

Full HD WDR Day Night Outdoor Dome Network Camera
DCS-6513
Mehr erfahren
Full-HD-Kamera mit festem Dome
DCS-6210
Mehr erfahren
Outdoor Full HD WDR PoE Day/Night Fixed Bullet Network Camera
DCS-7513
Mehr erfahren
Deckenhalterung für Outdoor Fixed-Dome
DCS-34-2
Mehr erfahren
Gebogene Halterung für Outdoor Fixed-Dome
DCS-34-3
Mehr erfahren

Technical Specifications

Camera

Camera Hardware Profile

  • 1/2.8” 2 Megapixel progressive CMOS sensor
  • 15 metre IR illumination distance
  • Minimum illumination 0.2 Lux / F1.4 Color mode
  • Minimum illumination 0.05 Lux / F1.4 Black and White mode
  • Minimum illumination 0 Lux Black and White mode with IR LED on
  • Built-in Infrared-Cut
  • Removable (ICR) Filter module
  • 2.8 to 12mm variable focal lens
  • Aperture F1.4
  • Angle of view (16:9)
    • (H) 96.5° ~ 31.2°
    • (V) 64.5° ~ 17.8°
    • (D) 117.5° ~ 36.8°

Camera Housing

  • IP-68 compliant weatherproof housing
  • IK-10 compliant vandal-proof housing
  • Included weather shield

Image Features

  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable exposure time, brightness, saturation, contrast, contrast, sharpness.

Video Compression

  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images

Video Resolution

  • 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
  • 4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps

Audio Support

  • G.726
  • G.711

External Device Interface

  • 10/100 BASE-TX Ethernet port with PoE
  • 1 DI / 1 DO
  • DC12 V, 100 mA Output
  • micro SD/SDHC card Slot
  • Audio input / output

Network

Network Protocols

  • IPv6
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • HTTP / HTTPS
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • RTP / RTSP/ RTCP
  • IP filtering
  • QoS
  • CoS
  • Multicast
  • ONVIF compliant

Security

  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption

System Management

System Requirements for Web Interface

  • Browser: Internet Explorer, Firefox, Chrome, Safari

Event Management

  • Motion detection
  • Event notification and uploading of snapshots/video clips via e-mail or FTP
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Configuration interface accessible via web browser

OS Support

  • Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android

D-ViewCam™ System Requirements

  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 7 or higher  Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

  • Remote management/control of up to 32 cameras
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
  • Scheduled motion triggered, or manual recording options

General

Weight

  • 1112 grams (2.45 lbs)

Power

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output:  12V DC 1.25 A

Power Consumption

  • 10 +- 5% Watt

Temperature

  • Operating: -30 to 50 °C (-22 to 124 °F)
  • Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE
  • CE LVD
  • FCC
  • C-Tick
