Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router


  • Product Status: Phased Out

The DSL-3580L Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router is everything you need for high-speed Internet access for your entire home. It combines an ADSL2+ modem and high-end wireless AC router to create a single, easy to use device that creates and shares an Internet connection for all your devices.

Download the datasheet.

Seznam prodejců
The DSL-3580L Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router is everything you need for high-speed Internet access for your entire home. It combines an ADSL2+ modem and high-end wireless AC router to create a single, easy to use device that creates and shares an Internet connection for all your devices.

Fast and Reliable Home Networking

The D-Link DSL-3580L Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router creates a blazing fast home network that connects all of your devices to your broadband Internet connection. Concurrent dual-band 802.11ac brings you the future of high-bandwidth wireless connectivity allowing you to stream HD video, make Internet voice calls, and surf the Internet from every corner of your home without interruption. Gigabit Ethernet ports provide high-speed wired connections for up to four PCs or other devices. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.

Greater Coverage and Speeds with the latest Wireless AC and Revolutionary AC SmartBeam™ Technology

The DSL-3580L uses the latest Wireless AC technology, which can provide transfer rates of up to 867 Mbps1. D-Link’s intelligent AC SmartBeam™ technology guarantees continuous blazing fast wireless speeds to all your devices, anywhere in your home, even under heavy network utilisation or in rooms that have bad wireless signal.
Faster gigabit wireless speeds allow you to download contents and sync files over 3 times faster1 than the previous standard and provide you with whole home coverage. The router operates on both the 2.4 GHz band and 5 GHz wireless bands at the same time using concurrent dual-band technology and six internal antennas. This allows you to browse the web, chat and e-mail using the 2.4 GHz band, while simultaneously streaming digital media, playing online games, or making Internet phone calls on the 5 GHz band.

Monitor and Manage Your Network from Anywhere with mydlink™3

The Wireless AC1200 Dual-Band Gigabit ADSL2+ Modem Router allows you to use the secure mydlink™ web portal and mobile apps to remotely access, view, and manage devices on your home network no matter where you are. See who’s connected to your router, change settings, or block connections, all from any PC with an Internet connection, or an iOS or Android mobile device. Parents can monitor what sites their children are visiting, and can stay informed and in control wherever they are.

Share a Storage Drive or Printer Easily

Connect a USB storage device to the DSL-3580L to create a shared storage space, making it easy to share music, movies and documents between computers and devices connected on your home network. Plug in a USB hard drive and access your library of videos and music from your laptop. You can even customise your shared storage space by creating separate accounts to control access to the USB drive, so you can share your music with everyone but keep your personal files private. You can also connect a USB multifunctional printer to share printing and scanning functions, allowing a single printer to be shared with an office or a household.
1. Maximum wireless signal rate derived from IEEE Standard 802.11 and draft 802.11ac specifications. D-Link makes no warranties as to forward compatibility with future standards or compatibility with draft 802.11ac devices from other manufacturers. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2. To benefit from Wireless AC speeds, connected device must support 802.11ac standard
3. Please make sure you upgrade to the latest firmware available from the product downloads section

Related Products

Wireless AC Dualband USB Adapter
Zjistěte více
Wireless AC Dual-Band Nano USB Adapter
Zjistěte více
Wireless AC1750 Dual-Band Gigabit Cloud Router
Zjistěte více
Wireless AC1200 Dual-Band Gigabit Cloud Router
Zjistěte více
Wireless AC1200 Dual-Band Gigabit Cloud Router
Zjistěte více

Technical Specifications


  • Fast 802.11ac wireless for reliable long-range wireless connections to all of your PCs and mobile devices2
  • 802.11ac/n/g/b/a wireless LAN for a complete range of wireless compatibility
  • AC SmartBeam™ ensures optimal wireless signal to every corner of your home
  • Built-in ADSL2+ modem for connecting to your high-speed broadband Internet connection
  • Four Gigabit LAN ports and one Gigabit WAN port to connect wired devices for high-speed online activities
  • USB 2.0 port to share a printer or media on a storage device


  • Monitor and manage your network on the go through the mydlink website or mobile app


  • Dual Active Firewalls (NAT/SPI) to control traffic and prevent exploits and intrusions
  • Wi-Fi Protected Setup (WPS) to quickly and securely add devices to your network
  • WPA/WPA2 encryption to secure your wireless traffic

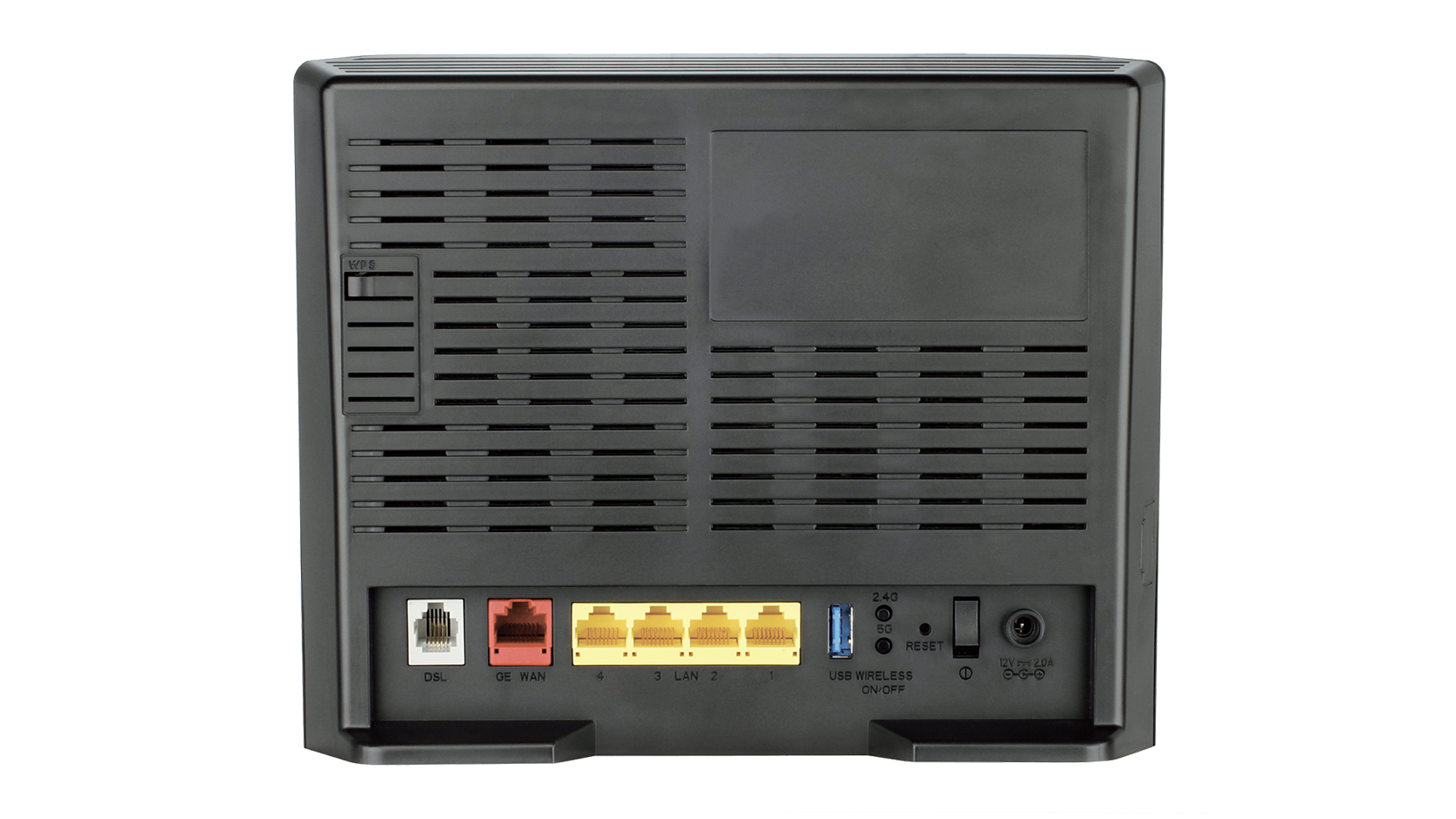

Device Interfaces

  • 802.11ac/n/g/b/a Wireless LAN
  • Four 10/100/1000 Gigabit LAN ports
  • One 10/100/1000 Gigabit WAN port
  • One  RJ-11 ADSL port
  • USB 2.0 port

Antenna Type

  • Four internal MIMO antennas


  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
  • IEEE 802.3
  • IEEE 802.3u

Minimum System Requirements

  • Windows 8/7/Vista/XP SP3 or Mac OS X 10.4 or higher
  • Microsoft Internet Explorer 6 or higher, Firefox 1.0 or higher, Safari 1.2 or higher, or other Java-enabled browser
  • Devices with Ethernet network interface or 802.11ac/n/g/b/a wireless connectivity
  • Subscription with an Internet Service Provider (ISP)



  • WPA & WPA2 (Wi-Fi Protected Access)
  • Wi-Fi Protected Setup (WPS) - PIN/PBC

Advanced Features

  • Multi-language web setup wizard
  • Green Ethernet
  • UPnP support
  • DLNA media server support
  • VPN pass-through/multi-session PPTP/L2TP/IPSec
  • Dual Active Firewall
    • Network Address Translation (NAT)
    • Stateful Packet Inspection (SPI)
  • 802.1p QoS

mydlink Features3

  • Remote management
    • View current upload/download bandwidth
    • View currently connected clients
    • View web browsing history per client
    • Block/unblock client network access
    • Manage wireless network details
  • Accessible through a web browser, or the mydlink Lite mobile app for iOS and Android

Mobile App Support

  • mydlink Lite app for Android and iOS



  • 213 x 173.2 x 52 mm (8.3 x 6.8 x 2.0 inches)


  • 401.3 grams (0.88 lbs)


  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)


  • 5 % to 95 % non-condensing


  • CE
  • WHQL
  • IPv6 ready
  • Wi-Fi  Wi-Fi Protected Setup (WPS)
  • Compatible with Windows 8
  • Compatible with iOS


  • Jaké je výchozí uživatelské jméno a heslo pro můj router DSL-2751? Read Answer
  • Jak mohu aktualizovat firmware na mém routeru DSL-2751? Read Answer
  • How do I hard reset my device back to the factory default settings? Read Answer
  • How do I find the device Hardware Version? Read Answer
This product was phased out on: 10. 6. 2016
Version Date Type File Size
Datasheet - PDF 0.73mb Stáhnout
Version Description Date Type File Size
Product manual A2

Product manual A2

30. 11. 2014 PDF 4.02mb Stáhnout
Product manual A1

Product manual A1

23. 10. 2013 PDF 5.65mb Stáhnout
Version Description Date Type File Size

Quick installation guide

23. 10. 2013 PDF 0.85mb Stáhnout
Firmware pro produkt D-Link obsahuje software, který podléhá následující všeobecné veřejné licenci GNU (dále jen „GPL“) nebo všeobecné veřejné licenci GNU Lesser (dále jen „LGPL“). Další informace o podmínkách použití a přístup k použitému GPL či LGPL kodu naleznete zde:
Ve firmwaru tohoto produktu je použití GPL a LGPL kodu BEZ ZÁRUKY a jejich autorské právo náleží jednomu nebo více autorům. Více informací najdete v sekci GPL a LGPL kody pro tento produkt a v GPL a LGPL podmínkách použití.
Version Description Date
Firmware Release notes included 2.00

Release notes included

6. 11. 2014 Stáhnout
DSL-3580L firmware 1.01 DSL-3580L firmware 14. 3. 2014 Stáhnout
Version Description Date
Setup Wizard for Windows

Setup Wizard for Windows

2. 7. 2015 Stáhnout
Version Description Date

CE declaration

23. 10. 2013 Stáhnout
DEU_mydlink_routers_cheat_sheet_RevA mydlink routers cheat sheet - Stáhnout
