Sharecenter™ 2-Bay Network Storage Enclosure

DNS-325, DNS-325-1TB, DNS-325-2TB

  • Product Status: Phased Out
The D-Link ShareCenter 2-Bay Network Storage Enclosure supports up to 8TB of capacity allowing everyone on your network to back up and share their documents, music, photos, and videos to a central location. With a 1.2GHz CPU and applications for streaming and sharing, the DNS-325 is ideal for media users.

Download the datasheet.

Seznam prodejců

What this product does

The ShareCenter™ 2-Bay Network Storage Enclosure, when used with internal SATA drives1, enables homes and small offices to share documents and files across the network and on the Internet. This enclosure also allows for the creation of a central network point for backing up files and the built-in RAID 1 mirroring technology protects these files from drive failure. Add-on applications can be installed to further extend functionality.

Easily access and share your photos, movies, music, files and more via mydlink™ Cloud mobile app

This ShareCenter™ Cloud Storage device enables you to share documents and media content such as photos, music and videos on a home network or over the Internet. The mydlink Cloud mobile app allows you to share documents and access photos, music and video stored in your D-Link ShareCenter™ right from your mobile device.

Once connected, you can instantly open or send files, folders, pictures or videos from your mobile device with just a click. mydlink Cloud makes it easy to work directly with your NAS files, no matter where you are — and even listen to music in the background at the same time.

If you have with further technical knowledge you can manage the contents of their ShareCenter™ from any FTP client.

Stream digital media content with the built-in Media Server

The built-in UPnP media server will stream the media content on your Sharecenter™ to any compatible media player such as the PlayStation 3, Microsoft Xbox 360, and D-Link Boxee Box over your local network. The Sharecenter™ 2-Bay Network Storage Enclosure allows for multiple simultaneous streams, so you can watch a movie on your entertainment centre while someone else listens to music streamed over their computer.

Safely share digital files locally and over the Internet

The ShareCenter™ 2-Bay Network Storage, when used with internal SATA drives1, enables users to share documents and files with other users on the same network. Users can also gain remote access to their files over the Internet using the built-in web/file server or the secure FTP server. Keep data safe by giving rights to specific users or groups and assign them to folders with specific read/write permissions. This is ideal for an office environment with sensitive employee-specific data or at home when parents want to restrict their children’s access to certain material . The ShareCenter™ also supports Apple Time Machine which allows users to easily back up any Mac computers running OS X (10.5 or later).

Do more with Surveillance, Photo and Audio Center as well as powerful add-on applications

Powerful add-on applications extend NAS functionality and allow you to do more with your ShareCenter™. Surveillance Center allows you to access and configure D-Link IP cameras on the same network to record, monitor and playback. Photo and Audio Center allows you to generate photo and music libraries that can be easily managed and shared. Enjoy even more add-ons as they become available in the future.

Connect USB printers, storage devices, and UPS monitors

Share a USB printer or scanner within the network by connecting it to the USB 2.0 port. You may also plug in an external hard drive or flash storage device and share it with the entire network. A convenient USB push button allows you to instantly copy the data on a USB flash storage device to the NAS. Additionally, the ShareCenter™ supports UPS monitoring via USB to help maintain data integrity during a power failure.

Enjoy performance, protection, and flexibility

The availability of four different hard drive modes (Standard, JBOD, RAID 0, RAID 1) allows users to choose the configuration best suited to their needs. Standard mode creates two separately accessible hard drives. JBOD combines both drives to create a single, easy to use volume. RAID 0 combines both drives in a “striped” configuration, which provides the highest performance when using a Gigabit Ethernet connection. RAID 1 creates a copy of your data on both drives, providing maximum protection; if one drive fails while configured as RAID 1, the unaffected drive continues to function as a single drive until the failed drive is replaced. The new drive will then be re-mirrored, allowing the ShareCenter™ to return to its full level of protection.

Simple upgrade with Enhanced RAID Roaming

Enhanced RAID roaming allows the users to easily upgrade to the cloud NAS experience. Simply install existing hard drives from compatible D-Link NAS models into the Cloud Network Storage Enclosure and your data can be accessed from anywhere. There is no need to reformat, reconfigure or migrate your data (please refer to specifications for information on compatible upgrade models).

D-Link Green™

For businesses interested in reducing their energy costs and helping to save the environment, D-Link Green™ products provide eco-friendly alternatives without compromising performance. This device uses D-Link Green Ethernet, Hard Drive power management and Smart Fan speed control to reduce energy costs, minimize noise, and prolong the lifespan of your hard drives.

Also available with 1TB or 2TB Hard Drives installed (DNS-325-1TB and DNS-325-2TB).

1 Hard drives only included for DNS-325 1TB (1 x 1TB) and DNS-325 2TB (1 x 2TB). RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. May not work with older generation SATA drives. For a list of SATA drives that have been tested to work with the ShareCenter™, visit D-Link support websites.

Actual product appearance may differ from the image displayed on this page

Related Products

Boxee Box
DSM-380
Zjistěte více
Denní/noční cloudová kamera Wireless N
DCS-942L
Zjistěte více
Whole Home Router 1000
DIR-645
Zjistěte více
PowerLine AV Wireless N Starter Kit
DHP-W307AV
Zjistěte více
Cloudová kamera s funkcemi otáčení/naklánění/zoom (PTZ)
DCS-5222L
Zjistěte více

Technical Specifications

Models

  • DNS-325
  • DNS-325-1TB (includes preinstalled 1 x 1TB hard disk drive)
  • DNS-325-2TB (includes preinstalled 1 x 2TB hard disk drive)



Standards

  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet



Support Hard Drive Type1

  • 3.5" Internal SATA Hard Drive, up to 4TB2

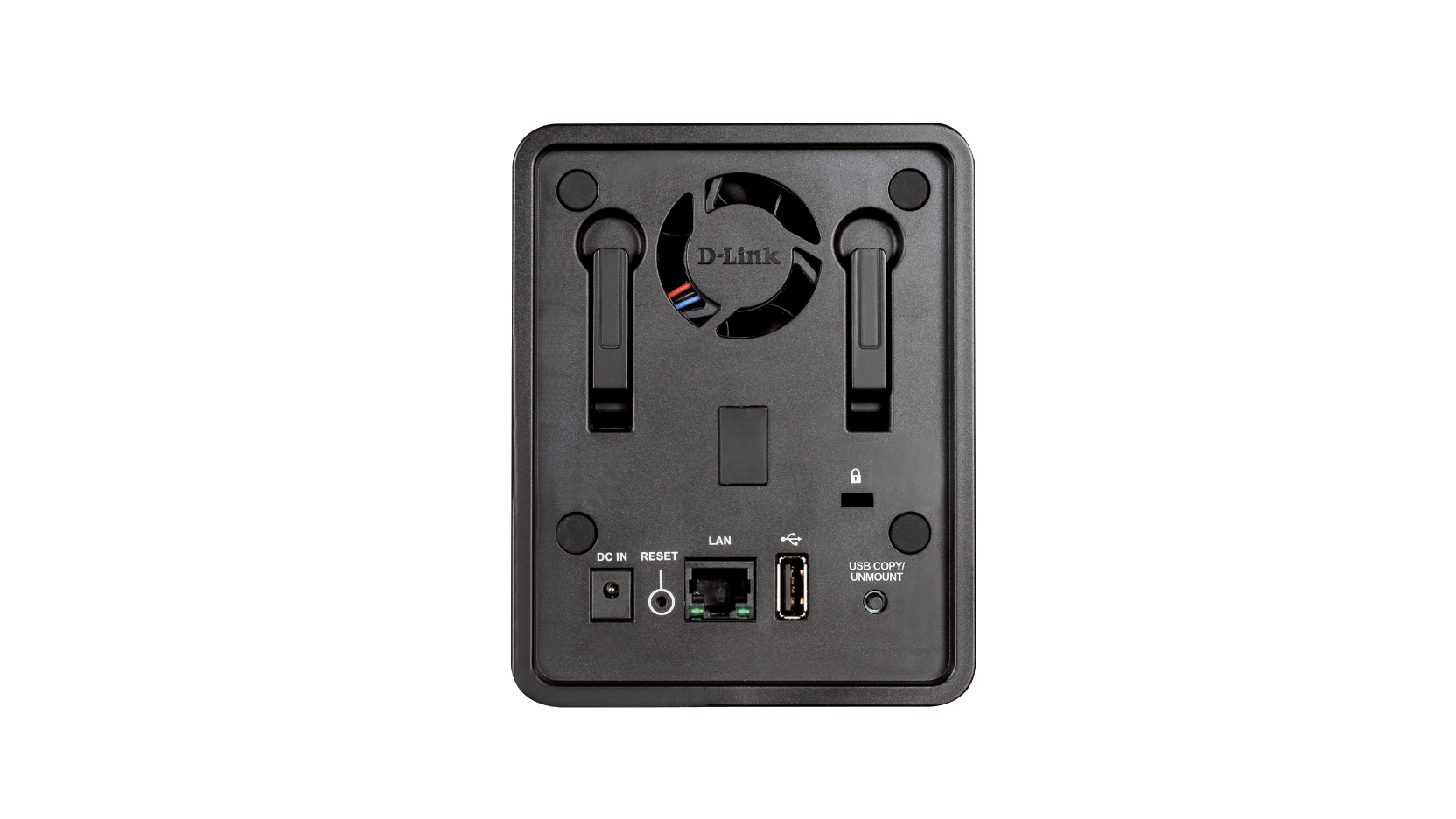

Ports

  • 1 x 10/100/1000 Gigabit Ethernet
  • 1 USB Port
  • Power



Drive Management

  • Four different hard disk drive configurations (RAID 0, 1, JBOD, standard)
  • Drive status with e-mail alerts
  • Drive quotas
  • Power management



Device Management

  • Internet Explorer® v6 or other Java-enabled browsers



LEDs

  • Power
  • LAN
  • HDD 1
  • HDD 2



Certifications

  • FCC Class B
  • CE



Power Supply

  • External power supply
  • DC 12V / 4A switching



Power Consumption

  • Normal mode: 21.04 W
  • Sleep mode: 10.45 W



Power Management

  • Power saving
  • Schedule power Off
  • Auto power recovery support



Operating Temperature

  • 0º to 40º C (30º to 104º F)



Operating Humidity

  • 10% to 95% Non-Condensing



Dimensions (W x D x H)

  • Item: 104mm x 198mm x 132mm (4.1” x 7.8” x 5.2”)



Weight

  • 1.225 kg



Multilingual Support

  • Samba: Unicode
  • FTP Client/ iTunes Server: Unicode , Croatian, Cyrillic (Kyrgyz Republic), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovenian, Spanish, Swedish, Traditional Chinese, Turkish, Korean, Hebrew

Enhanced RAID Roaming upgrade compatibility

New destination model
DNS-320 A2 DNS-325 DNS-345 DNS-320L
DNS-320LW
Old
source
model
DNS-320 A2
DNS-325 (EXT3)
DNS-325 (EXT4)
DNS-345
DNS-320L
DNS-320LW


1 Hard drives only included for DNS-325 1TB (1 x 1TB) and DNS-325 2TB (1 x 2TB). RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. May not work with older generation SATA drives. For a list of SATA drives that have been tested to work with the ShareCenter™, visit D-Link support websites.
2 Maximum HDD capacity supported may increase in future depending on firmware upgrades.

Actual product appearance may differ from the image displayed on this page

FAQ

  • How do I know if a drive has failed on my DNS-320/321/323/325? Read Answer
  • Why can´t I see my files, on the first drive, after adding a second drive in my DNS 320/321/323/325? Read Answer
  • How do I restore my RAID1 settings if a drive has failed on my DNS-320/321/323/325? Read Answer
Začínáme s DNS-325
Version Date Type File Size
Datasheet (English) - PDF 2.04mb Stáhnout
Storage Product Guide - PDF 2.63mb Stáhnout
IP Surveillance Guide - PDF 3.58mb Stáhnout
Version Description Date Type File Size
Product manual Product manual - PDF 8.92mb Stáhnout
Version Description Date Type File Size
- - PDF 0.88mb Stáhnout
Firmware pro produkt D-Link obsahuje software, který podléhá následující všeobecné veřejné licenci GNU (dále jen „GPL“) nebo všeobecné veřejné licenci GNU Lesser (dále jen „LGPL“). Další informace o podmínkách použití a přístup k použitému GPL či LGPL kodu naleznete zde:

http://tsd.dlink.com.tw/GPL.asp

Ve firmwaru tohoto produktu je použití GPL a LGPL kodu BEZ ZÁRUKY a jejich autorské právo náleží jednomu nebo více autorům. Více informací najdete v sekci GPL a LGPL kody pro tento produkt a v GPL a LGPL podmínkách použití.
Version Description Date
Firmware: v1.05 build 04 1.05b04 Firmware: v1.05 build 04 18. 11. 2016 Stáhnout
Firmware: v1.03 build 03 1.03 b03 Firmware: v1.03 build 03 - Stáhnout
Version Description Date
My Surveillance addon My Surveillance addon 14. 3. 2016 Stáhnout
Software: MyDlink Cloud Package v2.38 2.38

Software: MyDlink Cloud Package v2.38

28. 7. 2014 Stáhnout
Software: Yahoo Widget 2.01 2.01 Software: Yahoo Widget 2.01 1. 10. 2012 Stáhnout
Software: Audio streamer Package 2.01 2.01 Software: Audio streamer Package 2.01 30. 8. 2012 Stáhnout
Software: GPL Code v1.00 1.00 Software: GPL Code v1.00 30. 8. 2012 Stáhnout
Software: Amule Package 2.01 2.01 Software: Amule Package 2.01 3. 8. 2012 Stáhnout
Software: Setup Wizard v1.0.4.3 1.043 Software: Setup Wizard v1.0.4.3 10. 1. 2012 Stáhnout
Software: Storage Utility v5 5.000 Software: Storage Utility v5 6. 4. 2011 Stáhnout
Software: Ajaxplorer 2.01 2.01 Software: Ajaxplorer 2.01 - Stáhnout
Software: Blog Package 2.01 2.01 Software: Blog Package 2.01 - Stáhnout
Software: Photocenter Package v2.01 2.01 Software: Photocenter Package v2.01 - Stáhnout
Software: PnP X-Treiber v1.00 1.00 Software: PnP X-Treiber v1.00 - Stáhnout
Software: Squeeze Center Package v2.02 2.02 Software: Squeeze Center Package v2.02 - Stáhnout
Version Description Date
Hard disk drive compatibility list

Hard disk drive compatibility list

23. 11. 2015 Stáhnout
Certificate of Declaration rev. A2 Certificate of Declaration rev. A2 20. 8. 2012 Stáhnout
Certificate of Declaration rev. A1 Certificate of Declaration rev. A1 15. 12. 2010 Stáhnout
