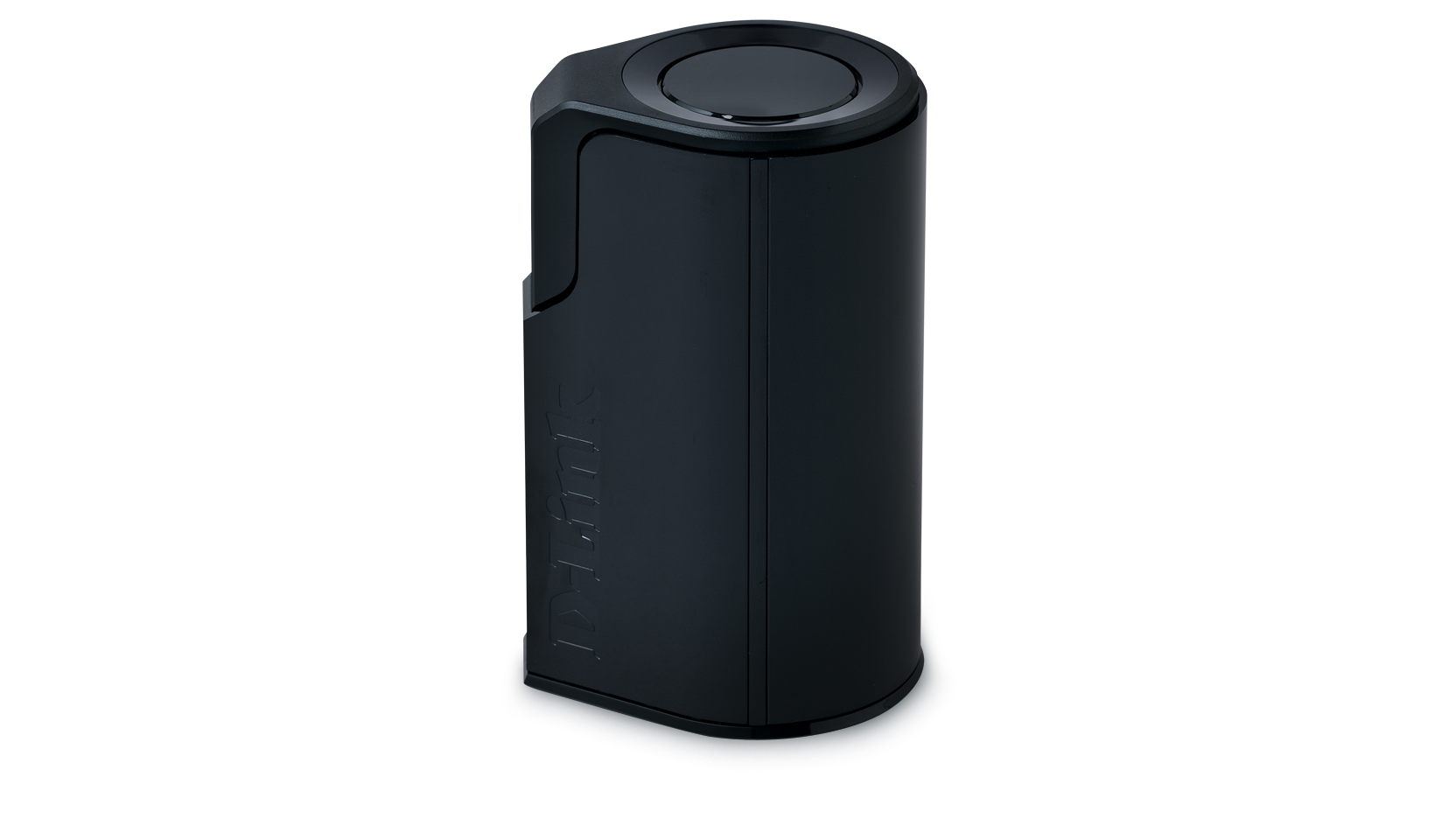

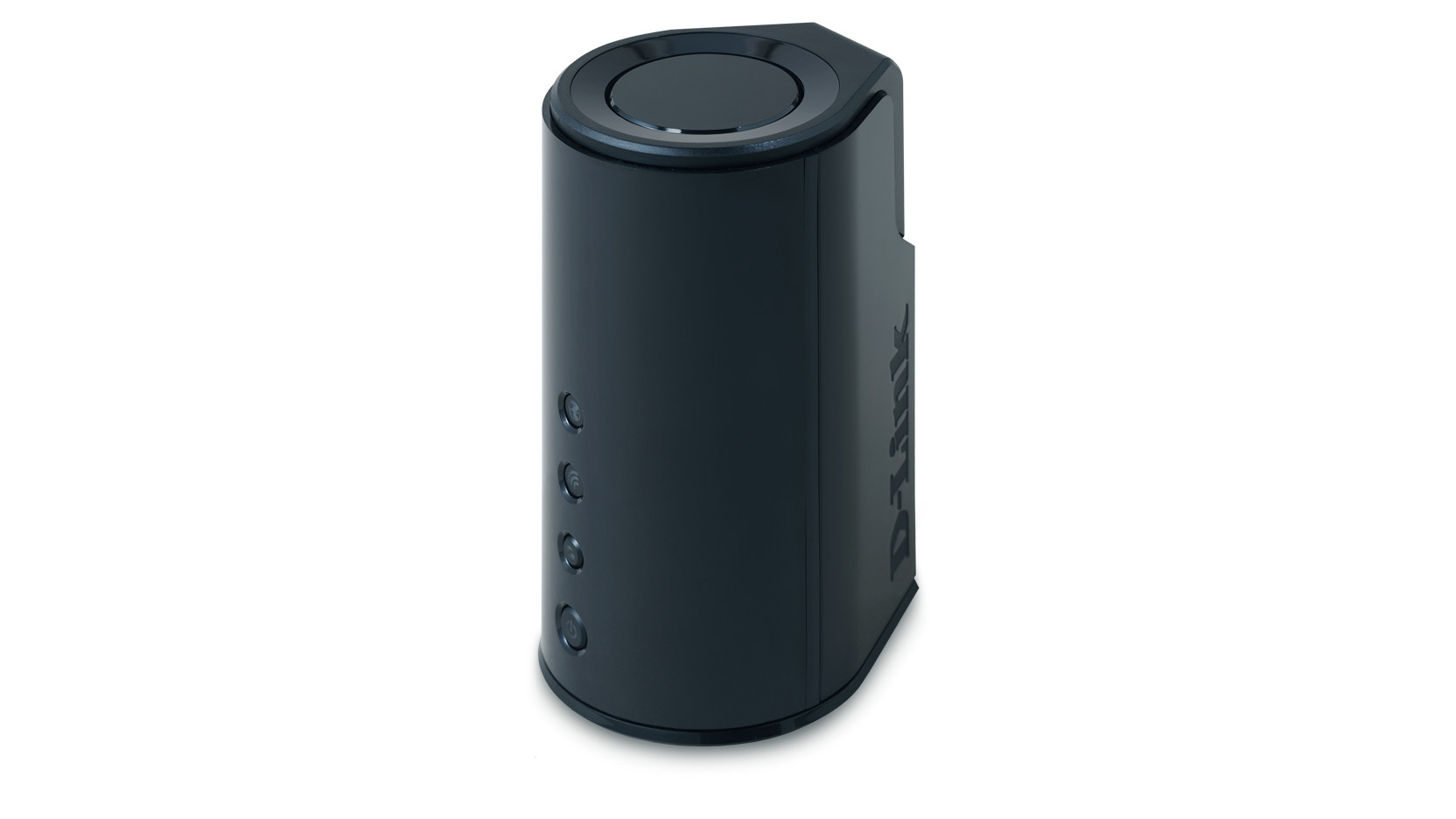

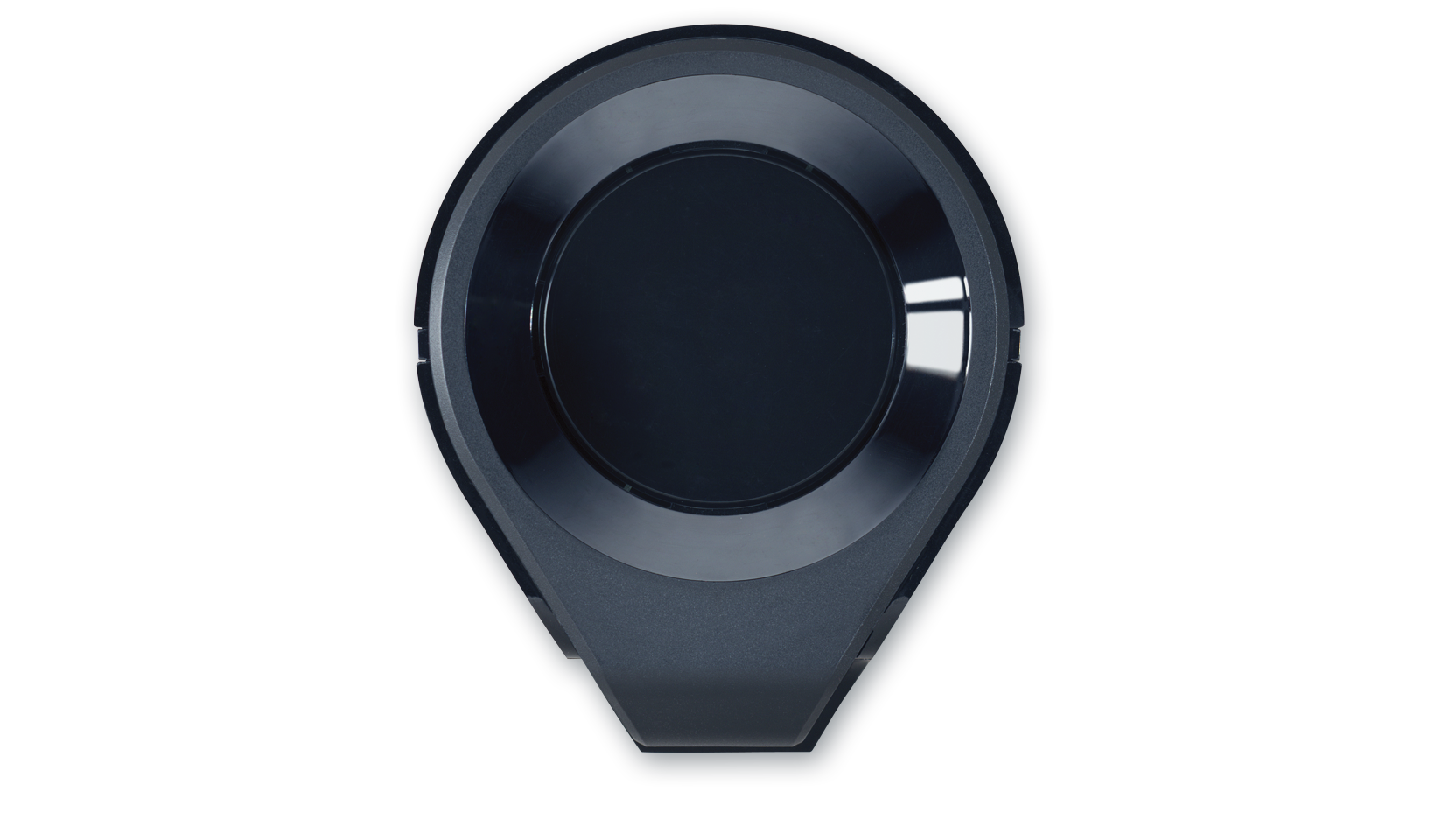

Whole Home Router 1000

DIR-645

  • Product Status: Phased Out

D-Link’s Wireless N Home Router with SmartBeam™ technology extends the coverage of your wireless network, giving you a strong and stable Internet connection where concrete walls, successive floors in multi-storied buildings, or other architectural impediments can weaken a wireless signal.


Download the datasheet.

Seznam prodejců

Give Your Wireless Devices The Bandwidth They Crave. Give Them SmartBeam.

Build a wireless home network capable of delivering the bandwidth to handle HD video streams, large media file downloads, and online gaming to multiple devices, simultaneously. SmartBeam uses six multi-directional antennas to find and track individual devices , then focus beams of bandwidth to those devices, ensuring a seamless connection anywhere in the home.

Ideal for large homes or small offices where concrete walls, successive floors in multi-storied buildings, or other architectural impediments can weaken a wireless signal, SmartBeam is designed to handle large home networks and can even power devices across large backyards. Eliminate wireless dead spots and unleash comprehensive whole-home coverage on all your devices, all at once – the Whole Home Router 1000 is provides uninterrupted connectivity to any device, anywhere in your home or small office.

Now Playing: Everything.

The Whole Home Router 1000 has not only been engineered to deliver seamless connectivity to your favorite wireless devices, but comes equipped with 4 high-performance Gigabit Ethernet ports to power your digital entertainment system as well. Connect your favorite performance devices--HDTVs, the Boxee Box by D-Link, Blu-Ray Players, Xbox 360, Playstation 3, and more--and give them the 300 Mbps speed and advanced QoS bandwidth prioritization they need for seamless iPad HD video streams, high-performance gaming, and VOIP calls without annoying glitches or lags. Connect Printers, NAS servers--even security cameras--via the Shareport Plus USB 2.0 port, which lets you stream from any USB device. There's even a SharePort App for Android and iPhone OS for online gaming support like Onlive.



Advanced Home Networking. Simple Setup

High-performance entertainment devices. Wireless signals anywhere in your home. Multiple laptops. Network storage systems. iPads, iPhones... It used to be that designing a home network capable of handling so many devices required some serious hardware and some seriously messy installation. Not with Amplifi--the Whole Home Router 1000 has not only been engineered with the power to handle all of your digital demands, but with the smarts to put it at the tip of your fingers. Whole Home Routers offer Wireless G backwards compatibility and Wi-PnP technology for simple wireless connections through a USB drive. IPv6 allows for intelligent self-detect and router setup and with push-button connectivity and 128-bit security encryption standard, a secure home network is as simple as plug and play.

128-bit Security Encryption

The Whole Home Router 1000 protects your network with 128-bit AES data security encryption--the same technology used in E-commerce or online banking. Create your own network name and password or put it at the tip of your fingers with Push Button Security standard on every Amplifi device. With hassle-free plug and play installation, and advanced Wi-Fi protected setup, the Whole Home Router 1000 is not only one of the fastest routers available, its also one of the safest.

Get Ready for the Future: IPV6 Equipped

With the growing number of Internet-enabled applications requiring IP addresses, the supply of IP addresses under the current Internet Protocol version 4 (IPv4) system has already been exhausted. The IPv6 protocol solves this network addressing exhaustion by creating more IP addresses, but migration from IPv4 to IPv6 is not necessarily automatic. No worries--this D-Link product is IPv6 Certified and ready for the future.

Product Awards

PCPOP Innovation Award
D-Link has launched the innovative DIR-645 in 2011. Its fashionable design and friendly user interface and features have made satisfaction to the consumers.
Chip.de Testsieger

Related Products

Wireless N 150 Pico USB Adapter
DWA-121
Zjistěte více
Wireless 150 USB Adapter
DWA-125
Zjistěte více
Wireless-N Nano USB Adapter
DWA-131
Zjistěte více

Technical Specifications

Standards
  • IEEE 802.11n/g/b
  • IEEE 802.3/u/ab
  • USB 2.0

Device Interfaces

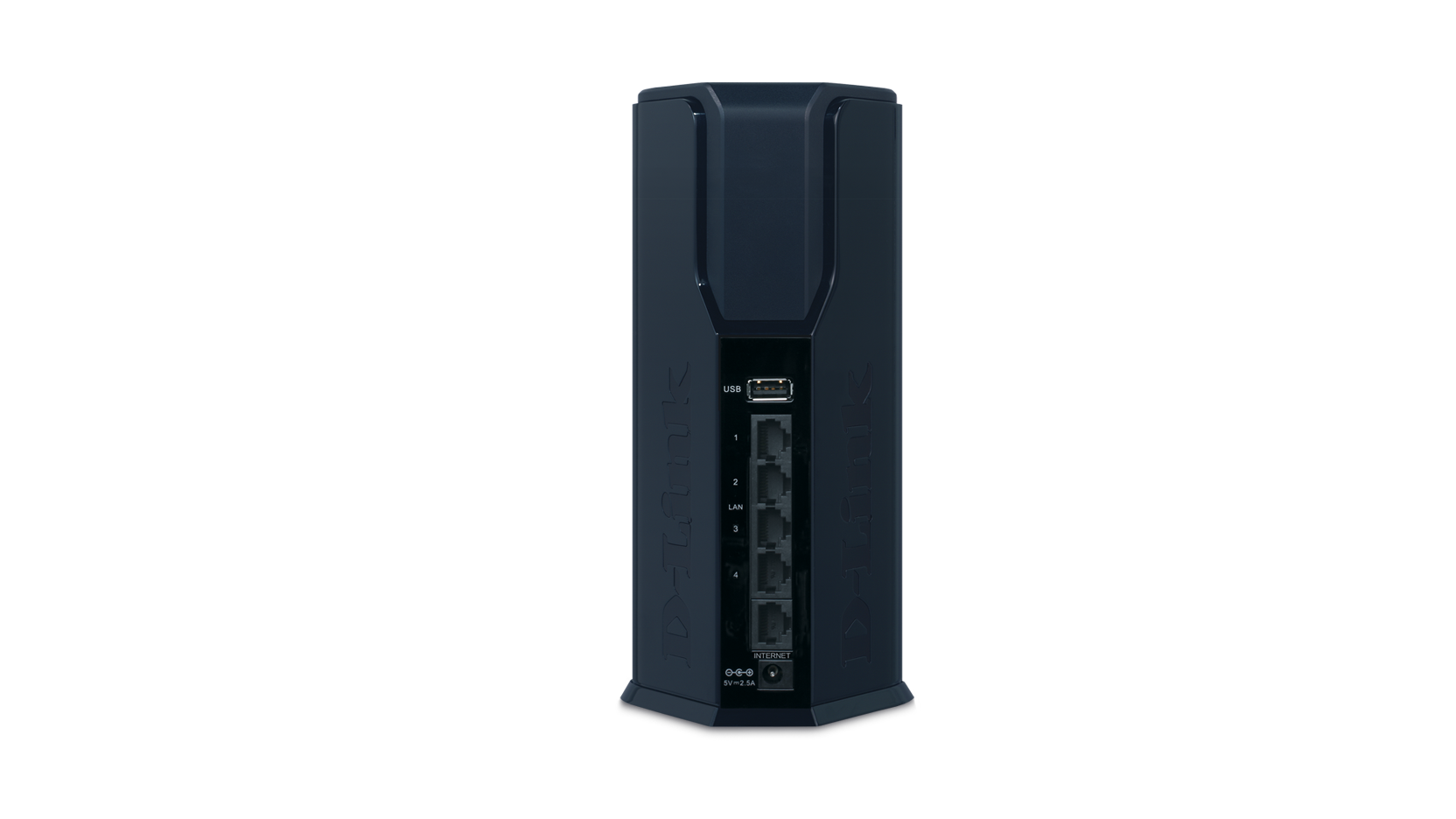

  • 1x Gigabit WAN port
  • 4x Gigabit LAN ports
  • 1x USB 2.0 port
  • WPS button
  • Factory reset button

Antenna type
  • Internal smart antennae with SmartBeam™ technology

Wireless security
  • WEP 64/128-bit
  • WPA/WPA2
  • WPS (Wi-Fi Protected Setup)

Quality of Service (QoS)
  • Port-based QoS
  • WMM for wireless traffic

SharePort™ Plus
  • USB Printer/USB memory/USB Hard drive sharing
  • Bi-directional support

LEDs
  • Internet
  • Wireless
  • WPS
  • Power

Dimensions (L x W x H)
  • 117 x 95 x 190 mm

Weight
  • 341.5 g

Certifications
  • DLNA
  • IPv6
  • CE
  • C-Tick
  • Wi-Fi
  • WPS
  • WMM

FAQ

  • How do I configure MAC filtering on my DIR/WBR series router? Read Answer
  • Why do I get an 401 Unauthorized error when logging into my router? Read Answer
  • Why am I unable to view the contents of my USB drive using the SharePort Mobile app Read Answer
  • How do I open a Microsoft Word Excel or PowerPoint file in another app from the SharePort Mobile app Read Answer
How to connect to wireless in Windows 8
How to connect to wireless in Windows 7
How to connect to wireless using an iPhone
How to remove the Graphical Authentication login on your router
How to change router password
How to configure Parental Controls on your router
How to configure IP reservation on your router
How to open a range of ports on your router
How to change your routers IP address
How to open a single port on your router
How to disable UPnP on your router
Jak změnit/obnovit Vaše zapomenuté heslo bezdrátové sítě?
Jak nakonfigurovat nastavení bezdrátové sítě na Vašem zařízení?
Jak stáhnout a používat aplikaci QRS Mobile App?
Jak resetovat router?
Jak upgradovat firmware na Vašem routeru?
Version Date Type File Size
Datasheet (English) - PDF 0.77mb Stáhnout
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 7.08mb Stáhnout
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 0.49mb Stáhnout
Firmware pro produkt D-Link obsahuje software, který podléhá následující všeobecné veřejné licenci GNU (dále jen „GPL“) nebo všeobecné veřejné licenci GNU Lesser (dále jen „LGPL“). Další informace o podmínkách použití a přístup k použitému GPL či LGPL kodu naleznete zde:

http://tsd.dlink.com.tw/GPL.asp

Ve firmwaru tohoto produktu je použití GPL a LGPL kodu BEZ ZÁRUKY a jejich autorské právo náleží jednomu nebo více autorům. Více informací najdete v sekci GPL a LGPL kody pro tento produkt a v GPL a LGPL podmínkách použití.
Version Description Date
Firmware Fixes Security vulnerabilities 1.05b01 Firmware
Fixes Security vulnerabilities
17. 6. 2015 Stáhnout
Version Description Date
SharePort Plus for Windows 4.30 SharePort Plus for Windows 10. 11. 2014 Stáhnout
SharePort Plus for Mac 4.40 SharePort Plus for Mac 10. 11. 2014 Stáhnout
GPL Source Code GPL Source Code 12. 12. 2011 Stáhnout
SharePort Plus Utility for Mac 4.10
SharePort Plus Utility for Mac OS 10.x
31. 5. 2011 Stáhnout
SharePort Plus Utility for DIR-645 4.10 SharePort Plus Utility for DIR-645 Rev.A for
Windows 2000, XP, Vista and 7 (32 and 64 Bit)
31. 5. 2011 Stáhnout
Version Description Date
DEU_CE_Declaration_RevA CE Declaration ver A1 - (English, French, Spanish, Portuguese) 29. 6. 2011 Stáhnout
