Wireless N Home Network Camera

DCS-930

  • Product Status: Phased Out
The DCS-930 is a unique and versatile surveillance solution for your home or small office. Unlike a traditional webcam, the DCS-930 is a complete system with a built-in CPU and web server that transmits high quality video images and audio for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-930 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.
Seznam prodejců
  • Wireless N technology for a flawless connection anywhere in your home
  • High light sensitivity (1 Lux) for use in low light conditions
  • Motion-triggered alerts by email
  • Built-in microphone
  • Wireless security at the touch of a button with Wi-Fi Protected Setup (WPS)
  • Dynamic DNS support to easily access your camera from anywhere in the Internet

The DCS-930 is a unique and versatile surveillance solution for your home or small office. Unlike a traditional webcam, the DCS-930 is a complete system with a built-in CPU and web server that transmits high quality video images and audio for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-930 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.

Wireless-N connectivity

The DCS-930 includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites over the Internet. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. The DCS-930 includes a standard Ethernet port for connections to traditional wired networks.

Easy to configure and operate

This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember the IP address. You may also view up to 32 cameras from a central location using the included D-ViewCam software. D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform users of suspicious or unusual activities.

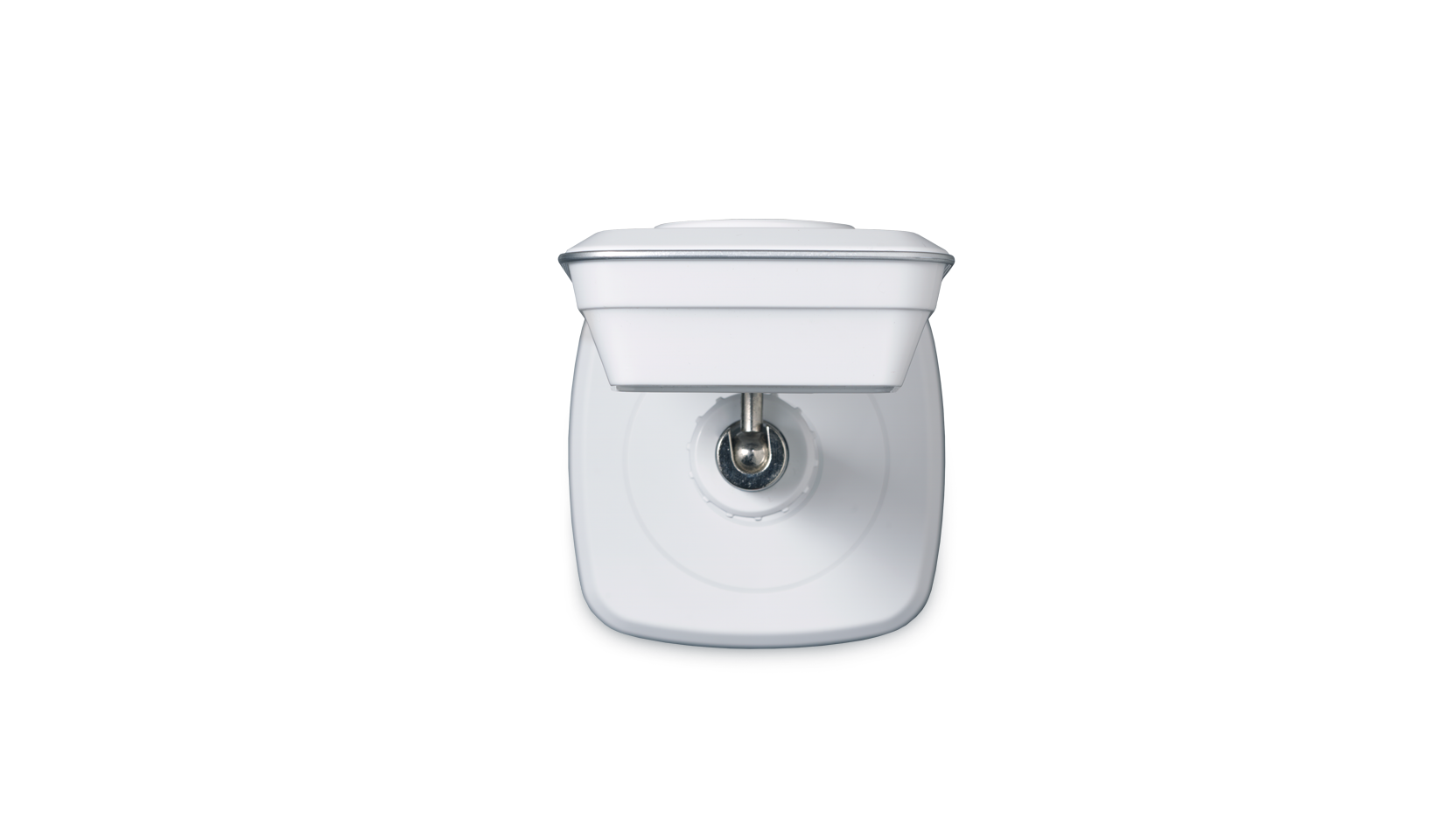

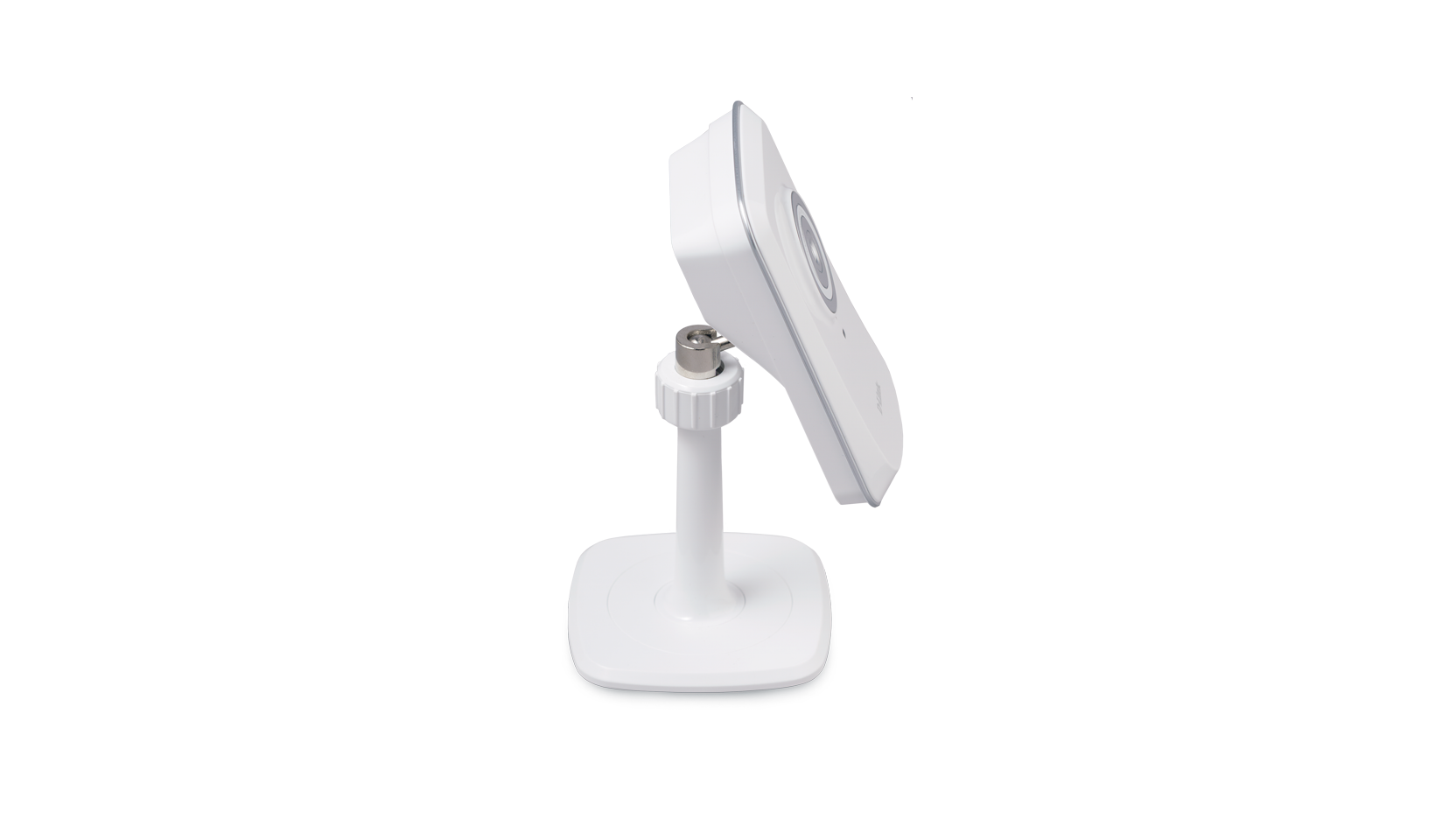

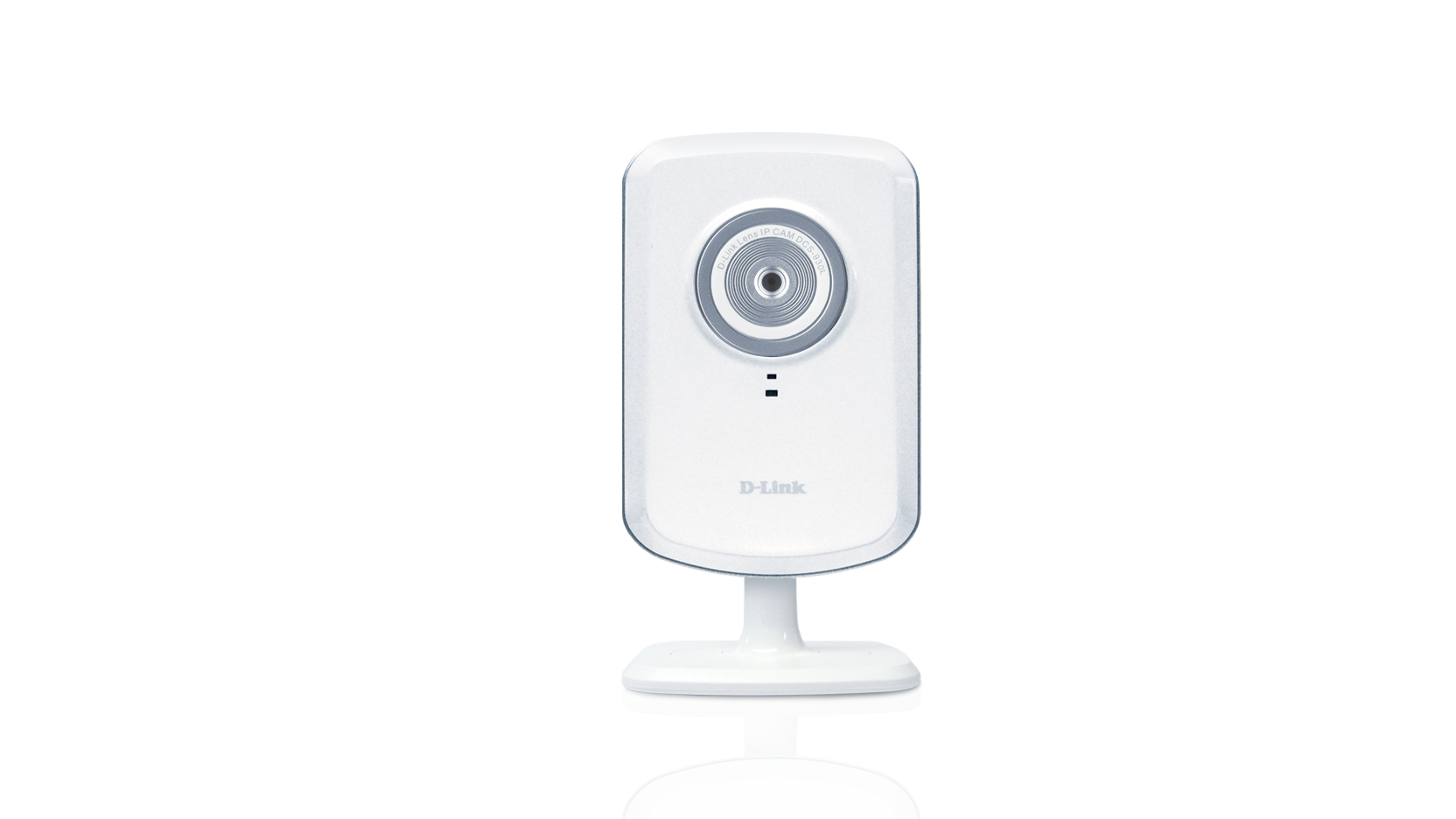

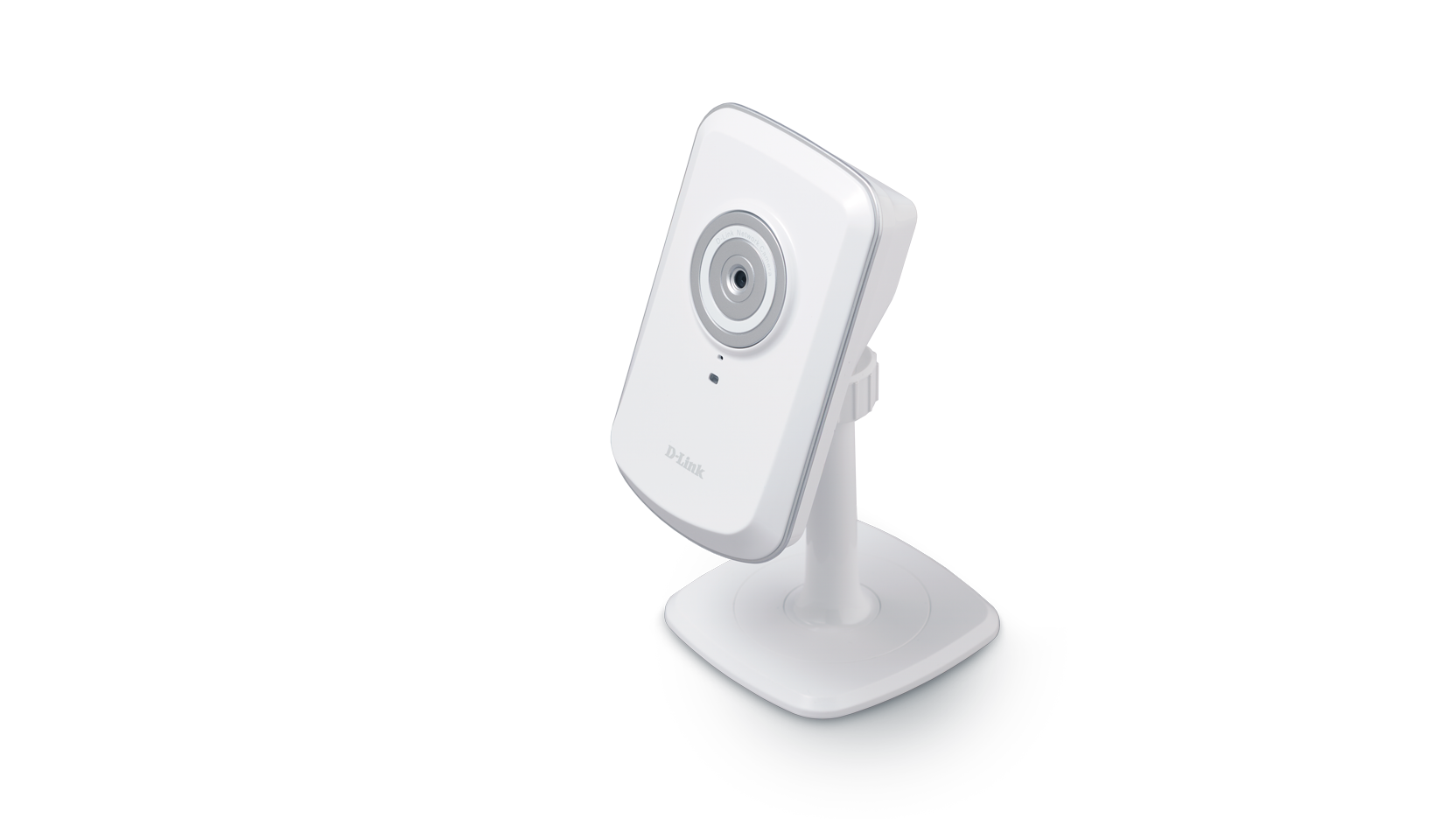

Actual product appearance may differ from the image displayed on this page

Technical Specifications

Camera
  • 1/5 inch color VGA CMOS Sensor
  • Minimum illumination 1 lux @ F2.8
  • Auto Gain Control (AGC)
  • Auto White Balance (AWB)
  • Auto Electronic Shutter (AES)
  • Lens: focal length: 2P, 5.01mm, F2.8
  • 4x digital zoom for close-ups*

Network
  • 10/100Base-TX Ethernet port
  • 802.11b/g/n Wireless LAN with WEP/WPA/WPA2 security
  • Wi-Fi Protected Setup (WPS) for easy wireless encryption setting
  • Dynamic DNS support (Dyndns and D-Link)
  • UPnP™support
  • Web-based configuration

Audio & Video
  • Built-in microphone
  • MJPEG motion image compression
  • JPEG for still image
  • Flip and mirror
  • Time stamp and text overlay
  • Adjustable image size and quality

Monitoring and recording
  • Remote recording using a web browser: no software required
  • Motion triggered video recording and e-mail alerts
  • D-ViewCam surveillance software included
Version Date Type File Size
Datasheet - PDF 0.52mb Stáhnout
Version Description Date Type File Size
User Manual User Manual - PDF 4.81mb Stáhnout
Version Description Date Type File Size
1.00 Quick instillation guide (English) 21. 5. 2010 PDF 0.54mb Stáhnout
Firmware pro produkt D-Link obsahuje software, který podléhá následující všeobecné veřejné licenci GNU (dále jen „GPL“) nebo všeobecné veřejné licenci GNU Lesser (dále jen „LGPL“). Další informace o podmínkách použití a přístup k použitému GPL či LGPL kodu naleznete zde:

http://tsd.dlink.com.tw/GPL.asp

Ve firmwaru tohoto produktu je použití GPL a LGPL kodu BEZ ZÁRUKY a jejich autorské právo náleží jednomu nebo více autorům. Více informací najdete v sekci GPL a LGPL kody pro tento produkt a v GPL a LGPL podmínkách použití.
Version Description Date
Firmware 1.03.4 Firmware 9. 5. 2011 Stáhnout
Version Description Date
Install Wizard 1.01 Install Wizard 19. 4. 2011 Stáhnout
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22. 9. 2016 Stáhnout
DEU_CE_Declaration_RevA Declaration of conformity 29. 9. 2011 Stáhnout
