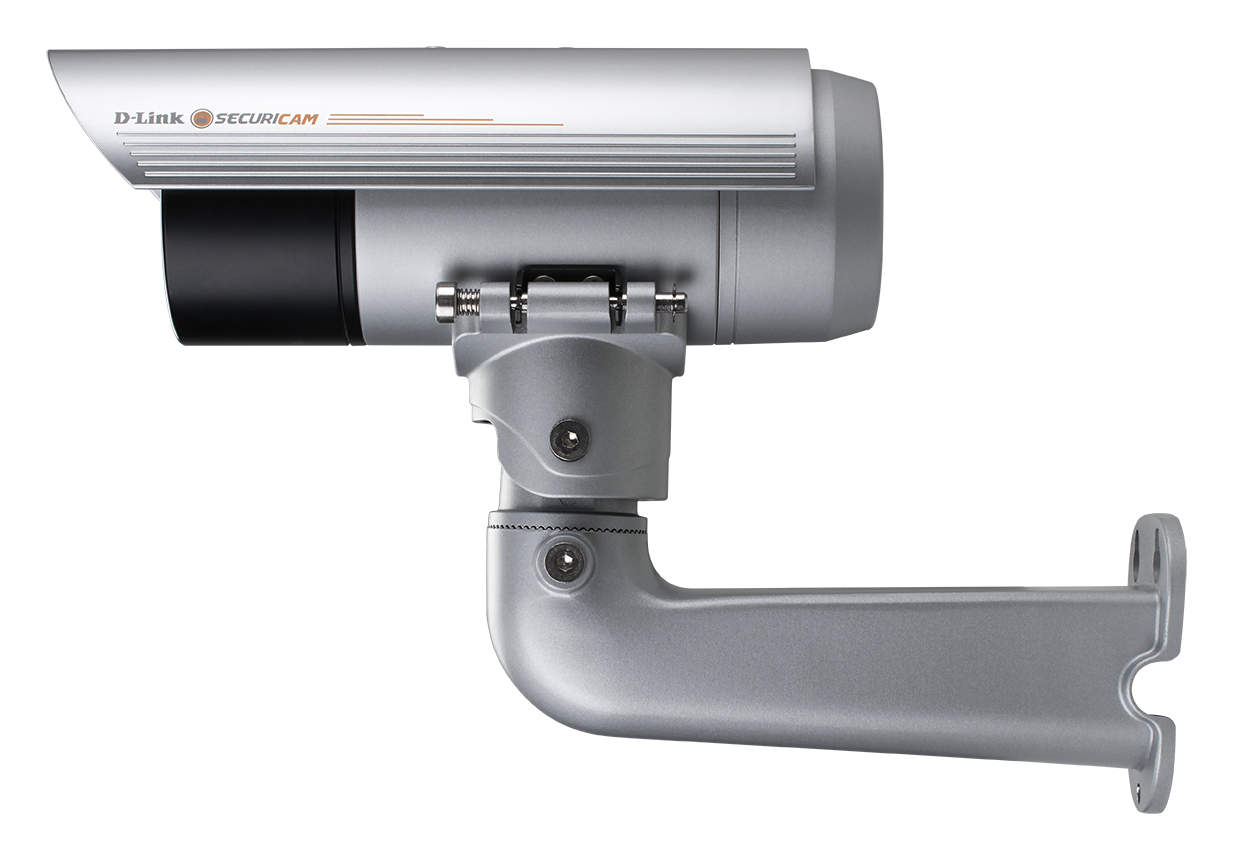

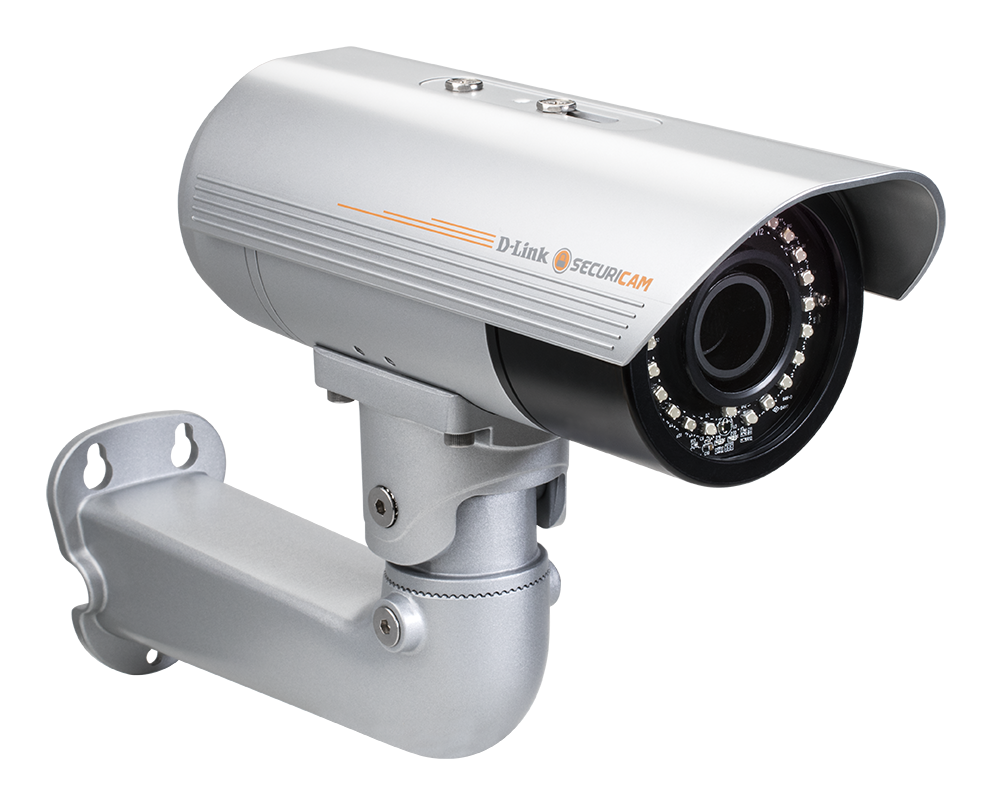

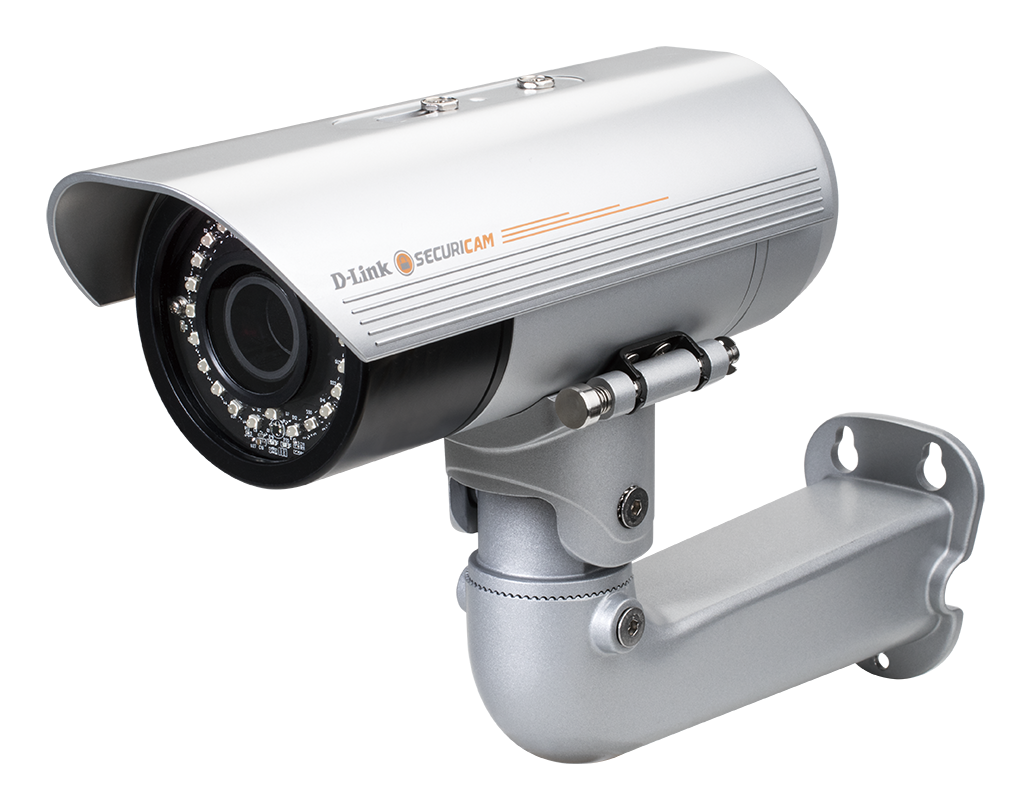

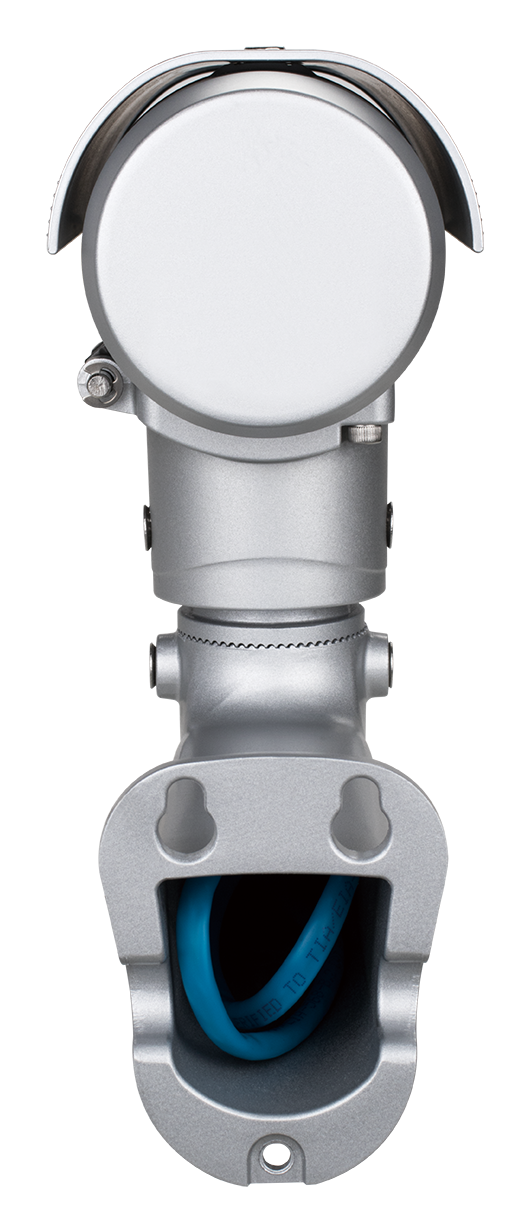

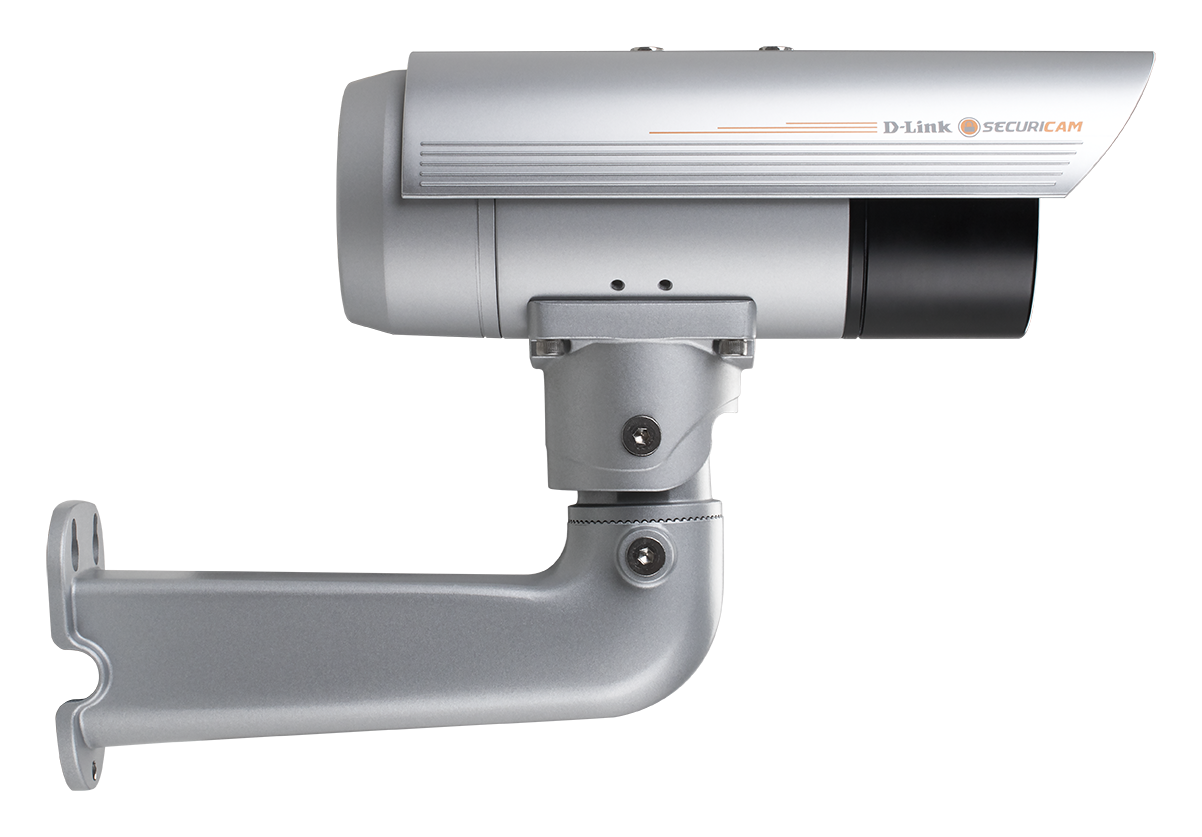

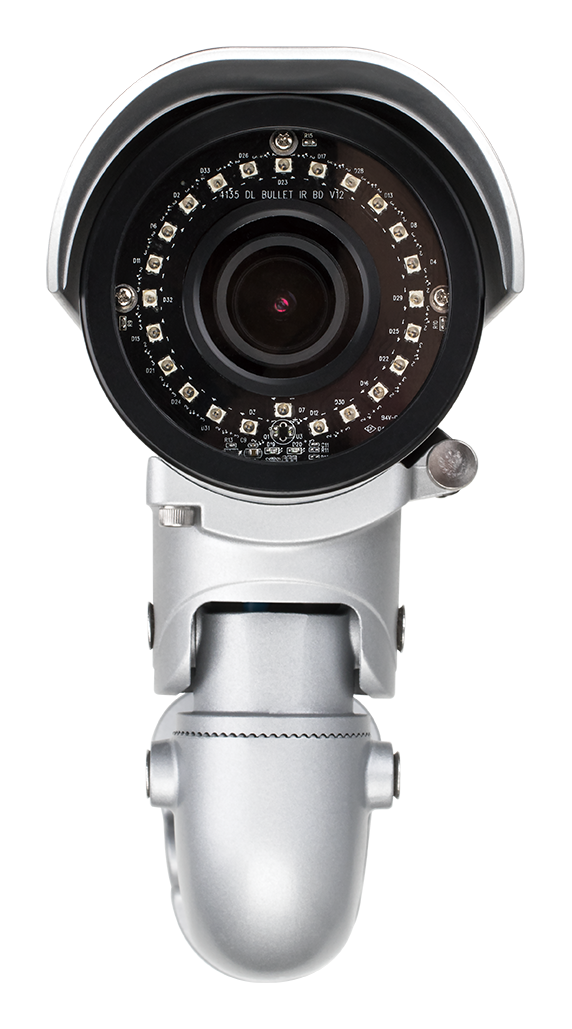

5 Megapixel Varifocal Outdoor Network Camera

DCS-7517

There's a new version of this product:

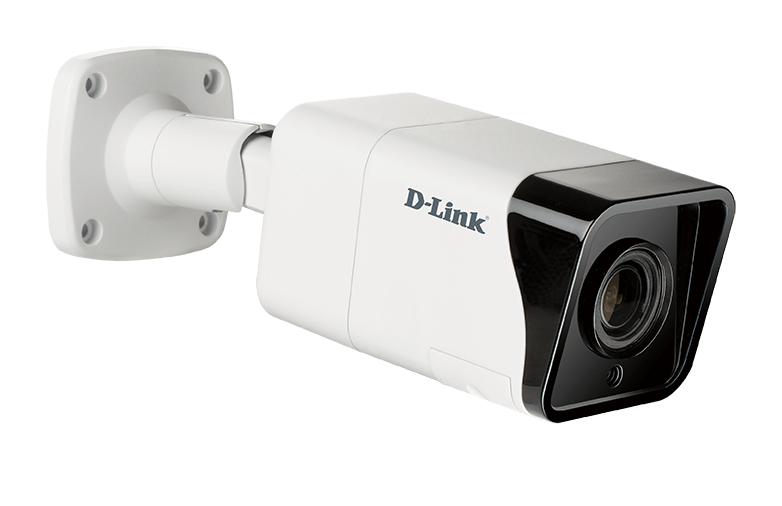

8 Megapixel H.265 Outdoor Bullet Camera

DCS‑4718E

There's a new version of this product:

DCS‑4718E

8 Megapixel H.265 Outdoor Bullet Camera

Informace

Informace

Funkční kabel pro DCS‑6517, DCS‑7513, DCS‑7517

DCS-11

5 Megapixel Varifocal Outdoor Dome Network Camera

DCS-6517

Indoor/outdoor	Indoor Outdoor
Type	Bullet
Connectivity	Wired PoE
Resolution	5 megapixel
Image sensor	1/2.9'' 5 megapixel WDR progressive scan CMOS
Maximum Video Resolution	1920 x 1080 (16:9) 2560 x 1920 (other)
Lens	2.8-12 mm F1.4 Motorised Varifocal
Angle of View (H/V/D)	75° ~ 24° / 55° ~ 18° / 96° ~ 30°
Infrared-Cut Removable Filter	Supported
Night vision	Supported
Night vision range	30 m
Wide Dynamic Range(WDR)	Supported
Optical Zoom	4.2x
Privacy Masks	5 zones
2-way audio	Supported
External Microphone Input	Supported
External Speaker Output	Supported
Digital Input/Output(DI/DO)	1/1
External Card Slot	MicroSD SDHC SDXC (max 128 GB)
Power Consumption	10 W
Features	ONVIF
Video Format	H.264 H.265 MJPEG
Multi-Stream	Supported
Mobile Stream	Supported
Digital Zoom	10x
Motion Detection	Supported
Event Recording	Supported
E-mail Notification	Supported
Recording to NAS	Supported

This product was phased out on: 08/06/2022

This product's last date of support is on: 08/06/2027

Downloads can vary across product revisions. Please select the correct hardware revision.
