Wireless N PoE Outdoor Access Point with PoE Pass-Through
- Product Status: Phased Out
The DAP-3310 is a low cost outdoor Single Band Wireless Access Point with PoE Pass-Through. Ideal for expanding the coverage and signal strength of any wireless network. Built to withstand harsh environments, the DAP-3310 also excels in connecting separate networks that cannot be joined physically using traditional medium.
The DAP-3310 is a Wireless N Outdoor Access Point with PoE Pass-Through ideal for expanding wireless coverage or increasing signal strength of any wireless network. Built to withstand harsh environments, the DAP-3310 excels in connecting separate networks that are not joined by a physical cable.
Simplified outdoor connectivity
Low cost Outdoor Access Point, with high power radio design the DAP-3310 is ideal for providing wireless connectivity between two locations.
Broadcast on 8 SSIDs Simultaneously
Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.

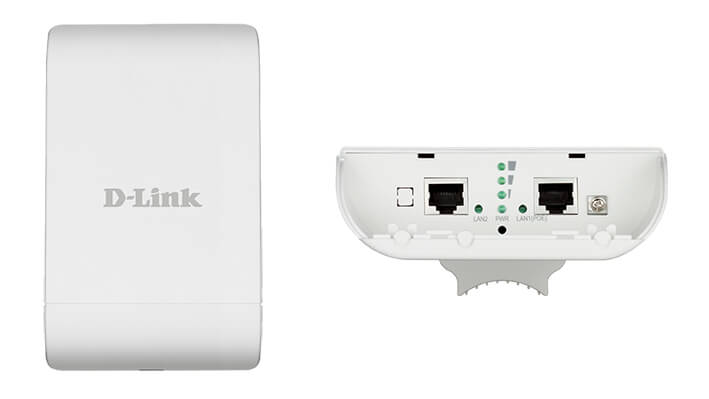

Featuring a clean unobtrusive design, the DAP-3310 can be mounted easily onto any wall or pole. Designed with a PoE pass-through port, the DAP-3310 can also be used to provide power to other devices such as an external camera for added security.
Built to withstand harsh outdoor environments and be waterproof to the IPX6 standard
PoE powered with PoE pass-through to allow for flexible installation, as well as supply additional power and network connectivity to another PoE powered device, such as a network camera
With 7 operational modes including access points, WDS, WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater, the DAP-3310 meets the needs of any situation.
Secure wireless connectivity using WPA/WPA2 data encryption and MAC address filtering wireless access can be controlled
2.4Ghz Single-Band Wireless
With a high power radio design and built-in high gain sector antenna,
the DAP-3310 supports up to 300Mbps throughput for the 2.4Ghz band
For Business-Class Environment
- 2.4 GHz 802.11n Connectivity for Increased Network Capacity
- High Power Radio Design1
- Built-in High Gain Sector Antenna
- Waterproof IPX6 Standard2
High Performance Connectivity
- Wireless 802.11n/g/b, compatible with 802.11b and 802.11g devices
- Up to 300 Mbps3
- Two 10/100 Ethernet ports
Trusted Security Features
- 64/128 bit WEP Encryption
- MAC Address Filter
- Client Isolation
- User Limit
- Proprietary PoE Design
- PoE Pass-through4
- Wall/Pole Mount Included
- 802.11n/g/b wireless
- Reset button

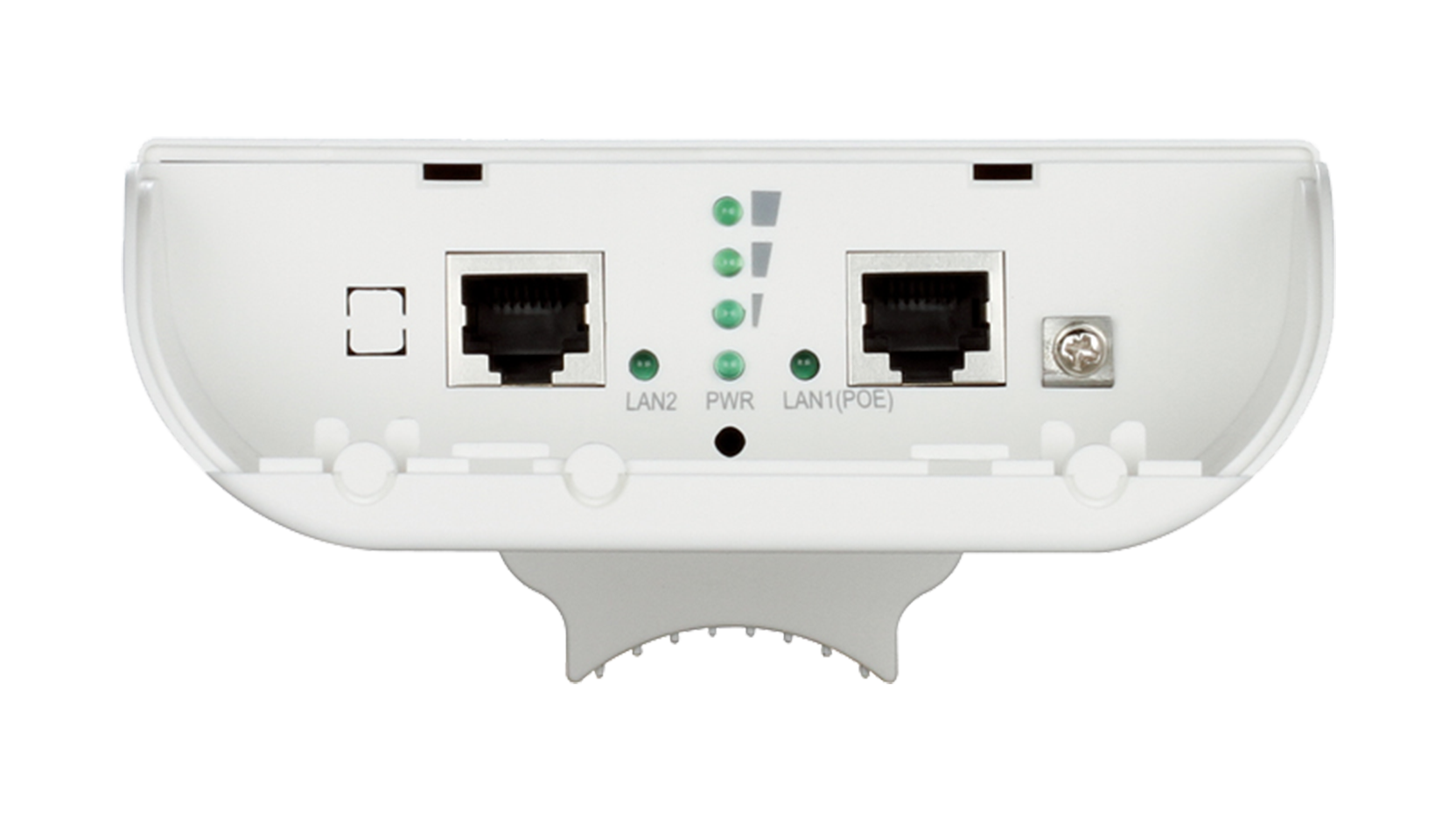

- Two 10/100 Ethernet port (one supports PoE)
- Grounding wire connector6
- Wireless Signal Strength7
- 10 dBi Sector Antenna
- 2.4 GHz
- IEEE 802.11 b/g/n
- IEEE 802.3u
- IEEE 802.3
- WDS with AP5
- Wireless Client
- WISP Repeater
- WISP Client Router
- Web Browser Interface
- HTTP – Secure HTTP (HTTPS)
- SNMP v1, v2c and v3
- WEP 64/128 bit Encryption
- Support for up to 8 SSIDs/VLANs
- 48 x 96 x 165 mm (1.88 x 3.77 x 6.49 inches)
- 350 grams (0.77 lbs)
- Input: 48 V 0.5 A
- Operating: -20 to 60 °C (-4 to 140 °F)
- Storage: -20 to 85 °C (-4 to 185 °F)
- Operating: 0% to 90% non-condensing
- Storage: 5% to 95% non-condensing
- 15 kV
1 Maximum power setting will vary according to individual country regulations.
2 IPX6 standard means the device is protected from low pressure jets of water from all directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weather-proof box when in severe weather environment.
3 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
4 Provides a secondary Ethernet port with POE output for IP camera (up to 7 watt) The supported cameras include D-Link DCS-3716, DCS-6113, and DCS-7110.
5 WDS mode only works with other DAP-3310 access points
6 Grounding wire is not includes in package content and we suggest using 16 -18 AWG grounding wire for normal lightening and electricity current.
7 LED Signal Strength Indication is only supported in Wireless Client, Repeater, WDS and WISP modes.
8 Although compatible with DD-WRT, please be advised that if DD-WRT is used this will void your warranty and D-Link will not accept responsibility or support any products that may adversely be affected as a result of using DD-WRT.
