Wireless N Dual Band PoE Access Point

DAP-2590

  • Product Status: Phased Out

The DAP-2590 is second generation Dual Band Wireless N indoor access point designed specifically for businesses. It’s varied and comprehensive management capabilities ensures that the DAP-2590 meets the needs of almost any business.


Download the datasheet.

Seznam prodejců

Compatibility and performance

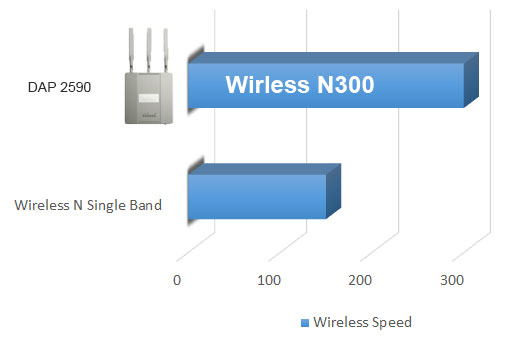

With adjustable antennas, the DAP-2590 delivers 300Mbps per band performance

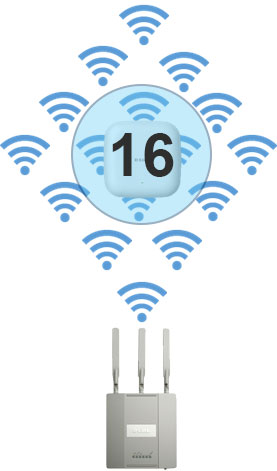

Broadcast 16 independent SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band, including station isolation

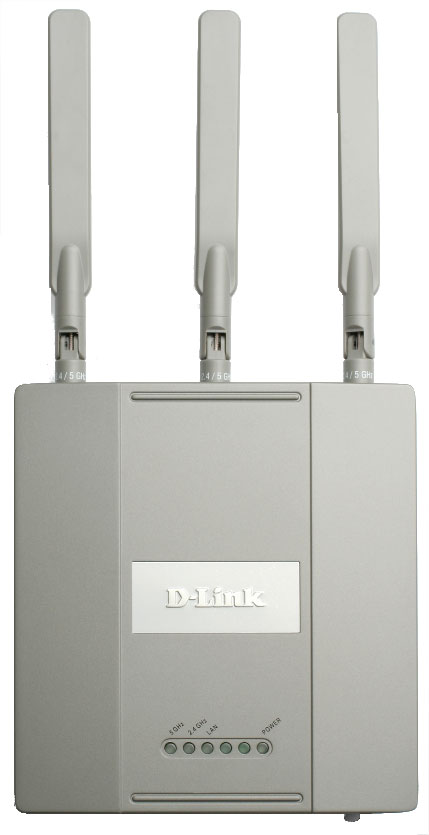

Performance and Compatibility

The DAP-2590 is a second generation Dual-Band Wireless N indoor access point designed specifically for businesses. It’s varied and comprehensive management capabilities ensures that the DAP-2590 meets the needs of almost any business.

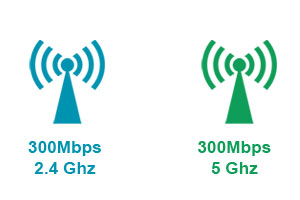

Simultaneous Dual-Band Wireless

Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

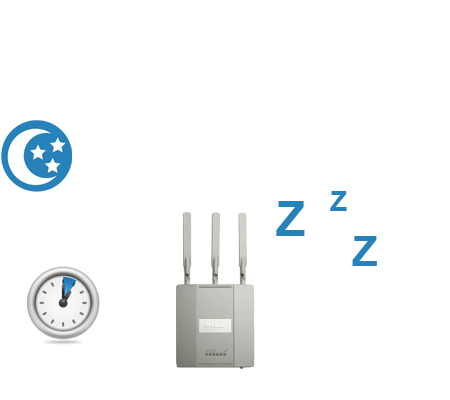

Smart Design

The DAP-2590 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Related Products

Web Smart 24-Port PoE 10/100 + (4) 1000BASE-T Ports + 2 Combo Ports Switch
DES-1228P
Zjistěte více
24-Port xStack Gigabit L2+ Stackable Managed PoE Switch
DGS-3426P
Zjistěte více

Technical Specifications

Standards
  • IEEE Draft 2.0 802.11n
  • IEEE 802.11a
  • IEEE 802.11g
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3u
  • IEEE 802.3

Network Management
  • Command Line Interface: Telnet / Secure (SSH) Telnet
  • Web Browser interface: HTTP / Secure HTTP (HTTPS)
  • SNMP Support: D-View Module / Private MIB
  • AP Manager II

Security
  • WPA™-Personal
  • WPA™-Enterprise
  • WPA2™-Personal
  • WPA2™-Enterprise
  • 64/128-bit WEP
  • SSID Broadcast Disable
  • MAC Address Access Control

Wireless Frequency Range
  • 2.4GHz (2.4GHz to 2.4835GHz)
  • 5GHz (5.15GHz to 5.35GHz, 5.47GHz to 5.85GHz)

Operating Modes
  • Access Point (AP)
  • WDS with AP
  • WDS/Bridge (No AP Broadcast)
  • Wireless Client

LEDs
  • Power
  • 5GHz
  • LAN
  • 2.4GHz

Operating Voltage
  • 48VDC +/- 10% for PoE or 5V2.5A

Temperature
  • Operating: 32°F to 104°F (0°C to 40°C)
  • Storing: -4°F to 149°F (-20°C to 65°C)

Humidity
  • Operating: 10% ~ 90% (Non-condensing)
  • Storing: 5% ~ 95% (Non-condensing)

Certifications
  • FCC
  • CE
  • C-Tick
  • IC
  • UL
  • Wi-Fi®

Weight
  • 762g

Dimensions (WxHxD)
  • 6.5” x 1.38” x 7.38”
