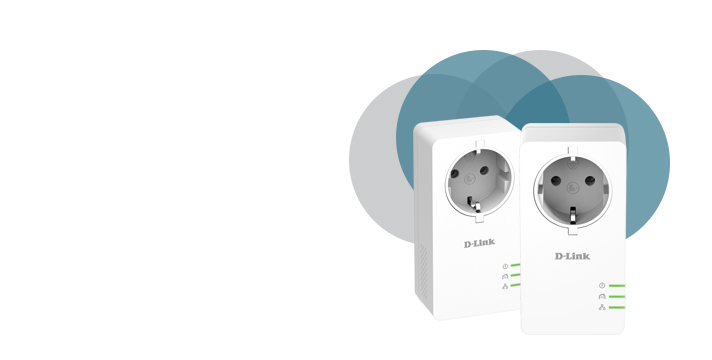

PowerLine AV2 1000 HD Gigabit Passthrough Kit
- Product Status: Live
D-Link’s DHP-601AV PowerLine AV2 1000 Gigabit Starter kit makes it easy to create a high-speed HomePlug network at speeds of up to 1000Mbps1. The kit includes two DHP-600AV PowerLine AV2 1000 Gigabit Adapters – simply plug them in to available power outlets and press the Simple Connect button to create a secure connection.
PowerLine AV2 1000 Gigabit Starter Kit
D-Link’s DHP-P601AV PowerLine AV2 1000 Gigabit Starter kit makes it easy to create a high-speed network at speeds of up to 1000Mbps1. The Kit comes with two DHP-P600AV PowerLine AV2 1000 HD Gigabit Passthrough Adapters – Simply plug one adapter into your existing router to turn any power outlet in your home into an Internet connection and then plug the other adapter into the room you want to extend your connection to.
Noise Filtering Passthrough Socket
These PowerLine adapters also feature an extra passthrough power socket to ensure that your electrical outlet remains available for use by another electrical device while the PowerLine adapter is plugged into the socket. The Passthrough socket features noise filtering which helps prevent signal noise from an electrical device plugged into the socket from affecting your PowerLine connection.
|Plug-and-Play feature means creating a PowerLine network is simple and easy||Speeds up to 1000 Mbps1 using HomePlug AV2 technology make it ideal for downloading HD media||Gigabit Ethernet port for high-speed connection to wired device|
Advanced HomePlug AV2 Technology
The D-Link PowerLine AV2 1000 HD Gigabit Passthrough Kit (DHP-P601AV) delivers the ultimate in wired connectivity for the hard-to-reach areas of your home. Utilising your home’s existing electrical wiring as a reliable high-speed network, the DHP-P601AV makes it easy to connect computers, gaming consoles and media players to your network without additional cables. The DHP-P601AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.

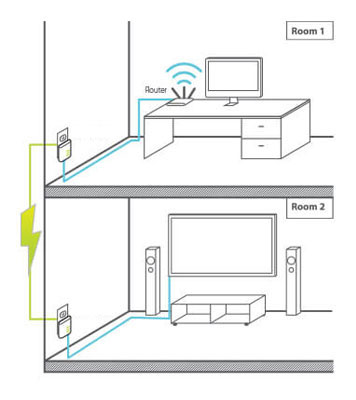

How does it work?
PowerLine gives you the flexibility to create the network you need in the space you have, by using your electric wiring to connect computers and other devices. It’s a simple solution to what can be a sticky networking situation.
Plug into power sockets
Connect your wired device
Enjoy your high speed HomePlug network
Hassle-free plug and play installation
Plugs directly into a power socket with no additional cables required.
This adapter implements 128-bit AES data encryption at the push of a button to protect your network from any intruders.
Power saving mode
Automatically places the adapter in sleep mode if no data transmission or reception occurs over a certain period of time, reducing power usage by more than 85%.
- Power plug (country-dependent)
- RJ-45 Gigabit Ethernet LAN port
- IEEE 802.3
- IEEE 802.3u
- IEEE 1901
- HomePlug AV2
- 128-bit AES data encryption
Powerline Modulation Scheme
- OFDM Symbol Modulation
Powerline Frequency Band
- 2 MHz to 86 MHz
- Ethernet: 10/100/1000 Mbps (auto negotiation)
- PowerLine: Up to 1000 Mbps (PHY rate)
- 113.49 x 58.48 x 37.8 mm ( 4.47 x 2.30 x 1.49 inches) each adapter
- 195 grams (0.42 lbs) each adapter
- Input: 100 to 240 V AC, 50/60 Hz
- 3.7 W maximum (each adapter)
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -20 to 65 °C (-4 to 149 °F)
- Operating: 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
