PowerLine AV Pass-through Adapter Kit

DHP-P307AV

  • Product Status: Phased Out

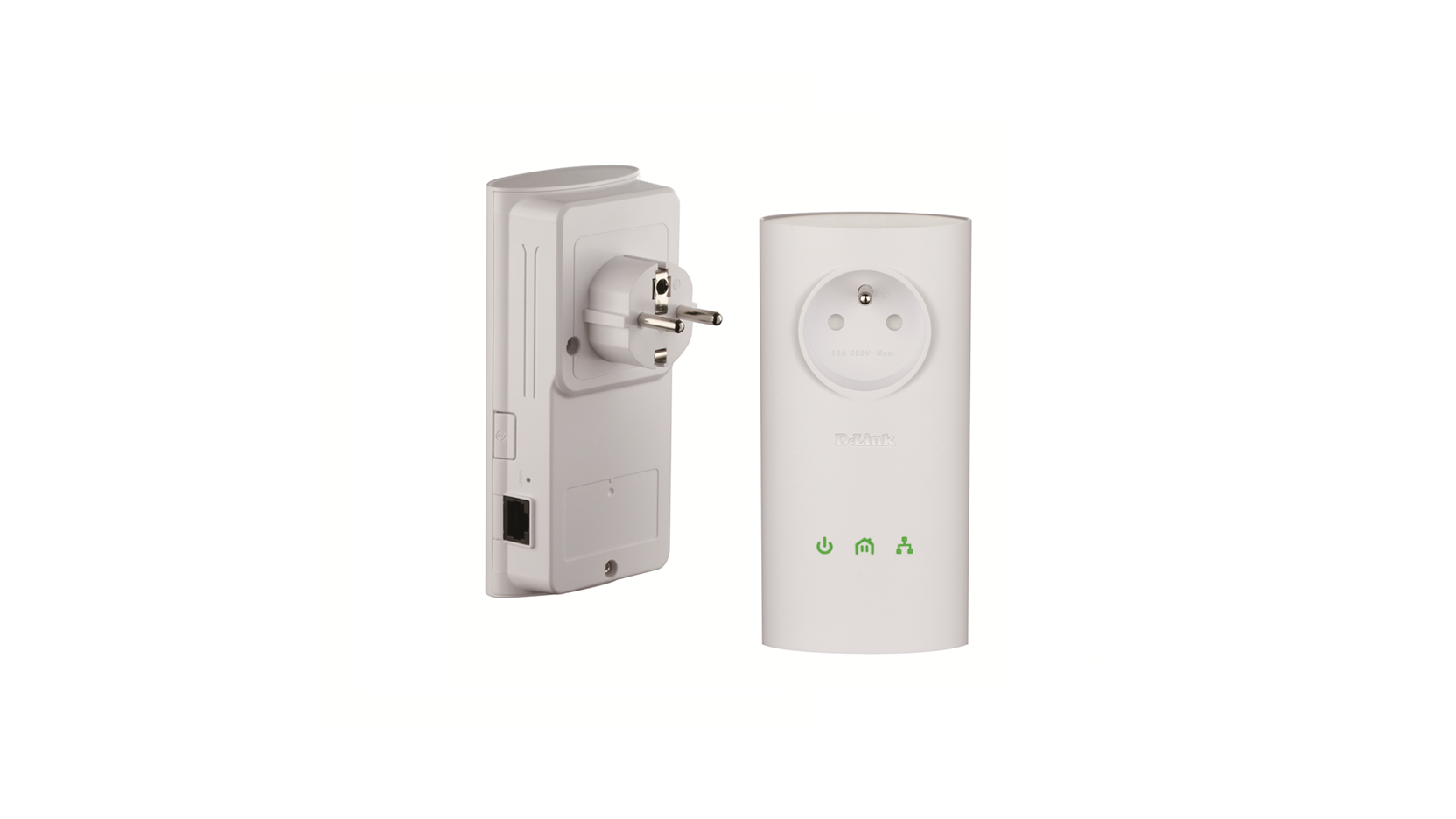

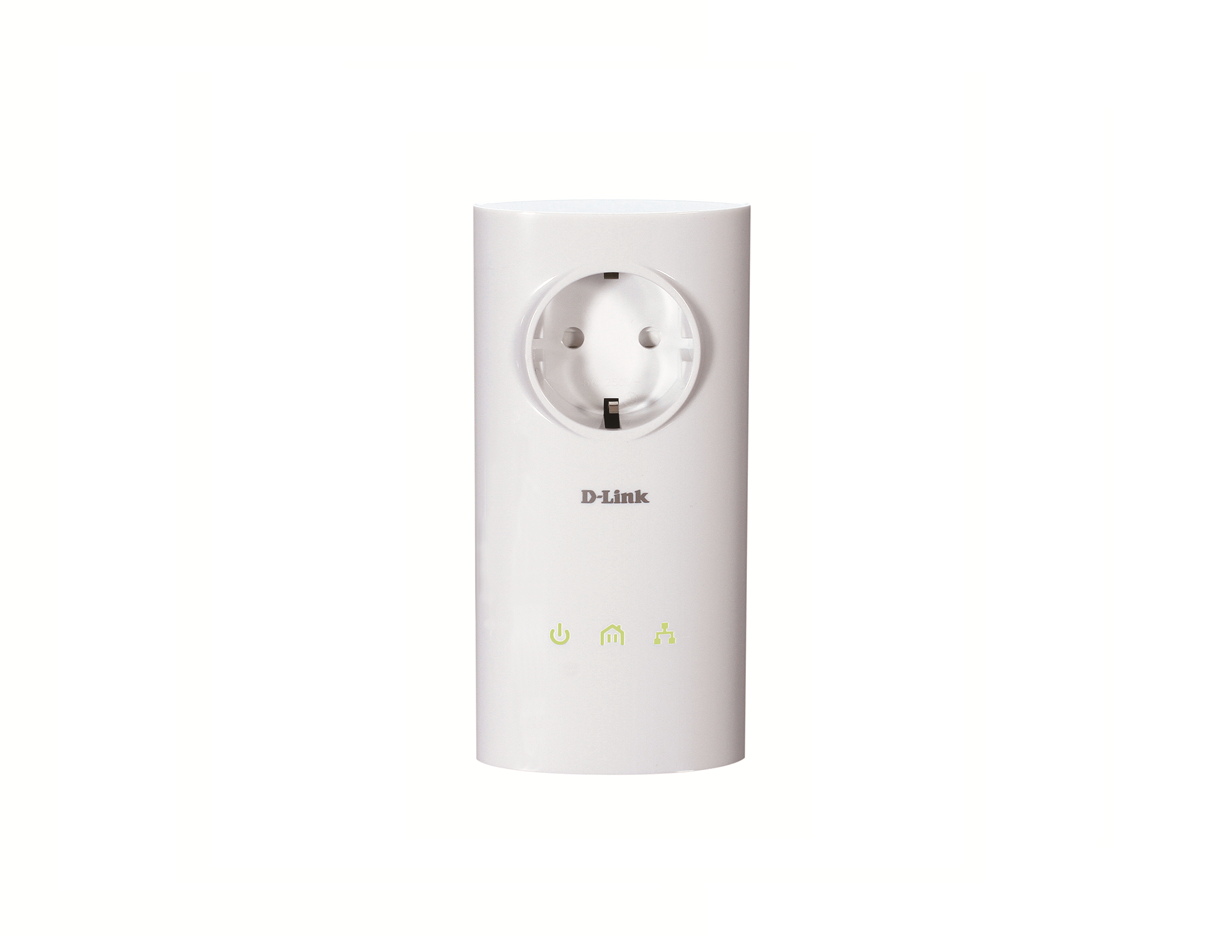

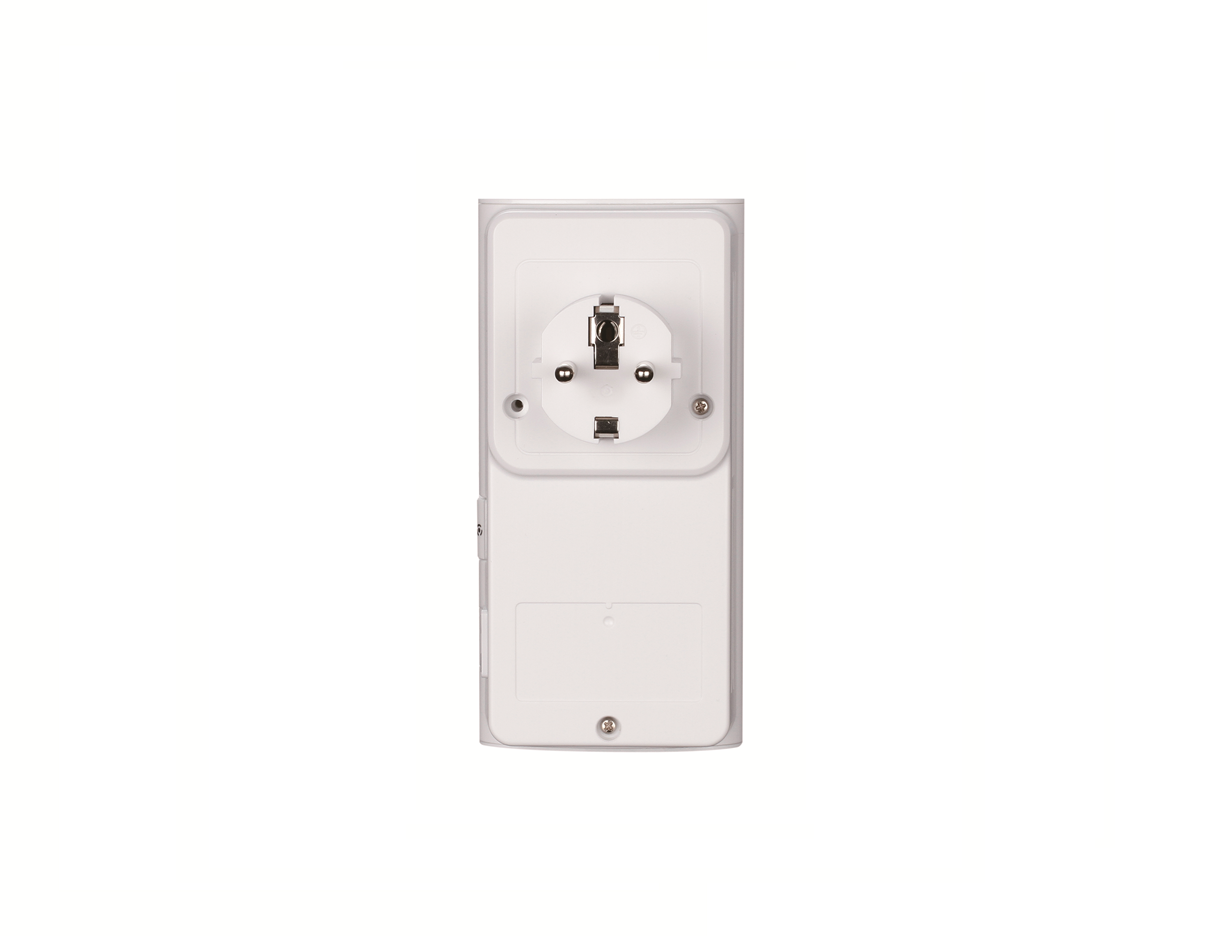

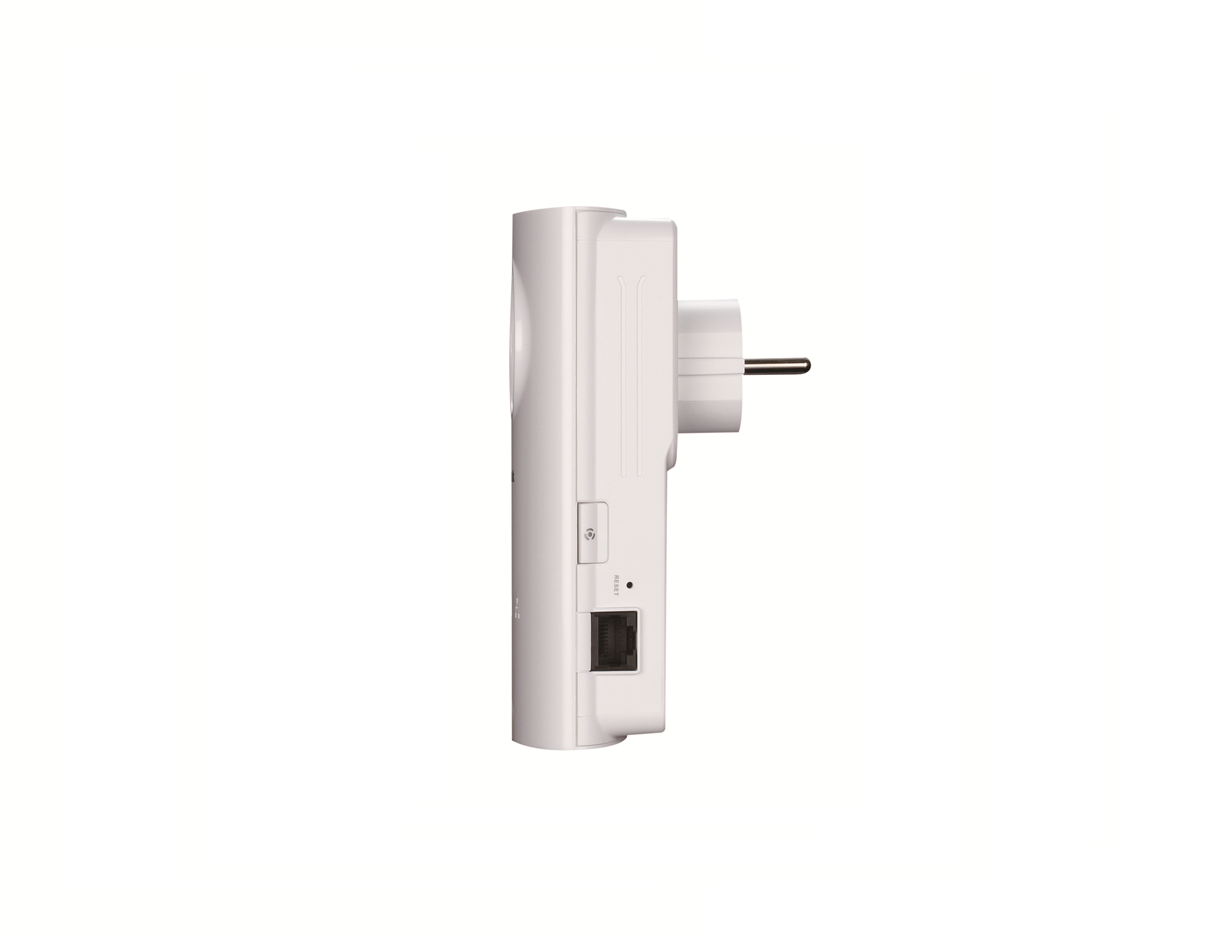

The D-Link DHP-P307AV kit consists of two PowerLine Homeplug AV passthrough adapters used to distribute Ethernet over standard AC wiring within the home. Each adapter has an electrical socket built in, so you don’t need to worry about running out of sockets!

List Retailers

The D-Link DHP-P307AV kit consists of two PowerLine Homeplug AV passthrough adapters used to distribute Ethernet over standard AC wiring within the home. Each adapter has an electrical socket built in, so you don’t need to worry about running out of sockets!


Use existing wiring to create a home network

By simply plugging one PowerLine adapter into an existing electrical socket, you can turn every power outlet into a potential network connection, making the DHP-P307AV an ideal solution for sharing a high-speed Internet connection or for connecting computers, HD media players, game consoles and Network Attached Storage to your home network. It is also ideal for homes or small offices where concrete walls, successive floors in multi-storied buildings, or other architectural impediments could inhibit a wireless signal1.


200 Mbps transmission with Quality of Service (QoS)

Delivering data transfer rates of up to 200 Mbps2, D-Link’s PowerLine Homeplug AV provides ample bandwidth for demanding digital home requirements, such as watching Internet TV or streaming digital music in any room. Advanced technology built into these adapters makes them more resistant to electrical interference from other household appliances, so users can fully benefit from the maximum transmission speeds. In addition to maximum throughput, D-Link’s PowerLine Homeplug AV includes a built-in Quality of Service (QoS) engine that prioritises data packets in order to enhance HD video and audio streaming, online gaming and VoIP calling.


Conveniently connect

You can attach a switch or wireless Access Point (AP) to a D-Link PowerLine Homeplug AV Passthrough Adapter, allowing you to connect multiple devices in the farthest corners of your home. Furthermore, D-Link’s Powerline Homeplug AV implements 128-bit AES encryption for securing your connection and keeping your data safe from intruders. You can set this up easily via the button on the side of the adapter.


Compatibility

Based on the industry-leading Atheros Homeplug AV technology, the adapters are compatible with other brands’ devices based on the same Homeplug AV standard, such as D-Link’s DHP-306AV/307AV. However, they will not work with devices based on other standards, such as D-Link’s DHP-303/343. But they will co-exist with them, so you don’t need to worry about getting rid of your existing adapters.


D-Link Green™

The kit is part of D-Link Green, D-Link’s program for providing eco-friendly alternatives without compromising performance: if data transmission or reception does not occur over a certain period of time, the adapters will automatically go into sleep mode to save power.  This requires less than 1W, making the adapters among the first in their category to comply with the European Union guideline on Energy using Products (EuP), applicable since 7th January 2010.


1 Power outlets and electrical wiring must all be part of the same electrical system. Additional PowerLine Homeplug AV Ethernet adapters are required to add new devices to the network.
2 Maximum throughput based on theoretical data rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic and network overhead may lower actual throughput rate.

Technical Specifications

STANDARDS
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV
POWERLINE INTERFACE
  • Power plug (country-dependent)
ETHERNET INTERFACE
  • 10/100BASE-TX Ethernet Port with Auto
MDI/ MDIX
  • RJ-45 Connector
POWER SOCKET INTERFACE
  • Type F Electrical Outlet, 250 V/16 A
  • Maximum
POWERLINE MODULATION SCHEME
  • OFDM Symbol Modulation
POWERLINE FREQUENCY BAND
  • 2 MHz to 30 MHz
DATA RATE
  • Powerline: 200 Mbps (PHY rate)
  • Ethernet: 10/100 Mbps (autonegotiation)
QoS
  • Integrated QoS prioritizes media and data
SECURITY
  • 128-bit AES Data Encryption
MINIMUM SYSTEM REQUIREMENTS (For PC Utility Software )
  • PC with 200 MHz processor
  • 64 MB memory
  • Windows 7, Vista, XP SP2 or 2000 SP4
  • Ethernet interface (100 Mbps)
LEDs
  • Power
  • Powerline
  • Ethernet
POWER INPUT
  • 100 to 240 V AC, 50/60 Hz
POWER Saving
  • Power saving mode supported
  • Compliant with European Energy Using
  • Product Directive
DIMENSIONS (L x W x H)
  • 140 x 69 x 42 mm
WEIGHT

  • 190 g
OPERATING TEMPERATURE
  • 0º to 40º C (30º to 104º F)
OPERATING HUMIDITY
  • 10% to 95% non-condensing
EMC CERTIFICATION
  • CE EMC Class B
SAFETY CERTIFICATION
  • CE LVD

FAQ

  • Why is my powerline ethernet adapter slower than advertised? Read Answer
