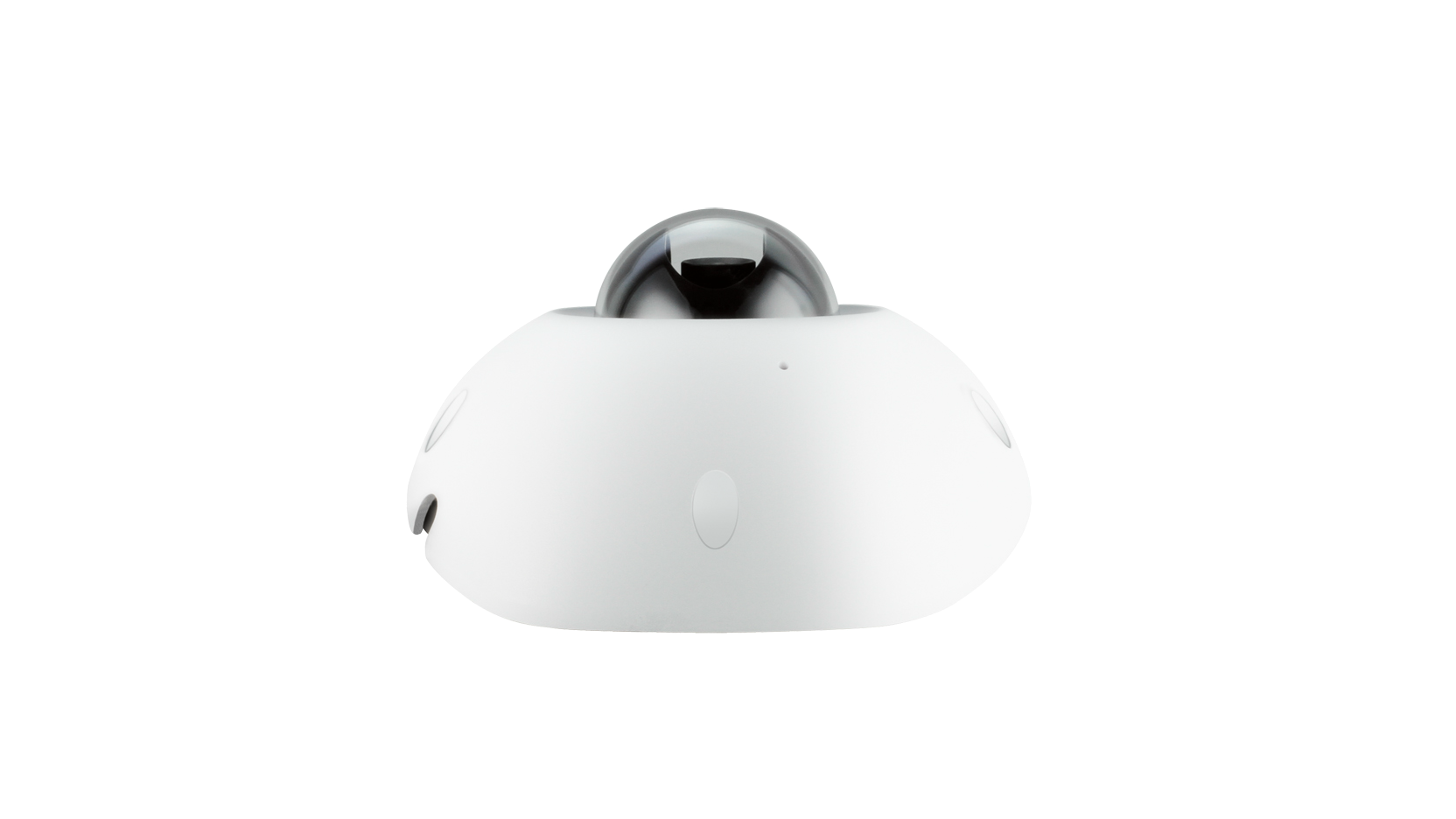

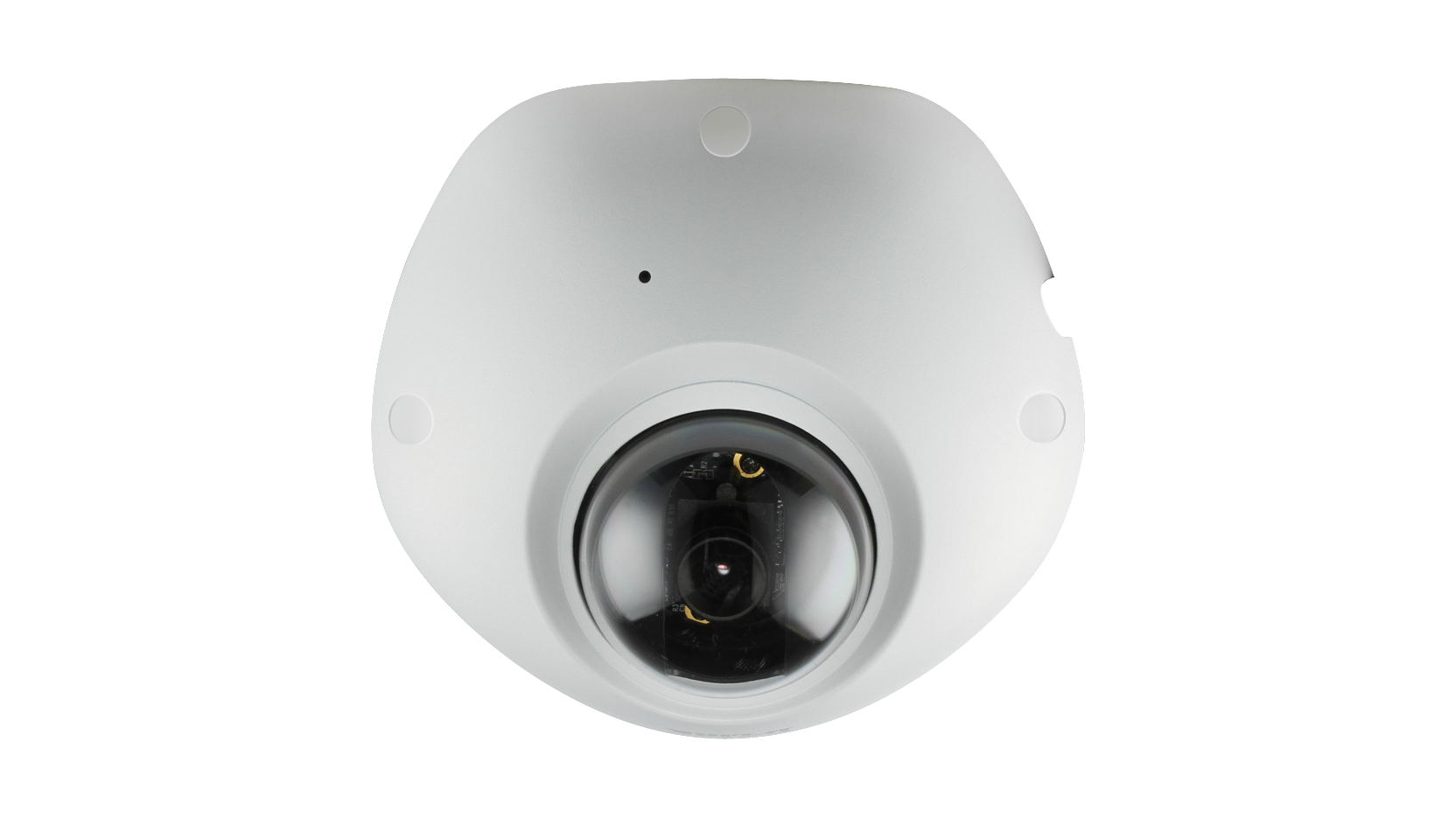

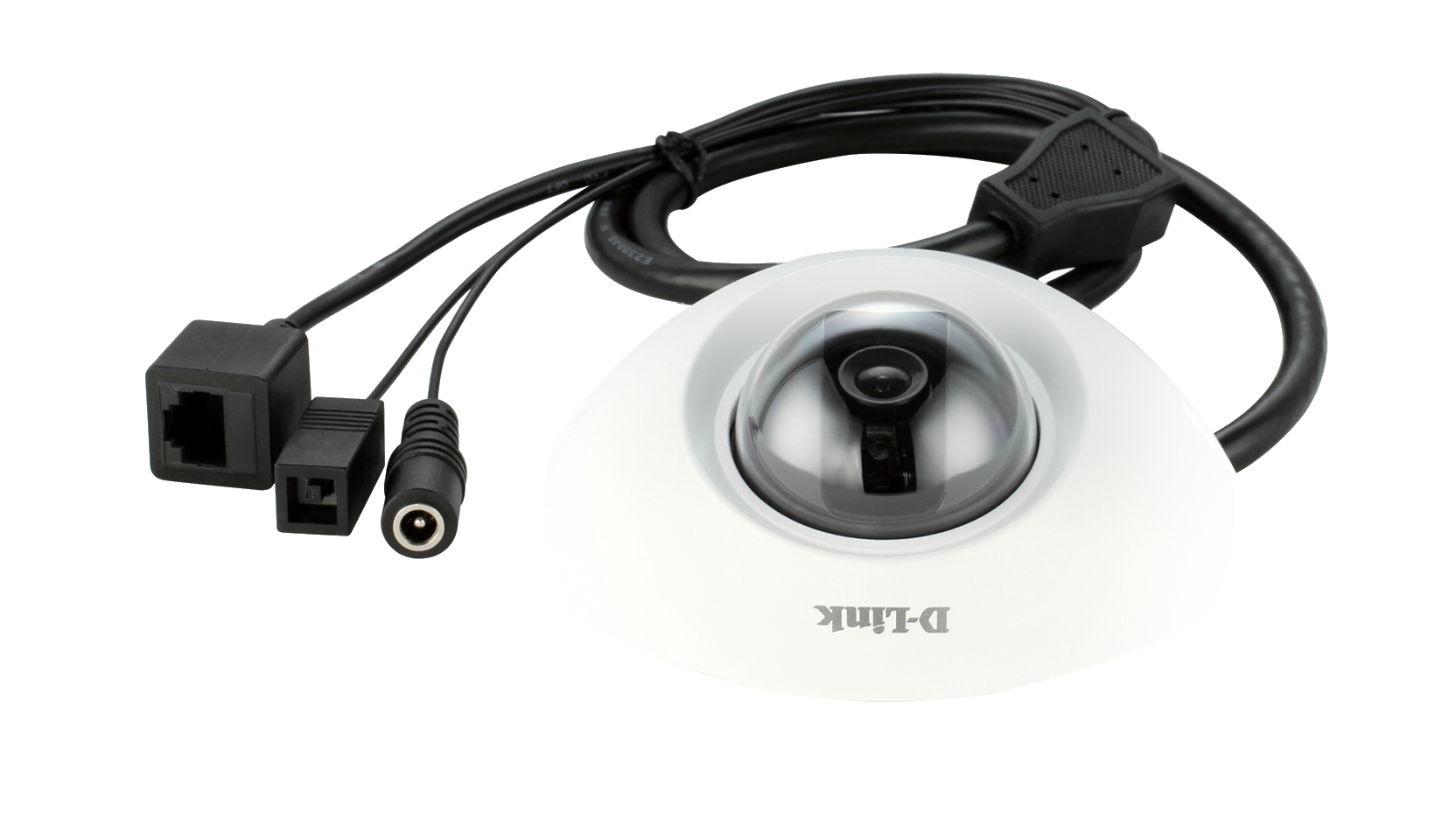

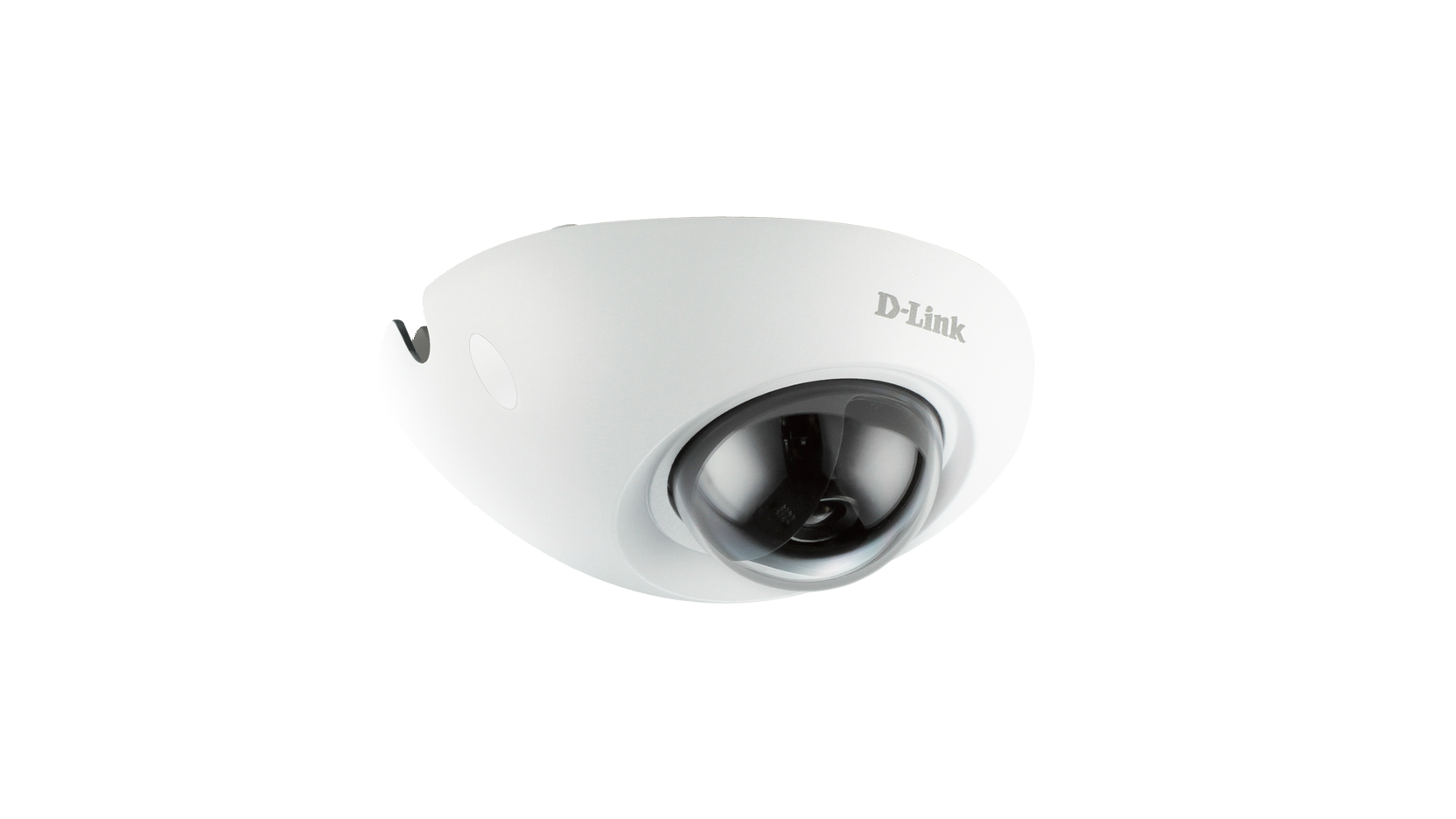

Outdoor Full HD Vandal-Resistant Mini Fixed Dome Network Camera

DCS-6210

  • състоянието на продукта (Revision A): End of Life

The DCS-6210 Full HD Vandal-Resistant Mini Fixed Smoked Dome Network Camera  is an industry rated vandal proof and weatherproof camera suited for deployment in a wide range of difficult locations.

Built for Tough Environments

The DCS-6210 has a toughened metal, industry-certified IK-10 (vandal-proof) and IP-68 (weather-proof) housing, specially designed for use in harsh environments. Specifically built to withstand sudden high impact and adverse weather conditions.

Flexible Installation

The DCS-6210 carries a Power over Ethernet (PoE) port which allows you to connect the camera to your network and power it through a single cable. This both, expands and simplifies your options by doing away with the need for a nearby power outlet, making installation on ceilings much easier.

Surveillance in Full High Definition

The DCS-6210 is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 1080P HD. This gives you sharp, high-resolution pictures and videos with rich detail.
Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.

A Complete, Expandable Surveillance Solution

The DCS-6210 is a self-sufficient surveillance solution, capable of recording snapshots and video to a MicroSD card without requiring a PC or network storage device.

If you want to expand your surveillance options, D-ViewCam™ management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

Built for Versatility

The DCS-6210 comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. It’s 3 axis lens mounting allows you to position it perfectly, while its motion detection capabilities allow it to automatically record video and send you a notification when motion is detected.

Backlight Compensation

Allows every detail to be captured accurately even if one portion is bright while other portions are dark to deliver high quality images.

3-Axis Mechanism

DCS-6210 supports 3 axis mechanism for horizontal, vertical and rotate adjustment to achieve the view you want.

Optional EN50155 Railway Application Compliance1

DCS-6210 is also EN50155 certified making it ideal for deployments on trains. It complies with the stringent requirements of EN50155 including temperature, humidity, shock, vibrations, electromagnetic as well as the mandatory M12 connectors for Ethernet connection with PoE support.

Технически характеристики

Indoor/outdoor
Outdoor
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.7" 2 megapixel progressive scan CMOS
Maximum Video Resolution
1440 x 1080 (other)

1920 x 1080 (16:9)
Lens
4.3 mm

F2.0

Fixed
Privacy Masks
3 zones
Vandal Proof
Supported
Built-in Microphone
Supported
External Card Slot
MicroSD SDHC (max 32 GB)
Features
ONVIF
Video Format
H.264

MJPEG

MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
Този продукт ще бъде прекратен на: 12/05/2018
Последната дата на поддръжка на този продукт е: 11/05/2020
Версия Дата Тип Размер на файла
Datasheet - PDF 1.79mb Свали
IP Surveillance Product Guide - PDF 3.58mb Свали
Версия Описание Дата Тип Размер на файла
Manual (English) Manual (English) 8.11.2012 г. PDF 9.12mb Свали
Версия Описание Дата Тип Размер на файла
1.00 Quick Installation Guide 11.1.2013 г. PDF 4.91mb Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
1.05.00 Release notes included 27.10.2015 г. - Свали
Firmware Release notes included 1.03.01

Firmware
Release notes included

9.1.2015 г. - Свали
Firmware 1.01.01

Firmware

3.6.2013 г. - Свали
Firmware 1.00.06 Firmware 21.2.2013 г. - Свали
Версия Описание Дата
Device Pack 1.5.4

Device Pack

18.2.2014 г. Свали
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.2.2014 г. Свали
Версия Описание Дата
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.9.2016 г. Свали
DEU_IP_Surveillance_Cheat_Sheet - 6.6.2014 г. Свали
Declaration of conformity Declaration of conformity 19.11.2012 г. Свали
