Full HD PoE Day/Night Network Camera

DCS-2210

  • състоянието на продукта: End of Life

The DCS-2210 is a versatile surveillance solution that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2210 also includes a built-in IR cut filter, making it suitable for both day and night applications. Additionally, the DCS-2210 is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet network. The DCS-2210 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.

ePTZ For Surveying Regions Of Interest

The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera’s 2 mexapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures.

Easy To Configure And Operate

This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember your IP address. You may also view up to 32 cameras from a central location using the included D-ViewCam software. D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform administrators of suspicious or unusual activities.

Open Network Video Interface Forum (ONVIF) compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. DCS-2210 is ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.


Centralised management with D-ViewCam™

The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

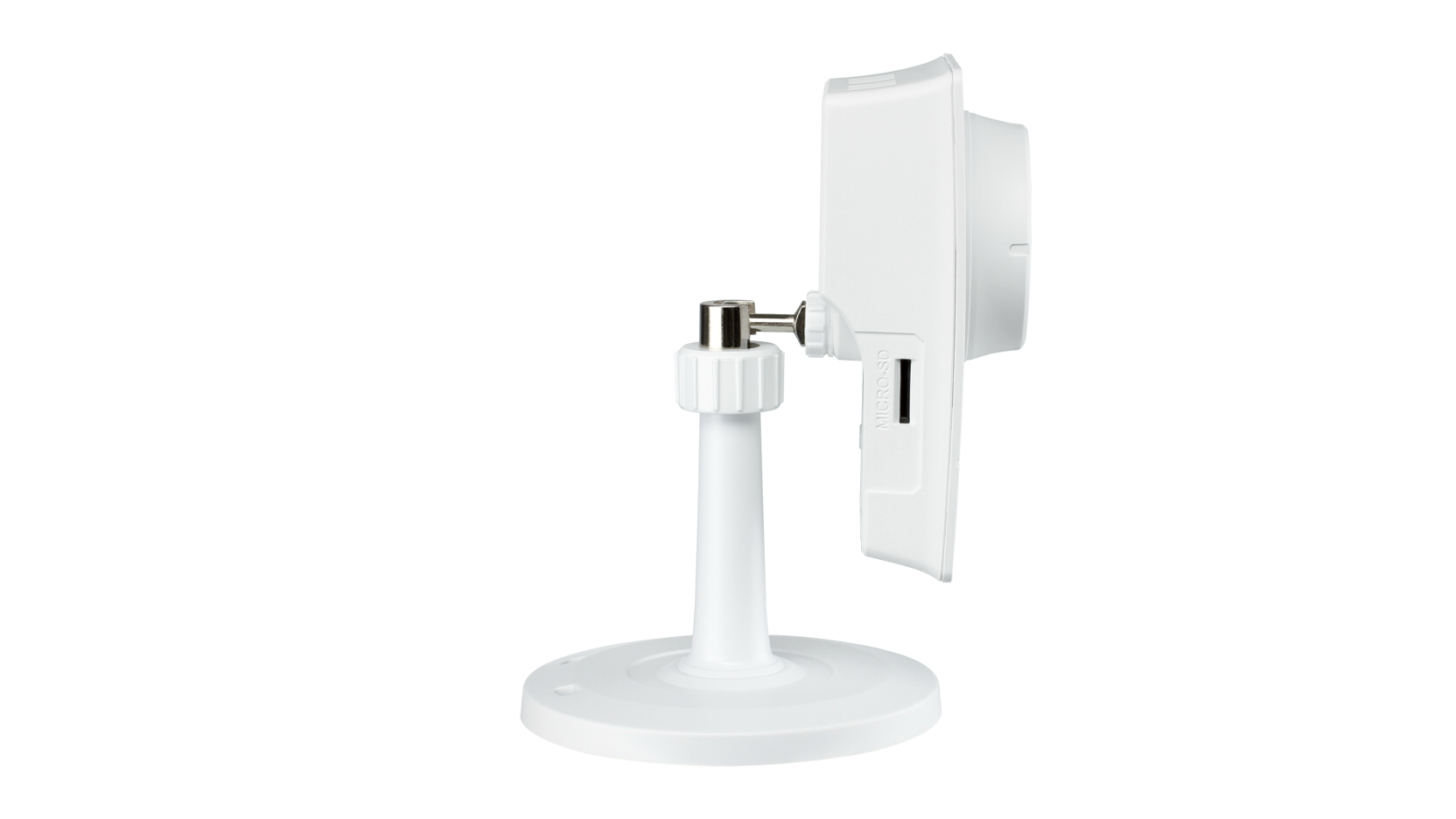

Actual product appearance may differ from the image displayed on this page

Технически характеристики

Indoor/outdoor
Indoor
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.7" 2 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 800 (other)

1920 x 1080 (16:9)
Lens
4.37 mm

F2.0

Fixed
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
5 m
PIR(Passive Infrared)sensor
Supported
Privacy Masks
3 zones
2-way audio
Supported
Built-in Microphone
Supported
Built-in Speaker
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC (max 32 GB)
Features
ONVIF
Video Format
H.264

MJPEG

MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
Този продукт ще бъде прекратен на: 26/09/2017
Последната дата на поддръжка на този продукт е: 26/09/2019
Версия Дата Тип Размер на файла
Datasheet (English) - PDF 0.27mb Свали
IP Surveillance Guide - PDF 3.58mb Свали
Версия Описание Дата Тип Размер на файла
Manual D-view Cam v3.30(English) Manual D-view Cam v3.30 (English) - PDF 13.79mb Свали
Manual v1.0 (English) Manual v1.0 (English) - PDF 5.07mb Свали
Версия Описание Дата Тип Размер на файла
1.00 Quick Installation Guide - PDF 1.13mb Свали
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Версия Описание Дата Тип
1.25.01 Firmware 20.10.2016 г. - Свали
1.24.00 Firmware 19.10.2015 г. - Свали
1.23.02 Release notes included 11.9.2015 г. - Свали
Firmware Release notes included 1.22.00 Firmware
Release notes included
7.1.2015 г. - Свали
Версия Описание Дата
Device Pack 1.5.4

Device Pack

18.2.2014 г. Свали
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.2.2014 г. Свали
Setup Wizard 1.05 Setup Wizard 16.9.2012 г. Свали
Версия Описание Дата
CE Declaration CE Declaration 15.8.2011 г. Свали
