Unified Wireless N PoE Access Point

DWL-3600AP

  • Product Status: Live

DWL-3600AP is a highly manageable access point, capable of high data transmission speeds, it integrates seamlessly into any network and scales to meet future wireless demands.


Download de datasheet.

Alle Verkooppunten

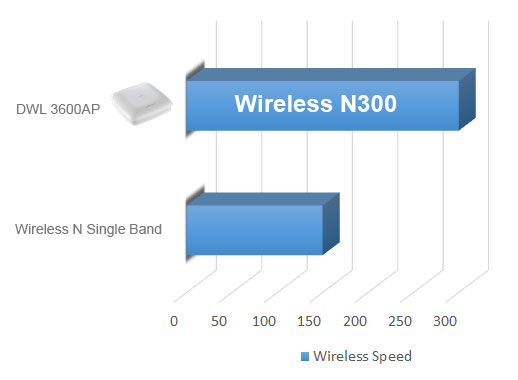

Performance without Compromise

Using the latest generation of Wireless N technology, the DWL-3600AP delivers great wireless performance and coverage in a compact design.

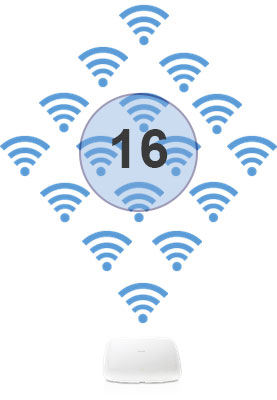

16 Wireless Networks on one
Access Point

Broadcast up to 16 SSIDs on a single access point

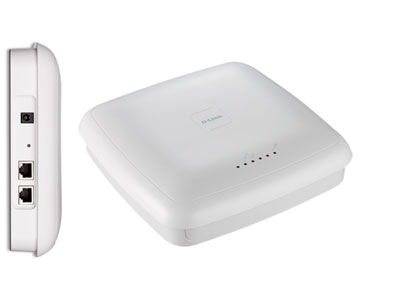

Smart Design

The DWL-3600AP has an discrete design, similar in look to a smoke detector, so that it can be mounted easily onto any wall or ceiling without looking out of place in an office or home.

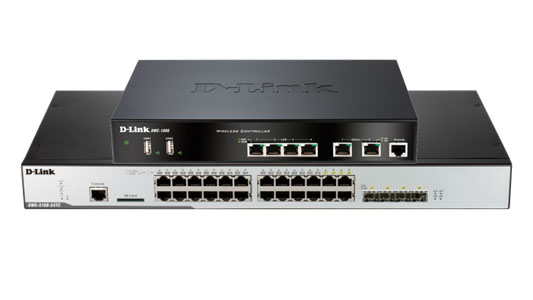

Managed using D-Link’s Wireless Controller or Unified Wireless Switch

All D-Link’s Unified Wireless Access Points can be managed using D-Link’s Wireless Controller or Unified Switch.

Single Band Wireless N

DWL-3600AP supports up to 300Mbps on the 2.4Ghz band

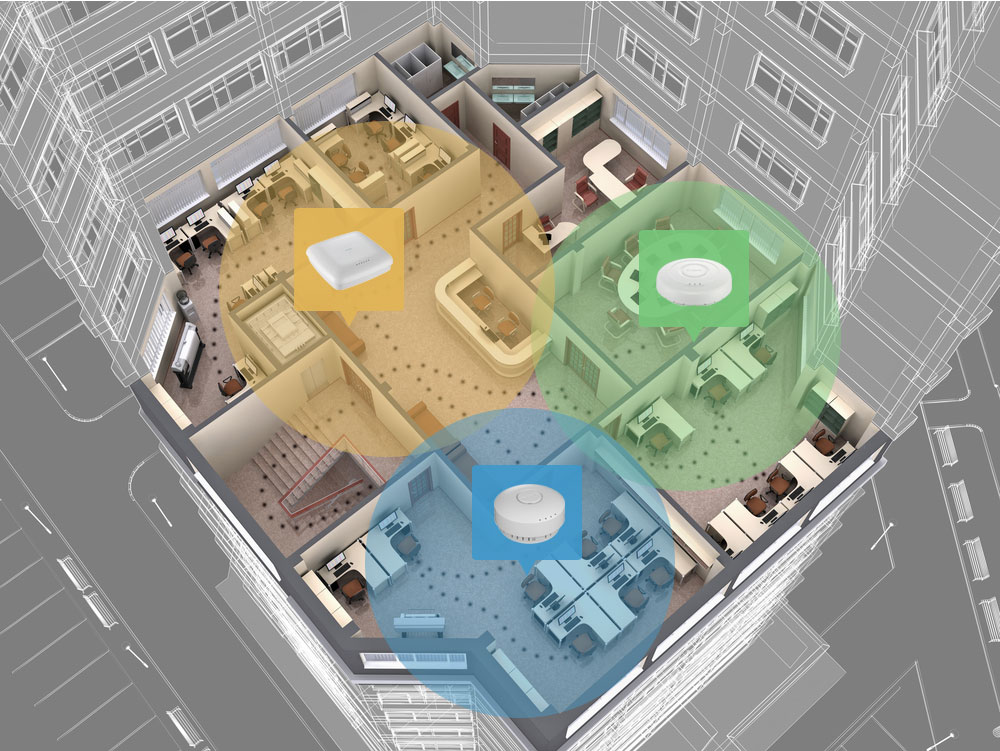

Fast seamless roaming

Combining the DWL-3600AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.

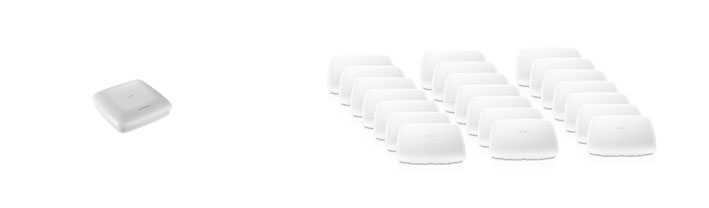

Versatility built as Standard

Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-3600AP coupled with D-Link's Wireless Controller or Switch makes managing your wireless network simple.

  • Standalone

  • Large Deployment

Secure and Green Design

The DWL-3600AP doesn’t compromise on functionality, it has a wireless scheduler feature, which turns off wireless operation when it isn’t needed, saving power and increasing network security.

Product Comparison


  DWL-2600AP DWL-3600AP DWL-6600AP DWL-8610AP
Wireless Standard B, G, N B, G, N B, G, N B, G, N, AC
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps 450Mbps
5GHz Throughput - - 300Mbps 1300Mbps
Aspect Indoor Indoor Indoor Outdoor
Range* 100m 100m 100m 100m
Suggested number of users Up to 25
users
Up to 40
users
Up to 75
users
Up to 250
users

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Technical Specifications

Wi-Fi Interface
  • 802.11b/g/n 2.4 GHz

LAN Interface
  • 10/100/1000 Gigabit Ethernet

Antenna
  • 2x2 MIMO embedded antenna with 4 internal antennas

Antenna Gain
  • 4.7 dBi
Power Method
  • IEEE 802.3af Power Over Ethernet or external power adapter

Wireless Frequency
  • 802.11b/g/n: 2.4 GHz - 2.497 GHz

Data Transfer Rate
  • 802.11n: 6.5 Mbps-130 Mbps (20 MHz)
  • 6.5 Mbps- 300 Mbps (40 Mbps)
  • 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
  • 802.11b: 11, 5.5, 2 and 1 Mbps

System Management

  • HTTP/HTTPS Web-based User Interface
  • SNMP, SSH, Telnet Command Line
  • Configuration Group Sync
    •  AP Cluster, up to 8 APs
SSID
  • 16 SSID
  • Station Isolation

Wireless Security
  • WEP
  • Dynamic WEP
  • WPA Personal/Enterprise
  • WPA2 Personal/Enterprise

Detection & Prevention
  • Rogue and Valid AP Classification

Authentication
  • MAC Address Filtering
  • 802.1x

Power Adapter
  • 5V/2.5A (power adapter not included)

Power over Ethernet
  • 48 VDC +/- 10%

Stand-Alone Mode
  • WEP/WPA/WPA2 Security
  • Rogue AP Detection
  • Station Isolation
  • MAC Address Filtering
  • AP Load Balancing Setup
  • WDS
  • AP Clustering
  • QoS/WMM
  • Local Storage Configuration

Managed Mode (Managed by D-Link Wireless Switch/ Wireless Controller)
  • Centralized Management
  • Centralized Firmware Dispatch
  • Visualized AP Management Tool
  • Auto-Power Adjustment
  • Dynamic Auto-Channel Selection
  • L2 Fast Roaming
  • L3 Fast Roaming
  • Captive Portal
  • WEP/WPA/WPA2 Security
  • Rogue AP Detection
  • Rogue AP Mitigation
  • WIDS
  • Station Isolation
  • MAC Address Filtering
  • AP Load Balancing Setup
  • WDS
  • QoS/WMM

Dimensions
  • 203 x 203 x 48 mm (7.99” x 7.99 “x 1.89”)

Weight
  • 635 g (1.4 lbs)

Operating Temperature
  • (32°F to 104°F) 0° to 40°C

Operating Humidity
  • 10% to 90% non-condensing

EMI/EMC/RF
  • FCF Class B
  • CE Class B
  • C-tick
  • IC
  • VCCI
  • NCC
  • TELEC
  • Wi-Fi®

Safety
  • cUL, LVD (EN60950-1)
  • UL2043
  • EN60601-1-2
