Wireless N Dual-Band PoE Outdoor Access Point

DAP-3520

  • Product Status: Phased Out

Connect wirelessly with speeds of up to 300 Mbps using the Wireless N (802.11n standard). The DAP-3520 provides the option to switch between 2.4 GHz and 5 GHz bands, giving more flexibility when setting up and optimising your wireless network. It is also fully backwards compatible with legacy 802.11a/b/g devices that work with either 2.4 GHz or 5 GHz bands.


Download de datasheet.

Alle Verkooppunten

Connect wirelessly with speeds of up to 300 Mbps using the Wireless N (802.11n standard). The DAP-3520 provides the option to switch between 2.4 GHz and 5 GHz bands, giving more flexibility when setting up and optimising your wireless network. It is also fully backwards compatible with legacy 802.11a/b/g devices that work with either 2.4 GHz or 5 GHz bands.

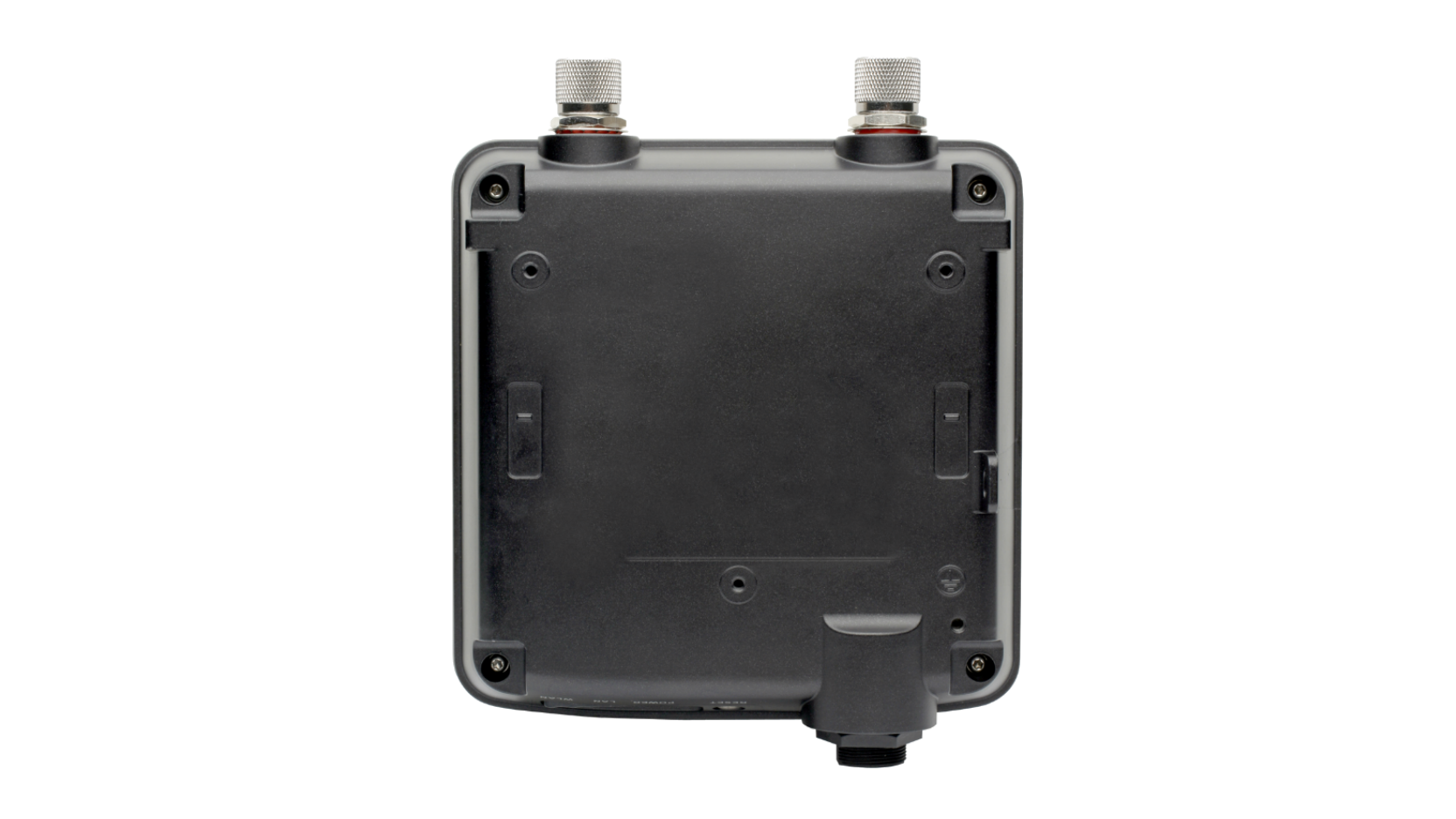

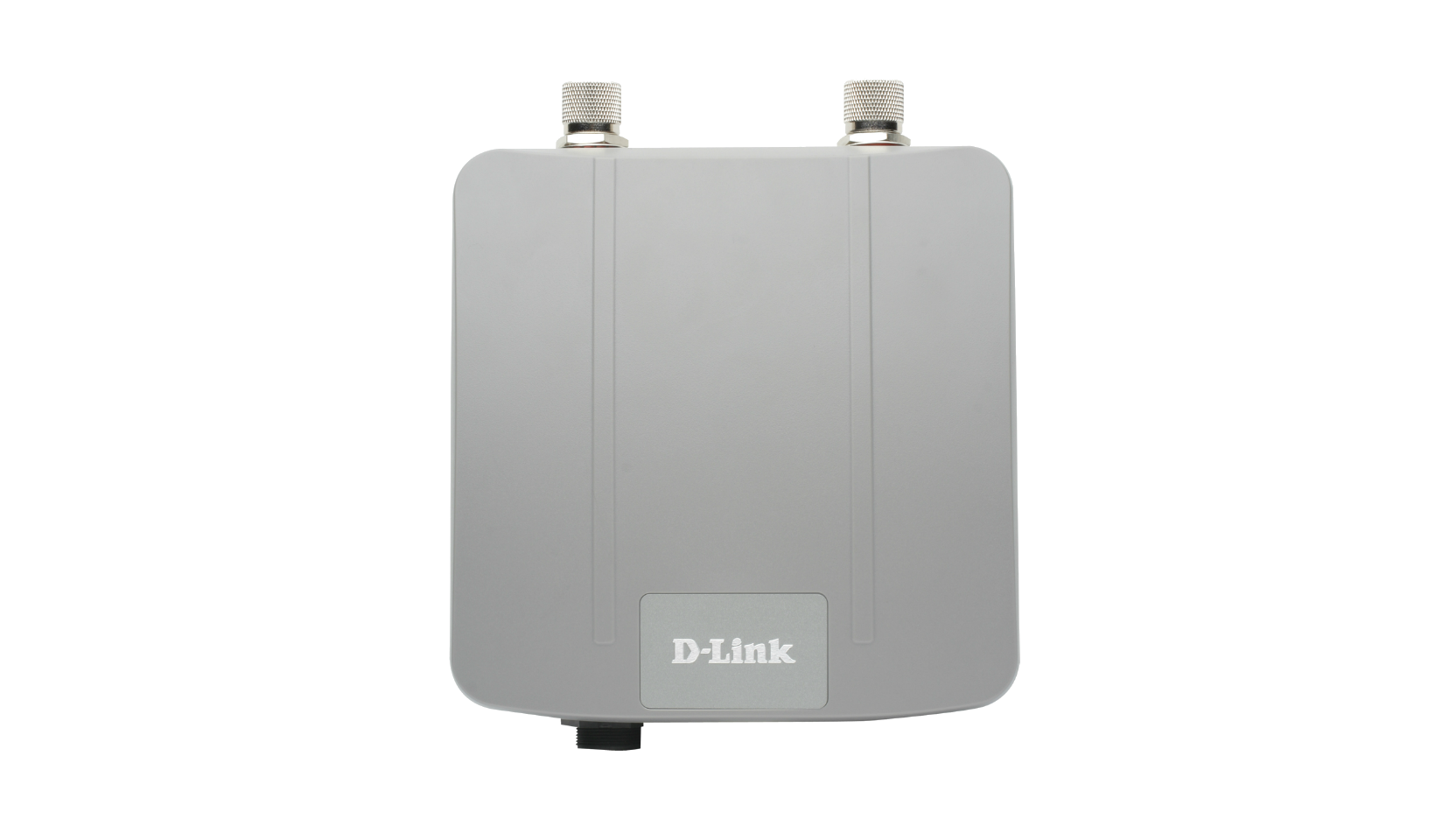

Designed to handle a wide variety of outdoor environments, the DAP-3520 has a die-cast watertight housing with built-in heater and temperature sensor. Supporting 802.3af Power over Ethernet (PoE), it can be deployed in outdoor locations where power outlets are not easily accessible.

The DAP-3520 supports 64/128-bit WEP as well as WPA/WPA2 data encryption. MAC address filtering and ability to hide SSID, controls user access and further ensures no unwanted connection to your wireless network.

The DAP-3520 supports up to 4 SSIDs, allowing the administrators to logically divide the access point into several virtual access points all within a single hardware platform. Rather than having separate networks with several access points, administrators can deploy one single AP to support more than one application, such as public Internet access and internal network control to increase flexibility and keep costs down.

The DAP-3520 also supports AP grouping, allowing several access points to balance wireless network traffic and wireless clients among the AP with the same SSID and different non-overlapping frequency channels. This provides both scalability and optimisation of the wireless network.

Technical Specifications

Device interfaces
  • 10/100/1000 BASE-TX Ethernet port with 802.3af PoE and auto-MDI/MDIX support
  • Embedded Dual Band antennas (8 dBi for 2.4 GHz, 10 dBi for 5 GHz)
  • Two RN-P N type connectors for optional antennas
Standards
  • IEEE 802.11a/b/g WLAN
  • IEEE 802.3/802.3u Ethernet
  • IEEE 802.11n WLAN
  • IEEE 802.3x Flow Control (for Ethernet)
Operating frequency
  • For 802.11n: 2400 to 2483.5 MHz (2.4 GHz band), 5150 to 5825 MHz (5 GHz band)
  • For 802.11g: 2400 to 2483.5 MHz
  • For 802.11b: 2400 to 2497 MHz
  • For 802.11a: 5150 to 5350 MHz, 5470 to 5725 MHz, 5725 to 5850 MHz (for Europe)
Channel numbers
  • 11 Channels (FCC)
  • 13 Channels (ETSI)
Maximum transmit output power
  • ETSI: 9 dBm at 2.4 GHz, 17 dBm at 5 GHz
  • FCC: 18 dBm at 2.4 GHz, 17 dBm at 5 GHz
Certifications
  • FCC Class B
  • CE
  • IP65
  • C-Tick
  • CSA International
  • Wi-Fi a/b/g/n
Configurable operation modes
  • Access Point
  • WDS with AP
  • WDS
  • Wireless Client
Performance enhancement
  • AP grouping for load balance Security
  • 64/128-bit WEP data encryption
  • WPA-PSK, WPA2-PSK
  • WPA-EAP, WPA2-EAP
  • TKIP, AES support
  • MAC address filtering user access
  • WLAN partitioning
  • Multiple SSID for network segmentation
  • SSID broadcast disable function
  • 802.1Q VLAN tagging
  • Rogue AP detection
  • Network Access Protection QoS (Quality of Service)
  • Wireless Multimedia (WMM) Management
  • Web Browser Interface:
    - HTTP
  • Secure HTTP (HTTPS)
  • AP Manager II
  • D-View 6.0
  • SNMP support:
    - Private MIB
  • Command Line Interface: -
  • Telnet
    - SSH

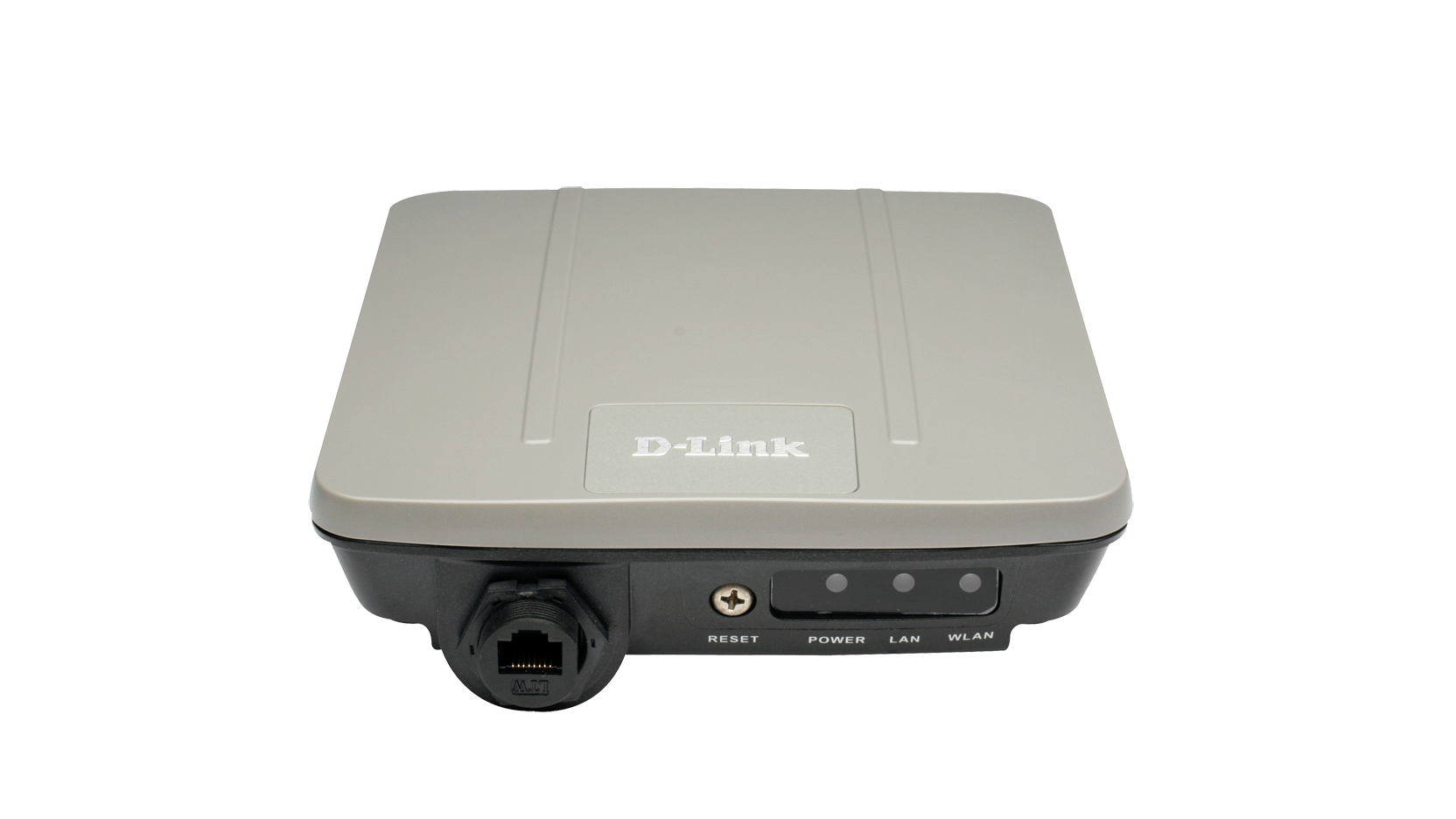

  • Diagnostic LEDs
  • Power
  • LAN
  • WLAN
Operating voltage
  • External power adapter
  • 100-240 VAC/50-60 Hz
  • 48 V DC +/-10% for PoE
Maximum power consumption
  • 12.95 Watts
Dimensions (L x W x H)
  • 190 x 160 x 55 mm (7.48 x 6.30 x 2.17 inches)
Weight (without mounting kit)
  • 774g
Temperature
  • Operating: -20 to 60°C (-4 to 140°F)
  • Storage: -20 to 65°C (-4 to 149°F)
Operating humidity
  • 10% to 90% non-condensing, all-weather enclosure
Accessories
  • PoE base unit
  • Ethernet cable (4 metres long)
  • Set of grounding wires
  • Wall mount
