Wireless AC750 Dual-Band Multi-WAN Router

DWR-118

  • Product Status: Live
  • 4G LTE/3G USB dongle support
  • Load sharing and fail-safe Internet with concurrent fixed line and mobile Internet support
  • Wireless AC750 (450 Mbps on 5 GHz + 300 Mbps on 2.4 GHz)
  • Fast Ethernet WAN + 4 x Fast Ethernet LAN

Download the datasheet.

List Retailers

Wireless AC750 Dual-Band Multi-WAN Router

The DWR-118 Wireless AC750 Dual-Band Multi-WAN Router allows you to share superfast 4G LTE/3G mobile Internet simultaneously to your smartphone, tablet, notebook and desktop computer. Universal 4G LTE/3G USB dongle support from any mobile operator1, this router is the ideal solution for setting up an Internet connection to share with your colleagues or your family and friends when you are on holiday.


Reliable, Uninterrupted and Faster Internet Connection

Create a load sharing and fail-safe Internet connection with simultaneous 4G LTE/3G mobile Internet and fixed broadband Internet support. A Gigabit Ethernet WAN port allows you to attach a DSL/Cable modem as the primary or backup link, while auto-failover ensures an uninterrupted connection by automatically connecting to your 4G LTE/3G network whenever the WAN link is lost. Load sharing function allows the Internet connections to be combined to give you faster Internet speeds. The built-in QoS management feature also prioritises traffic to ensure that the most important data receives optimum bandwidth.

Incredible Wireless Speeds

The DWR-118 supports the latest, high-speed 4G LTE mobile broadband technology, allowing you to achieve blazing fast mobile broadband speeds. In addition to this, the Wireless AC750 Dual-Band Multi-WAN Router’s AC technology means that you can connect wireless clients to the router at up to 433 Mbps2, with the enhanced range and reliability of the dual-band 802.11ac wireless standard.

Advanced Network Security

The DWR-118 ensures a secure Wi-Fi network through the use of WPA/WPA2 wireless encryption. Simply press the WPS button to quickly establish a secure connection to new devices. The DWR-118 also utilises dual-active firewalls (SPI and NAT) to prevent potential attacks and intrusions from across the Internet.

Simple to Install and Use

The Wireless AC750 Dual-Band Multi-WAN Router can be installed quickly and easily almost anywhere. The intuitive setup wizard will get you set up and connected in no time. This router is great for situations where an impromptu wireless network is required, or where conventional wired network access is unavailable. The DWR-118 can even be installed on buses, trains, or boats, allowing passengers to access the Internet while commuting.

1 4G LTE/3G dongle not included. Please consult D-Link website for a list of compatible 4G LTE/3G USB dongle. Additional 4G LTE/3G USB dongle may be supported with future software updates. Please check regional mobile operators for 4G LTE/3G mobile Internet availability.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, 802.11n, and 802.11ac specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless AC product from D-Link.
3G HSPA+ USB Adapter
Find out more
4G LTE USB Adapter
Find out more
Wireless N300 Multi-WAN Router
Find out more
Mobile Wi-Fi Hotspot 42 Mbps
Find out more
Mobile Wi-Fi Hotspot 21 Mbps
Find out more

Technical Specifications

Technical Specifications



General

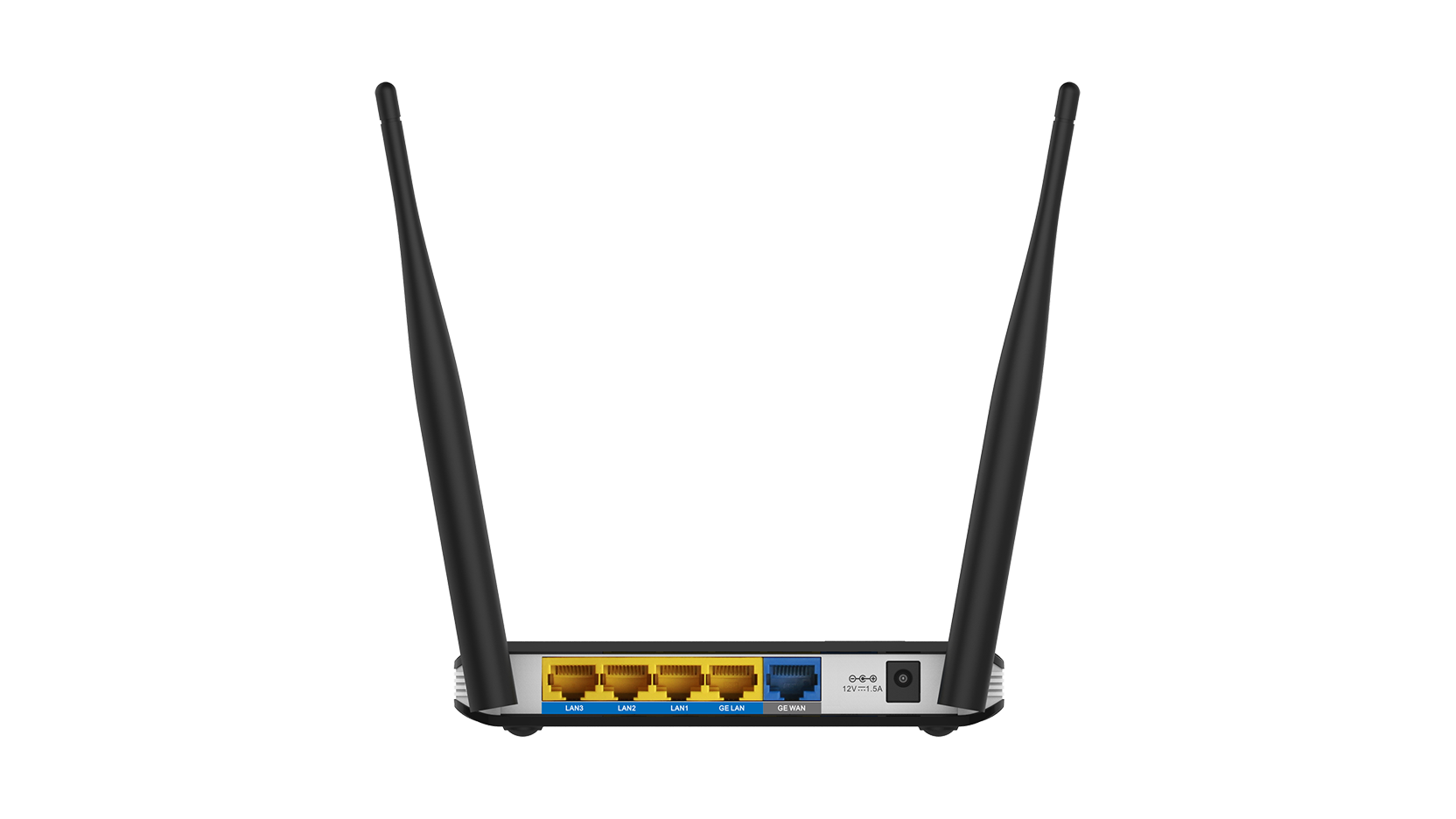

Device Interfaces

  • 1 x Gigabit Ethernet LAN port
  • 3 x Fast Ethernet LAN ports
  • 1 x Gigabit Ethernet WAN port
  • 1 x USB 2.0 port



LED Status Indicators

  • Power
  • Internet
  • WLAN (2.4 GHz & 5 GHz)
  • WAN
  • LAN
  • USB



Antennas

  • 2 x external 5 dBi antennas
  • 1 x internal 5 dBi antenna



Compatible Mobile Networks1

  • EV-DO/CDMA
  • 4G LTE/HSPA+/HSUPA/HSDPA/UMTS



Standards

  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.11ac
  • IEEE 802.3
  • IEEE 802.3u



Wireless Security

  • 64/128-bit WEP
  • WPA & WPA2
  • WPS



Firewall

  • Network Address Translation (NAT)
  • Stateful Packet Inspection (SPI)
  • MAC address filtering
  • Website filtering



VPN

  • L2TP/PPTP/IPSEC VPN passthrough
  • PPTP/L2TP connection



Advanced Features

  • 3G/4G LTE modem backup
  • QoS management
  • Auto WAN failover
  • Load sharing



Physical



Dimensions

  • 148.5 x 113.5 x 25 mm (5.85 x 4.47 x .98 inches)



Weight

  • 350 grams (12.35 ounces)



Power

  • Input: DC 12 V/1.5 A +/- 5%



Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)



Humidity

  • Operating: 10% to 95% non-condensing
  • Storage: 5% to 95% non-condensing



Certifications

  • CE
  • RoHS Certified
  • Wi-Fi Certified
Version Date Type File Size
Datasheet - PDF 0.28mb Download
Version Description Date Type File Size
Product manual A2 Product manual A2 8.8.2017. - - Download
Product manual Product manual 3.9.2015. PDF 10.68mb Download
Version Description Date Type File Size
Quick Installation Guide - 11.11.2016. PDF 0.61mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
Firmware Release notes included 1.01b01 Firmware
Release notes included
15.7.2016. Download
Firmware Release notes included 1.00b02 Firmware
Release notes included
28.8.2015. Download
Version Description Date
DEU_Modem_Compatibility_List_RevA

Modem compatibility list

3.9.2015. Download
DEU_CE_Doc_RevA1 CE declaration 28.8.2015. Download
