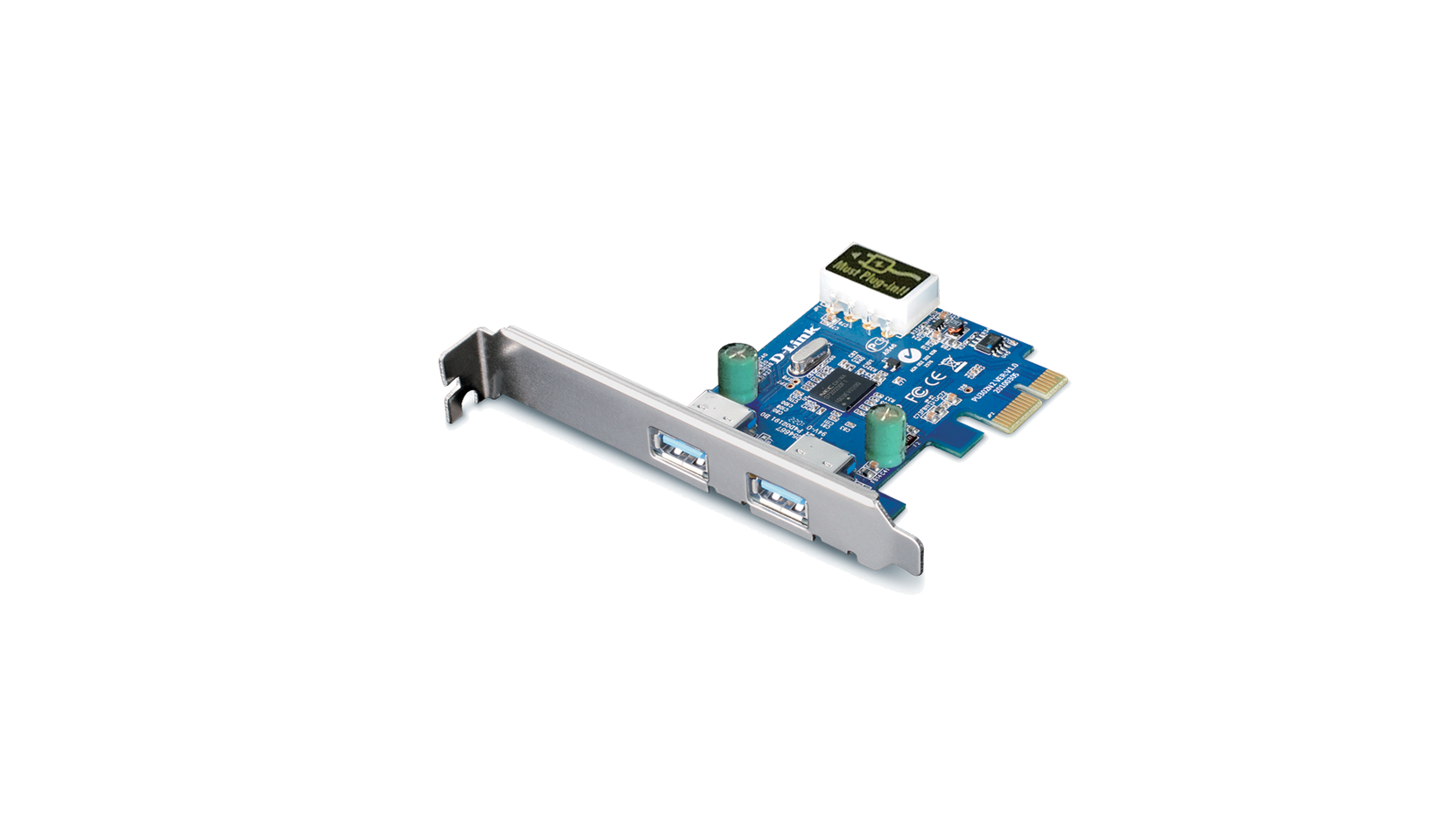

2-Port USB 3.0 PCI Express Card

DUB-1310

  • Product Status: Phased Out
The D-Link 2-Port USB 3.0 PCI express card (DUB-1310) adds 2 USB 3.0 ports to your PC, allowing you to connect USB devices such as external storage, digital cameras, printers, and more. Providing data rates of up to 5Gbps - 10 times faster than USB 2.0. You can transfer your photos, music, and HD movies to a USB 3.0 external storage device faster than ever before.

Download the datasheet.

List Retailers

The D-Link 2-Port USB 3.0 PCI express card (DUB-1310) adds 2 USB 3.0 ports to your PC, allowing you to connect USB devices such as external storage, digital cameras, printers, and more. Providing data rates of up to 5Gbps - 10 times faster than USB 2.0¹. You can transfer your photos, music, and HD movies to a USB 3.0 external storage device faster than ever before.

  • Easy installation for your PC
  • SuperSpeed USB 3.0- 10x faster than USB 2.0
  • Backward compatible with USB 2.0 and USB 1.1
  • Add two SuperSpeed USB ports to your PC

Superspeed USB 3.0 Capabilities

Connect your PC to USB 3.0 devices to transfer data at blazing speeds of up to 5 Gbps1 - up to 10 times faster than USB 2.0. You can back up your photos, music, and HD movies to an external storage device faster than ever before. SuperSpeed USB delivers maximum power efficiency to save the energy cost. You can also charge USB 3.0 devices faster using the DUB-1310.

Plug and Play Connectivity

Just run the Setup CD and then slide the DUB-1310 into an available PCI Express slot; it’s that simple to add 2 USB 3.0 ports to your PC.

Connect All Your Peripherals

Backward compatibility with USB 2.0 and USB 1.12 means that you can connect any USB device to the DUB-1310. If you need more ports, you can connect additional USB hubs to support up to 127 devices.

1 Maximum transfer rate based on USB 3.0 specifications. Actual data throughput will vary.

Related Products

4-Port SuperSpeed USB 3.0 Hub
DUB-1340
Find out more
Wireless-N Nano USB Adapter
DWA-131
Find out more
Xtreme N Dual Band USB Adapter
DWA-160
Find out more

Technical Specifications

Interfaces

  • 1 PCI Express port
  • 2 USB 3.0 type A ports



Standards

  • USB specification version 3.0
  • USB specification version 2.0
  • USB specification version 1.1 1
  • USB specification version 1.0
  • OHCI (Open Host Controller Interface)
  • EHCI (Enhanced Host Controller Interface)
  • PCI Express 2.0



Data Rates

  • SuperSpeed: 4.8 Gbps
  • Hi-Speed: 480 Mbps
  • Full Speed: 12 Mbps
  • Low Speed: 1.5 Mbps



Connectivity

  • Up to 127 devices by cascading multiple hubs



System Requirements

  • Windows XP SP3/Vista/7
  • Available PCI Express port



Supplied power

  • Maximum 900 mA. per port (when connected to the PC's internal power supply)



Dimensions (L x W x H)

  • 75.8 x 61.5 x 2.0 mm



Weight

  • 43 grams



Operating temperature

  • 0 to 40 °C (32 to 104 °F)



Storage temperature

  • -20 to 60 °C (-4 to 140 °F)



Operating Humidity

  • 0% to 80% (non-condensing)



Package contents

  • D-Link 2-Port SuperSpeed USB 3.0 PCI Express Card
  • Low profile bracket
  • USB 3.0 cable



Certifications

  • USB-IF
  • WHQL
  • FCC
  • CE

Version Date Type File Size
Datasheet (English) - PDF 1.03mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 2.14mb Download
Version Description Date Type File Size
Quick Installation Guide (Multilingual) - PDF 0.91mb Download
Version Description Date
DEU_DRV_RevA Driver 2.4.2011. Download
Version Description Date
DEU_CE_Declaration_1_RevA CE Declaration (English, French, Spanish, Portuguese) - Sept 2012 14.12.2012. Download
