PCI Bus 10-100Mbps Fast Ethernet adapter

DFE-528TX

  • Product Status: Phased Out
  • 10/100Mbps auto-sensing with single shielded RJ-45 connector
  • 32-bit PCI Bus Master operation
  • Full/half duplex support
  • Low network command processing overhead
  • Runs Win95, 98, NT, ME, 2000, NetWare, Unix, MacOS
  • Easy-to-view diagnostic LED
  • 2-year warranty

The DFE-528TX is a high-performance auto-sensing 10/100Mbps dual-speed adapter for the PCI bus. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth graphic/multimedia workstation running at full-duplex speed.

High Performance

With 32-bit Bus Master operation, the card guarantees the highest performance for power workstations and servers. Bus Master transfers data directly between the card and the host, bypassing the host CPU to alleviate its workload. This allows the host to concentrate on the application at hand.


10/100Mbps Flexible Connection

The card's single connector connects to either 10BASE-T Ethernet or 100BASE-TX Fast Ethernet. 10/100Mbps speeds are auto-negotiated, completely without users' need to intervene.


Full Duplex Support

Full/half duplex operations are auto-negotiated in both 10BASE-T and 100BASE-TX modes. When connected to a switch in full duplex, the network speed can be increased to 200Mbps, making the card an ideal NIC for high-speed workstation deployment.

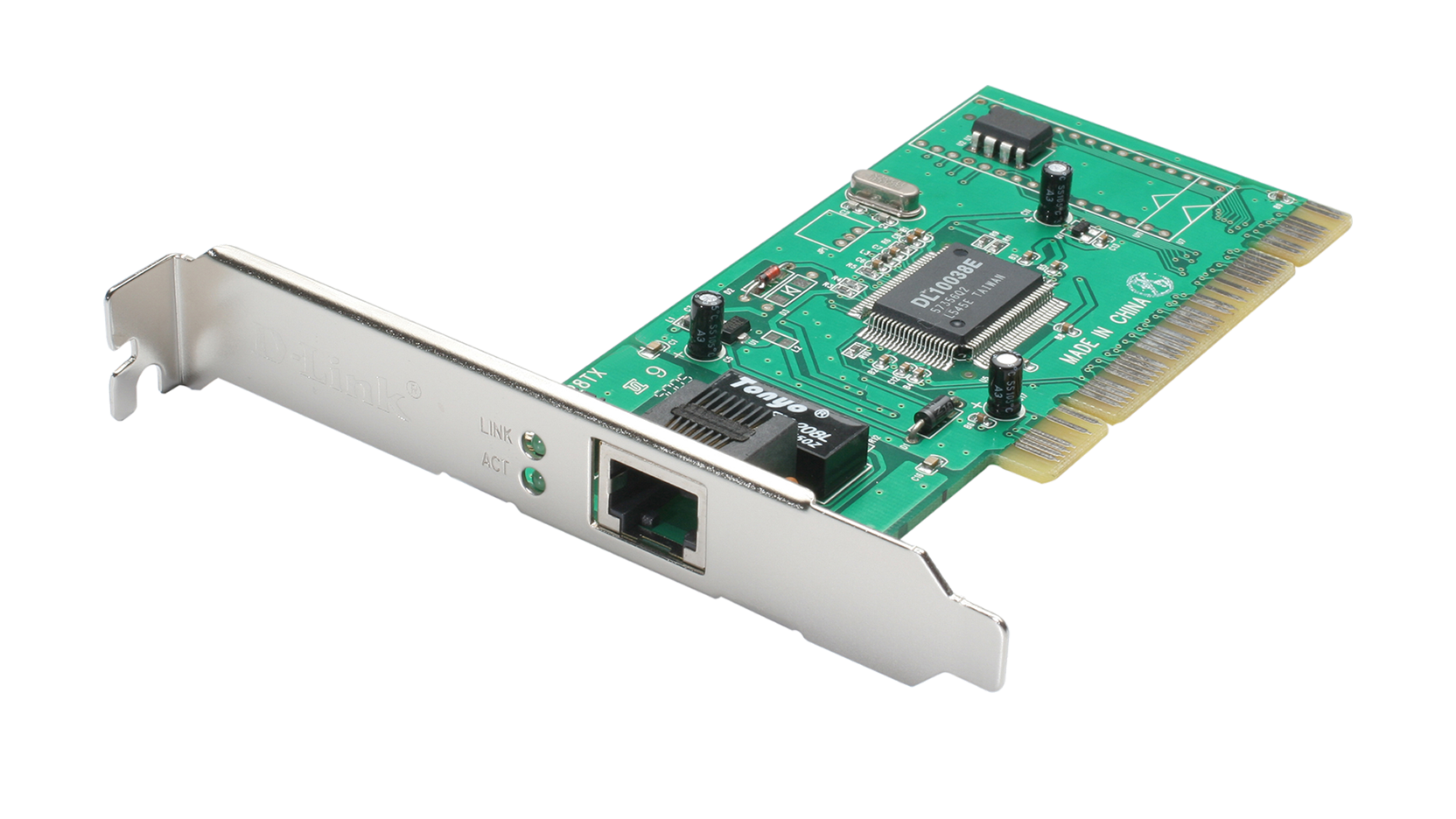

Actual product appearance may differ from the image displayed on this page

Technical Specifications

Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • PCI local bus 2.1, 2.2 specifications

Topology

  • Star

Protocol

  • CSMA/CD

Network Data Transfer Rates

  • 10BASE-T: 10Mbps (half-duplex), 20Mbps (full-duplex)
  • 100BASE-TX: 100Mbps (half-duplex), 200Mbps (full-duplex)

Network Cables

  • - 10BASE-T: UTP Cat. 3 (100 m), UTP Cat. 4, 5 (100 m), EIA/TIA-568 STP (100 m)
  • - 100BASE-TX: UTP Cat. 5 (100 m), EIA/TIA-568B STP (100 m)

IRQ

  • Allocated by system

I/O Address

  • Allocated by system

Diagnostic LED Report

  • Link
  • Activity


Power Consumption

  • 0.32 watts (96mA @ 3.3V) max.

Dimensions

  • 120 x 58 mm

Weight

  • 25 grams

Temperature range

  • Operational: 0 - 55 C
  • Storage: -25 - 55 C


Humidity

  • 10% - 90% non-condensing

Emissions

  • FCC Class B
  • CE Class B
  • VCCI Class B
