Product Status - Live

What does this mean?

DCS-6113 - Revision A

Hardware revisions
Downloads can vary across product revisions.
Find my revision

Quick Links

Firmware
Do NOT upgrade firmware on any D-Link product over a wireless connection. Failure of the device may result. Use only hard-wired network connections.
Version Description Date
Download 1.20
Firmware
 2012-10-09
Download
Software
Version Description Date
Download 1.05
Setup Wizard
 2011-04-19
Download
Additional Downloads
Version Description Date
Download A2
Declaration of conformity
 2011-12-30
Download
Download A1
Declaration of conformity
 2011-12-15
Download
Datasheets
Description Type File Size
Download
Datasheet
 PDF 4.58mb
Download
Download
IP Surveillance Product Guide
 PDF 27.68mb
Download
Download
Storage Product Guide
 PDF 25.32mb
Download
Manuals
Description Type File Size
Download
User Manual
 PDF 13.79mb
Download
Quick Installation Guides
Version Description Date Type File Size
Download 1.00
Quick Installation Guide
 2011-07-05 PDF 5.36mb
Download
Hardware Profile
  • 1/2.7" 2 Megapixel CMOS progressive sensor
  • Minimum Illumination: 0 lux (with IR illuminator)
  • Lens: fixed length 4.0mm, f1.5, 16x digial zoom
  • Built-in Infrared-Cut Removable (ICR) Filter module

Field of View
  • Horizontal: 73.5°

Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 5 Configurable privacy masks zone
  • Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression
  • H.264/MPEG4/MJPEG compression (simultaneous operation)
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images

Video Resolution
  • 1920 x 1080 @ 15fps
  • 1280 x 720 @ 30fps
  • 320 x 240 @ 30fps
  • 1280 x 1024 @ 20fps
  • 640 x 480 @ 30fps
  • 176 x 144 @ 30fps

Audio Support
  • 2-way Audio Support
  • Audio Mute Function
  • GSM-AMR speech encoding, 4.75 to 12.2 Kbps
  • MPEG-4 AAC audio encoding, 16 to 128 Kbps

External Device Interface
  • microSD card slot
  • Digital I/O
  • External AV Output: NTSC/PAL switch

Network

Network Protocols
  • IPv4
  • IPv6
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • HTTP / HTTPS
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • RTP / RTSP/ RTCP
  • IP fi ltering
  • 3GPP
  • LLTD
  • CoS/QoS
  • SNMP
  • IGMP
  • 802.1x
  • ONVIF Compliant

Connectivity
  • 1 x 10/100BaseT (Ethernet) with PoE

Security
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
  • HTTPS streaming
  • Remote client access control

System Management

System Requirements for Web Interface
  • Operating System:
  • Windows® 7, Windows Vista®, Windows® XP, Windows® 2000
  • Browser:
  • Internet Explorer 6 or higher, Chrome, Firefox, Safari

D-ViewCam™ System Requirements
  • Operating System:
  • Windows® 7, Windows Vista®, Windows® XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP

Event Management
  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
  • Multiple event notification
  • Tamper detection
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple recording methods for easy backup

Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser

D-ViewCam™ System Requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP

D-ViewCam™ Software Functionst
  • Remote management control of up to 32 cameras
  • Scheduled motion triggered, or manual recording options
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen

General Specifications

Power Input
  • 12V DC 1.25 A, 50/60 Hz, 802.3af PoE

Max. Power Consumption
  • 5.3watts

Operating Temperature
  • 0° to 40° C (32 to 104° F)

Storage Temperature
  • -20° to 70° C (-4° to 158° F)

Humidity
  • 90% non-condensing

Weight
  • 16.65 (472 grams)

Certifications
  • CE (Class A)C
  • E LVD (EN60965-1)
  • FCC (Class A)
  • ICES-003
  • C-Tick

Diminensions
  • Width (Base): 5.12" (130mm)
  • Height: 3.85" (97.8mm)

Order Information

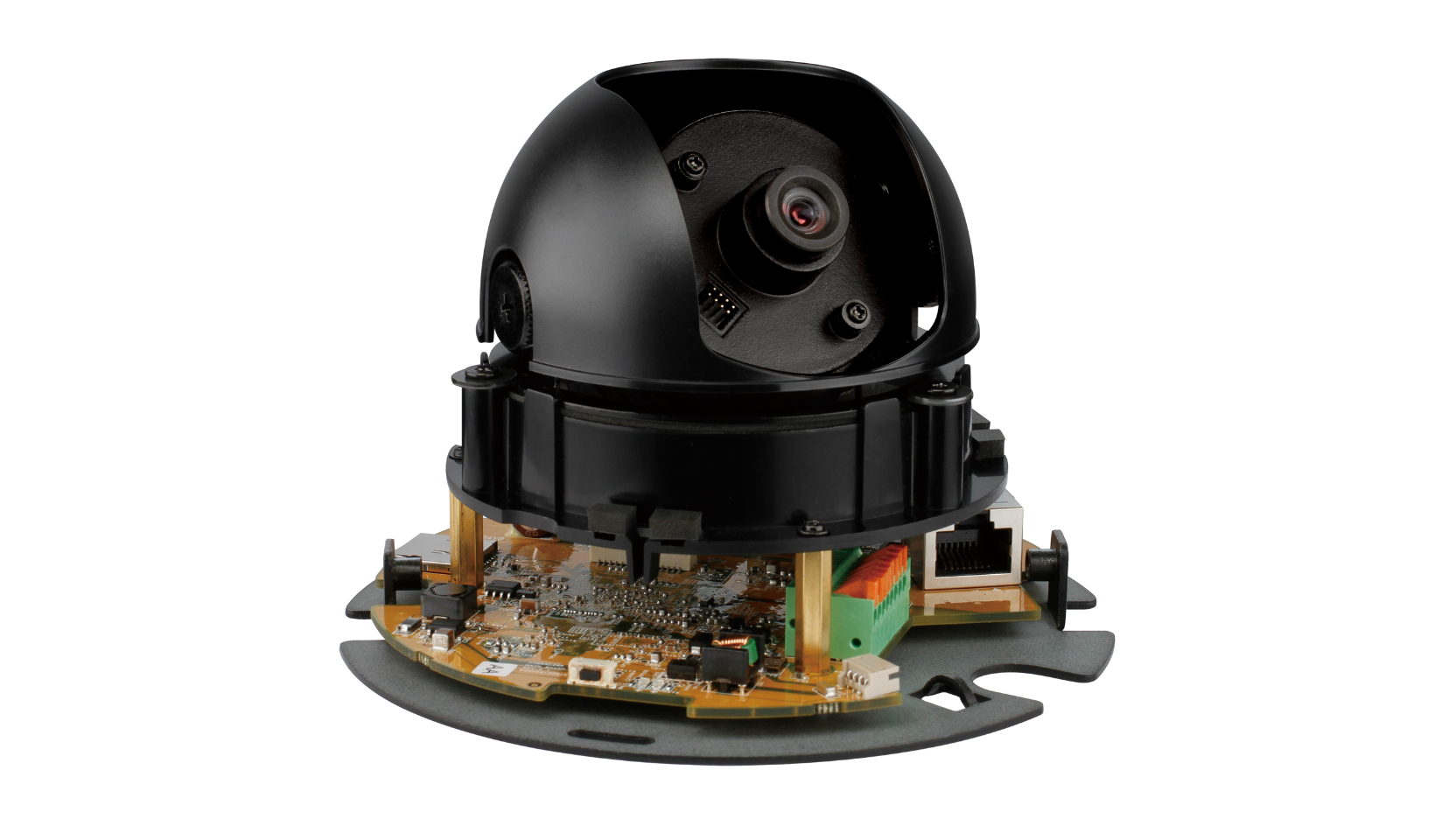

DCS-6113
  • Full HD Day & Night Fixed Dome Network Camera

All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
