Mini HD WiFi Camera

DCS-8000LH

  • Product Status: Live
The Mini HD Wi-Fi Camera allows you to monitor what matter most, day or night, whether you are at home or away. Built-in night vision together with motion and sound detection, alerts you instantly when something unexpected happens, giving you extra peace of mind.

Download the datasheet.

List Retailers

Your Home, only Smarter.

The Mini HD Wi-Fi Camera allows you to monitor, day or night, whether you are at home or away. Built-in night vision together with motion and sound detection, alerts you instantly when something unexpected happens, giving you extra peace of mind with the latest in home security cameras.

Key Features

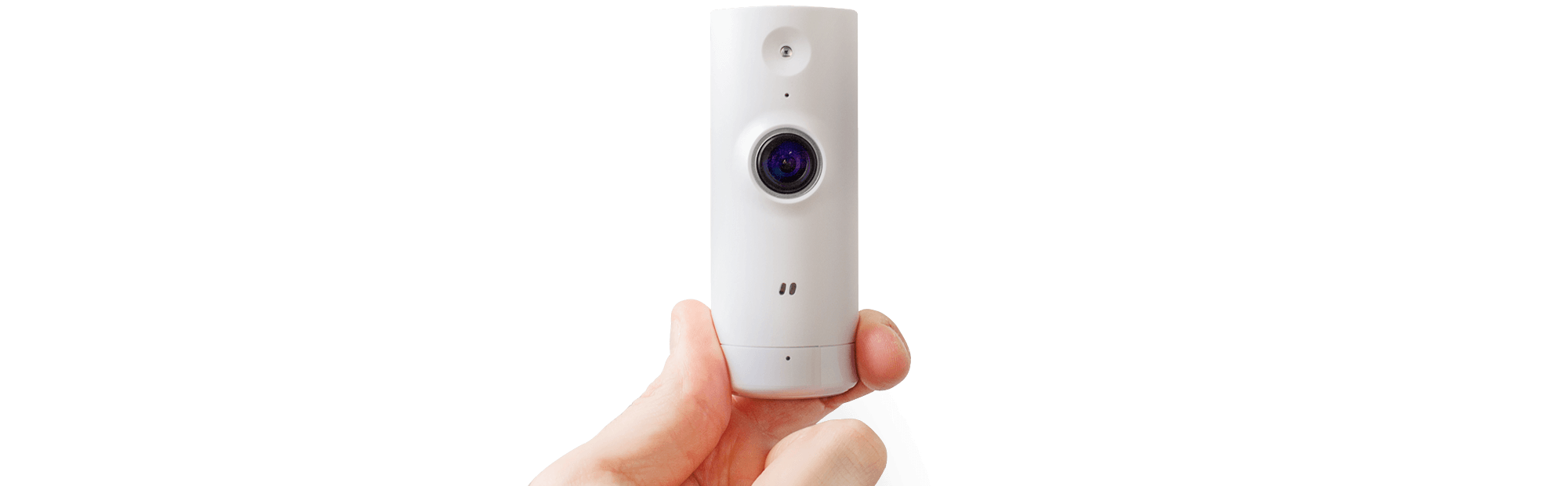

Compact Size

Our smallest camera allows for discreet placement

High Definition Clarity

720p HD quality video

Day & Night

See up to 5 metres in the dark

Sound and Motion Detection

Instant alert notifications

Video Recording

Save live view video clips to your mobile device

Remote Access

View from anywhere for free with the mydlink app

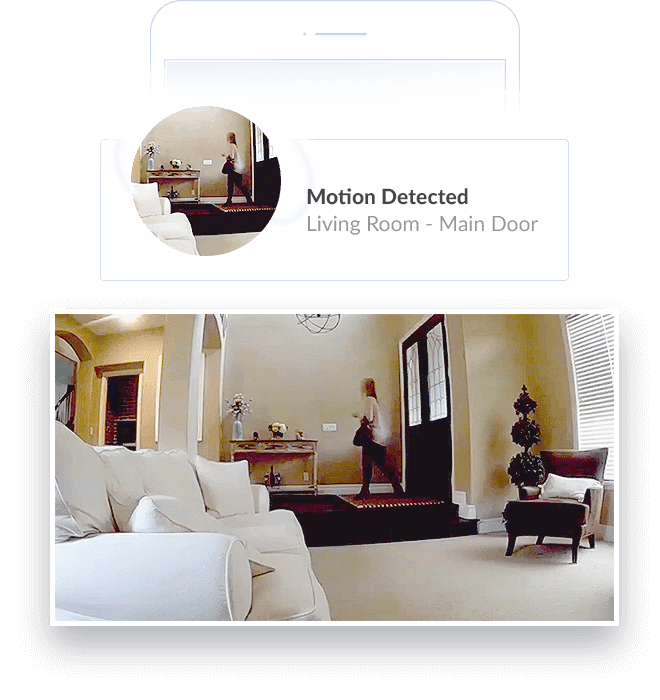

Alerts

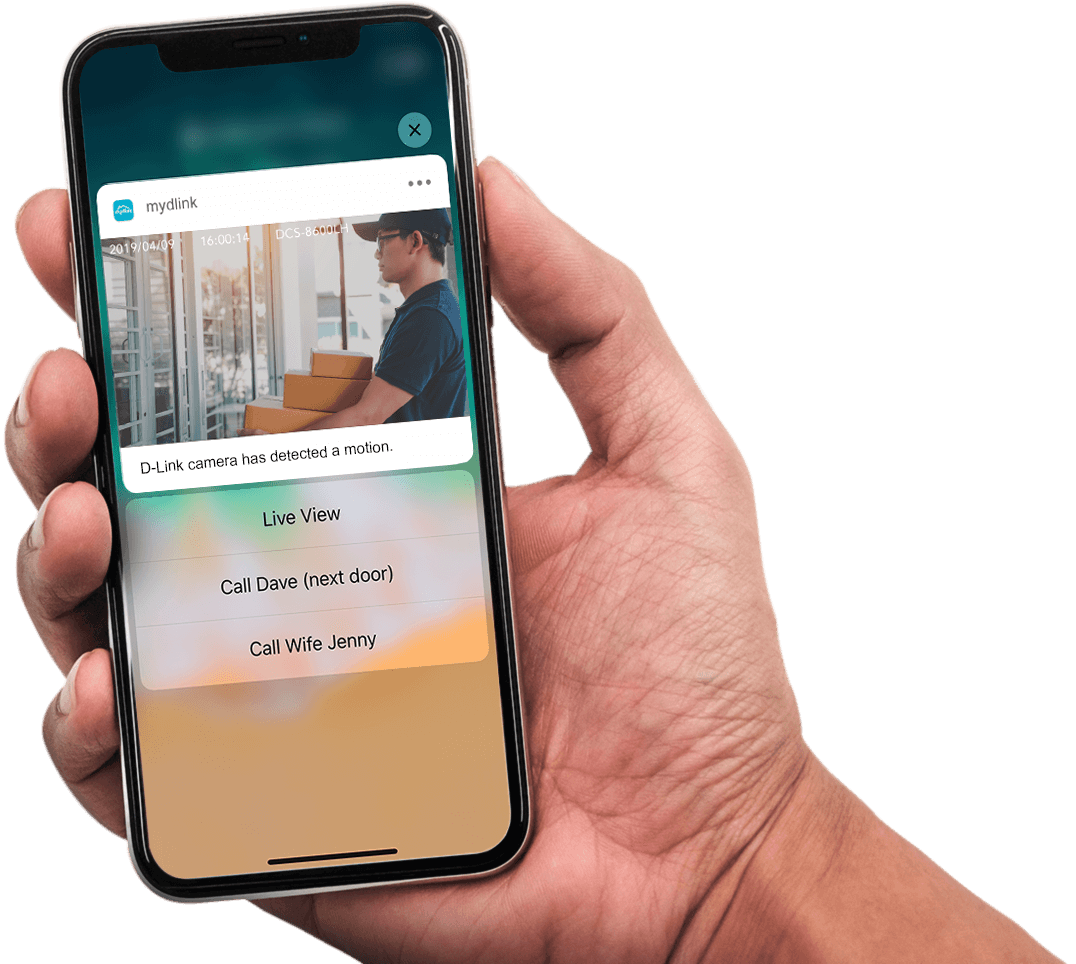

Receive alerts immediately on your smartphone or tablet when motion or sound is detected.

See it all

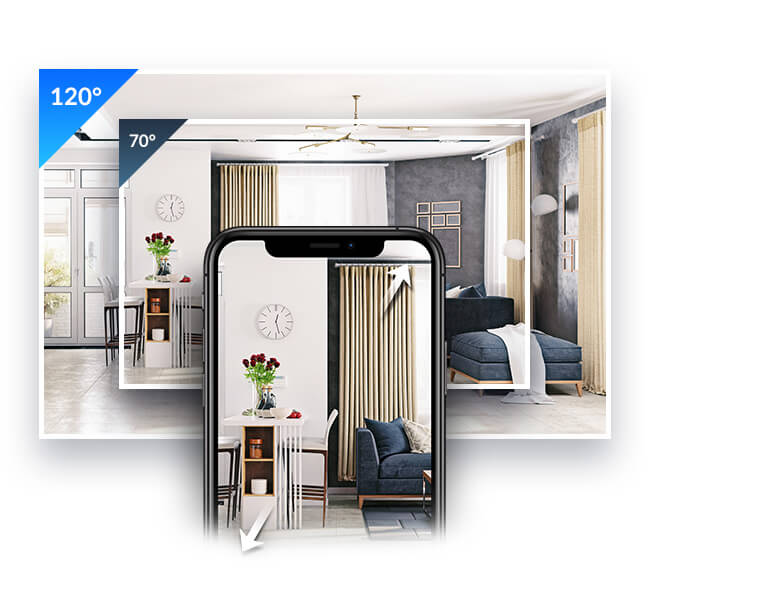

Versatile home security camera vision with 120-degree wide viewing angle and 4x digital pinch-to-zoom.

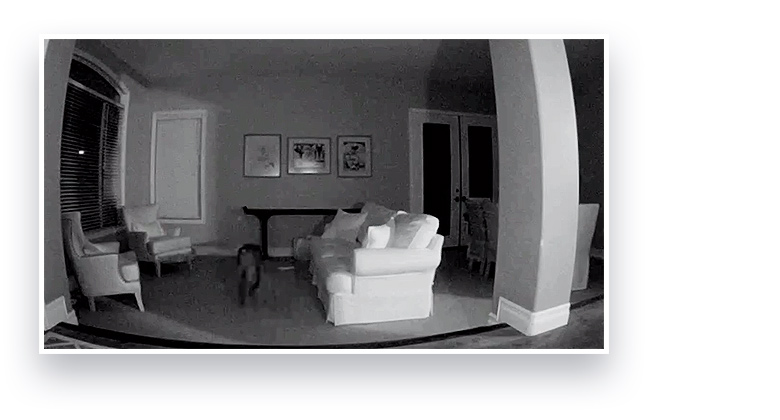

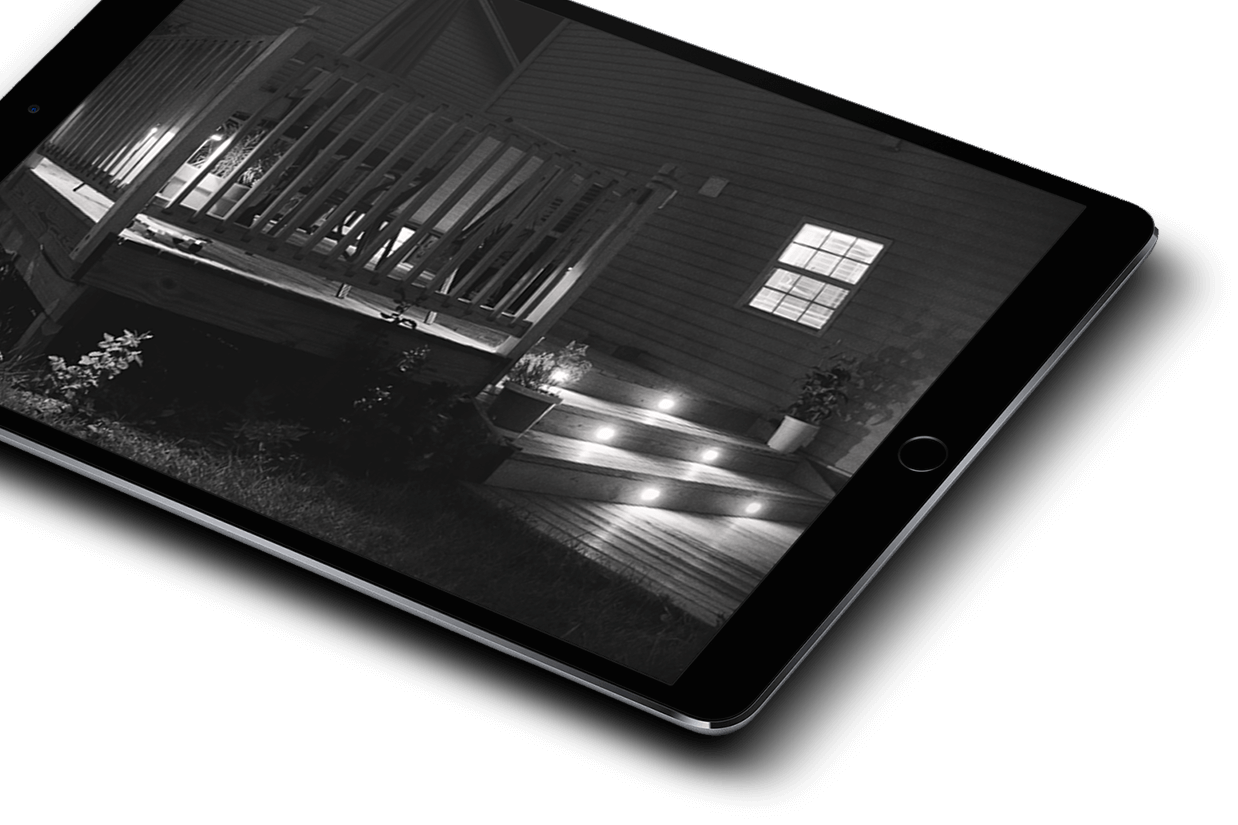

Night Vision

See your home, even in complete darkness, so that you know what’s happening at home 24/7 with built-in infrared LED.

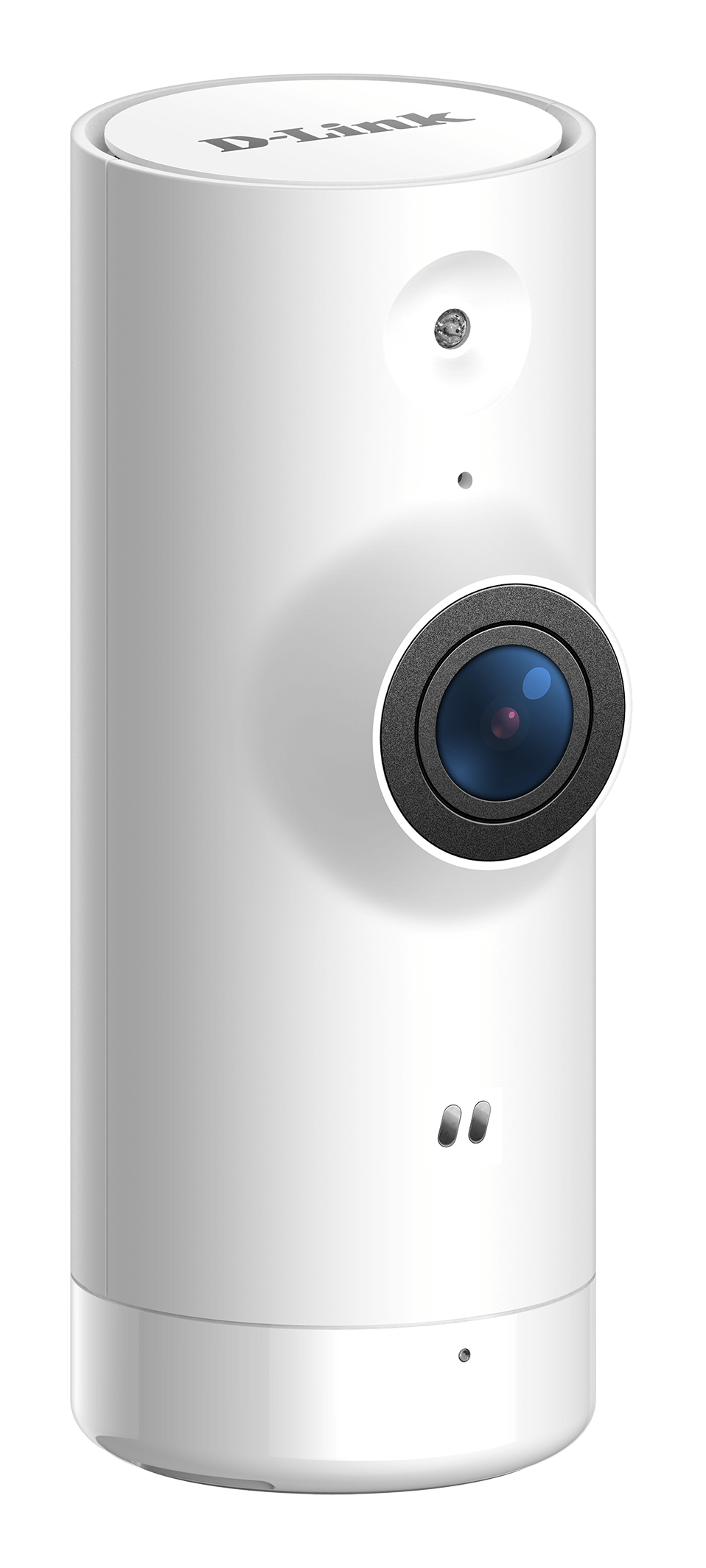

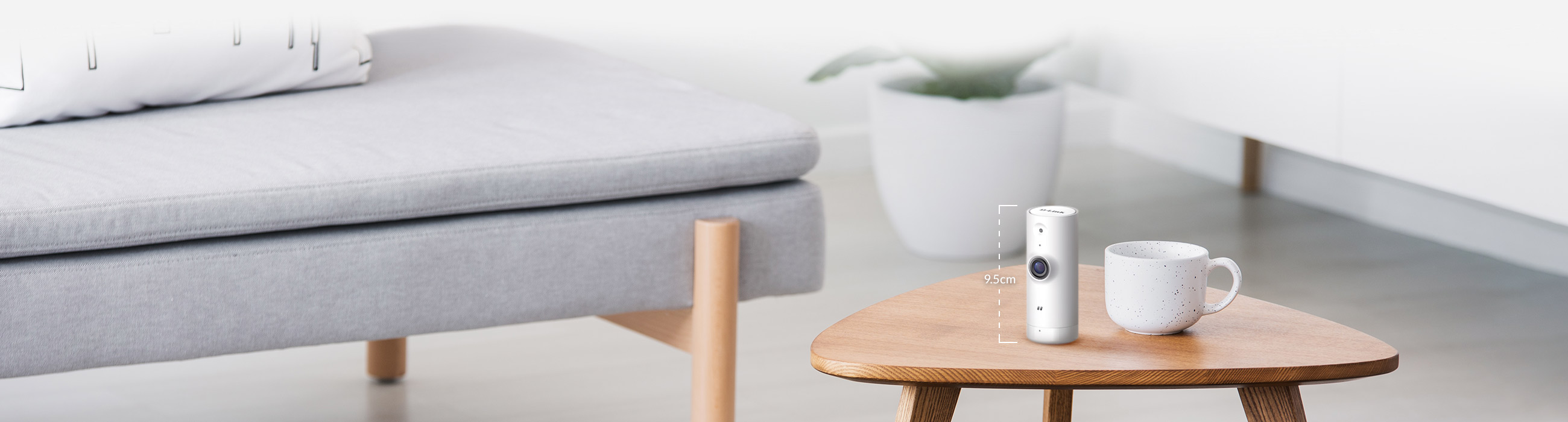

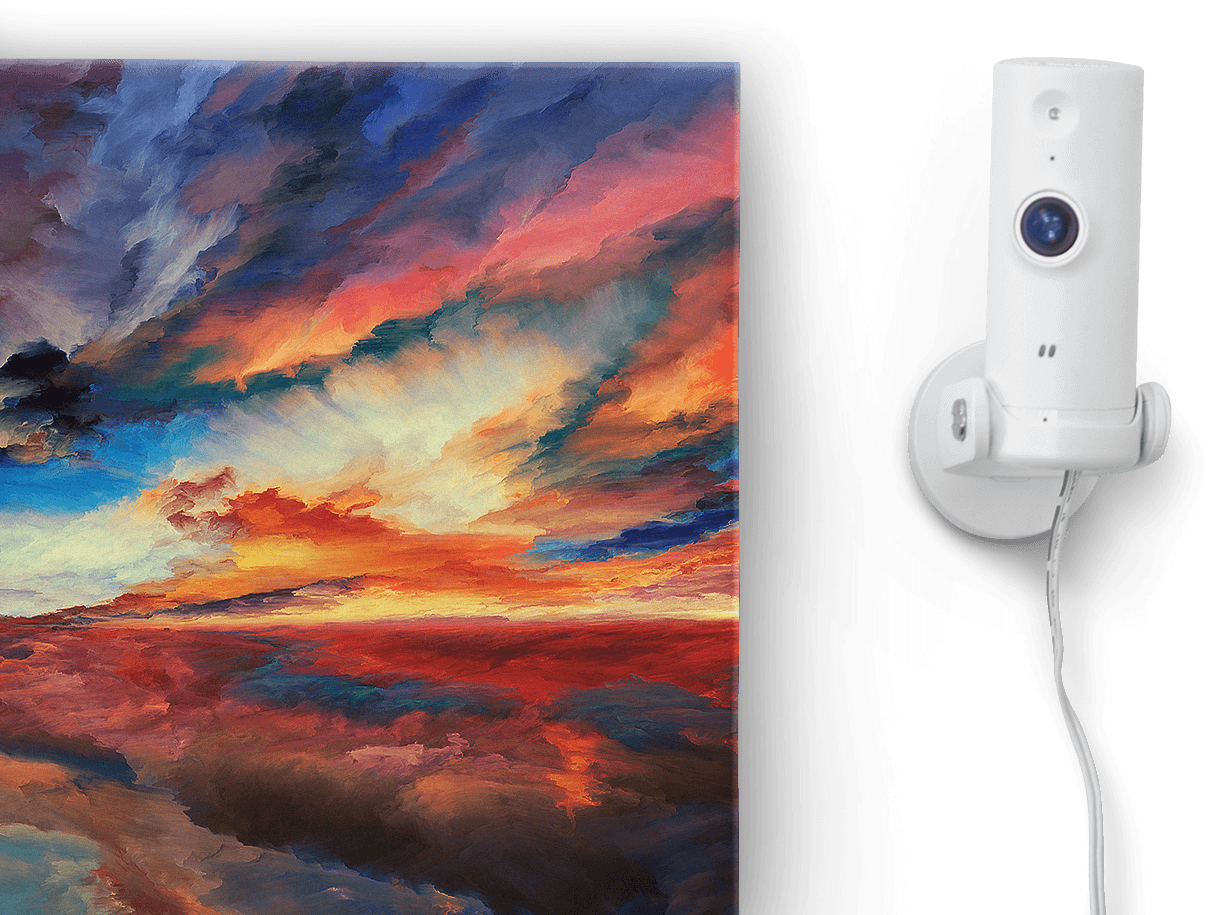

Compact Design

The Mini HD Wi-Fi Camera can be placed discreetly, anywhere within your home. It is the smallest camera in the D-Link camera range.

Simple Setup

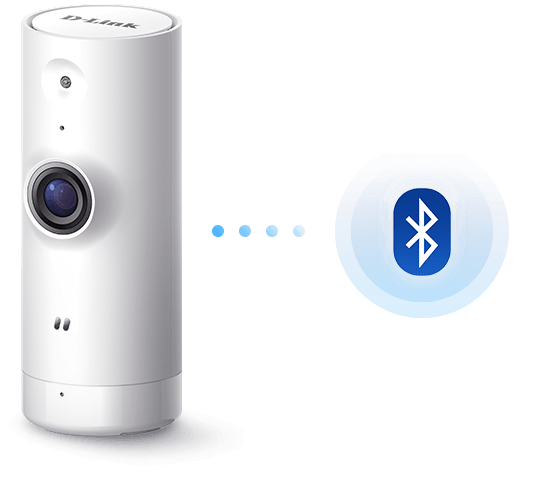

Setting up the camera quick and easy with the mydlink Lite app. Simply download and install the app on your smartphone or tablet and follow the step-by-step instructions. You can also set up the camera using Bluetooth.

Peace of Mind, Wherever You Are with mydlink

With the mydlink Lite app or through the mydlink web portal, you can easily monitor your home and look after what’s important to you, while you are away. Receive notifications and check-in on those you love at any time. You can even record precious moments directly onto your phone through the mydlink Lite app.


iTunes App Store Google Play Store

What's in the box

Related Products

HD Wi-Fi Camera
DCS-936L
Find out more
Day/Night Cloud Camera
DCS-932L
Find out more
Enhanced Day/Night Cloud Camera
DCS-942L
Find out more
HD 180 Panoramic Camera
DCS-960L
Find out more
Wide Eye Full HD 180° Panoramic Camera
DCS-2530L
Find out more

Technical Specifications

Functions & Features

Camera

Hardware Profile

  • One-megapixel progressive CMOS sensor
  • Minimum object distance: 50 cm
  • Lens focal length: 2.45 mm ± 3%
  • Aperture: F2.4
  • Built-in Infrared-Cut Removable (ICR) Filter
  • Built-in microphone
  • Angle of view:
    • Horizontal: 112°
    • Vertical: 54°
    • Diagonal: 120°
  • 4x Digital zoom
  • 5 metre IR illumination distance

Image Features

  • Time stamp and text overlays
  • Configurable sound detection level
  • Configurable motion detection windows
  • Configurable brightness

Video Compression

  • Simultaneous H.264 format compression
  • JPEG for still images

Video Resolution

  • 1280 x 720 at up to 30 fps

Audio Support

  • PCM

Network

Connectivity

  • 2.4 GHz: 802.11n/g wireless with WPA/WPA2 encryption

Network Protocols

  • IPv4, ARP, TCP, UDP, ICMP
  • NTP client (D-Link)
  • DNS client
  • RTP/RTSP/RTCP
  • Bonjour

Features

Event Management

  • Motion detection
  • Sound detection

Video/Image Recording

  • Manually taken snapshots & video clips are saved to mobile device1

Browser  Support

  • Windows OS running 32 bit versions of Internet Explorer 9, Chrome 42 Firefox 12-51 and 52 ESR, or higher
  • Mac OS running Safari 9, Chrome 42 Firefox 12-51 and 52 ESR, or higher

Mobile Support

  • mydlink Lite and mydlink Plus apps for iOS and Android devices2,3

Physical

Environment

  • For Indoor Use Only

Weight

  • 57.7 grams ± 5%

Power Adapter

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 5 V DC 1 A (Micro-USB)

Power Consumption

  • Maximum:  4 watts ± 5%

Temperature

  • Operating: 32 to 104 °F (0 to 40 °C)
  • Storage: -4 to 158 °F (-20 to 70 °C)

Humidity

  • Operating: 20% to 80% non-condensing

Certifications

  • CE
  • CE LVD
  • ICES
  • FCC

Dimensions (L x W x H)

  • 3.5 x 3.8 x 9.2 cm

Package Contents

  • DCS-8000LH Mini HD Wi-Fi Camera
  • microUSB power adapter
  • Quick install guide
