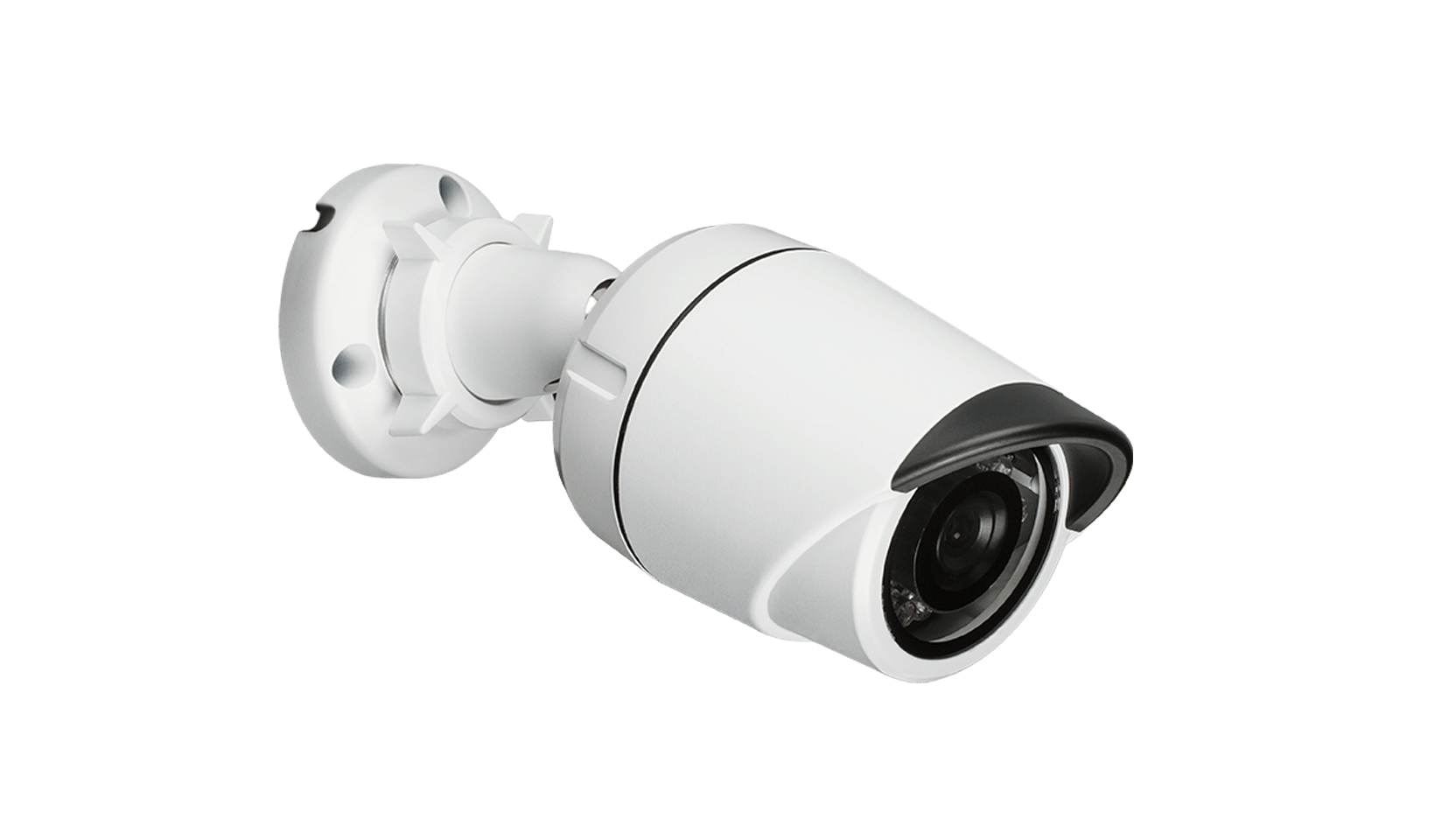

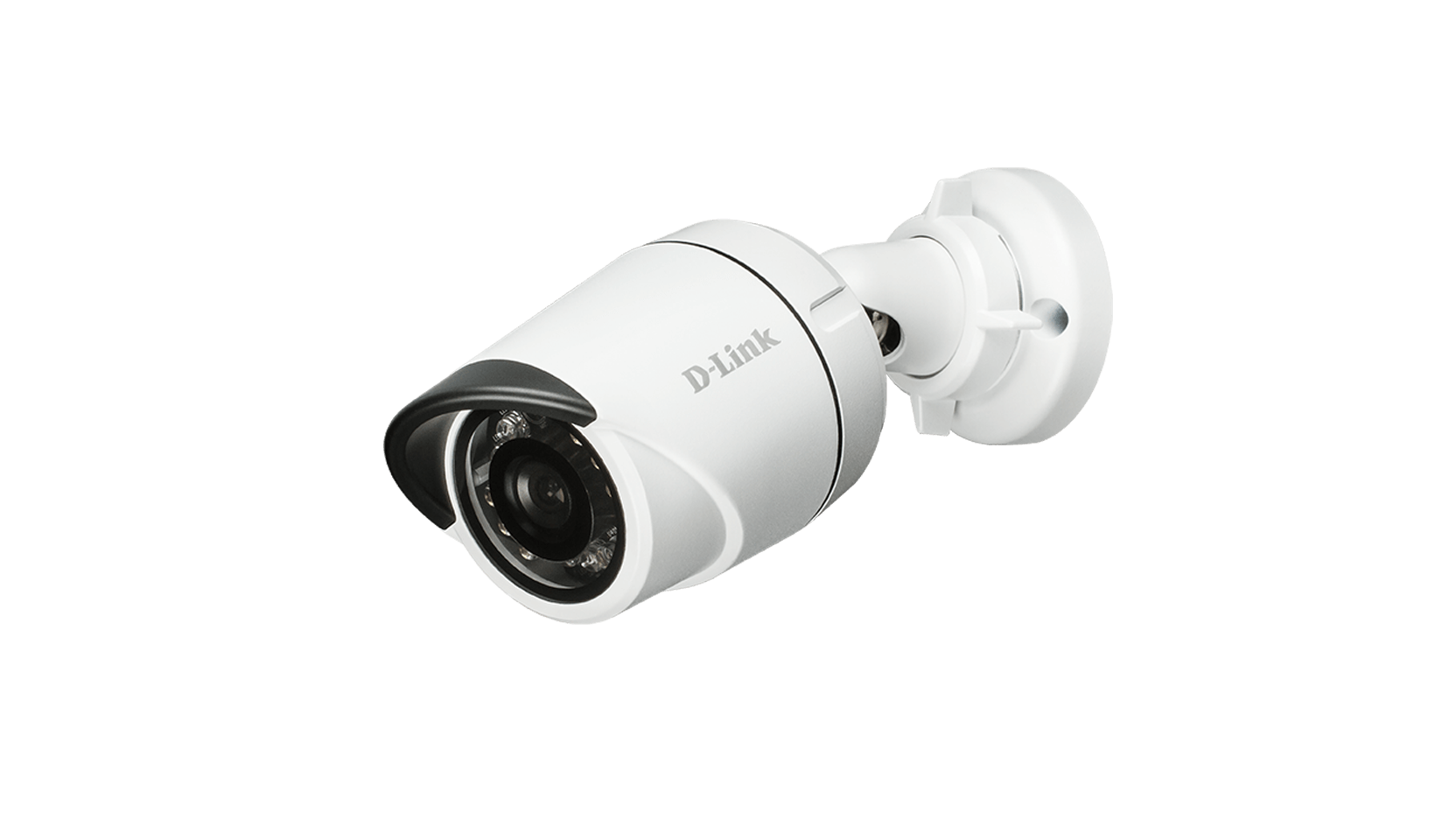

Vigilance Full HD Outdoor PoE Mini Bullet Camera

DCS-4703E

  • Product Status: End of Sale

Professional.
Simple.
Affordable.

High-definition professional surveillance and security solution.

Using a high-sensitivity 3-megapixel progressive scan CMOS sensor to deliver superior quality video.

Rugged design makes this camera ideal for reliable deployment in all weather surveillance applications.

Features

D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Weatherproof
Durable IP66 rated casing for surveillance in any weather
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
65 Ft Night Vision
16 built-in IR LEDs guarantee bright & clear images, even in total darkness
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancement
D-Link DCS-4703E Vigilance FULL HD Outdoor PoE Mini Bullet Camera
3D Filter
Reduce noise in low-light environments for clear, smooth images


Security in High Definition

Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4703E Ideal for small, medium and large enterprise installations.

Security in High Definition

*Screen images simulated


Continuous Monitoring with Night Vision

Continuous Monitoring with Night Vision

Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.

Combined with the IR-Cut filter, the DCS-4703E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.


Anywhere anytime surveillance

Anytime, Anywhere Surveillance

Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and a glare-reducing sun shield, the DCS-4703E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.

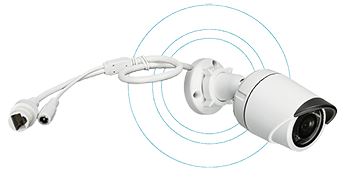

3-Axis Adjustment

3-Axis Adjustment

The Full HD Outdoor PoE Mini Bullet Camera's unique design with 3-axis cable management bracket allows for flexible and secure mounting options.

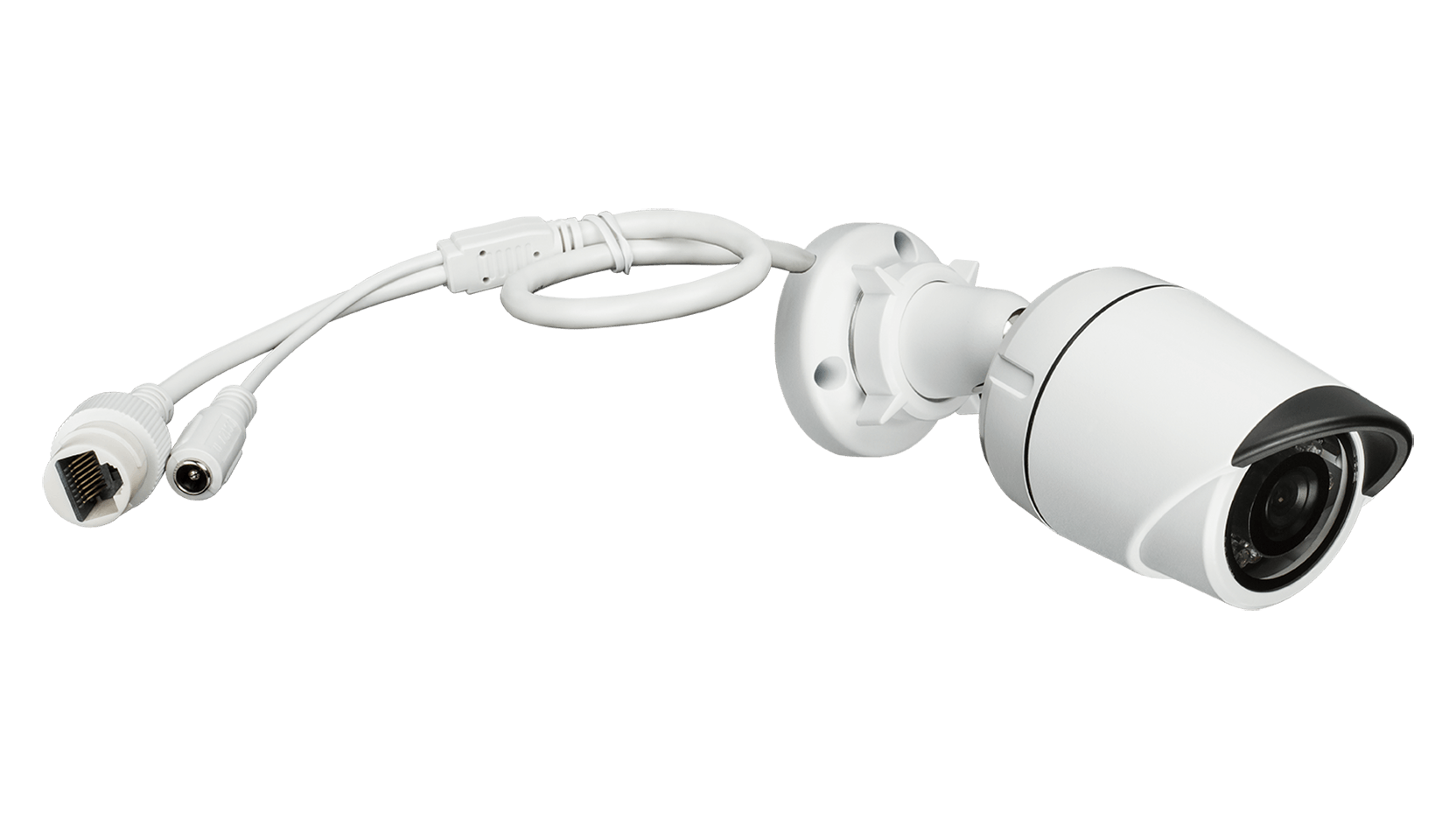

PoE = Convenience

PoE = Convenience

Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4703E has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4703E can also be powered by a standard 12V DC, 1.5A power adapter (not included).



Video Management Software (VMS)

The Full HD PoE Dome Network Camera includes a free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4703E is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.

Video Management Software (VMS)

Related Products

D-ViewCam
DCS-100
Find out more
Indoor/outdoor
Indoor

Outdoor
Type
Bullet
Connectivity
Wired PoE
Resolution
3 megapixel
Image sensor
1/3" 3 megapixel progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)

2048 x 1536 (other)
Advanced Light features
Wide Dynamic Range
Lens
3.6 mm

F1.8

Fixed
Angle of View (H/V/D)
70° / 40° / 80°
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
20 m
Wide Dynamic Range(WDR)
Supported
LowLight+
Supported
Privacy Masks
3 zones
Power Consumption
6.4 W
App Support
JustConnect+
Features
D-ViewCam D-Link NVR compatible

ONVIF
Video Format
H.264

MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 05/05/2021
Version Date Type File Size
Datasheet - PDF 0.73mb Download
Version Description Date Type File Size
Manual Manual 9.12.2016 PDF 5.55mb Download
Version Description Date Type File Size
QIG 1.10 Revision A1 Quick Installation Guide 30.4.2019 - - Download
QIG 1.01 Revision A1 Quick Installation Guide 30.10.2018 - - Download
Quick Installation Guide Quick Installation Guide 17.3.2017 - - Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
FW 1.3.4 RevA1 Firmware 27.9.2021 - Download
FW 1.02.03 Firmware 26.4.2019 - Download
1.01 Firmware 29.9.2017 - Download
1.00.06 Firmware 1.00.06 3.1.2017 - Download
Version Description Date
Setup Wizard Setup Wizard 3.1.2017 Download
Version Description Date
CE doc 1.20 RevA2 CE document 12.2.2020 Download
CE doc 1.10 RevA2 CE document 19.7.2019 Download
CE doc 1.01 Revision A2 CE document 8.10.2018 Download
DEU_CE_Declaration DCS-4703E CE DoC - Download
