- Stream High-Quality Video, Photos and Music Wirelessly to Your TV
- Play Digital Videos from the PC and the Internet, Including DivX Videos up to HD 720p1,2
- Access Other Online Video Services with Your Remote Control without Leaving the Couch2
- Add a Personal Touch with DivX Connected™ Plug-ins for Gaming and Infotainment Services3
|
|
January 7, 2008
Entertainment and Connectivity Devices Include PC Media on TV, Internet Photo Frame, Green Ethernet, Dual Band Routers, IP Cameras, Network Storage and File Sharing
|
January 7, 2008

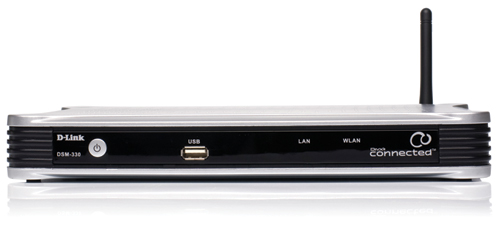

D-Link® DSM-330 DivX Connected™ HD Media Player Brings a High-Quality Media Experience From the PC and Internet Directly to TV
|
|
|
High Definition DivX Video
DivX Connected™ finally makes HD on your TV a reality with high-quality DivX video playback at up to HD 720p. Use HDMI (included) for the best quality or S-video, component or composite cables for your standard definition TV or HDTV.
Power to the PC
Leverage your PC power and enjoy fast, smooth, stutter-free video, music and photo playback in a rich, remote-controlled TV interface1, and add new functionality with a quick update to the DivX Connected server software. The DSM-330’s only function is to stream media to your TV, making it infinitely scalable with add-on services3 and plug-ins.
Easy Setup
The installation wizard helps you connect the DSM-330 to your network and TV, as well as set up and scan your media. It comes with all necessary cables and DivX Converter—a simple software program4 to convert videos to the DivX format on your PC.
Foundation of Your Digital Home
Add the DSM-330 to your wired or wireless home network and access media from all your PCs, hard drives and the Internet. Stream music, photos and video using wireless 802.11g or an Ethernet connection and enjoy the high-quality media experience in your home theater.
1. Use wired connection for improved media performance. Additional hardware, software or services may be required to access online media.
2. Remotely accessing certain content over your home network may be limited by content protection mechanisms and require authorization from content owner/service provider. See D-Link Tech Support site for supported DRM solutions.
3. Services will vary; content restrictions may apply. Wireless and network performance varies with specific hardware and software configurations, usage and environmental interference. Use wired connection for improved media performance.
4. Includes DivX Converter software for easy conversion of files to DivX. Supports MPEG-1, WMV 7-9, DivX 3-6, Xvid, MJPEG, Motion JPEG.
| Specifications | | Standards | | • | HDMI | | • | IEEE 802.11g | | • | IEEE 802.3/3u | | • | TCP/IP | | • | HTTP |
| | Video Outputs | | • | HDMI | | • | Component | | • | Composite | | • | S-Video | | • | SCART |
| | Audio Outputs | | | Antenna | | • | Type: 2.4 GHz Swivel-type | | • | Frequency: 2.4 to 2.5 GHz | | • | Impedance: 50 Ohms | | • | Gain: 2dBi |
| | Supported Video Formats*,** | | • | DivX, including DivX VOD files*** | | • | Xvid with MP3 or PCM | | • | WMV9 (transcoded on PC)**** |
| | Supported Audio Formats** | | • | MP3 (up to 360 kbps) | | • | WMA (transcoded on PC)**** | | • | M3U, M3U8 and PLS |
| | Supported Image Formats** | | • | JPEG (grayscale, RGB & YCbCy only) | | • | JPEG 2000 | | • | BMP (non-compressed) |
| | Network | | • | Wireless: 802.11b/g | | • | Ethernet | | • | DHCP or static IP address |
| | Wireless Security | | • | WPA (TKIP/AES) | | • | WPA2 (TKIP/AES) | | • | WEP (up to 128 bit) |
| | Power Input | | | Dimensions | | | Weight | | | Temperature | | • | Operating: 32°F to 113°F (0ºC to 45ºC) | | • | Storage: -13°F to 131°F (-25ºC to 55ºC) |
| | Humidity | | • | 10% to 95% Non-Condensing |
| | Certifications | | • | FCC Class B | | • | CE | | • | C-Tick | | • | CSA International | | • | DivX Connected |
| | Warranty | | Minimum System Requirements
(for Standard Definition) | May require a graphics driver update| • | 1.6 GHz processor | | • | Windows Vista® or Windows® XP | | • | 60 MB HDD space | | • | 512 MB system RAM | | • | OpenGL-enabled video card | | • | Wired or wireless network |
| Recommended System Requirements
(for High Definition) | May require a graphics driver update| • | 2.6 GHz processor | | • | Windows Vista® or Windows® XP | | • | 60 MB HDD space | | • | 1 GB system RAM | | • | Hardware-accelerated OpenGL-enabled video card | | • | Wired or 802.11g network (Wired connection recommended) |
|
|
* Advanced Simple Profile only without quarter pixel or global motion compensation.
** Device supports the codec file formats listed herein. However, D-Link cannot guarantee full compatibility or proper playback with all such codec files due to modifications and/or variations that may occur in user-encoded codec files.
*** Plays all versions of DivX video up to 720p.
**** Transcoding performance varies depending on file type and PC performance.
***** 1-Year Limited Warranty available only in the USA and Canada.
Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
